HELS. Founded in February 2012, HELS emerged from the collaboration of industry experts with over two decades of experience. They aim to deliver top-notch technical services and integrate their vast expertise into product development.

With a commitment to leveraging its existing knowledge, cutting-edge technology, advanced machinery, and skilled workforce, HELS aspires to establish itself as a prominent international brand in its industry.

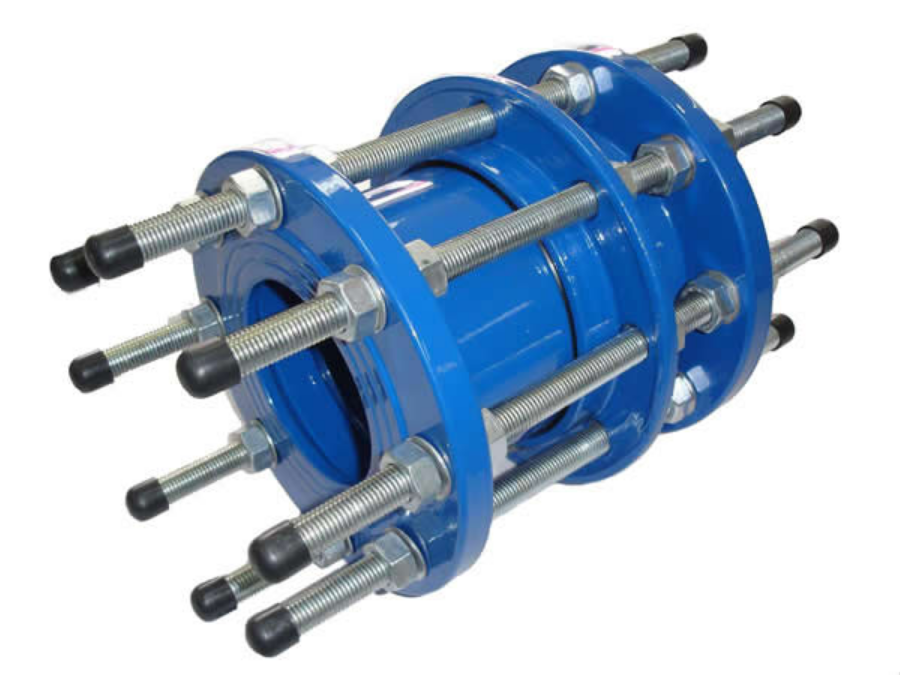

  • Material Structure: Body Pipe: GGG 40-50
  • Stud and Nut: Steel Galvanized
  • Connection: Flanged
  • Operating Temperature: - from 10 ° C to + 80 ° C
  • Pressure Class: PN10 / PN16
  • Sealing Ring: EPDM
  • Nominal Diameter: DN100 (4 ”) - DN2000 (80”)
  • Metallic Expansion Joint - Tie Rods - Vibration Absorber
  • Bellow:  Aisi 304/321
  • Tie-rod: St37,2
  • Flange: St37,2
  • Connection: Floating Flange X Floating Flange
  • Pressure: Pn16
  • Temperature: -80/+427oc
  • Bellow: Aisi 304/321

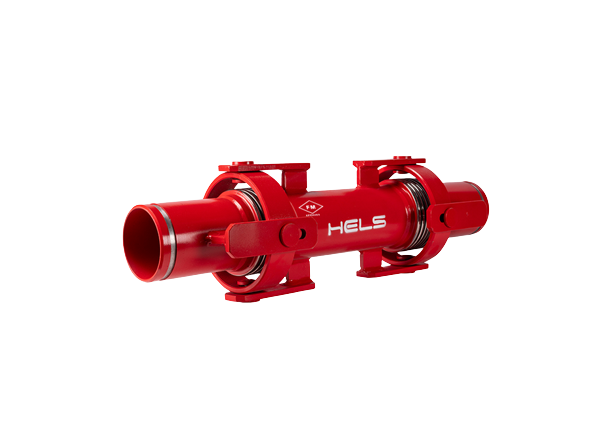

  • Grooved End & Intermediate Pipe: St37,2
  • Gimbal: St37,2
  • Connection:Grooved Ends
  • Pressure: PN16
  • Temperature: -80/+427oc
  • Bellow: Aisi 304/321
  • Intermediate Pipe: St37,2
  • Gimbal: St37,2
  • Connection: Butt Weld X Butt Weld
  • Pressure: PN16
  • Temperature: -80/+427oc

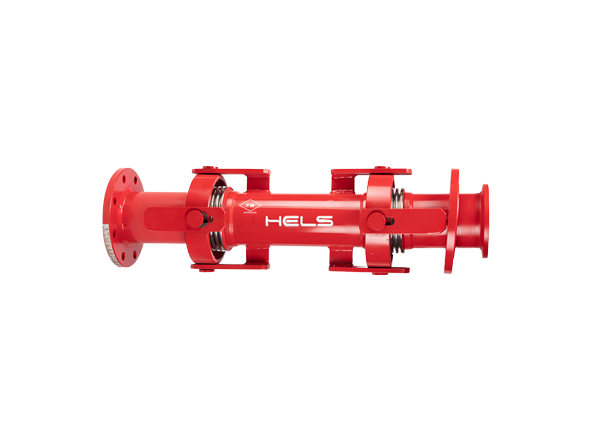

  • Bellow: Aisi 304/321
  • Intermediate Pipe: St37,2
  • Flange : St37,2
  • Gimbal: St37,2
  • Connection: Floating Flange X Fixed Flange
  • Pressure: PN16
  • Temperature: -80/+427oc
  • Bellow: Aisi 304/321
  • Groooved end & Intermediate Pipe: St37,2
  • Gimbal: St37,2
  • Connection: Grooved Ends
  • Pressure: PN16
  • Temperature: -80/+427oc
  • Bellow: Aisi 304/321
  • Intermediate Pipe: St37,2
  • Gimbal: St37,2
  • Connection: Butt Weld X Butt Weld
  • Pressure: PN16
  • Temperature: -80/+427oc
  • Bellow: Aisi 304/321
  • Intermediate Pipe: St37,2
  • Flange: St37,2
  • Gimbal: St37,2
  • Connection: Floating Flange X Fixed Flange
  • Pressure: PN16
  • Temperature: -80/+427OC
  • Bellow: Aisi 304/321
  • Tie-Rod: St37,2 Flange: St37,2
  • Intermediate Pipe: St37,2
  • Connection: Butt Weld X Butt Weld
  • Axial Movement:  Dn25-dn50 -15/+15mm ; D65-dn300 -30/+30mm
  • Lateral Movement: -25/+25mm; -50/+50mm; -75/+75mm; -100/+100mm
  • Pressure: PN16
  • Temperature: -80/+427OC
  • Bellow: Aisi 304/321
  • Tie-Rod: St37,2
  • Flange: St37,2
  • Intermediate Pipe: St37,2
  • Connection: Butt Weld X Butt Weld
  • Axial Movement:  Dn25-dn50 -15/+15mm ; D65-dn300 -30/+30mm
  • Lateral Movement: -25/+25mm; -50/+50mm; -75/+75mm; -100/+100mm
  • Pressure: PN16
  • Temperature: -80/+427OC

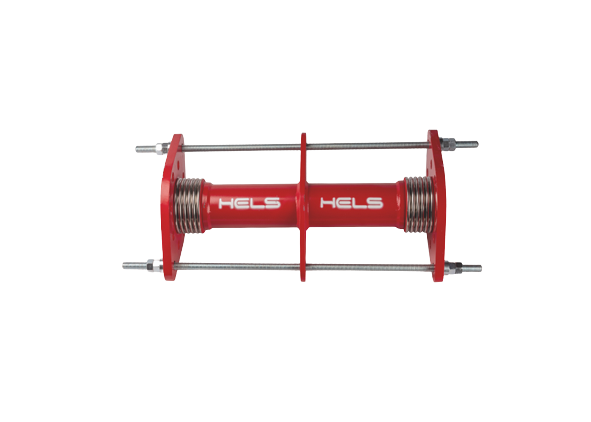

  • Bellow:  Aisi 304/321 Tie-Rod: St37,2
  • Flange: St37,2
  • Intermediate Pipe: St37,2
  • Connection: Floating Flange x Floating Flange
  • Axial Movement:  DN25-DN50 -15/+15mm ; D65-DN300 -30/+30mm
  • Lateral Movement: -25/+25mm; -50/+50mm; -75/+75mm; -100/+100mm
  • Pressure: PN16
  • Temperature: -80/+427OC
  • Bellow: Aisi 304/321
  • Inner and Outer: St37,2
  • Butt Weld: St37,2
  • Connection: Butt Weld X Butt Weld
  • Pressure: PN16
  • Temperature: -80/+427oc
  • Bellow: Aisi 304/321
  • Inner and Outer Pipe: St37,2
  • Flange: St37,2
  • Connection: Floating Flange X Fixed Flange
  • Pressure: PN16
  • Temperature: -80/+427oc

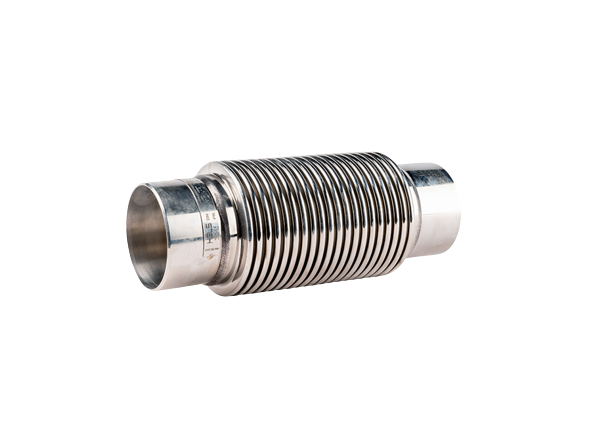

  • Bellow: Aisi 304/321
  • Butt Weld: St37,2
  • Inner Sleeve: Aisi 304/321
  • Connection: Butt Weld X Butt Weld
  • Pressure: PN16
  • Temperature: -80/+427oc

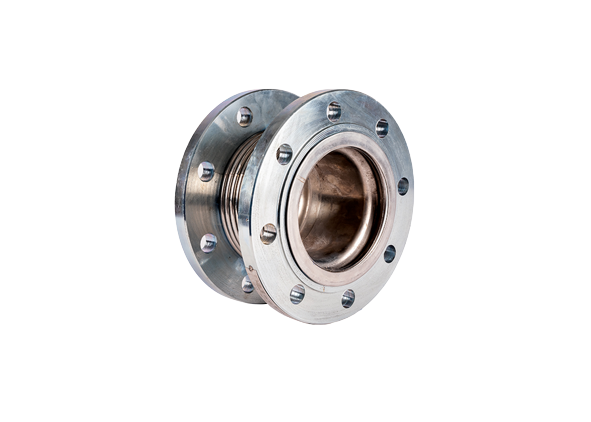

  • Bellow: Aisi 304/321
  • Flange: St37,2
  • Inner Sleeve: Aisi 304/321
  • Connection: Floating Flange x Floating Flange
  • Pressure: PN16
  • Temperature: -80/+427oc

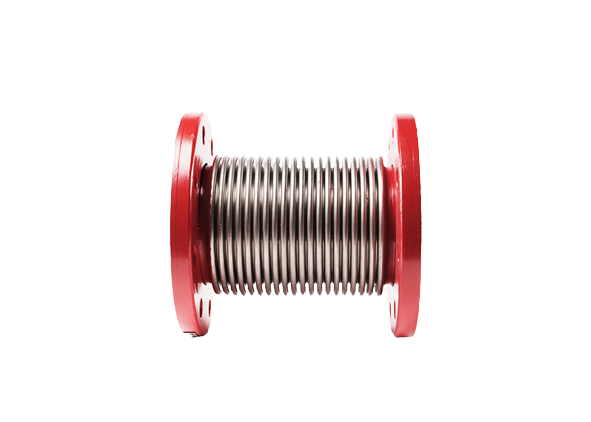

  • Bellow: Aisi 321
  • Inner Sleeve: Aisi 321 Flange : ST37,2
  • Connection: Fixed Flange X Fixed Flange
  • Pressure: PN16
  • Temperature: -80/+427oc

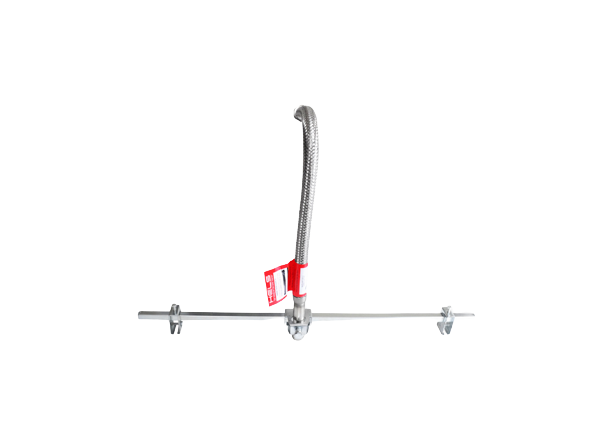

  • Hose: Stainless Steel
  • Braiding: Stainless Steel
  • Fittings: Carbon Steel
  • Size: DN 20 (3/4")-dn 25 (1")
  • Line Connection: 1" Nipple
  • Sprink Connection: 1/2" ,3/4"
  • Connection: 16 Bar
  • Min.radius: 200 Mm
  • Hose Size: From 500mm to 2000mm
  • Hose: Stainless Steel
  • Braiding: Stainless Steel
  • Connection: Grooved
  • Connection Material: Carbon Steel (Stainless Steel is Also Available)
  • Elbow Material: Carbon Steel (Stainless Steel is Also Available)
  • Pressure: PN6-10-16

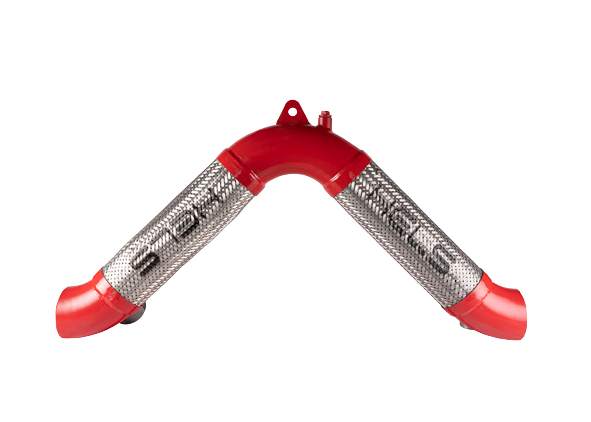

  • Hose: Stainless Steel
  • Braiding: Stainless Steel
  • Connection: Butt Welded Connection Material: Carbon Steel (Stainless Steel is Also Available)
  • Elbow Material: Carbon Steel (Stainless Steel is Also Available)
  • Pressure: PN6-10-16

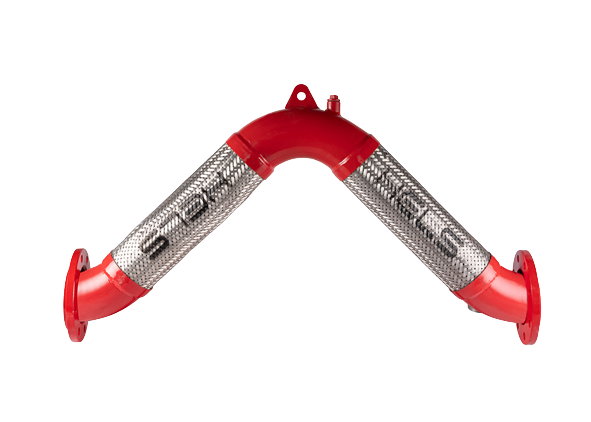

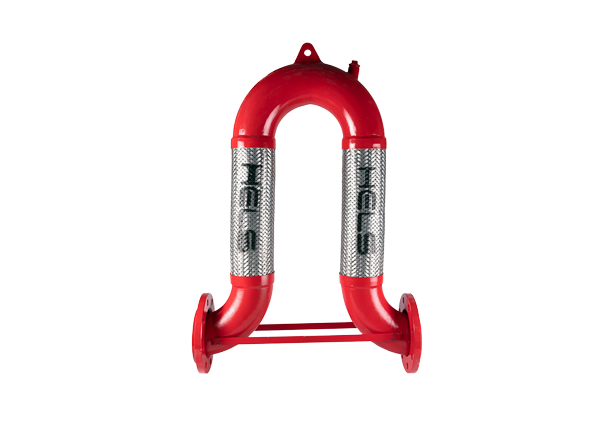

  • Hose: Stainless Steel
  • Braiding: Stainless Steel Connection: Flanged
  • Connection Material: Carbon Steel (Stainless Steel is Also Available)
  • Elbow Material: Carbon Steel (Stainless Steel is Also Available)
  • Pressure: PN6-10-16
  • Hose: Stainless Steel
  • Braiding: Stainless Steel Connection: Grooved
  • Connection Material: Carbon Steel (Stainless Steel is Also Available)
  • Elbow Material: Carbon Steel (Stainless Steel is Also Available)
  • Pressure: PN6-10-16
  • Hose: Stainless Steel
  • Braiding: Stainless Steel
  • Connection: Butt Welded
  • Connection Material: Carbon Steel (Stainless Steel is Also Available)
  • Pressure: PN6-10-16
  • Hose: Stainless Steel
  • Braiding: Stainless Steel
  • Connection: Flanged
  • Connection Material: Carbon Steel (Stainless Steel is Also Avaliable)
  • Pressure: PN6-10-16

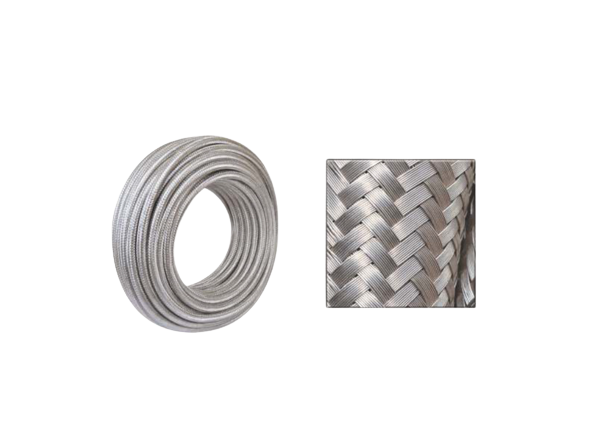

  • Hose: Stainless Steel
  • Braiding: Stainless Steel
  • Fittings: Carbon Steel, Stainless Steel,
  • Brass Insulation: Elastomeric
  • Foam Connection: Malexfemale, Malexmale, Femalexfemale

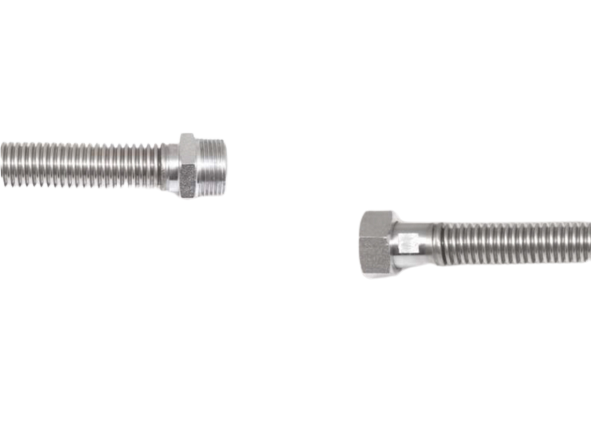

  • Hose: Stainless Steel
  • Braiding: Stainless Steel
  • Fittings: Carbon Steel, Stainless Steel, Brass
  • Connection: Malexfemale, Malexmale, Femalexfemale
  • Hose: Stainless Steel
  • Fittings: Carbon Steel, Stainless Steel, Brass
  • Insulation: Elastomeric Foam
  • Connection: Malexfemale, Malexmale, Femalexfemale
  • Hose: Stainless Steel
  • Fittings: Carbon Steel, Stainless Steel, Brass
  • Connection: MalexFemale, MalexMale, FemalexFemale
  • Hose: Stainless Steel
  • Fittings: Carbon Steel, Stainless Steel, Brass
  • Pressure: From 0,2 Bar to 50 Bar
  • Diameter: From DN12 to DN300
  • Hose: Stainless Steel
  • Fittings: Carbon Steel, Stainless Steel, Brass
  • Pressure: From 5 Bar to 200 Bar
  • Diameter: From DN10 to DN300
  • Hose: Stainless Steel (AISI 316,321,304)
  • Braid: Stainless Steel (AISI 304)
  • Working Temperature: -196,+600
  • Diameter: From DN10 to DN300
  • Hose: Stainless Steel (AISI 316,321,304)
  • Braid: Stainless Steel (AISI 304)
  • Working Temperature: -196,+600
  • Diameter: From DN10 to DN300
