Vacuum Switches, Sensors, Transducers & Gauges
Introducing our comprehensive collection of Vacuum Switches, Sensors, Transducers, & Gauges designed to meet diverse industrial needs with precision and reliability.
EUROSWITCH Model 35 Vacuum Switch: Made with brass (or stainless steel), this switch ensures superior performance. It has options for silver AgNi or gold-plated electric contacts. With a max switch voltage of 48V ac/dc and a working pressure of 10 bar, it's an ideal choice for various applications.
TRANSDUCERS Direct TDH31 Vacuum Transducer-Transmitter: This compact OEM pressure transmitter guarantees precise readings with ranges from -1 to 6 bar and 1% accuracy. Its stainless steel element and versatile thread options make it a reliable choice.
Orion FC Series Vacuum Switch: Designed for up to 12 bar working pressure, this switch offers SPDT or DPDT switching options with stainless steel wetted parts, ensuring durability and accuracy.
BECK Pressure Switch 901 Prescal: With a temperature range from –20°C to +85°C and options for diaphragm materials like NBR, Silicone, FKM (Viton®), or EPDM, this switch is engineered for durability and versatility.
Explore our full range of Vacuum Switches, Sensors, Transducers, and gauges for unparalleled performance and reliability in your industrial applications.
- Case Brass: (on request Stainless Steel )
- Electric contacts: Silver AgNi, on request gold plated
- Electrical connection: N.O. (White ) N.C. (Brown )
- Max switch voltage: 48V ac / dc
- Max switch current: 0,5A
- Max fluid temperature: 80°-120°C (depending on diaphragm)
- Max Overpressure limit: 15 bar
- Max Working pressure: 10 bar
- Weight ~ 70 gr
 |
Technical Datasheet |

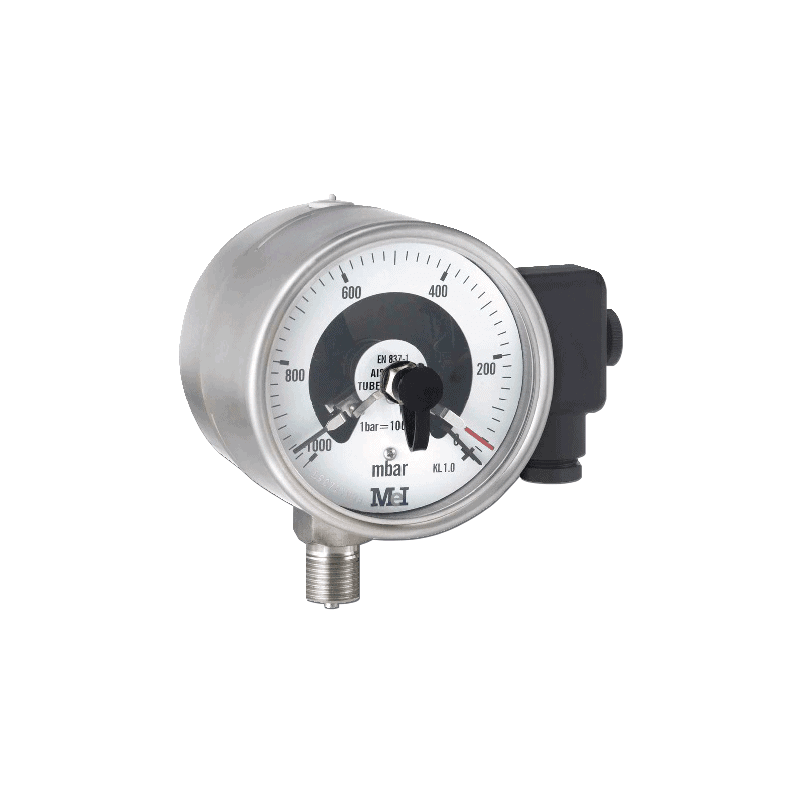

- Ranges up to 1000 bar
- Compound and Vacuum Options
- Ø 100 or 150mm Case Options
- Electrical Switch Contacts
- Surface, inserted and Inductive Options
- 1/2″ BSP Bottom Entry
- Choice of One to Two Contacts
- TDH31 Series Compact OEM Pressure Transmitters & Transducers 4-20mA / 0 -10V (Other outputs available)
- Ranges from -1 to 6 bar
- 1% accuracy
- 8 – 28 Vdc Supply Voltage
- Operating Temperatures -20°C to 80°C
- 316L Stainless Steel Element
- 1/4″ BSP Parallel Thread Standard (Others Available)
|
Technical Datasheet |
- Working pressure up to 12 bar
- SPDT or DPDT switching
- Reliable, accurate micro switches
- 1/4” BSP thread (others available)
- 316 stainless steel wetted parts
- ATEX Exd IIC T6 level of certification
|
Technical Datasheet |
- Vacuum Switch ≤ 250V SPDT CO Contacts
- -200 / - 900 mbar adjustment ranges
- Over-pressures up to 15 bar
- Max working pressures up to 10 bar
- 1/4” BSP thread (others available)
- NBR seal or CR seal
- Brass body
|
Technical Datasheet |
- Vacuum Switch ≤ 250V
- NO or NC Contacts
- -200 / -900 mbar adjustment range
- Over-pressures up to 35 bar
- Max working pressures up to 25 bar
- 1/4” BSP thread (others available)
- NBR seal or CR seal
- ATEX option available
|
Technical Datasheet |
- Case Brass: (on request Stainless Steel)
- Electric contacts: Silver AgNi, on request gold plated
- Electrical connection: N.O. (White ) N.C. (Brown )
- Max switch voltage: 48V ac / dc
- Max switch current: 0,5A
- Max fluid temperature: 80°-120°C (depending on diaphragm)
- Max Overpressure limit: 35 bar
- Max Working pressure: 25 bars
- Protection degree IP00 with cover 3015010 IP54
- Weight ~ 90 gr
|
Technical Datasheet |

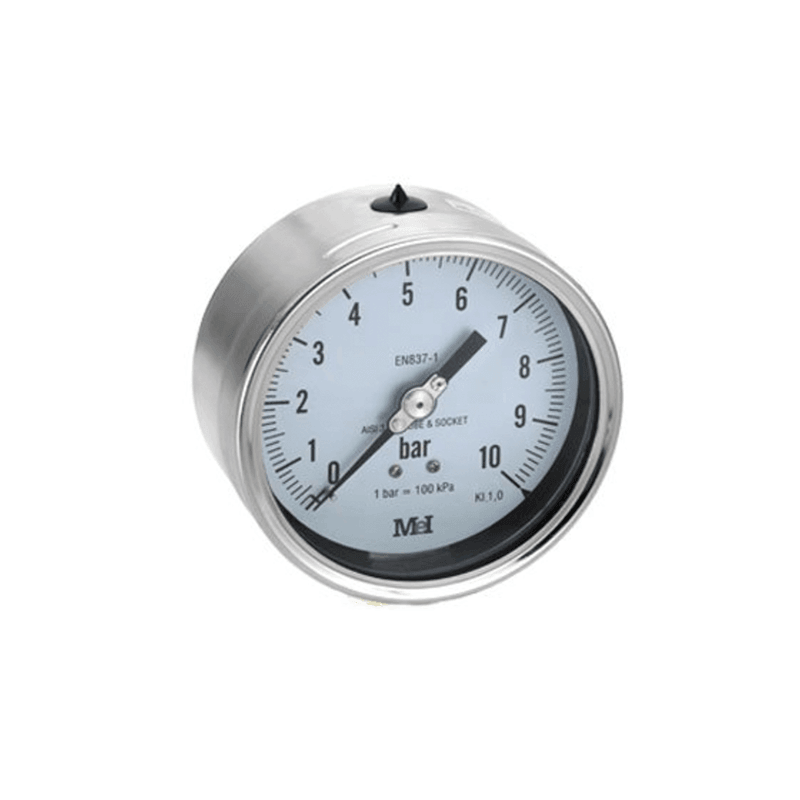

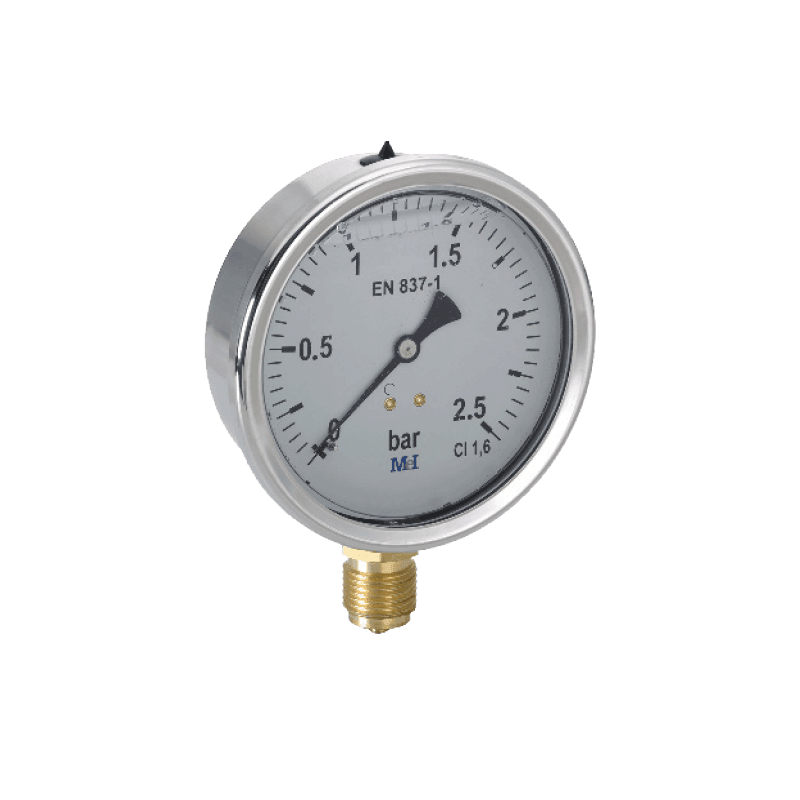

- Compound and Vacuum Options
- Top, Back, Bottom Entry Options
- Ø 40,50, 63, 100 or 150mm Case Options
- Brass Internals or Stainless Steel
- Brass or Stainless Body
- Dry or Glycerine Filled
- Choice of 1/8″, 1/4″, 1/8″ BSP Thread
- All Stainless Steel Wetted Parts for Maximum Media Capability
- Industrial Grade Pressure Transducer
- Overpressure protection to 3x
- Vac to 285 psi or 3 to 10,000 psi Range
- 9.4 Mini Din and Packard Electrical Connectors
- Better 0.4% Accuracy
- Custom Outputs and Ranges Available
- CE, RoHS, REACH, and Prop 65 Compliant
|
TDH43 Technical Datasheet |
- All Stainless Steel Wetted Parts for Maximum Media Compatibility
- Industrial Grade Pressure Transducer
- Overpressure protection to 3x
- Vac to 285 psi or 3 to 10,000 psi Range
- 9.4 Mini Din and Packard Electrical Connectors
- 1% Accuracy
- Custom Outputs and Ranges Available
- CE, RoHS, REACH, and Prop 65 Compliant
|
TDH33 Technical Datasheet |
- Total Digital Design Pressure Transducer Voltage and Current outputs
- Custom pressure ranges and outputs available
- Spike Monitoring Technology
- 24V Digital Output
- Low Current Consumption
|
Technical Datasheet |
- Flameproof ATEX Exd Switch with an Adjustable Change Over Contacts (SPDT) or (DPDT)
- For Adjustable Switching Pressure Ranges Up to 400 bar.
- 1/4″ BSP Female Thread (Others Available)
- Stainless Steel Diaphragm (Others Available)
- Range -1 to +3.6 Bar
- Maximum working pressures up to 12 bar
|
Technical Datasheet |
- Temperature range: Ambient temperature from –20°C to +85°C
- Diaphragm material: NBR, Silicone, FKM (Viton® ), EPDM.
|
Technical Datasheet |
