ATEX Level
- Screw-in-thread
- Brass/Stainless Steel materials
- Highly reproducible
- Normally open or normally closed contact
- ATEX approved

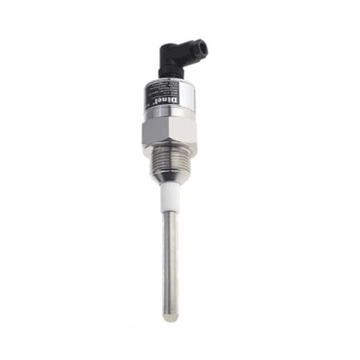

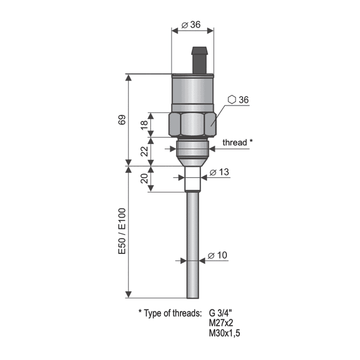

- High frequency limit level sensors
- For reliable limit level sensing of a variety of fluids
- ‘Medium Window’ function
- High stability at high sensitivity
- Adjustment with the magnetic pen
- Max output 300mA
- For limit level sensing of liquid, and bulk-solid and powder materials
- Universal using (bulk solids, liquids, aggressive materials, petroleum products etc.)
- Direct mounting into various containers, silos, vessels, tanks, filling inlets, reservoirs, etc.
- Sensitivity and hysteresis fluently adjustable
- Output types NPN, PNP, NAMUR

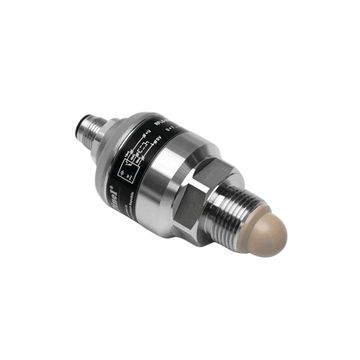

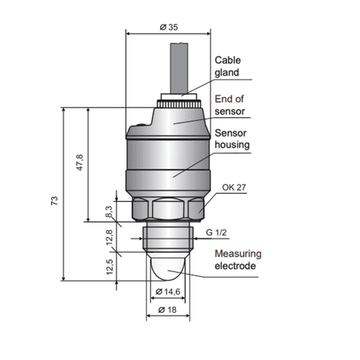

- Limit Level Sensor for Various Liquids
- Conductive / Non-Conductive Fluids
- Suitable for High Temperatures
- 1/2” BSP thread (Others Available)
- Easily Adjustable Sensitivity
- ATEX versions available

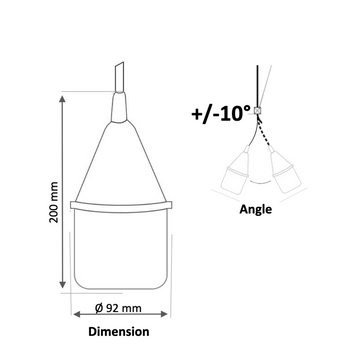

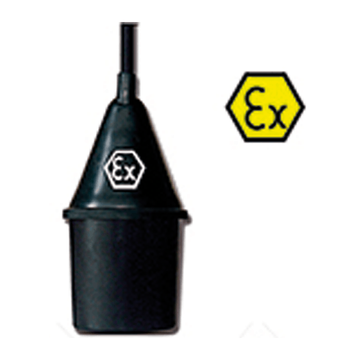

- Tilting Operation
- Switching angle+/- 10º
- Temperature -20º to 70ºC
- Bulk Solids High Level Measurement
- 10A resistive - 4A inductive
- 5, 10, 15, 20, 25 and 30m Options
- Tilting Operation
- Switching angle+/- 10º
- Temperature -20º to 70ºC
- Bulk Solids High Level Measurement
- 10A resistive - 4A inductive
- 5, 10, 15, 20, 25 and 30m Options
- 1 to 6 switch points Up to 5m length.
- Up to 6 bar max working pressure
- Working temperature
- Up to 130°C IP65
- Rated Choice of Threads
- Terminal head, Flying Leads, DIN connector Options.

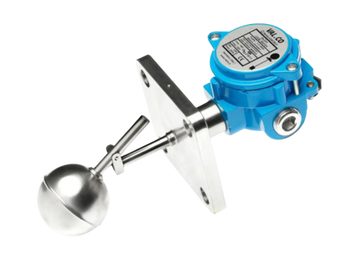

- Various Floats Available ATEX Exd

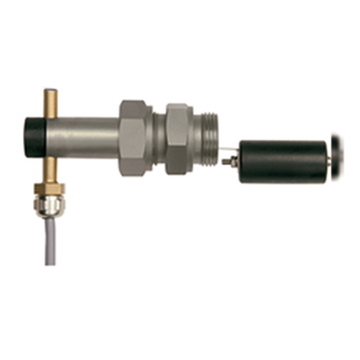

- Stainless steel – AISI 316
- SPDT reed contact
- Maximum working pressure 25 Bar
- Maximum working temperature 150 °C
- Degree of protection IP65
- ATEX Exia or Exd construction are available
Downloads
![]() |
Technical Datasheet |

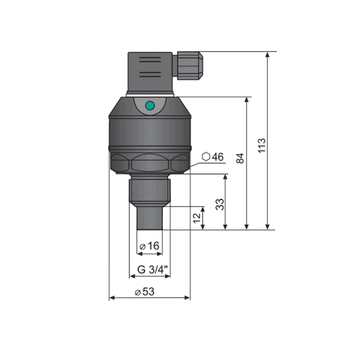

- Variants of adjustment by two buttons or by magnetic pen
- Wide range of electric connections
- Additional horn adaptor to improve the measurement of unusual media
- ATEX versions available

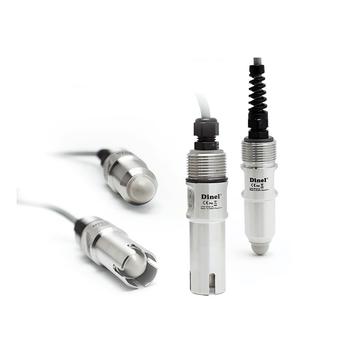

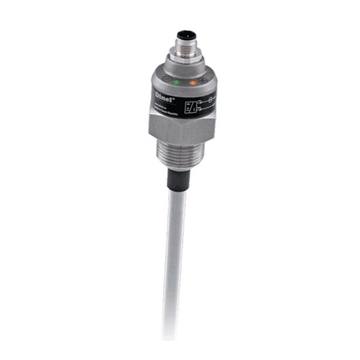

- Limit Level Sensor for Viscous Liquids
- Resistant to Adhesion of Sticky Media
- Conductive / Non-Conductive Fluids
- 1/2” BSP thread
- Media Recognition Settings
- Highly Sensitive and Reliable

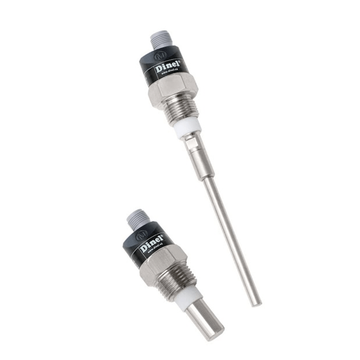

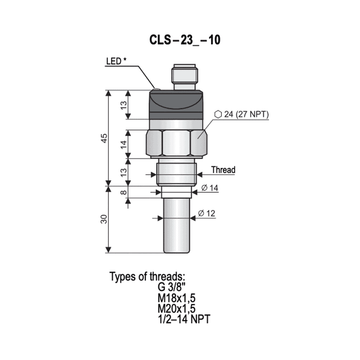

- Universal use for limit level sensing of liquids and bulk solids
- Direct mounting into tanks, vessels, sumps and tubes or silos and hoppers
- Setting using a magnetic pen
- Mode for quick sensor setting without the presence of medium
- Optical indication by two LEDs
- Wide selection of connections: connector or cable glands
- Housing, electrodes and reference tubes made from stainless steel
- High stability upon high sensitivity (possible to use for materials with εr ≥ 1.3)

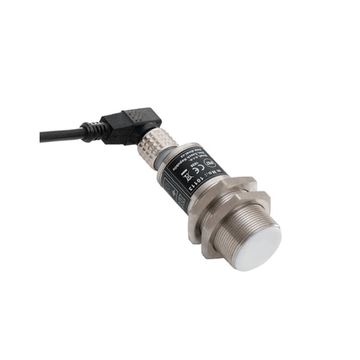

- Detect liquids in glass or plastic pipes, indicate liquids in inter-coat space of double coated tanks
- Adjustable sensitivity
- NPN, PNP or NAMUR output
- Material of housing and nut from stainless steel
- Version for usage in explosive areas
- LED state indication
- Omni Directional Operation
- Switching angle+/- 25º
- Maximum pressure 4 bar
- Allowed Fluid Density 0.70 to 1.15
- 16A resistive - 6A inductive
- 5, 10, 13, 15, 20, 25 and 30m Options
