Level Switches, Sensors & Indicators


  • All 304 grade stainless steel construction
  • Strong hinge pin and up to 5 bar pressure
  • 1/2” BSPT external fitting level switch
  • 300Vac/50VA
  • Instant Open and Close
  • Fully Mechanical operation
  • Max and Min level adjustment.
  • Fully Stainless Steel (AISI-316).
  • Fixing thread 1” or coupling connection
  • Tubular air connections 1/8”x 8 mm.
  • Omni Directional Operation
  • Switching angle+/- 25º
  • Maximum pressure 3.5 bar
  • Allowed Fluid Density 0.70 to 1.15
  • 16A resistive - 6A inductive
  • 5, 6, 10, 13, 15, 20 and 25 m Options

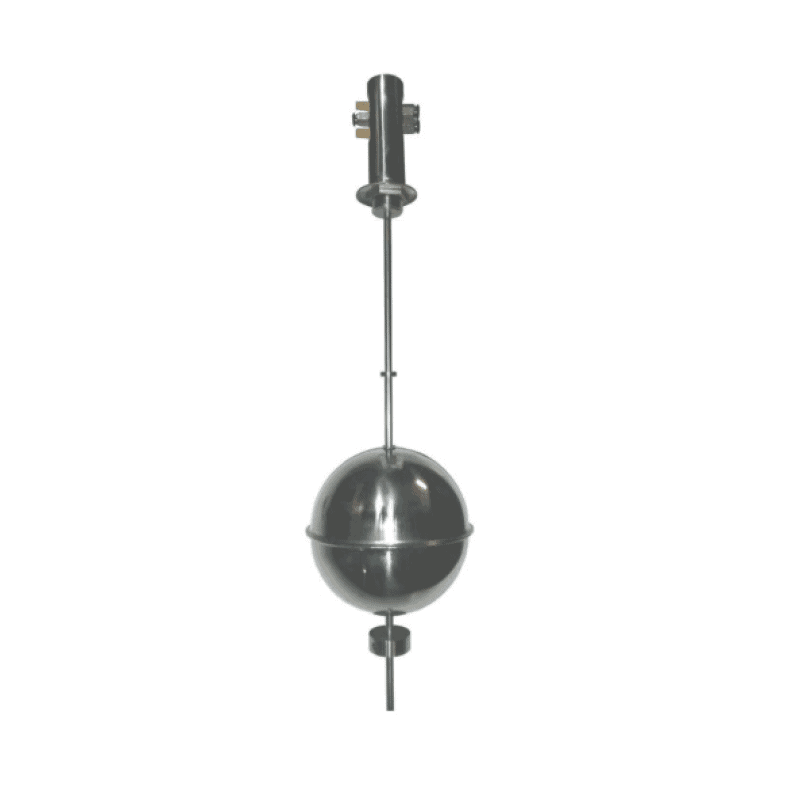

  • Stainless Side/Top Entry Pneumatic Option
  • All Stainless Steel Level switch
  • Horizontally or Vertically Mounted
  • Up to 100 bar maximum pressure
  • Min Specific gravity 0.7 optional 0.5
  • Flanged fitting, compatible with Mobrey Type A
  • Oil & water sensing options
  • Over-pressures up to 300 bar
  • Max working pressures up to 25 bar
  • 9 - 36Vdc supply range
  • Choice of Threads
  • IP67 Protection
  • Shocks,Vibrations,Temperature Resistant
  • Fully mechanical no power necessary
  • Stainless,Aluminium or Plastic options
  • Fully adjustable switching options
  • 4-20 mA output options
  • ATEX options available
  • 304 grade stainless steel construction
  • Strong hinge pin and up to 5 bar pressure
  • 1/8” BSP internal fitting option
  • N/O or N/C (reversible) contact
  • 300Vac/50VA
  • All 304 grade stainless steel construction
  • Strong hinge pin and up to 5 bar pressure
  • 1/2″ BSPT external fitting level switch
  • 300Vac/50VA
  • 500mm Flying Leads
  • Allowed fluid densities: 0,75 à 1,50 g/cm³
  • Electric characteristics: 250 VCA - 50/60 Hz
  • Cut-out power: 12 (6) A
  • Maximum pressure: 5,5 bars
  • Maximum temperature: 85 °C
  • Protection index IP 68
  • Housing: Copolymer polypropylene
  • Type of cable: Neoprene
  • Float weight without cable: 60 g
  • LED with Modifiable Display Units
  • Current, Voltage or Modbus Outputs
  • D Logic Signal Processing
  • Various Threads and Flange Options
  • Up to 20M Measurement Range
  • ATEX options available

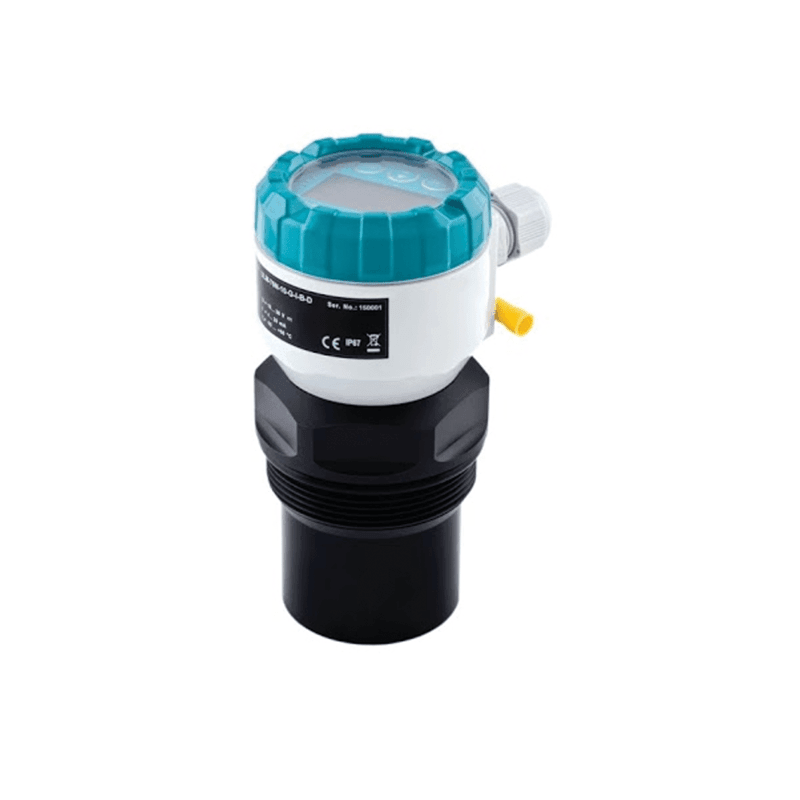

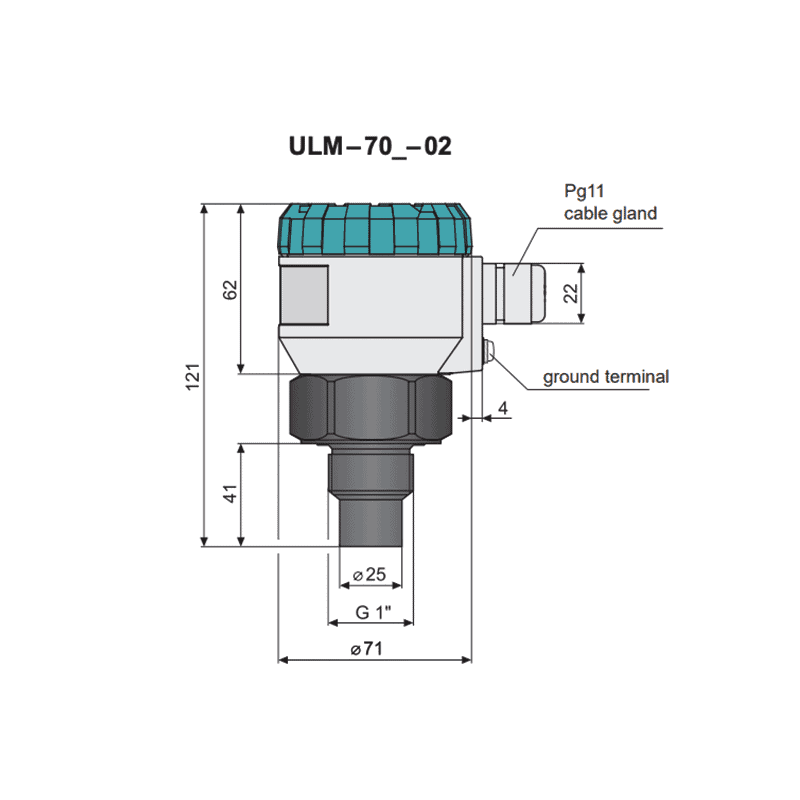

  • Non Contact Level Measurement
  • Current, Voltage or Modbus Outputs
  • Easy Adjustment and Setup
  • Various Threads and Flange Options
  • Up to 20M Measurement Range
  • ATEX options available
  • Highly accurate and precise
  • 2 Wire 4-20mA output
  • 200mm to 6000mm length options
  • Shock and vibration proof
  • Maintenance free
  • ATEX options available

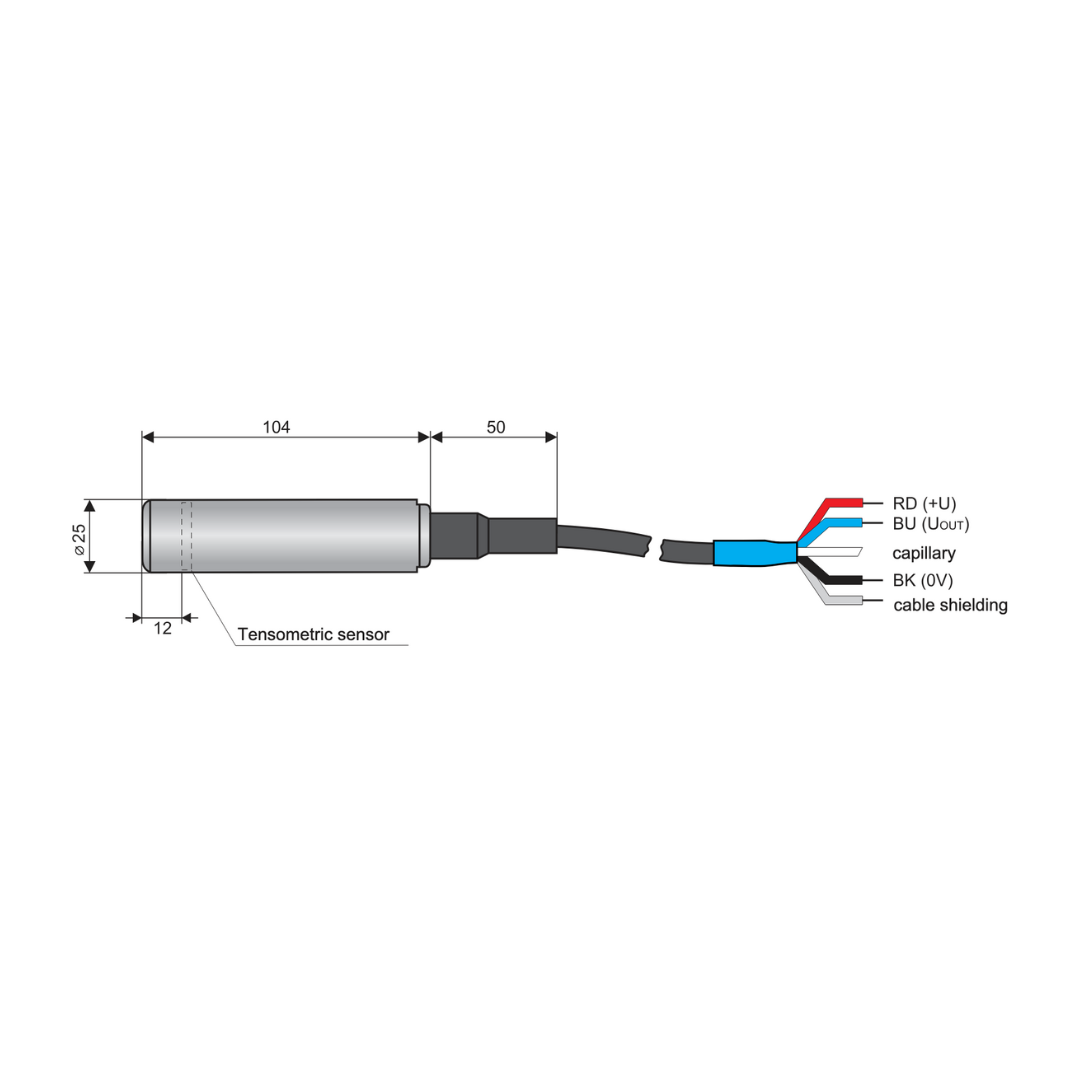

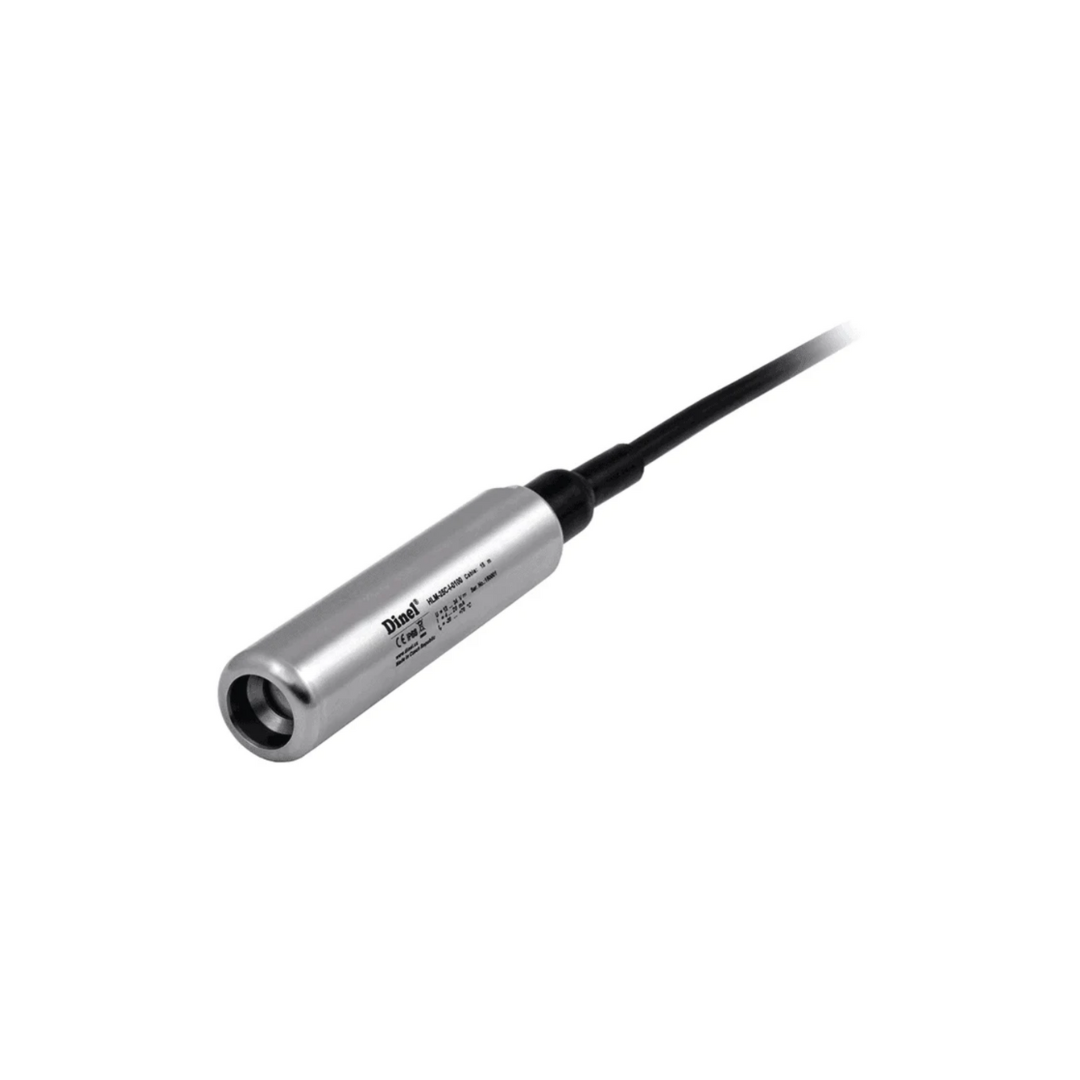

  • For continuous level measurement of clean, lightly soiled water
  • Precise measurement range up to 100 m (H2O)
  • The health certificate for contact with potable water available
  • Current or Voltage output
  • Easy "plug and play" installation without any settings
  • All 316 grade stainless steel
  • Pressures up to 40 bar
  • 120°C maximum temperature
  • N/O or N/C (reversible) contact
  • 1/8” BSP thread with nut
  • 300Vac/50VA
  • Australian Made
  • High and Low Level Control
  • 2 HP 1.5kW 20 AMP 500V S.P.D.T switch
  • No metal parts in contact with liquids
  • Heavy duty all metal housing
  • Weatherproof to IP67
  • Super reliable magnetic action
  • Nylon or NBR Float
  • Adjustable length to 1000 mm
  • NO/NC or SPDT Reed Switch
  • Temperature Switch Option (PKT)
  • IP65 with Din Connector Flange or 1” BSP Options
  • Nylon or NBR Float
  • Adjustable length to 1000 mm
  • NO/NC or SPDT Reed Switch
  • Temperature Switch Option (PKT)
  • IP65 with Din Connector Flange or 1” BSP Options
  • 1 to 6 switch points
  • Up to 6m length.
  • Up to 20 bar max working pressure
  • Working temperature Up to 105°C
  • IP65 Rated
  • ATEX Options Available
  • Polypropylene foamed float 18 Ø
  • Max Pressure 3 bar
  • Polyprop. top entry stem level switch
  • N/O or N/C (reversible) contact
  • 1/8” BSP thread with nut
  • 300Vac/66VA
  • Screw-in-thread
  • Brass/Stainless Steel materials
  • Highly reproducible
  • Normally open or normally closed contact
  • ATEX approved
  • Level detector and transducer
  • Ideal for polluitng liquids
  • No moving parts
  • Maintenance free
  • 100mm to 3000mm length options
  • 3⁄4“ BSP thread (others available)

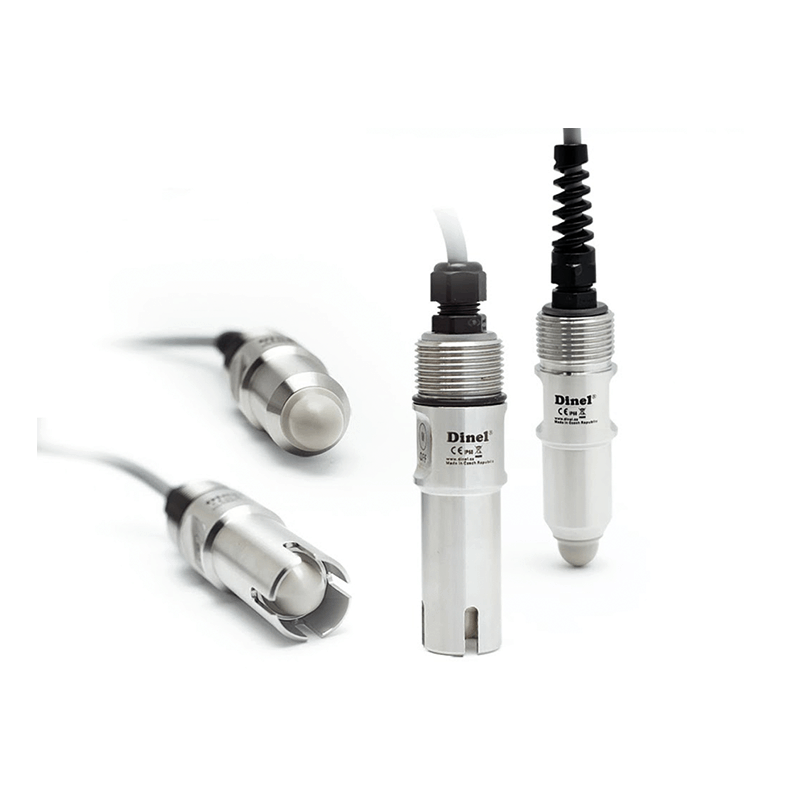

  • High frequency limit level sensors
  • For reliable limit level sensing of a variety of fluids
  • ‘Medium Window’ function
  • High stability at high sensitivity
  • Adjustment with the magnetic pen
  • Max output 300mA
  • Use: Water - Mineral oils - Diesel fuel - Petrol
  • Fixing: 1" gas AISI 304 (stainless steel on request)
  • Output signals: 4-20 mA ANALOG

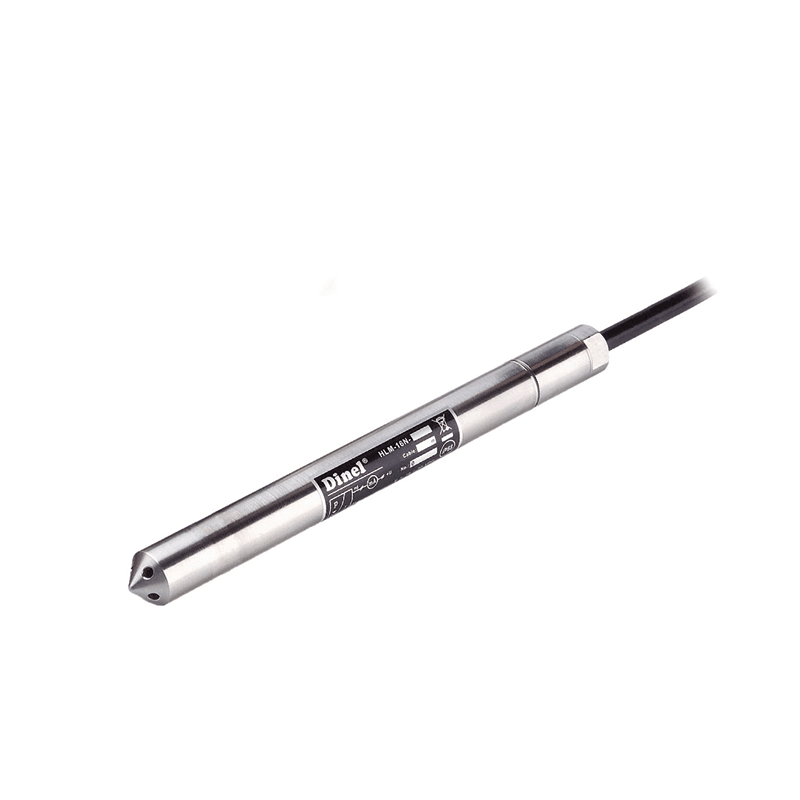

  • 4 to 20mA or 0-10V Output
  • 0.5 % Accuracy
  • Immersion Depth Up to 100m
  • 10cm Step Configurations
  • Fully Stainless Steel
  • Over Voltage Protection

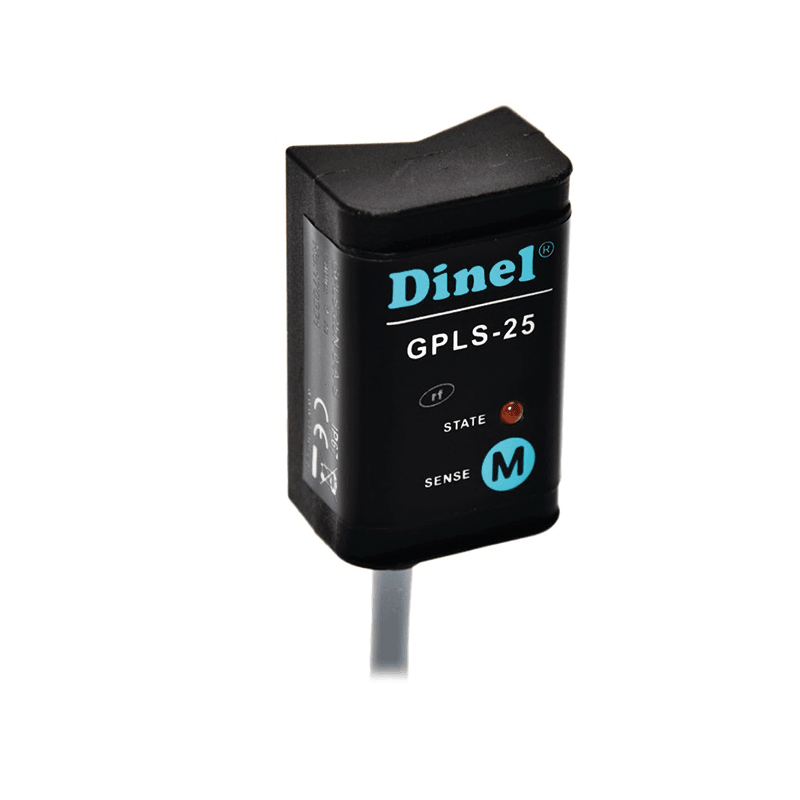

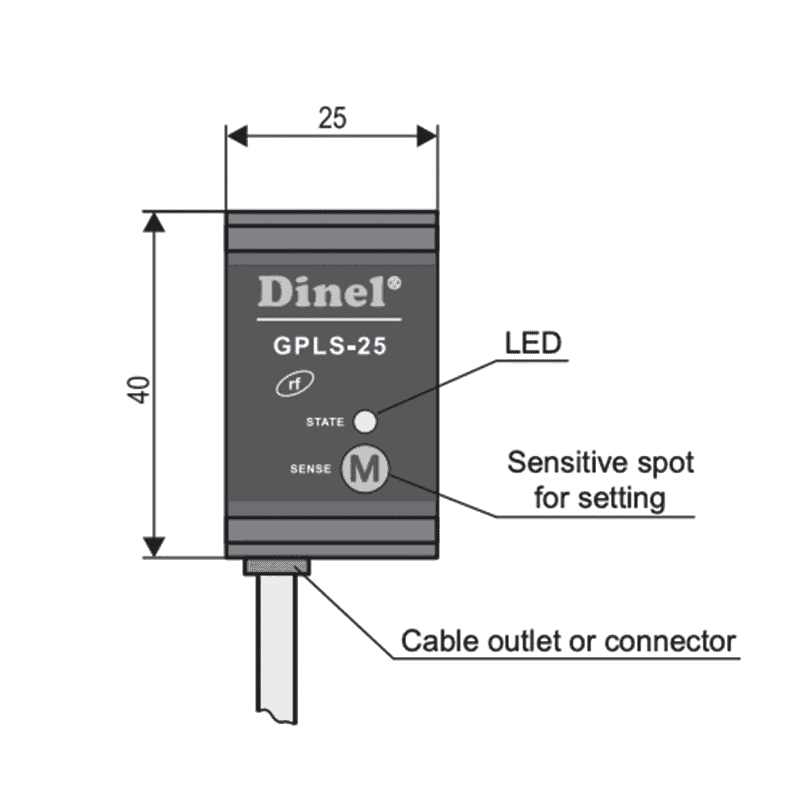

  • Level Sensing through 8mm Glass/Plastic
  • 2 or 3 Wire Connections
  • Simple Setup in Miniature Form Switch
  • Max Switching Current 40mA(PNP 100mA)
  • Temperature range of -20 to 80 °C
  • IP67 Rated

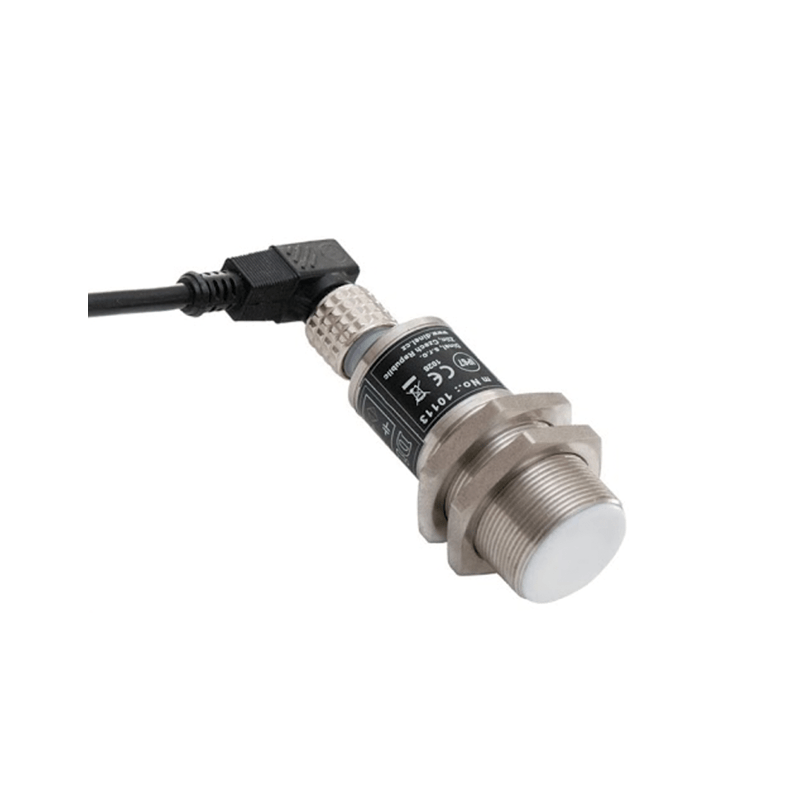

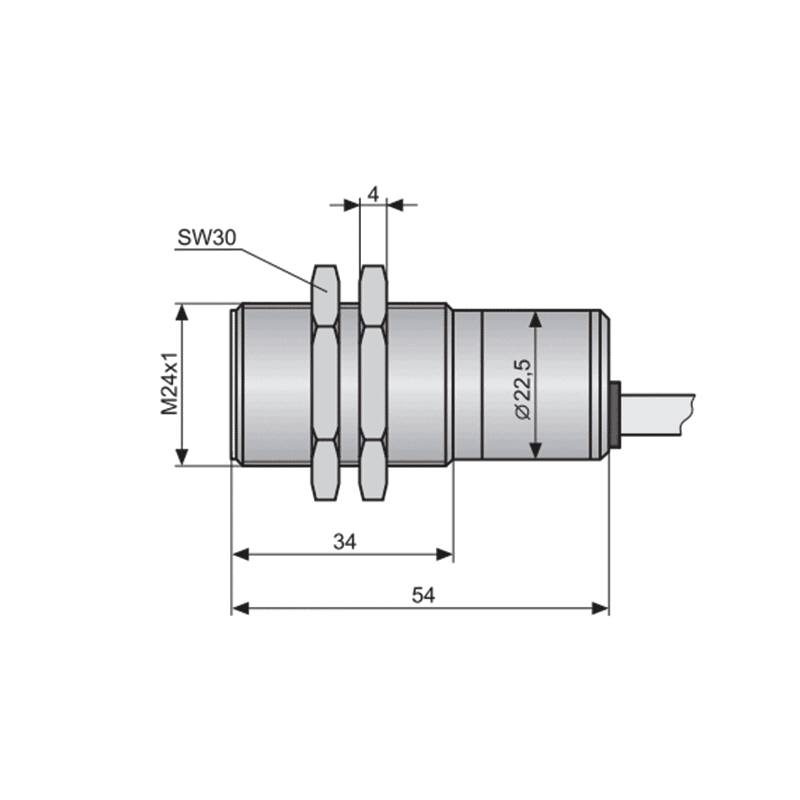

  • For limit level sensing of liquid, and bulk-solid and powder materials
  • Universal using (bulk solids, liquids, aggressive materials, petroleum products etc.)
  • Direct mounting into various containers, silos, vessels, tanks, filling inlets, reservoirs, etc.
  • Sensitivity and hysteresis fluently adjustable
  • Output types NPN, PNP, NAMUR

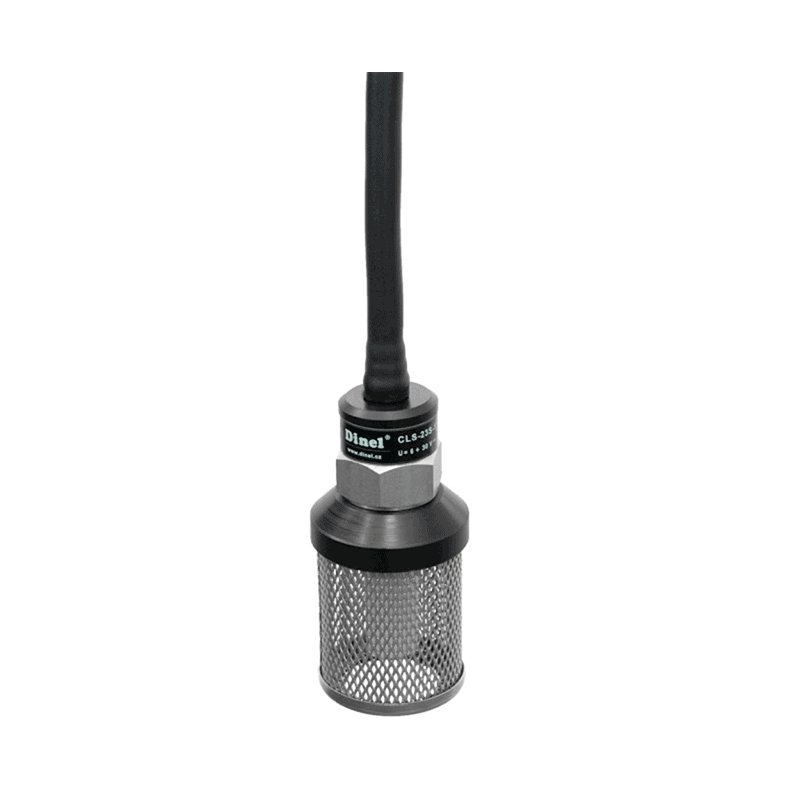

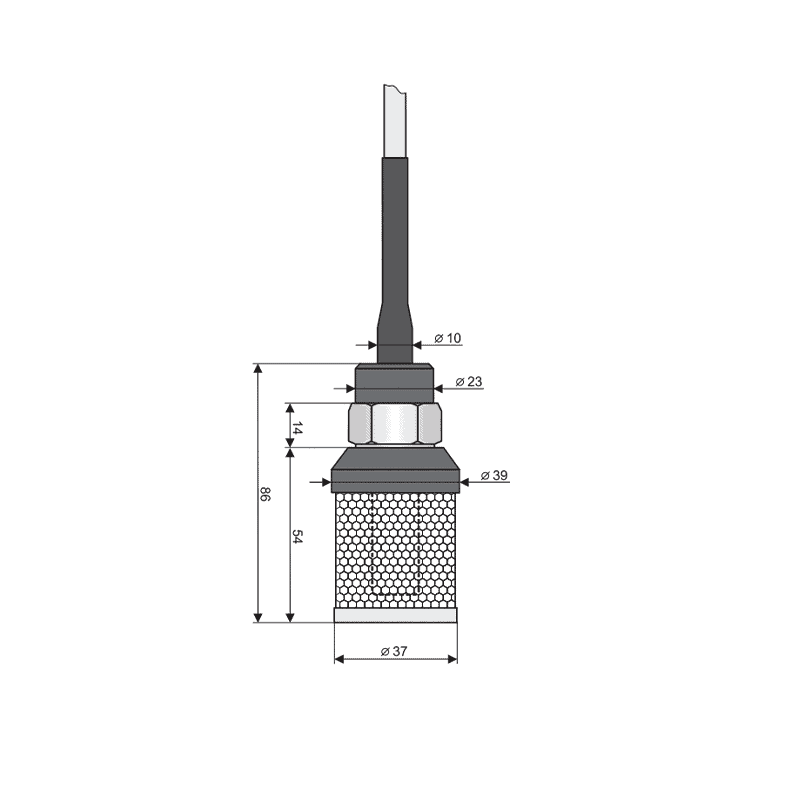

  • Level Detection for Wells / Boreholes
  • Maximum Immersion Depth 100m
  • 2 Wire Output to Relay or Control Unit
  • 2m Cable (Longer Available)
  • Stainless Steel Removable Basket
  • IP68 Protection

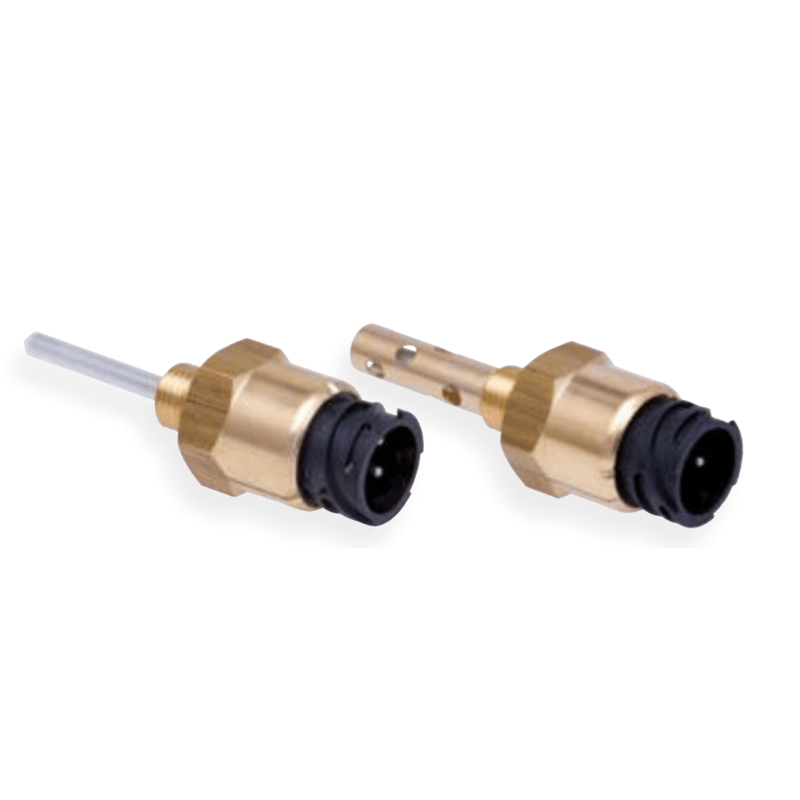

  • Limit Level Sensor for Various Liquids
  • Conductive / Non-Conductive Fluids
  • Suitable for High Temperatures
  • 1/2” BSP thread (Others Available)
  • Easily Adjustable Sensitivity
  • ATEX versions available
  • Direct tank mounting with flange
  • Electrode length from 0.1 m to 1 m
  • 4-20 mA or 0-10 V output
  • Easy Install with no settings required
  • IP68 rating
  • Housing & rod stainless steel
  • Important specification: Only in non ATEX area
  • Electric characteristics: 250 VCA 50/60 Hz
  • Cut-out power: 4 A
  • Maximum temperature: -20 - + 60°C
  • Protection index: IP 40 - 53
  • Membrane: Nitrilo
  • Body: Glass fiber reinforced plastic
  • Float weight without cable: 480 g
  • Tilting Operation
  • Switching angle+/- 10º
  • Temperature -20º to 70ºC
  • Bulk Solids High Level Measurement
  • 10A resistive - 4A inductive
  • 5, 10, 15, 20, 25 and 30m Options
  • Tilting Operation
  • Switching angle+/- 10º
  • Temperature -20º to 70ºC
  • Bulk Solids High Level Measurement
  • 10A resistive - 4A inductive
  • 5, 10, 15, 20, 25 and 30m Options
  • Tilting Operation
  • Switching angle+/- 10º
  • Temperature -40º to 85ºC
  • Bulk Solids High Level Measurement
  • 20A resistive - 8A inductive
  • 5, 6, 13, 15, 20 and 30m Options
  • Omni Directional Operation
  • Switching angle+/- 20º
  • Maximum pressure 5.5 bar
  • Allowed Fluid Density 0.70 to 1.15
  • 12A resistive - 6A inductive
  • 2, 3, 5, 10 and 20m Options
  • 1 to 6 switch points Up to 5m length.
  • Up to 6 bar max working pressure
  • Working temperature
  • Up to 130°C IP65
  • Rated Choice of Threads
  • Terminal head, Flying Leads, DIN connector Options.
  • Various Floats Available ATEX Exd
  • 1 to 6 switch points
  • Up to 5m length.
  • Up to 6 bar max working pressure
  • Working temperature Up to 130°C
  • IP65 Rated
  • ATEX Options Available

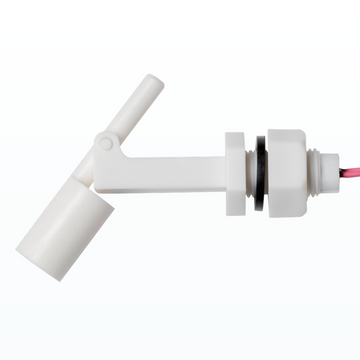

  • Polypropylene float & body material
  • Internal side entry entry fitting
  • 1/4″ BSP thread with nut
  • N/O or N/C (reversible) contact
  • 300 Vac/50VA reed switch
  • Low cost Level Switch for OEM applications
  • Industrial Grade Pressure Transducer
  • 1.5x Over Pressure
  • 4-20mA Output
  • Various Cable Lengths
  • 0.5% Accuracy
  • Nose cone or 1/4 NPT
  • Optional Suggested Desiccant Filter
  • Stainless steel – AISI 316
  • SPDT reed contact
  • Maximum working pressure 25 Bar
  • Maximum working temperature 150 °C
  • Degree of protection IP65
  • ATEX Exia or Exd construction are available

Downloads

Technical Datasheet
  • Hi/ Lo 2 position synthetic resin floats
  • 2 contacts… 1x normally open/ 1x normally closed
  • 1 meter cable
  • Single phase
  • Voltage 110- 220V
  • Current15 A
  • Power 1,5 Kw (2 HP)
  • 220Vac/1A 50VA reed switch
  • 3/4″ BSP thread
  • Reed Switch N/O or N/C contacts depending on installation
  • Brass or stainless steel body
  • Spansil (Buna) or stainless steel float
  • Protected to IP65 with standard Din plug
  • PVDF float option
  • 220Vac/5A Micro-switch
  • 3/4” BSP thread
  • SPDT C/O Micro-switch
  • Brass or Stainless steel body
  • Spansil (Buna) or stainless steel float
  • Protected to IP65 with standard DIN
  • Variants of adjustment by two buttons or by magnetic pen
  • Wide range of electric connections
  • Additional horn adaptor to improve the measurement of unusual media
  • ATEX versions available
  • Equipment Type: Vapor recovery monitoring
  • Liquid: Petrol
  • Certification: ATEX
  • Equipment Type: Overfill prevention
  • Liquid: Diesel / Heating Oil
  • Vessel: Oil Separator
  • Certification: None
  • Equipment Type: Overfill prevention
  • Liquid: Diesel / Heating Oil, Petrol
  • Vessel: Underground Storage Tank, Overground Storage Tank
  • Certification: ATEX, IECEx
  • Equipment Type: Overfill prevention
  • Liquid: Diesel / Heating Oil, Petrol, LPG, LNG, Oil
  • Vessel: Underground Storage Tank, Overground Storage Tank, Bulk Tank
  • Certification: None
  • Certification: None, ATEX, IECEx, Ex i
  • Signal output: Modbus ASCII (RS485), Relay, Veeder Root Protocol, H protocol, FAFNIR Protocol, Web Access
  • Power Supply: 110 VAC, 230 VAC
  • Equipment Type: Leak prevention system
  • Liquid: Diesel / Heating Oil, Petrol, Oil
  • Vessel: Tank Interstitial, Double Walled Pipes
  • Temperature: -20.00 °C up to 60.00 °C
  • Certification: None, ATEX, IECEx, Ex i
  • Signal output: FAFNIR Protocol
  • Additional criteria: Offers extra-high accuracy
  • Limit Level Sensor for Viscous Liquids
  • Resistant to Adhesion of Sticky Media
  • Conductive / Non-Conductive Fluids
  • 1/2” BSP thread
  • Media Recognition Settings
  • Highly Sensitive and Reliable
