Change Over Contacts
Discover our comprehensive range of pressure switches featuring advanced Change Over Contacts (SPDT). These high-performance switches are designed to meet diverse industrial needs, ensuring reliability and precision across various pressure applications.
- Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 300 bar adjustment ranges
- Over-pressures up to 800 bar
- Max working pressures up to 450 bar
- 1/4” BSP thread (others available)
- Viton / NBR+Teflon Seal (Model 28N)
- Adjustable Hysterisis (10-50%)
 |
Model 27N Technical Datasheet |
|
Model 28N Technical Datasheet |
- Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 400 bar adjustment ranges
- Over-pressures up to 800 bar
- Max working pressures up to 450 bar
- 1/4” BSP male/female thread options
- Viton seal (others available)
- DIN43650 / cable options
|
Model 24 Technical Datasheet |
|
Model 24C Technical Datasheet |
|
Model 24F Technical Datasheet |

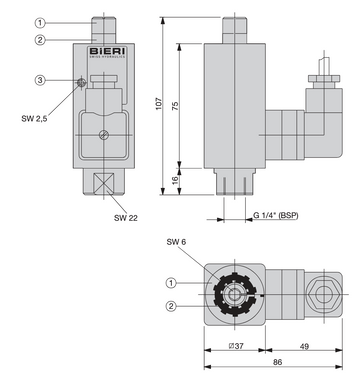

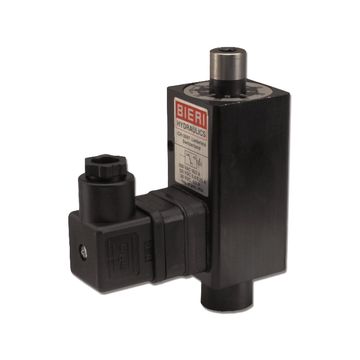

- High Pressure Switch ≤ 250V
- N/O or N/C Contacts
- Up to 1,000 bar adjustment ranges
- Over-pressures up to 1200 bar
- 1⁄4” BSP female thread
- Switch body rotates 360 deg
- Nitrile Seal - Steel Body
- For Oil Use only
|
DV7.33 Pressure Switch Datasheet |

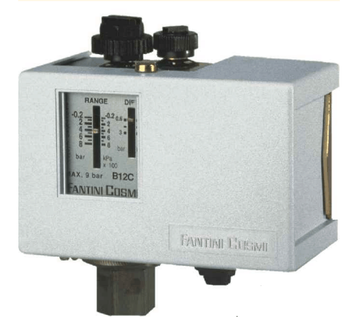

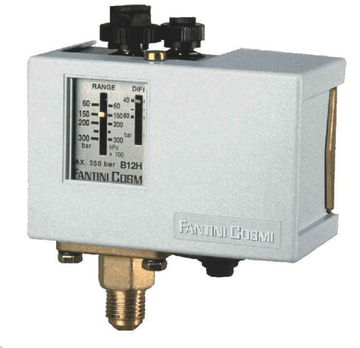

- Pressure Switch With Scale
- SPDT C/O Contacts
- 0.2 - 300 bar adjustment ranges
- Adjustable differential
- Max working pressures up to 350 bar
- 1/4” BSP thread
- Switch rating 415Vac/16A (6A ind)
- Snap action SPDT micro-switch
|
B12 -0.2 to 12 Bar Datasheet |
|
B12 12 to 300 Bar Datasheet |
- Pressure Switch with Adjustment Knob
- SPDT C/O Contacts
- Up to 400 bar adjustment ranges
- Max over-pressure 900 bar
- Up to ≤ 250V / DIN43650
- Manifold / 1/4” BSP female (ES-692)
- NBR+Teflon seal
- ± 2% Tolerance across the range
|
691 Technical Datasheet |
|
692 Technical Datasheet |
- Piston Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 400 bar adjustment ranges
- Over-pressures up to 900 bar
- Max working pressures up to 450 bar
- 1/4” BSP thread (others available)
- NBR+Teflon piston seal
- ATEX option available
|
Technical Datasheet |
- Diaphragm Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 60 bar adjustment ranges
- Over-pressures up to 300 bar
- Max working pressures up to 150 bar
- 1/4” BSP thread (others available)
- Viton seal (others available)
- ATEX option available
|
Technical Datasheet |
- Dual High Range 2 in 1 Dual Switch
- Up to 200 bar adjustment ranges
- 2 SPDT C/O micro-switches
- 2 Independent switch points
- 1/4” BSP thread (Others available)
- SS 316,Teflon or Neoprene diaphragm
- IP66 enclosure
|
Technical Datasheet |

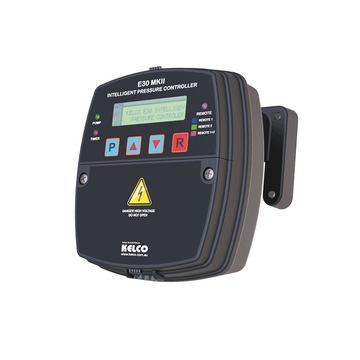

- Digital Pressure Switch SPDT C/O Contacts
- 20 Bar / 290 PSI pressure rating
- Multi voltage operation
- Powerful 40 Amp solid state drive
- 30 Amp primary pump relay
- Dedicated 16 amp alarm relay
- IP67 rated
|
Technical Datasheet |
- Pressure Switch with Large Dial Change Over Contacts (SPDT)
- For Adjustable Switching Pressure Ranges 0.7 - 15 Bar
- Max working Pressures of 18 bar
- Max Switching Voltage up to 250 Volts
- 1/4" BSP Female Thread
- Standard Stainless Wetted Parts
- Easy to Set with Dial and Locking Ring
|
Technical Datasheet |
- Adjustable Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 400 bar adjustment ranges
- Over-pressures up to 500 bar
- Compact, rugged design
- Choice of threads and diaphragms
- Easy, safe wiring connections
- IP66 as standard
|
Technical Datasheet |
- Pressure Switch with Adjustable Change Over Contacts (SPDT)
- 5-25 bar adjustable range 03-10 bar adjustable differential
- Electrical rating: 15A, 125/250 VAC
- 1/4” BSP male thread
- Stainless steel & Teflon wetted parts as standard
|
Technical Datasheet |
- Differential Pressure Switch SPDT C/O contacts
- Low Ranges of 1.5 - 350 mBar
- High Ranges up to 25 Bar
- Clear Adjustment Scale
- 2 x 1/4” BSP Standard Female Ports
- 250 VAC/15A (optional gold contacts)
- IP66 as standard
|
Technical Datasheet |
- Flameproof ATEX Exd Switch with an Adjustable Change Over Contacts (SPDT) or (DPDT)
- For Adjustable Switching Pressure Ranges Up to 400 bar.
- 1/4″ BSP Female Thread (Others Available)
- Stainless Steel Diaphragm (Others Available)
- Range -1 to +3.6 Bar
- Maximum working pressures up to 12 bar
|
Technical Datasheet |
- Flameproof EXd Pressure SPDT/DPDT Switch
- Up to 400 bar adjustment ranges
- SPDT or DPDT switching
- S/S 316 diaphragm (Others available)
- 1/4” BSP thread (Others available)
- 316 stainless steel wetted parts
- ATEX Exd IIC T6 level of Certification
|
Technical Datasheet |
- Temperature range: Ambient temperature from –20°C to +85°C
- Diaphragm material: NBR, Silicone, FKM (Viton® ), EPDM.
|
Technical Datasheet |
