Stainless Steel Float Valves


Balem 531 Float Valve balem_531_float_valve_dwg
Balem

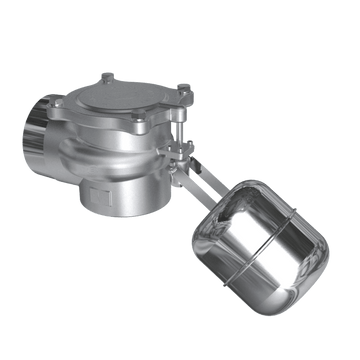

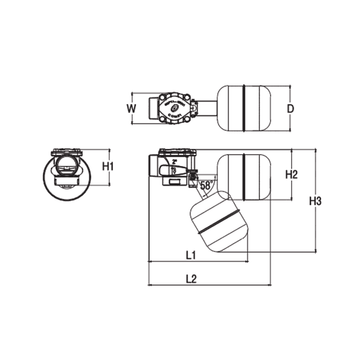

Balem 531 Float Valve
  • 25mm to 100mm port diameter
  • 1” to 4” BSP connection (flange option)
  • 304 stainless steel
  • Flow rates up to 400 m3/hr
  • Rated up to 17 Bar
  • PTFE and NBR seals
fig_100_304_stainless_ball_valve fig_100_304_stainless_ball_valve_dwg
valvulas

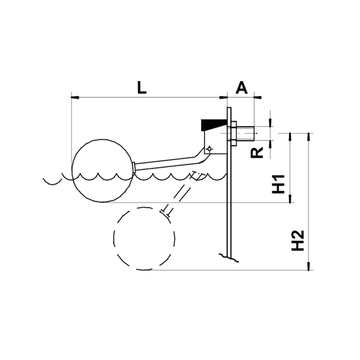

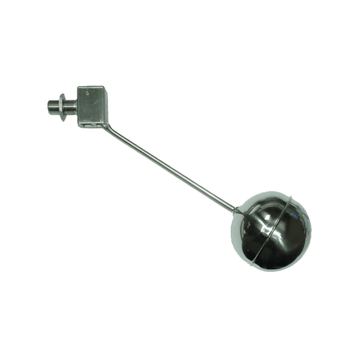

Fig 100 Float Valve
  • 10mm to 80mm port diameter
  • 3/8” to 4” BSP connection
  • 304 (100) or 316 (200) stainless steel
  • Flow rates up to 291,714 litres per hr
  • Rated up to 10 Bar
  • Silcon seal (others available)
fig_200_ev_float_valve fig_200_ev_float_valve_dwg
valvulas

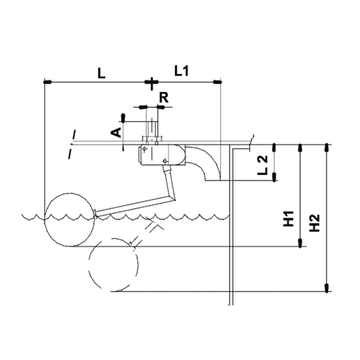

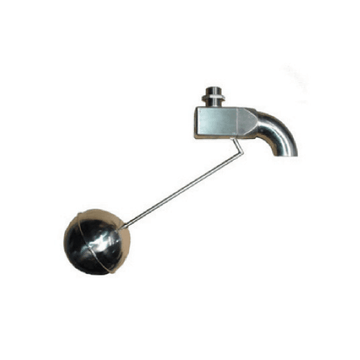

Fig 200 EV Float Valve
  • 10mm to 65mm port diameter
  • 3/8” to 2 1/2” BSP connection
  • All 316 stainless steel
  • Flow rates up to 75,966 litres per hr
  • Rated up to 10 Bar
  • Silcon seal (others available)
fig_200_b_flanged_foat_valve fig_200_b_flanged_foat_valve_dwg_1 fig_200_b_flanged_foat_valve_dwg_2
valvulas

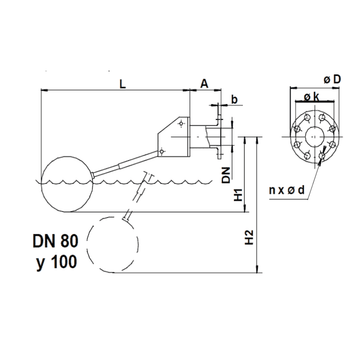

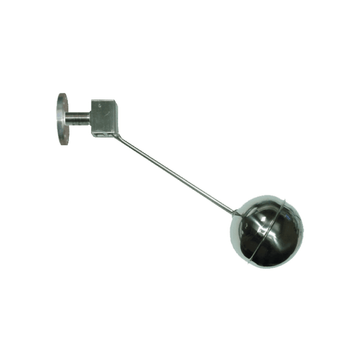

Fig 200 B Float Valve
  • 10mm to 100mm port diameter
  • DN10 to DN100 flange connection
  • All 316 stainless steel
  • Flow rates over 291,714 litres per hr
  • Rated up to 10 Bar Silcon seal (others available)
fig_100_304_stainless_ball_valve fig_100_304_stainless_ball_valve_dwg
valvulas
Fig 200 Float Valve
  • 10mm to 80mm port diameter
  • 3/8” to 4” BSP connection
  • 304 (100) or 316 (200) stainless steel
  • Flow rates up to 291,714 litres per hr
  • Rated up to 10 Bar
  • Silcon seal (others available)
fig_200_ab_float_valve Fig 200 AB Float Valve
valvulas

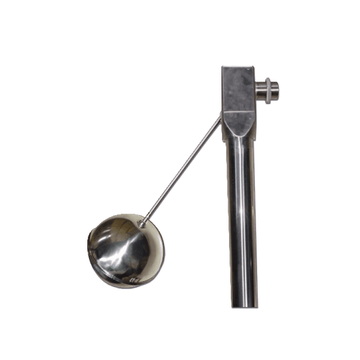

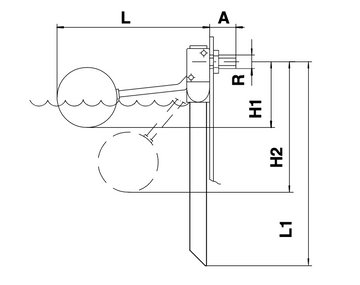

Fig 200 AB Float Valve
  • 10mm to 65mm port diameter
  • 3/8” to 2 1/2” BSP connection
  • All 316 stainless steel
  • Flow rates up to 79,275 litres per hr
  • Rated up to 10 Bar
  • Silcon seal (others available)
