Clogging Indicators
Introducing our comprehensive collection of Clogging Indicators designed to ensure optimal performance and safety in fluid systems. From reliable detection to efficient transmission of critical data, EUROSWITCH delivers cutting-edge solutions tailored to your specific needs.
- Working fluid: Oil
- Case: Brass
- Cap: high performance Polyamid
- Visual signal: White/Red
- Thread (X3) M20x1,5 (other on request)
- Ambient temperature: -25°C / +85°C
- Fluid temperature: -10°C / +85°C
- Max working pressure: 350 ÷ 450 bar depending on the thread
- Action type: magnetic
- External pollution situation: grade 2
- Tightening torque max: 35 Nm
- Operating speed: 10 bar / 15 sec.
- Weight ~ 150 gr

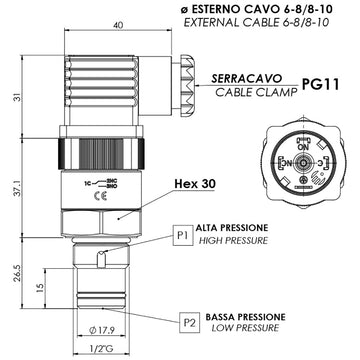

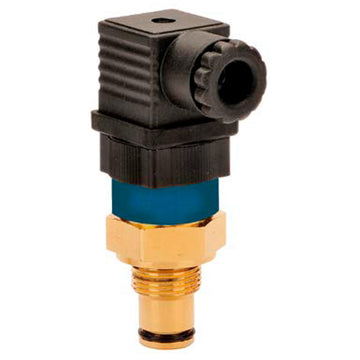

- Medium: Oil -Air
- Case: Brass (AISI on request)
- Working temperature range: -20°C ÷ +80°C
- Measuring ranges (Differential pressure): 2 ÷10 bar
- Max working pressure: 350 ÷ 450 bar (350 UL CSA version) depending on the thread
- Thread: 1/2” Gas (others on request)
- Tightening torque: 50-70 Nm
- Connector: M12 x 5 PIN
- Protection degree: IP67
- Weight ~ 140 g

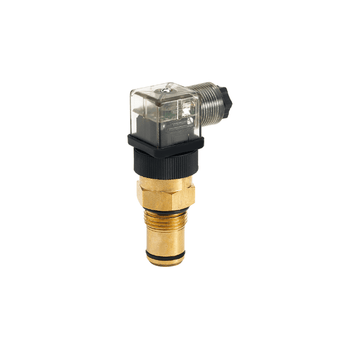

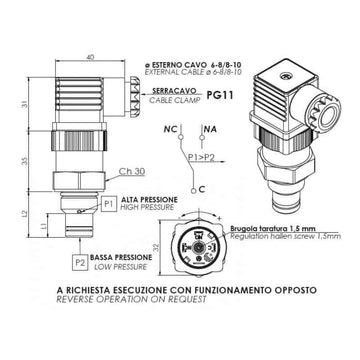

- Medium: Oil - Air
- Case: Brass Electric contact:
- Silver Max fluid temperature: 100°C - UL/CSA version 85°C
- Electrical conditions: SPDT (exchange contact)
- Max working pressure: 450 bar 350 bar depending on the thread
- Thread: 1/2” Gas standard (others on request)
- Tightening torque: 50-70 Nm
- Protection degree: IP65 with connector according to UNI EN 175301-803 (DIN43650)
- Approx. weight ~ 160 g
 |
Technical Datasheet |
- 1.3 – 8 bar pressure range
- Differential Pressure
- Max pressure 700 bar – Differential pressure 400 bar
- Working fluid – Oil
- SPDT Change-over switching contacts
- Brass case
|
Technical Datasheet |

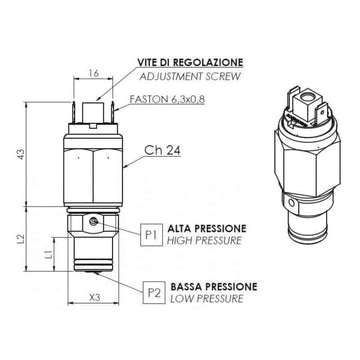

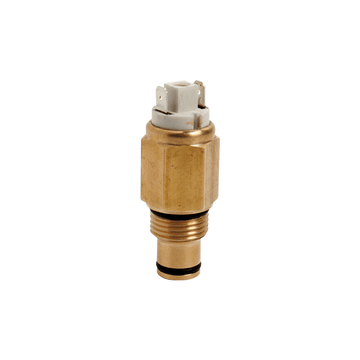

- Medium: Oil - Air
- Case: Brass
- Electric contact: Silver
- Max fluid temperature: 100°C Electrical conditions: N.O. - N.C.
- Max switches voltage: 48 V ac / dc
- Max switches current: 0,5 A
- Action type: 1B Max working pressure: 350 ÷ 450 bar (depending on the thread)
- Thread: 1/2” Gas standard (others on request)
- Tightening torque: 50-70 Nm
- Protection degree: IP 00 (see pages 18-20 for protection caps and connectors)
- Weight ~ 120 g
|
Technical Datasheet |
