Exd

Introducing the Exd Product Collection from Orion, engineered to deliver unparalleled performance in hazardous environments. Explore the FC Series Compound Switch, meticulously crafted to meet the stringent demands of industrial applications.

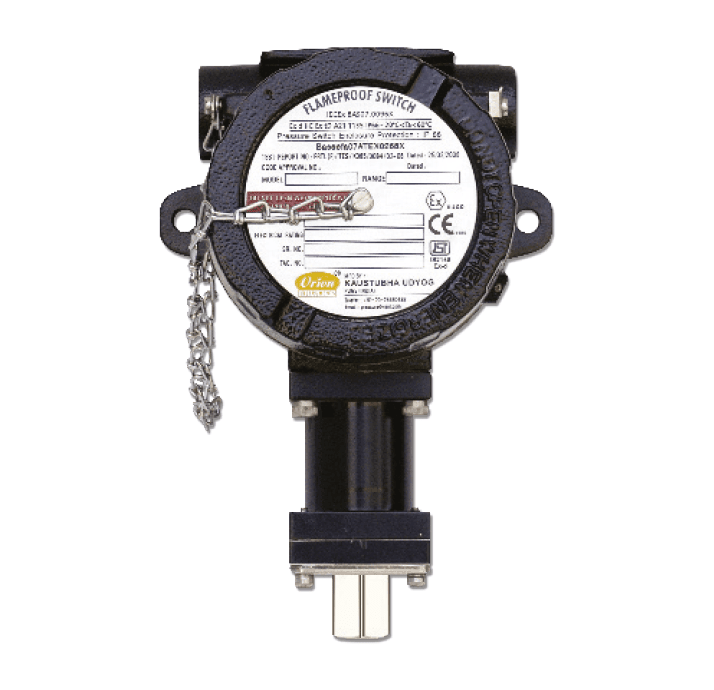

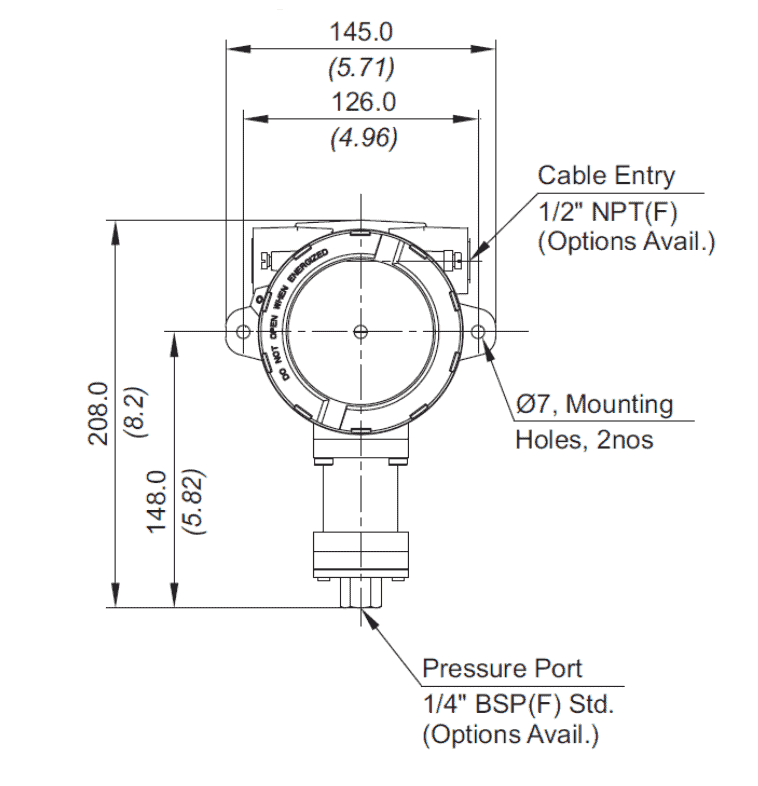

fc_pressure_switch_atex fc_dwg
Orion
FC Series Compound Switch
  • Flameproof ATEX Exd Switch with an Adjustable Change Over Contacts (SPDT) or (DPDT)
  • For Adjustable Switching Pressure Ranges Up to 400 bar.
  • 1/4″ BSP Female Thread (Others Available)
  • Stainless Steel Diaphragm (Others Available)
  • Range -1 to +3.6 Bar
  • Maximum working pressures up to 12 bar

Technical Datasheet
fc_pressure_switch_atex fc_dwg_2 fc_dwg fc_diff_2 fc_flanged fc_diff
Orion
FC Series Pressure Switch
  • Flameproof EXd Pressure SPDT/DPDT Switch
  • Up to 400 bar adjustment ranges
  • SPDT or DPDT switching
  • S/S 316 diaphragm (Others available)
  • 1/4” BSP thread (Others available)
  • 316 stainless steel wetted parts
  • ATEX Exd IIC T6 level of Certification

Technical Datasheet
