Differential
Explore our advanced collection of Differential Pressure Transmitters and Switches designed for precise pressure monitoring and control in various applications.
- Storage and operating temperature –20°C to +85°C
- Media temperature 0 to 85°C
- Humidity max. 95% rH., non-condensing
- Membrane Material: NBR, Silicone, FKM, EPDM
- Protection Class: IP65 according to EN 60529
 |
Technical Datasheet |

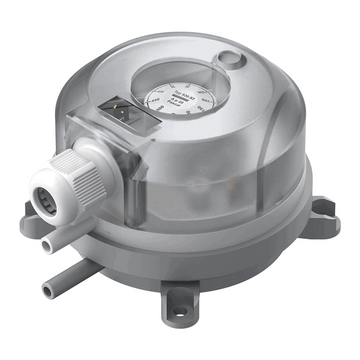

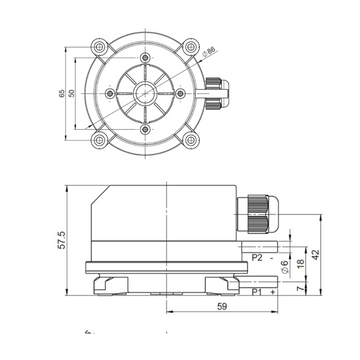

- Differential Pressure Switch SPDT C/O Contacts
- Up to 25 mbar adjustment ranges
- Over-pressures up to 50 mbar
- Graduated knob for easy adjustment
- 6.0 mm Ø push-on tube connection
- Silicone diaphragm
- Ideal for very low pressure
|
Technical Datasheet |
- Differential Pressure Switch with an Change Over Contacts (SPDT) / Optional DPDT
- Compound Pressure, Low Pressure, High Range, Differential options.
- For Adjustable Switching Low Pressure Ranges 1.5 – 350 mbar
- 1/4″ BSP Female Thread (Others Available)
- Stainless Steel, Neoprene, PTFE Diaphragm (Others Available)
- Maximum working pressures up to 2 bar
- Field set point adjustment against a reference scale
- Option of Adjustable Differential and Scale
|
Technical Datasheet |
