Rotor

Introducing the Rotor Flow Transmitter Collection by HONSBERG, designed to deliver precise and reliable flow measurements for various applications. Made with engineering excellence, each transmitter ensures accuracy and durability to meet the demands of industrial environments.

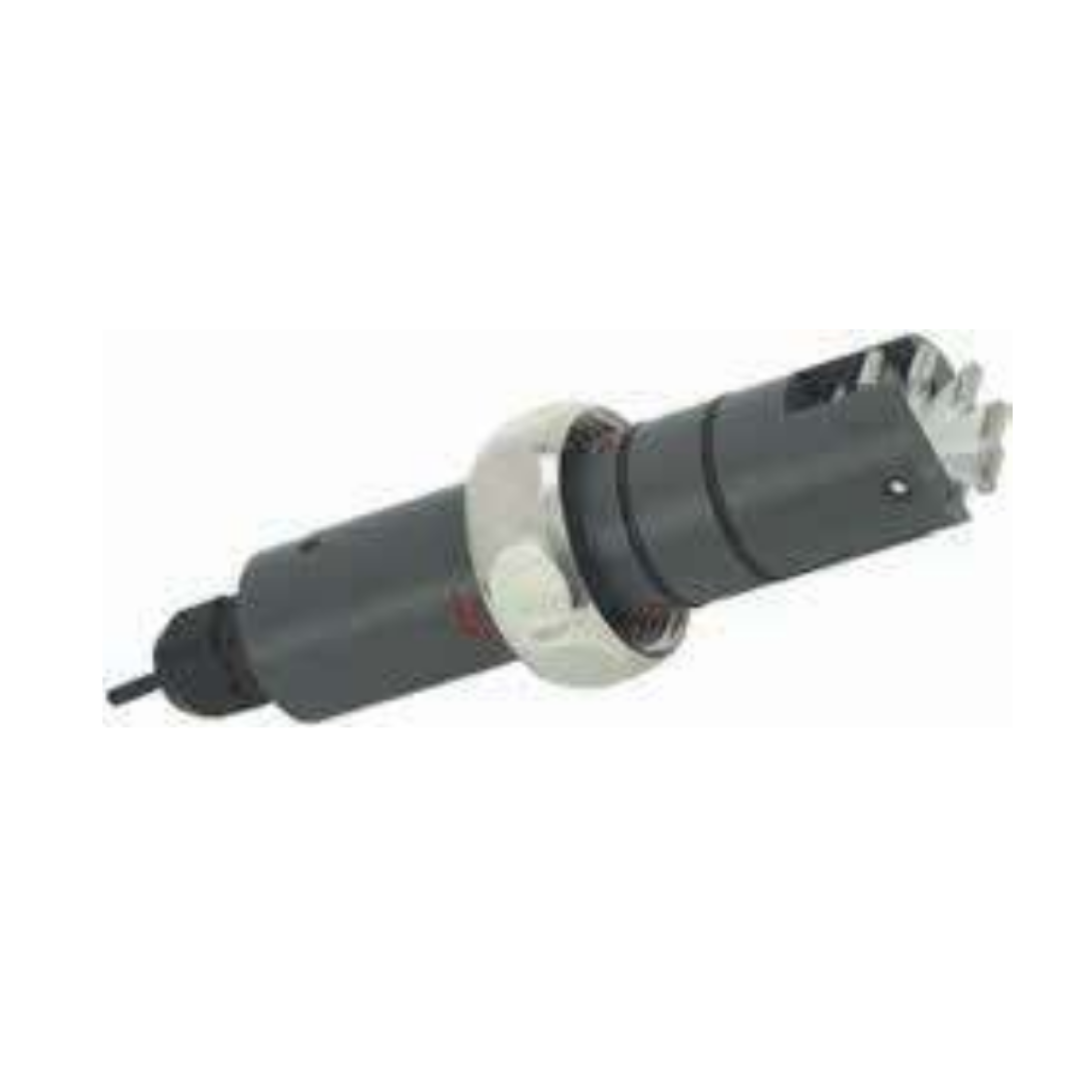

  • Paddle wheel measuring principle
  • Lightweight plastic housing (PVC)
  • For pipe sizes DN32 and up
  • Output options: PNP, NPN, NAMUR, I, U, F, S
  • IP67 protection rating
  • Flow range 0.3–6 m/s
  • ±1% reproducibility
  • Max media temp 60 °C
  • PN10 pressure rating
  • CE compliant

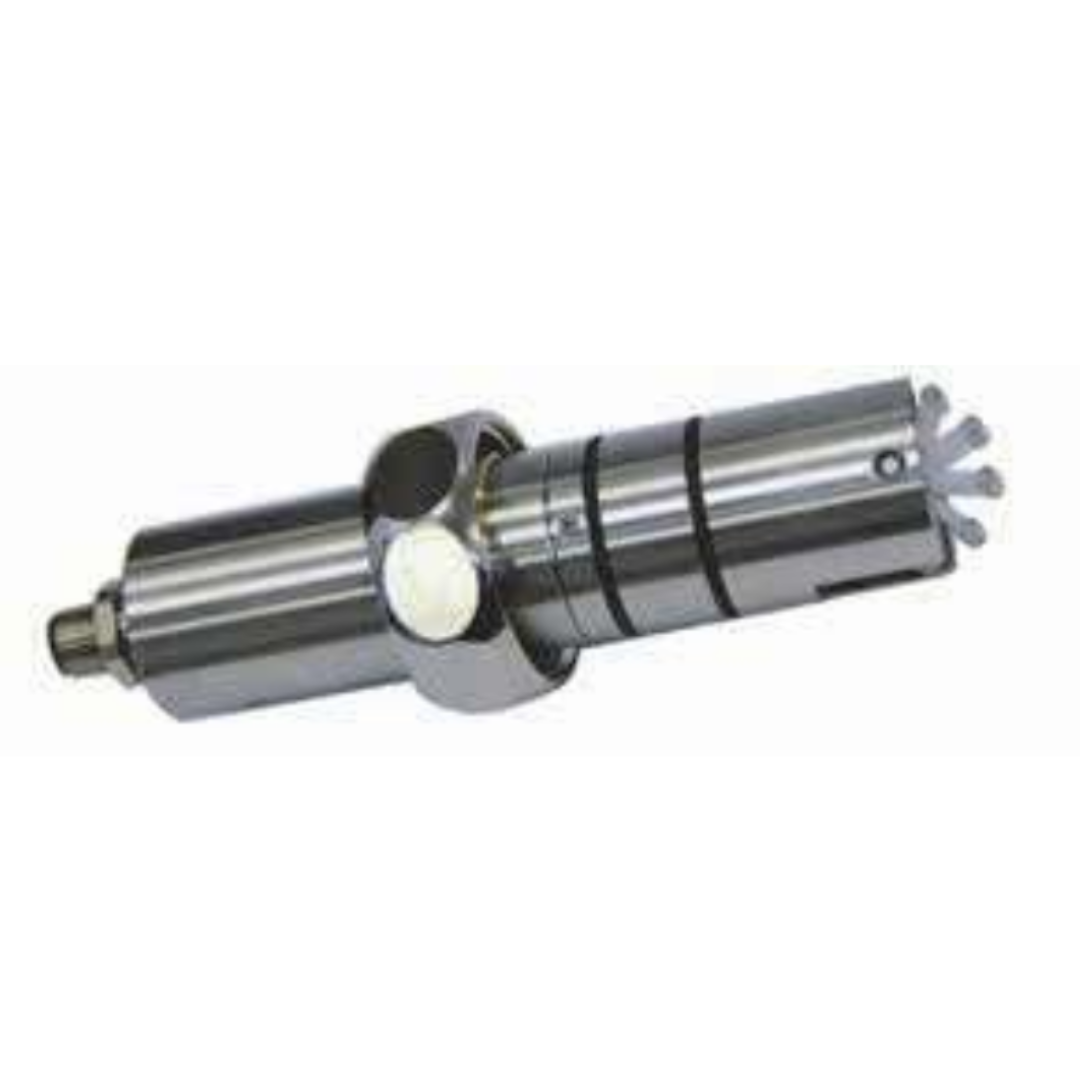

  • Paddle wheel measuring principle
  • Stainless steel housing (1.4305)
  • For pipe sizes DN32 and up
  • Output options: T, I, U, F, S IP67 protection rating
  • Flow range 0.3–6 m/s ±1% reproducibility
  • Max media temp up to 95 °C
  • PN10 pressure rating
  • CE compliant

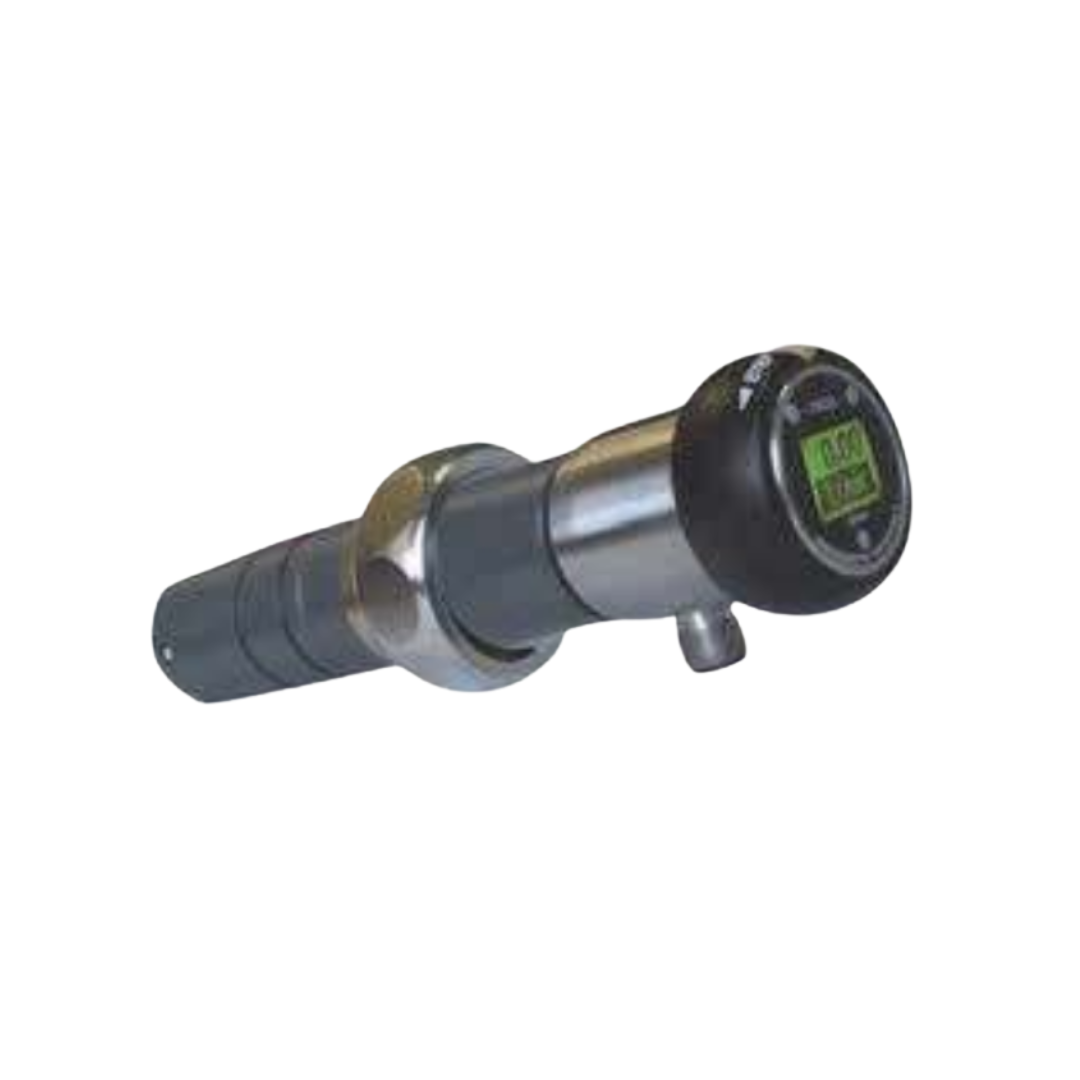

  • Flow transmitter with display
  • For pipe diameters of DN32 or larger
  • Plastic version
  • Suitable for retrofitting in existing pipelines with tapping clamps
  • Analog output 4..20 mA or 0..10 V
  • Two programmable switches
  • Selectable units in the display
  • Parameter change via rotating ring
  • Electronics housing with non-scratch, chemically resistant glass
  • Rotatable electronic housing for best reading position

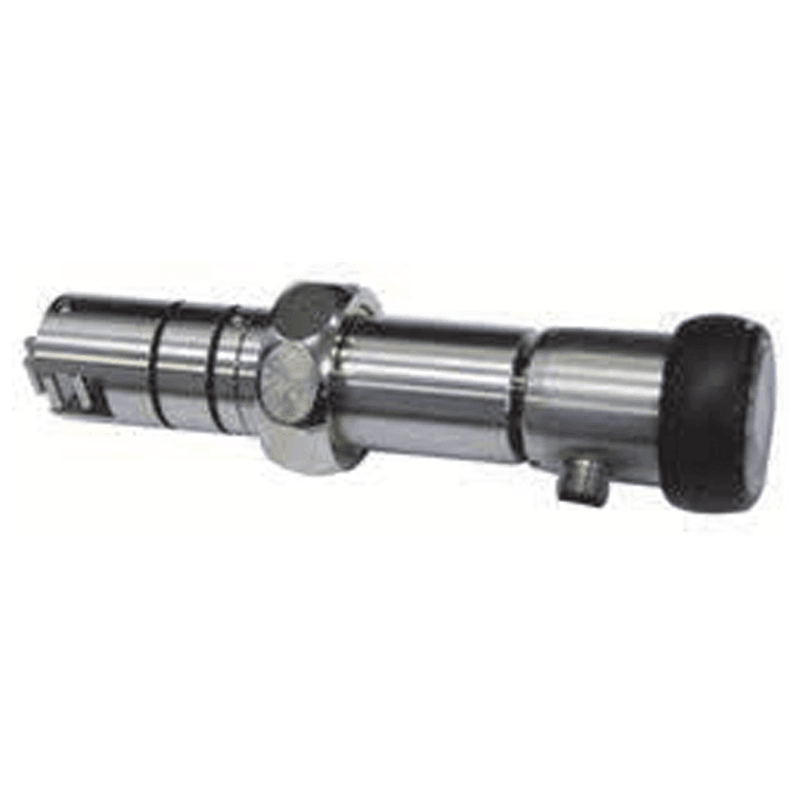

  • Flow transmitter with display
  • For pipe diameters of DN 32 or larger
  • Stainless steel version
  • Suitable for retrofitting in existing pipelines with tapping clamps
  • Analog output 4..20 mA or 0..10 V
  • Two programmable switches
  • Selectable units in the display
  • Parameter change with rotating ring
  • Electronics housing with non-scratch, chemically resistant glass
  • Rotatable electronic housing for best reading position
