Level Control
The Level Control collection by ARMAS offers a comprehensive range of high-performance control valves designed to manage and maintain precise water levels in various systems. This collection includes advanced models from the 500, 600, 700, and 800 series, each tailored to meet specific operational needs with unparalleled reliability and efficiency.

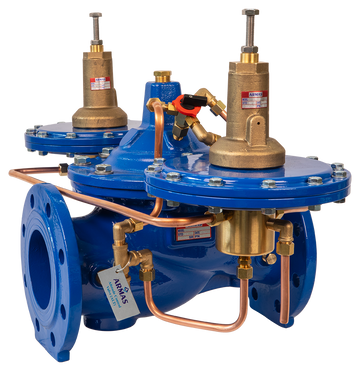

- Two sensitive pilot valves for minimum and maximum water level control
- Operates without floats, using static pressure for control
- Ensures smooth, non-impact valve opening/closing
- Less sensitivity to solids in the fluid, preventing blockages
- Supports up to 5.5 m/sec (18 ft/sec) continuous flow
- Valve size matches main line or one size smaller
- Diaphragm-actuated, disc-closing control valve
- Double-chamber actuator for rapid, non-impact operation
- Wide adjustable min–max level range
- Surge-free tight closing at high level
- Reduced clogging; less sensitive to suspended solids
- Stable performance regardless of flow/pressure changes
 |
Technical Datasheet |
- Activated by static pressure of the tank
- Sensitive pilot valve operates without floats
- Direct diaphragm closure with hydraulic control
- No wearable parts (stem, bearing, or seat)
- Controlled via hand-operated selector valve
- Supports up to 5.5 m/sec (18 ft/sec) continuous flow
