Electronics


  • Supply voltage : 230 V AC ±10 %; 24 V DC ±20 %
  • Frequency AC : 47..63 Hz
  • Power consumption : <1.5 VA
  • Operating temperature : -10..+60 °C
  • CE- conformity : EN 61326-1:2013, EN 60664-1:2007
  • Explosion protection : Approval: TÜV 03 ATEX 2283
  • Marking : II (1) G [Ex ia] IIC bzw. II (1) D [Ex iaD
  • Current : 0/4..20 mA selectable, Ri = 25 Ω overload max. 100 mA
  • Voltage : 0/2..10 V DC selectable, Ri approx. 40 kΩ, overload max. 100 V
  • Universal input for unit signals
  • Pt100, thermocouple, potentiometer, switchable via front-side DIP switch
  • 1 or 2 relay outputs
  • Universal relay connection
  • Adjustable min/max contact function
  • Actual value output 4 .. 20mA
  • 2-colour illuminated scales for limit value adjustment, colour depends on switch status
  • With Pt100 sensors, monitoring of sensor break and short-circuit
  • Wide-range mains adapter or 24 V DC
  • Functional safety up to SIL2
  • Housing width 12.5 mm
  • Removal coded terminals
  • Carrier rail mounting TS35 EN60715
  • Safe galvanic isolation between input / output / auxiliary voltage
  • Momentary value indicator and totalisation
  • Pulse output with adjustable pulse per volume
  • Antivalent outputs
  • Analogue output of the momentary value
  • Simple guided menu via graphics display
  • Signal conditioning – Linearisation – Characteristic adjustment
  • Input for standard signals 0/2..10 V and 0/4..20 mA
  • Measuring range programmable
  • Linearisation and characteristic adjustment programmable via 32 bases
  • Automatic input fault detection
  • Signal conditioning – Linearisation – Characteristic adjustment
  • Input for standard signals 0/2..10 V and 0/4..20 mA
  • Measuring range programmable
  • Linearisation and characteristic adjustment programmable via 32 bases
  • Automatic input fault detection
  • Thermocouple J, K, S
  • Adjustable zero point and end value
  • 0/4..20mA; 0/2..10 V switchable
  • Supply voltage : 85..253 V AC/110..125 V DC 10..30 V AC/DC
  • Frequency AC : 40..400 Hz
  • Power consumption : < 3.3 VA
  • Operating temperature : -10..+60 °C
  • Supply voltage : 85..265 V AC/110..125 V DC or 10..30 V AC/10..42 V DC
  • Frequency AC : 40..400 Hz
  • Power consumption : max. 2.2 W , max. 3.3 VA
  • Operating temperature : -10..+60 °C
  • CE-conformity : EN 61326-1:2013; EN 60664-1:2007

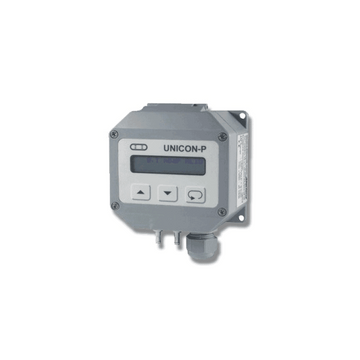

  • Programmable Pressure Converter
  • Up to 2000 mbar measurement range
  • Max over-pressure 4000 mbar
  • 4-20 mA Outputs
  • 4 mm pressure tube connection
  • Programming via front side keypad
  • For dry and non aggressive gases
  • Measuring range 0,25 to 25 mbar
  • Pressure or differential pressure
  • Uni- und bidirectional variants
  • For dry and non aggressive gases
  • Output 4..20 mA, 2-wire technology
  • Measuring ranges 0..1 A / 0..5 A AC
  • 1 and 2 channel version
  • Frequency range 45..400 Hz
  • Arithmetic average value measurement RMS calibrated
  • Loop voltage 14..30 V DC
  • Measuring range programmable from ±99999 Digit
  • Unit programmable
  • Totalizer programmable
  • Output 4..20 mA, loop powered
  • Impulse output for external evaluation
  • 2 alarm outputs electronic, voltage free
  • Bridge supply 2..10 V
  • max. 6 DMS strain bridge sensors ≥ 300 Ω at 10 V
  • Output current 200 mA max.
  • Line compensation up to 1 V
  • Protection class IP65
  • DC and sinusoidal AC signals
  • Direct connection
  • Connection with converter possible
  • Frequency range 40..200 Hz
  • Measuring input for DC- and sinusoidal AC-signals
  • Arithmetic average value measurement RMS calibrated
  • Measuring ranges programmable
  • 2 Wire 4-20mA output
  • For conductive liquids, acids or lyes
  • 2 electronic alarm outputs
  • 20mm to 2500mm probe Options
  • IP65 Rated
  • Current range 1 A or 5 A
  • Frequency range 45 ... 400 Hz
  • Power-factor (cosφ) switch selectable 0.72 or 1
  • Nominal accuracy 0.2 %
  • Output 0/4 ... 20 mA or 0/2 ... 10 V switch selectable
  • Final value adjustable -30 ... 5 %;
  • Full 3-port isolation
  • Supply voltage 230 V AC or 24 V DC
  • 22.5 mm case for DIN rail mounting
  • Switch-selectable inputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V
  • Switch-selectable outputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V
  • Increasing or decreasing output characteristic
  • Supply voltage 230V AC or 24V DC
  • Full 3-port isolation
  • Power-on LED
  • 22.5mm case for DIN rail mounting
  • UL-CSA-standard on request
  • Switch-selectable inputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V M
  • Switch-selectable outputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V M
  • Increasing or decreasing output characteristic M
  • Supply voltage 230V AC or 24V DC M
  • Full 3-port isolation M
  • Power-on LED M
  • 22.5mm case for DIN rail mounting M
  • UL-CSA-standard on request
  • Thermoelements J, K, S
  • Pt100 Elements
  • 0/2..10 V und 0/4..20 mA
  • 4..20 mA analogue output

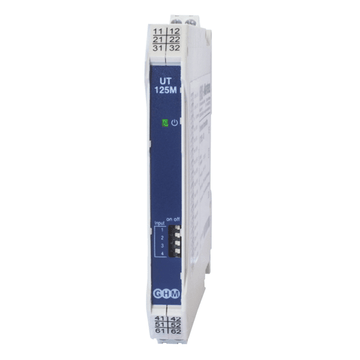

  • Transmitter for electrical signals
  • Universal input for standard signals, Pt100, thermocouple, potentiometer
  • Configuration via front-side DIP switch
  • Wide-range power supply or 24 V DC
  • Housing width 12.5 mm
  • Removal coded screw terminals
  • Carrier rail mounting TS35 EN60715
  • Thermoelements J, K, S
  • Pt100 / Pt1000 / NTC resistance measurement
  • 4..20 mA analogue output
  • Universal input for Pt100, Pt1000, thermocouple, NTC and resistance measurement value
  • Configuration via front DIP switches
  • Analog actual value output 4 .. 20mA
  • Zero point and limit value can be adjusted via trim potentiometers on the front
  • Wide-range mains adapter or 24 V DCa
  • Optional supply via carrier rail bus
  • Removable coded screw terminals or optional push-in terminals
  • Housing width 12.5 mm
  • Carrier rail mounting TS35 EN60715
  • Offers intrinsically safe inputs for direct connection of temperature probes
  • Simple programming
  • 2 alarm outputs
  • Pt100, Pt1000 and thermocouple
  • Pt100, Pt1000 and thermocouple

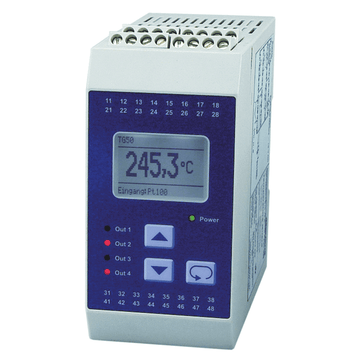

  • Up to 4 alarm outputs
  • LCD display with plain text
  • Intrinsically safe use of Pt100 sensors
  • Intrinsically safe use of 0(4)…20 mA sensors
  • Intrinsically safe use of 4…20 mA, loop-powerd indicators
  • Measuring range 0..50 Ω up to 100 kΩ
  • Processor technology with 12 Bit AD/DA-converter
  • Teach-in programming for start- and end-value
  • Increase or decrease output characteristic programmable
  • Operation mode indicated by use of a 2-color LED
  • Process control with over 100 functions
  • Control unit with 4 function keys and touch display
  • Screen recorder and data logger functions An ideal control, regulating, and operating unit
  • GHM CAT configuration software

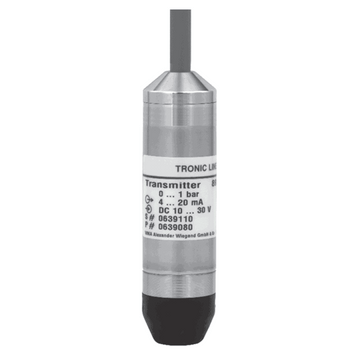

  • Measuring range 100 mbar to 10 bar
  • Immersion depth: max. 100 m
  • Analog output 4..20 mA
  • For drinking-, process-water, oil
  • Process temperature -10..+60 °C
  • Protection class IP68, depth of immersion max. 100 m
  • Scale freely on site within seconds
  • Monitoring for probe damage, probe short circuit, values above/below permissible limit
  • No auxiliary energy Special adaptor can be turned to any position
  • Display adaptable to 4 positions
  • Plug-in display 4...20 mA with EX-protection for all potentially explosive atmospheres
  • Ex qualification: II 2G Ex ia/ib IIC/IIB T4
  • Input signal: 4...20 mA (2-wire)
  • Voltage load: approx. 2 V, (approx.3.5 V at...-EX)
  • Supply current: from current loop
  • Accuracy: ±0.2 % FS ±1 digit (at nominal temperature = 25 °C)
  • Display: 10 mm high LCD
  • Display range: -1999... +9999
  • Flexible pivoting LCD display
  • Can be used for countless 4-20mA sensors with M12 connection for detection of pressure, temperature, flow, fill-level, pH etc.
  • Plug in-between sensor and normal signal cable
  • Simple filling counter with programmable end signal
  • Control switchover at present value
  • Automatic, dynamic change of display unit and decimal places in the graphics display
  • Simple guided menu via graphics display
