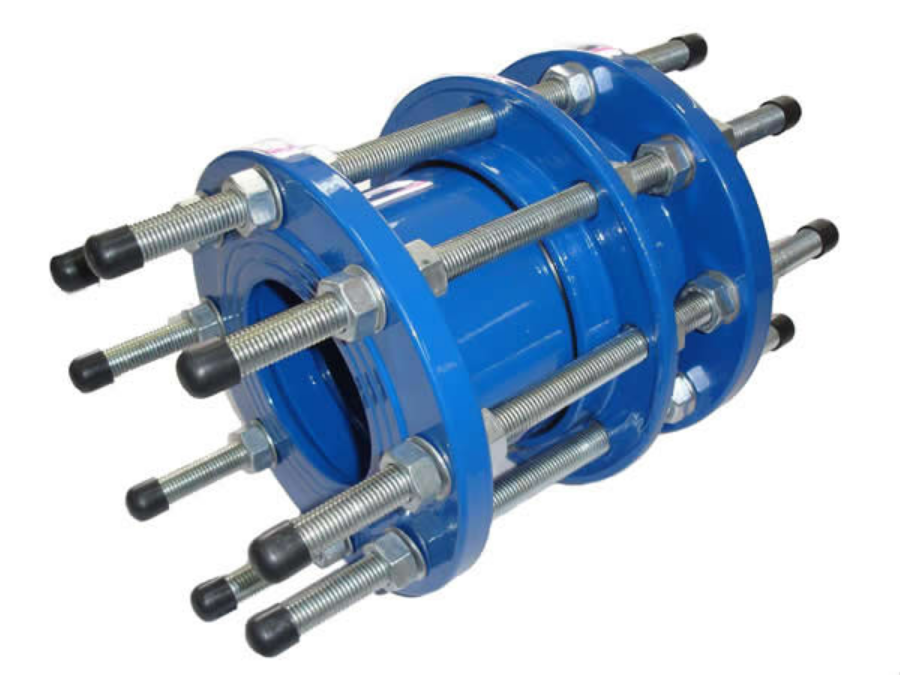

Dismantling Joint
HELS

Dismantling Joint

  • Material Structure: Body Pipe: GGG 40-50
  • Stud and Nut: Steel Galvanized
  • Connection: Flanged
  • Operating Temperature: - from 10 ° C to + 80 ° C
  • Pressure Class: PN10 / PN16
  • Sealing Ring: EPDM
  • Nominal Diameter: DN100 (4 ”) - DN2000 (80”)
£0.00 In Stock Sold out

Dismantling Joints find application in various pipe systems, simplifying the process of installing and removing flanged valves and comparable equipment. They offer a convenient means of disassembly by absorbing the axial forces exerted on the valve within the pipeline.

To accommodate the necessary workspace during assembly and disassembly, the dismantling joint can be shortened by up to 40mm or extended by the same amount.

The dismantling joints are typically constructed as semi-rigid, but they can be made into full rigid and telescopic configurations upon request. The rigid type design eliminates the need for extra bolts and nuts during installation.

- Heating, ventilation and air conditioning systems

- Water treatment and distribution systems

- Mining industry

-Ship construction and drilling facilities

-Chemical and petrochemical plants

- Food and chemical enterprises

- Oil and gas processes

- Fire extinguishing systems
