Plastic Float Valves

Aqua Tech Trading's Plastic Float Valves offer versatile and reliable solutions for various water supply applications. These valves ensure efficient water level control across different environments, from residential setups to industrial systems.

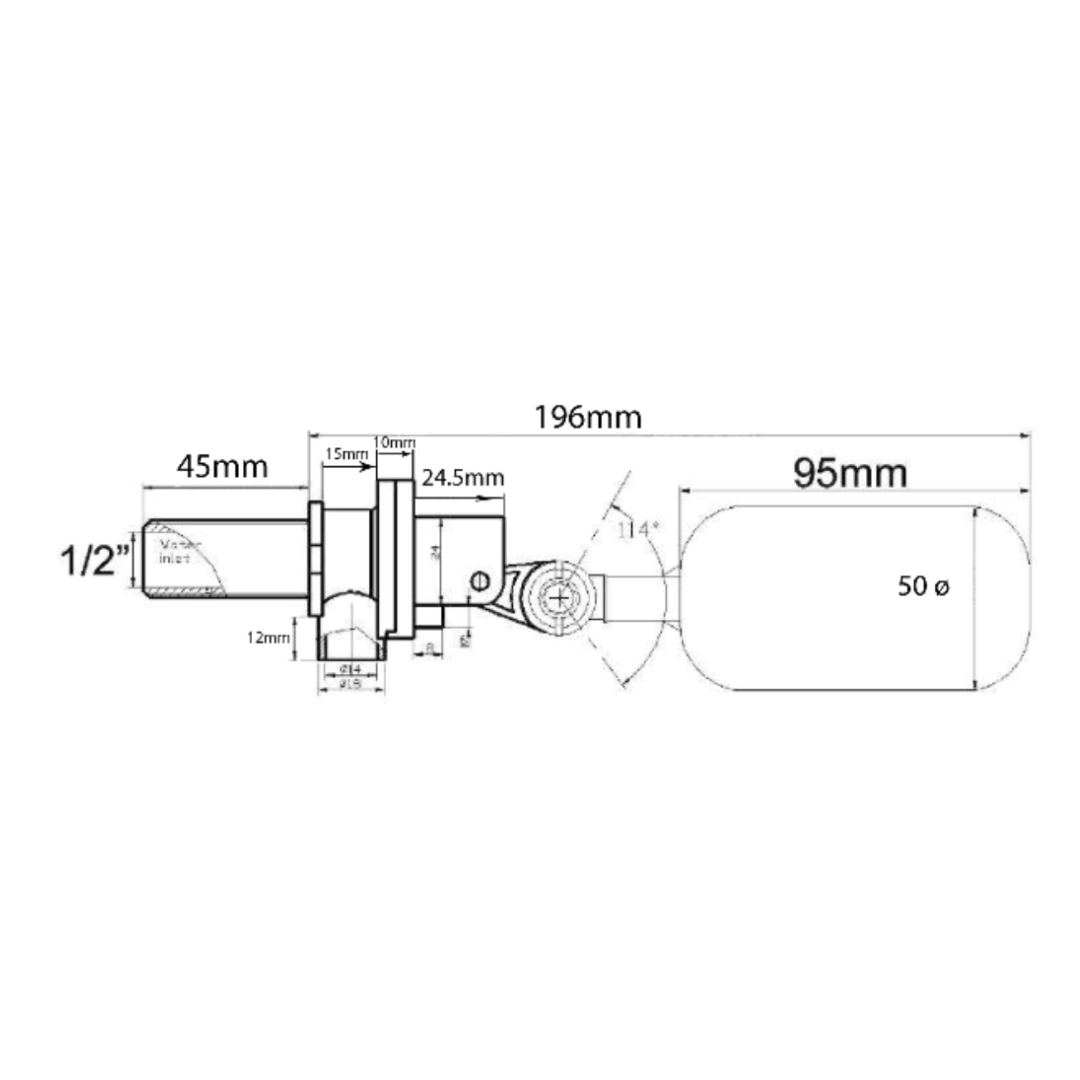

  • Thread Size: 1/2” BSP - 3/4” BSP
  • Valve Material: ABS
  • Ball Material: PE
  • Ball Diameter: 50mm
  • Plug Material: NR
  • Pressure: 0.05-1.0 MPa
  • Water. Temp: -35ºC to +75ºC
  • Flow Rate: 60 (P=0.6Mpa)
  • Length (max): 19.60 cm
  • Easily used in small water supply equipment which has limited room for an application
  • Connected with a special adaptor for rubber pipes- included
  • Internal thread 1/4” BSP external thread 1/2” BSP
  • Can be fitted with horizontal or vertical inlet

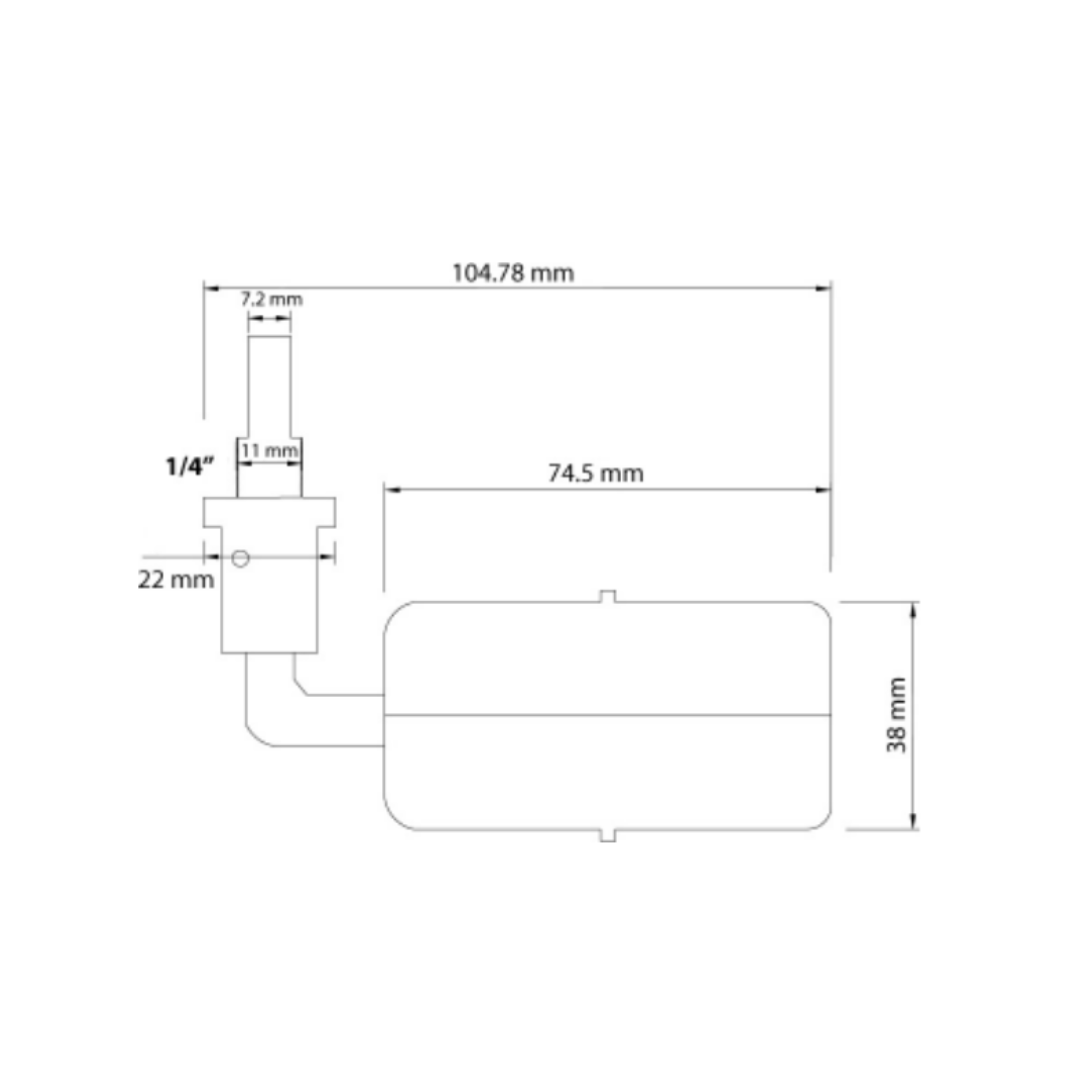

  • Thread Size: 1/4” BSP
  • Valve Material: POM
  • Ball Material: PP
  • Plug Material: SR
  • Pressure: 0.02-0.6 MPa
  • Water. Temp: -30ºC to +75ºC
  • Flow Rate: 1.8 (P=0.6 Mpa)
  • Length (max): 101 mm

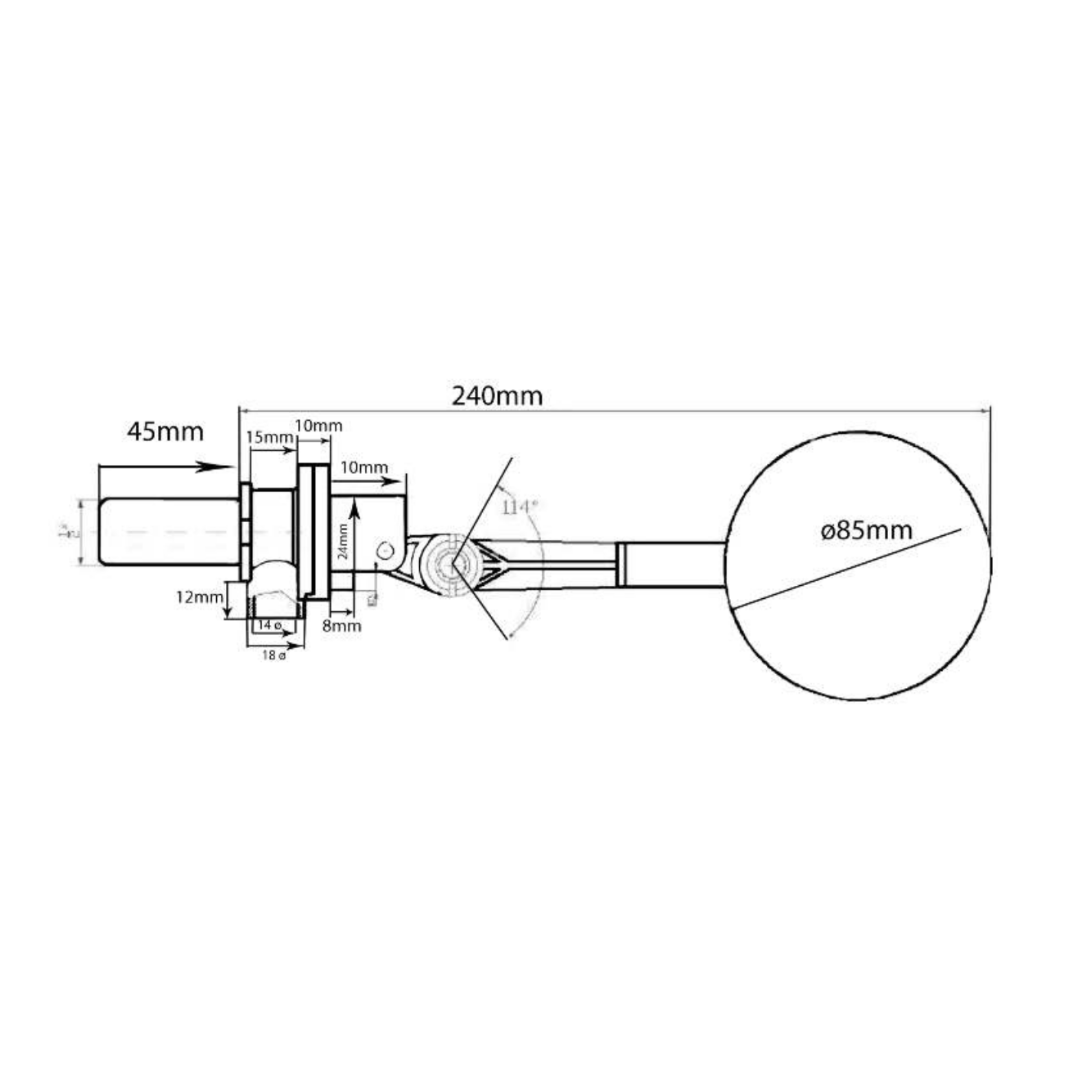

  • Thread Size: 1/2” BSP to 3/4” BSP
  • Valve Material: ABS
  • Ball Material: PE Ball Diameter: 85mm
  • Plug Material: NR
  • Pressure: 0.05-1.2 MPa
  • Water. Temp: -35ºC to +75ºC
  • Flow Rate: 60 (P=0.6 Mpa)
  • Length (max): 28.50 cm
  • Thread Size: 1/4” BSP
  • Valve Material: POM
  • Ball Material: PP
  • Plug Material: SR
  • Pressure: 0.02-0.6 MPa
  • Water. Temp: -30ºC to +75ºC
  • Flow Rate: 1.8 (P=0.6 Mpa)
  • Length (max): 153 mm
  • Thread Size: 1” BSP to 3/4” BSP
  • Valve Material: ABS
  • Ball Material: PE
  • Ball Diameter: 95mm
  • Plug Material: NR
  • Pressure: 0.05-1.2 MPa
  • Water.Temp: -35ºC to +75ºC
  • Flow Rate: 310 (P=0.6 Mpa)
  • Length (max): 25.50cm
  • Thread Size: 1 ½“ BSP
  • Valve Material: ABS
  • Ball Material: PE
  • Ball Diameter: 95mm
  • Plug Material: NR Pressure: 0.10-1.2 MPa
  • Water. Temp: -35ºC to +75ºC
  • Flow Rate: 190 (P=0.6 Mpa)
  • Length (max): 37.70 cm
  • Thread Size: 2” BSP
  • Valve Material: ABS
  • Ball Material: PE Ball
  • Diameter: 95mm
  • Plug Material: NR
  • Pressure: 0.10-1.2 MPa
  • Water. Temp: -35ºC to +75ºC
  • Flow Rate: 220 (P=0.6 Mpa)
  • Length (max): 37.70 cm
  • Thread Size: 2 ½” BSP
  • Valve Material: ABS
  • Ball Material: PE
  • Ball Diameter: 95mm
  • Plug Material: NR
  • Pressure: 0.10-1.2 MPa
  • Water. Temp: -35ºC to +75ºC
  • Flow Rate: 285 (P=0.6 Mpa)
  • Length (max): 38 cm
  • Thread Size: Int 1/4” BSP, Ext 3/8” BSP
  • Valve Material: POM
  • Ball Material: PP
  • Plug Material: SR
  • Pressure: 0.02-0.6 MPa
  • Water. Temp: -30ºC to +75ºC
  • Flow Rate: 1.8 (P=0.6 Mpa)
  • Length (max): 153 mm
  • Thread Size: 1/2” BSP to 3/4” BSP
  • Valve Material: ABS
  • Ball Material: PE
  • Ball Diameter: 39mm
  • Plug Material: NR
  • Pressure: 0.1-1.0 MPa
  • Water. Temp: 35ºC to +75ºC
  • Flow Rate: 4.5 (P=0.6 Mpa)
  • Length (max): 18.7cm
  • Thread Size: 1/2” BSP to 3/4” BSP
  • Valve Material: ABS
  • Ball Material: PE Ball Diameter: 95mm
  • Plug Material: NR
  • Pressure: 0.05-1.2MPa
  • Water.Temp: 35ºC to +75ºC
  • Flow Rate: 220 (P=0.6 Mpa)
  • Length (max): 25.50cm

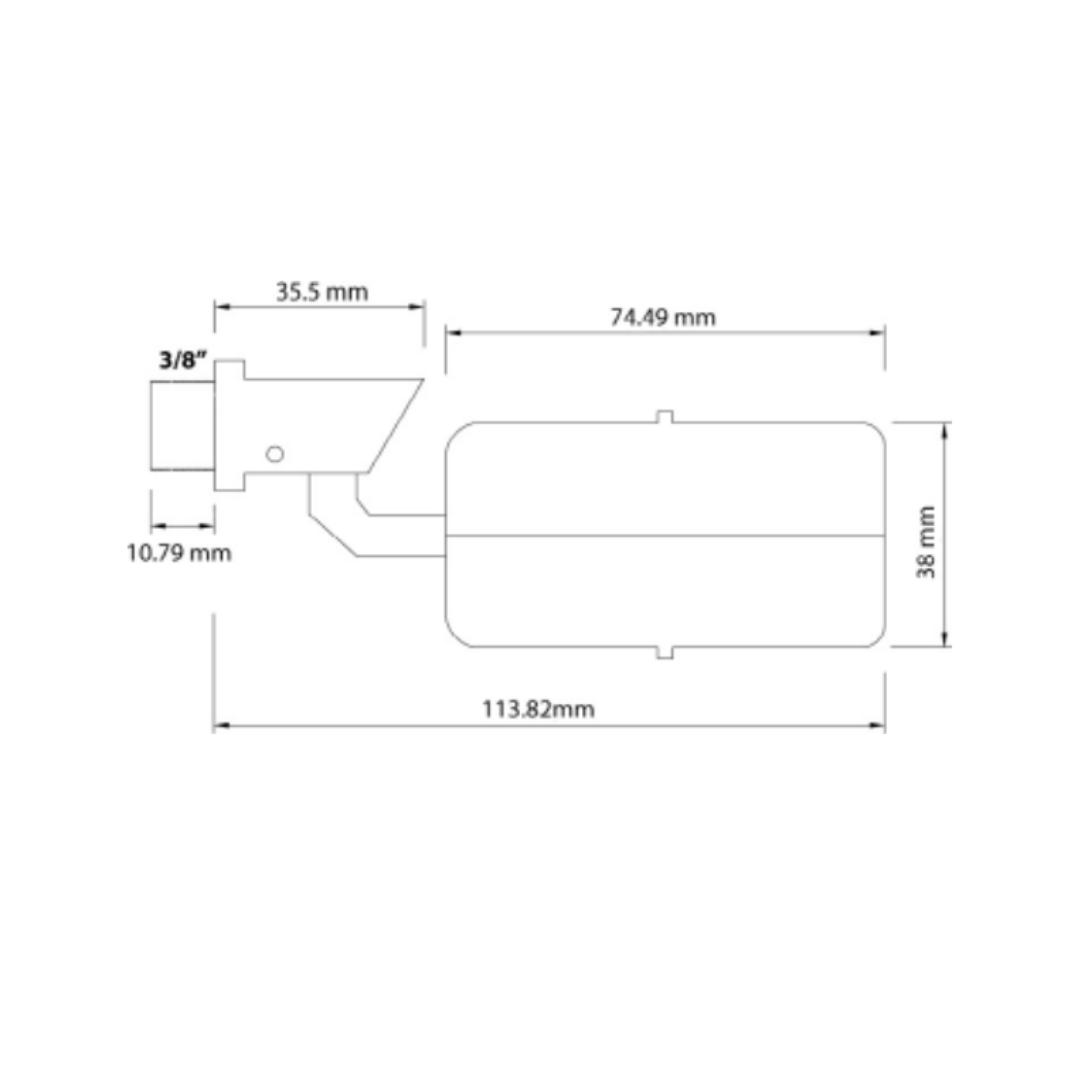

  • Thread Size: 3/8” BSP
  • Valve Material: POM
  • Ball Material: POM
  • Ball Diameter: 38mm to 69mm
  • Plug Material: NR
  • Pressure: 0.6MPa to 0.8MPa
  • Water. Temp: 80ºC
  • Flow Rate: 5.0 L.P
  • Length (max): 7.5cm to 12.0cm
  • The adjustable screw in the middle of the arm means it can be installed either horizontally or vertically
  • All materials used are food grade
  • Temperature range from -35ºC to +75ºC
  • 1/2” BSP
  • Quick stop design, eliminates water hammer
  • Higher flow rate than brass or stainless steel float valves
  • Anti corrosion rust proof, PV resistant, suitable for sea water
  • Adjustable arm can be used in the vertical or horizon water
  • Temperature range from -35ºC to +75ºC
