Normally Open Or Normally Closed Contacts

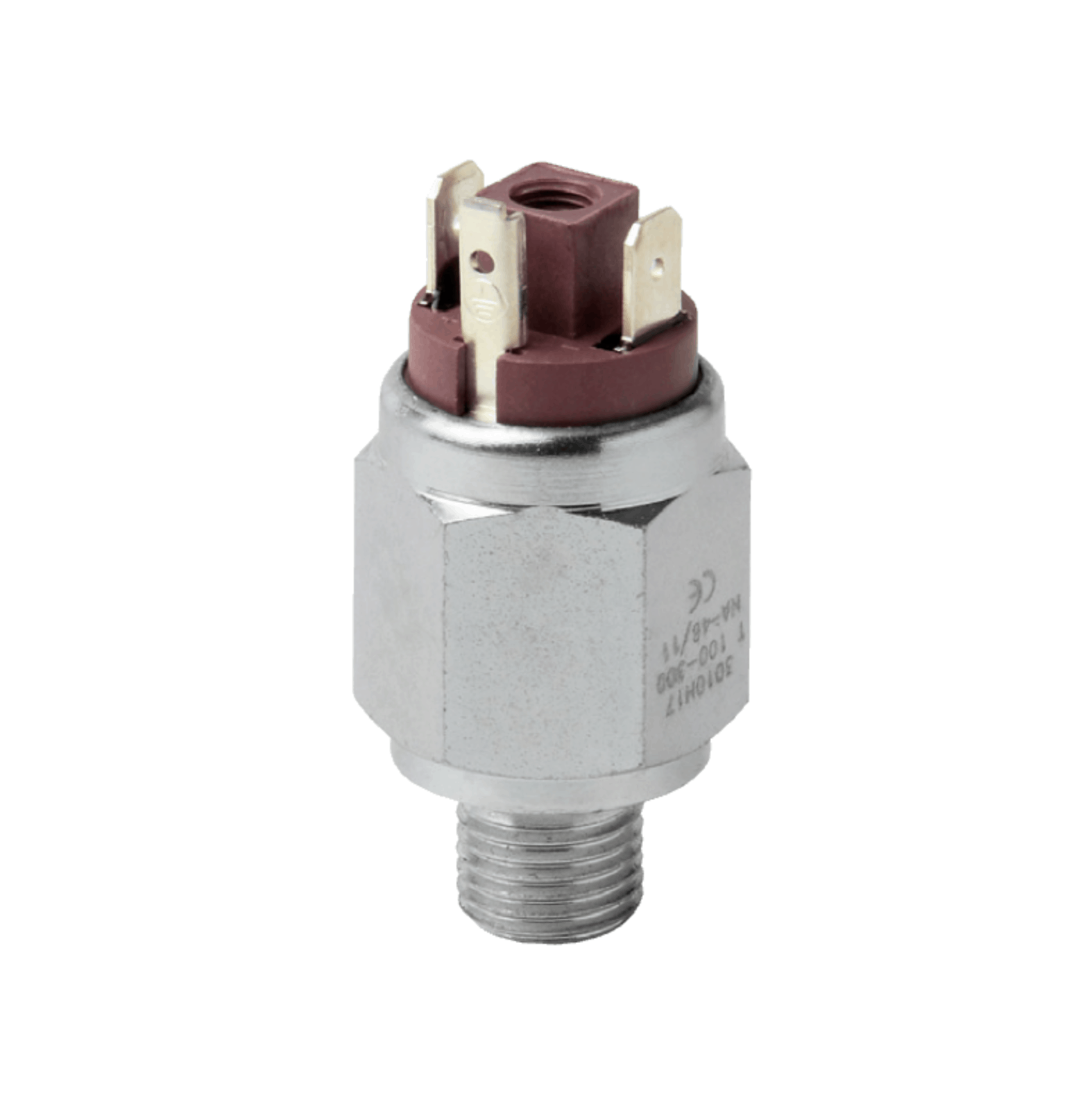

- Diaphragm Pressure Switch ≤ 48V
- N/O or N/C Contacts
- Up to 50 bar adjustment ranges
- Over-pressures up to 300 bar
- Max working pressures up to 150 bar
- 1/4” BSP thread (others available)
- Viton seal (others available)
- Brass, steel or stainless steel body
- Diaphragm Pressure Switch ≤ 250V
- N/O or N/C Contacts
- Up to 50 bar adjustment ranges
- Over-pressures up to 300 bar
- Max working pressures up to 150 bar
- 1/4” BSP thread (others available)
- Viton seal (others available)
- ATEX option available

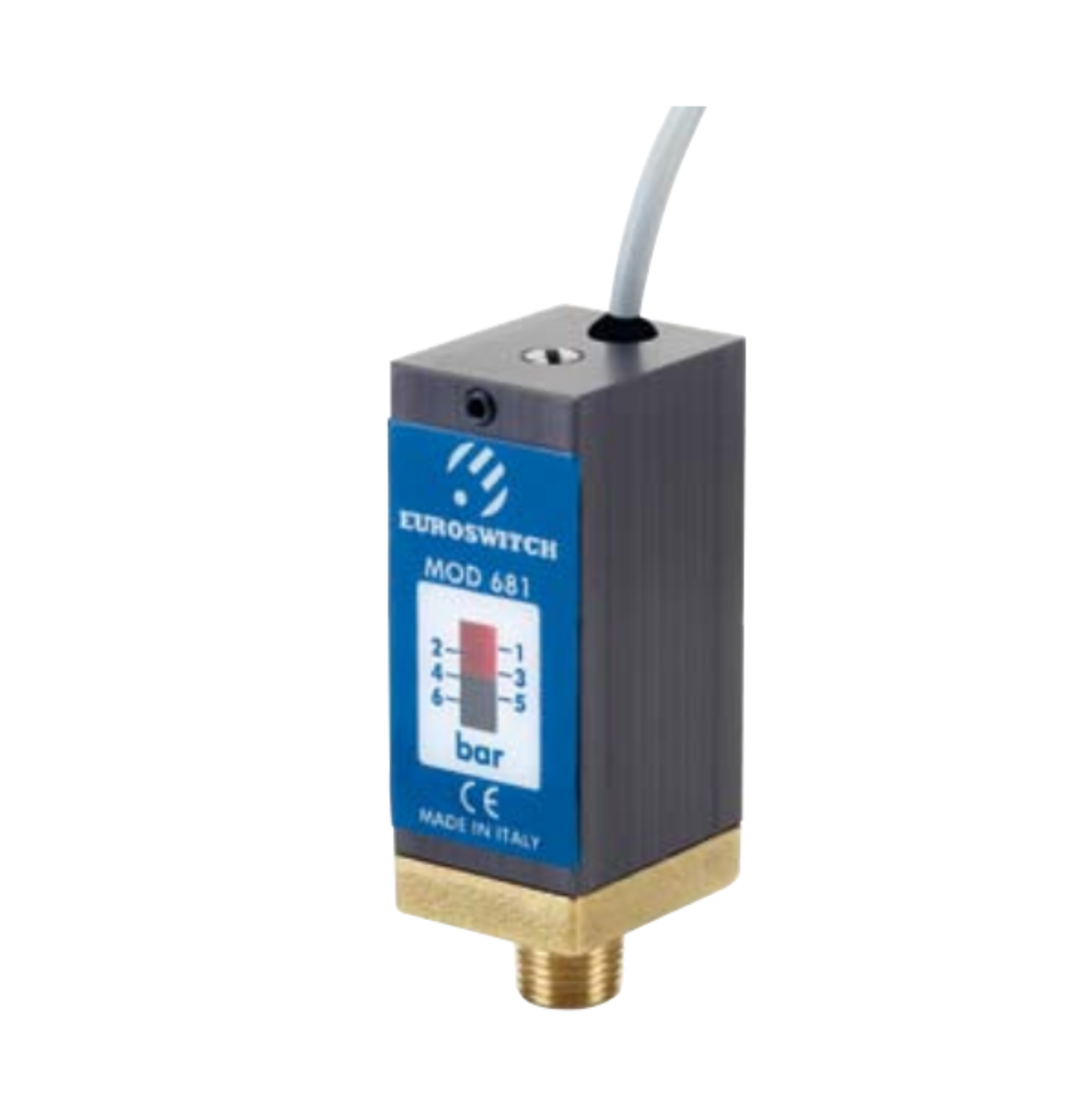

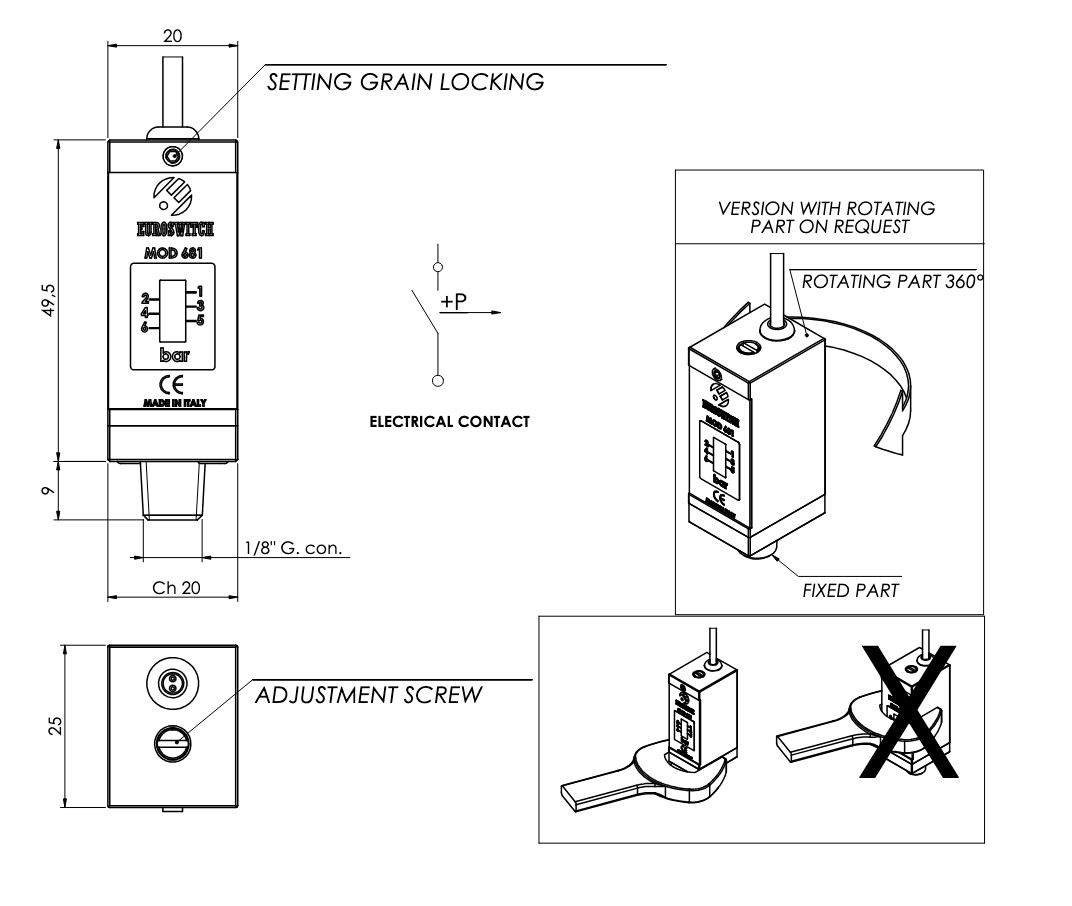

- Pressure Switch with Visual Scale
- SPST N/O Contacts
- Up to 6 bar adjustment ranges
- Max over-pressure 20 bar
- Switch rating 48V
- Air only
- Electrical cable (Model. 681)
- DIN43650 (Model. 682)
- High Amp Pressure Switch ≤ 48V
- N/O or N/C Contacts Up to 10 bar adjustment ranges
- Max over-pressure 50 bar
- Max working pressures up to 20 bar
- 1/4” BSP thread (others available)
- NBR seal (others Available)
- Max current up to 5 amps
- Piston Pressure Switch ≤ 250V
- N/O or N/C Contacts
- Up to 300 bar adjustment ranges
- Over-pressures up to 800 bar
- Max working pressures up to 450 bar
- 1/4” BSP thread (others available)
- NBR+Teflon piston seal
- Steel or stainless steel body
- Piston Pressure Switch ≤ 48V
- N/O or N/C Contacts
- Up to 300 bar adjustment ranges
- Over-pressures up to 800 bar
- Max working pressures up to 450 bar
- 1/4” BSP thread (others available)
- NBR+Teflon piston seal
- Steel or stainless steel body

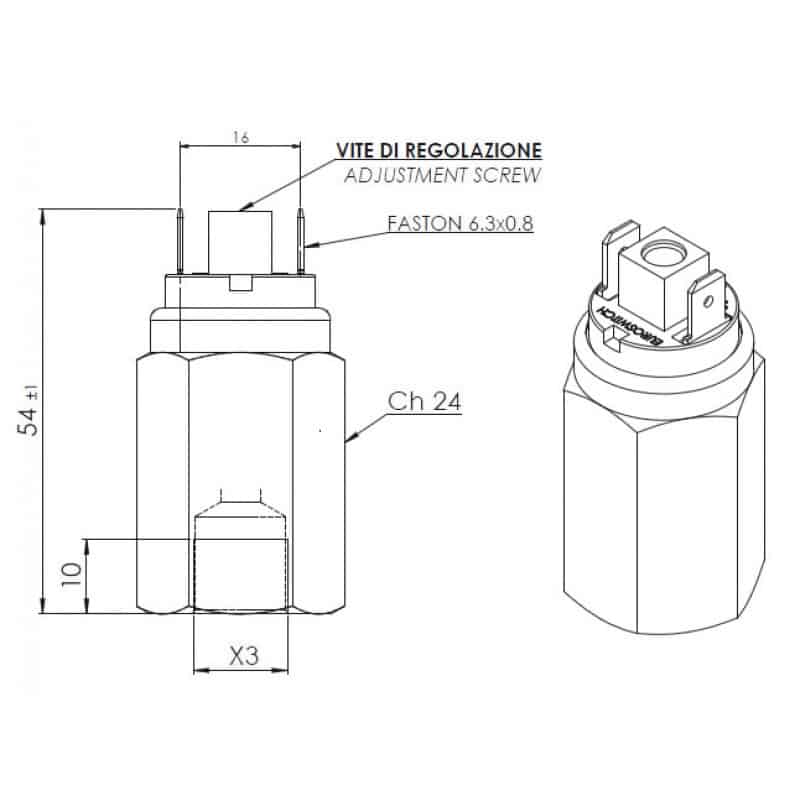

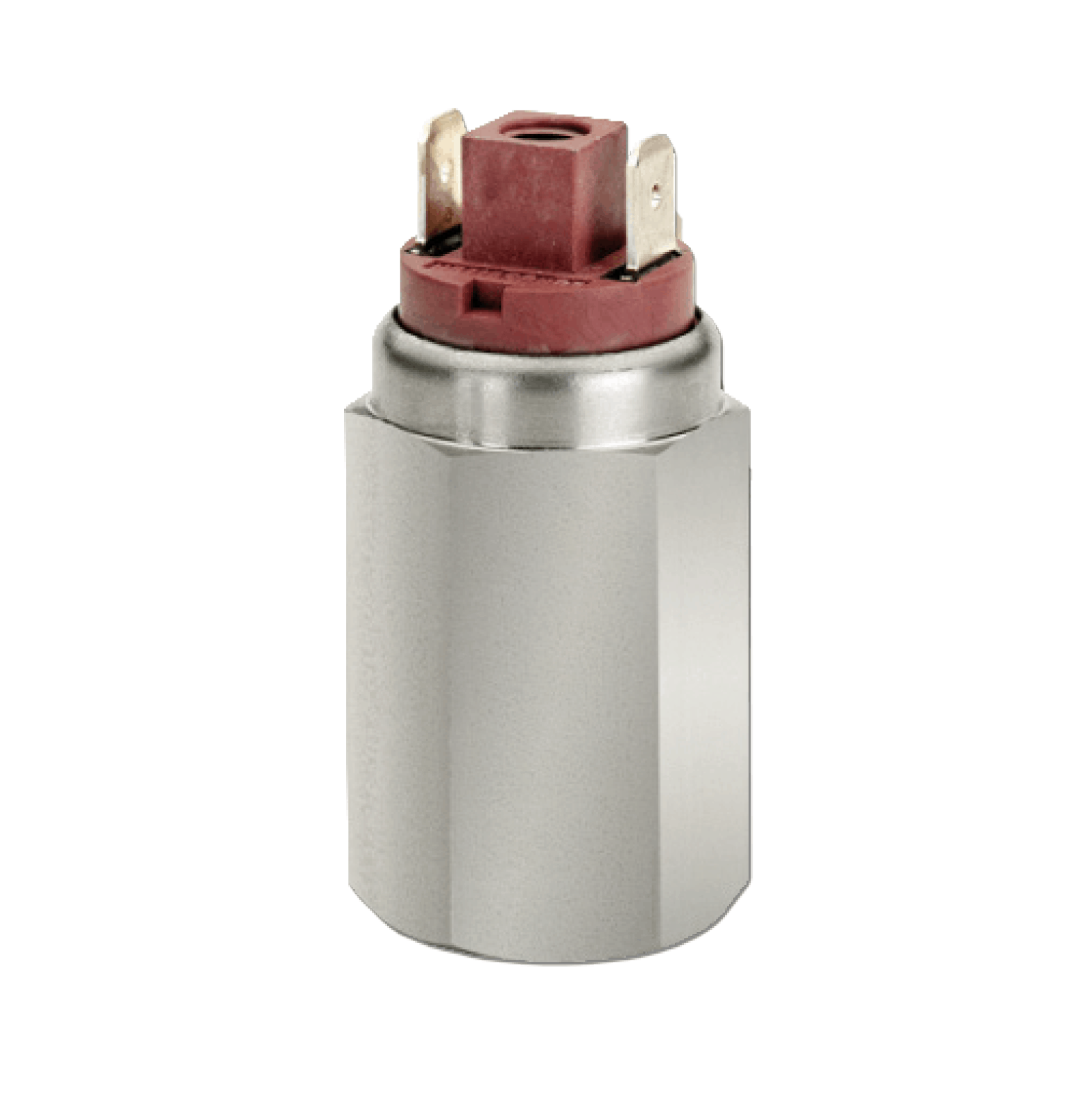

- Diaphragm Pressure Switch ≤ 48V
- Female Thread N/O or N/C Contacts
- Up to 50 bar adjustment ranges
- Over-pressures up to 300 bar
- Max working pressures up to 150 bar
- 1/4” BSP female (others available)
- Viton seal (others available)
- Brass, steel or stainless steel body
