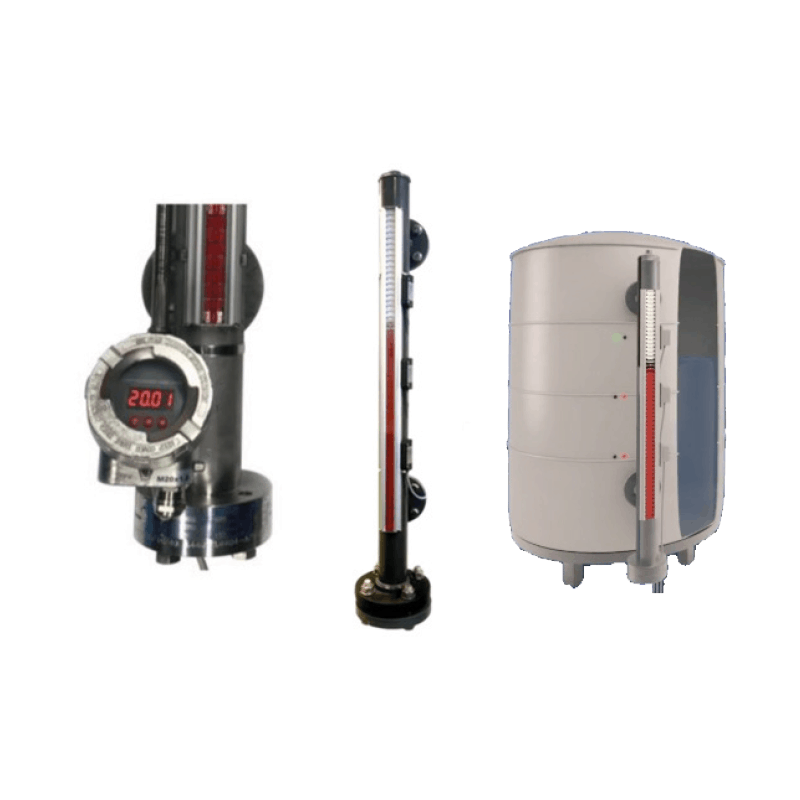

Custom Magnetic Level Gauges
- Shocks,Vibrations,Temperature Resistant
- Fully mechanical no power necessary
- Stainless,Aluminium or Plastic options
- Fully adjustable switching options
- 4-20 mA output options
- ATEX options available
 |
Pointer D Series |
|
Pointer L Series |
|
Pointer F Series |
|
Pointer R Series |
- Description
- Downloads
Magnetic level gauges work on the principle of communicating vessels, therefore the level in the measuring chamber will be the same as the level in the vessel. The measuring chamber is fitted with a float, which has a magnet inside. The float with magnet will float on the medium and the magnet in the float will turn the flaps of the indicating rail.
With the below mentioned process conditions it is possible to select a float which will float on the medium. Magnetic level gauge are also suitable for interface reading. The float will sink into the medium with the lower density and will float on the medium with the higher density.

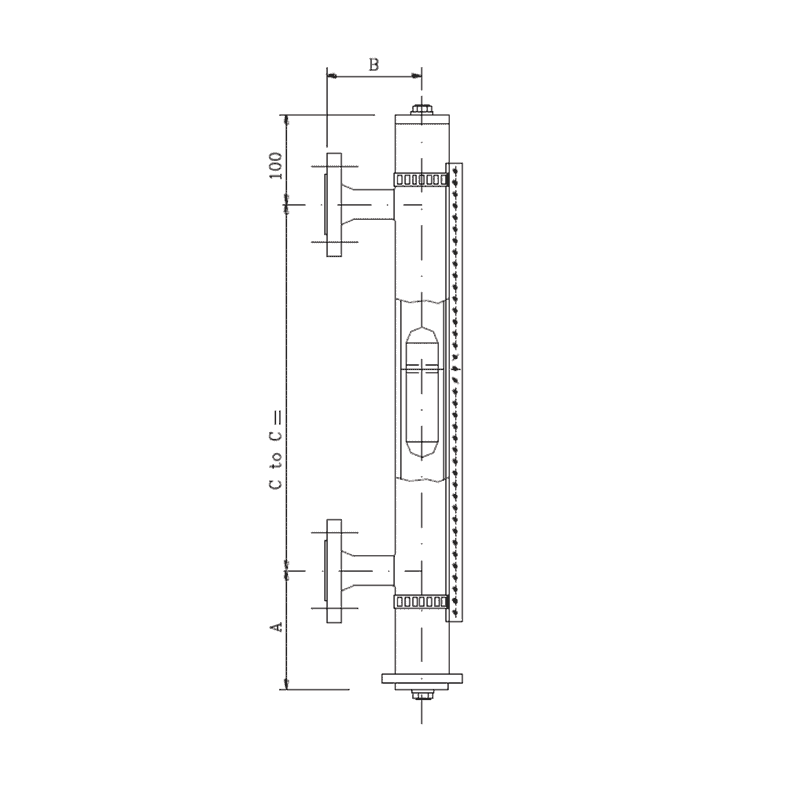

Pointer D With two process connections for mounting on the side of a vessel. This design is suitable for many different applications, for example condensate tanks, LPG tanks etc.
Pointer L With one process connection for mounting on the side of a vessel. This model is often used for day tanks for ships.

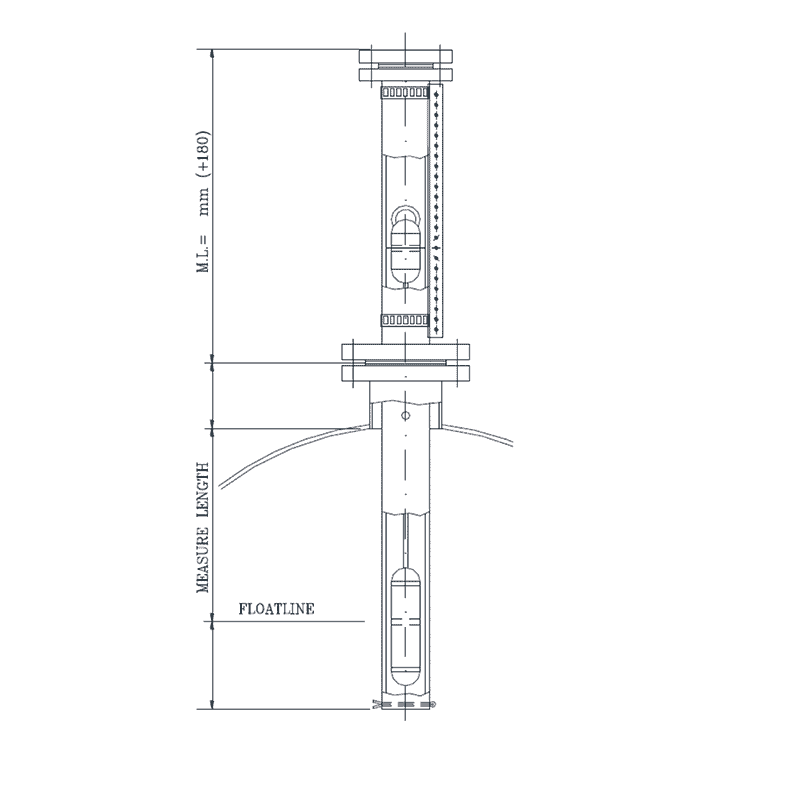

Pointer F With one process connection on the bottom, this type is suitable for mounting above a tank. This design is mostly used for storage tank below the surface.

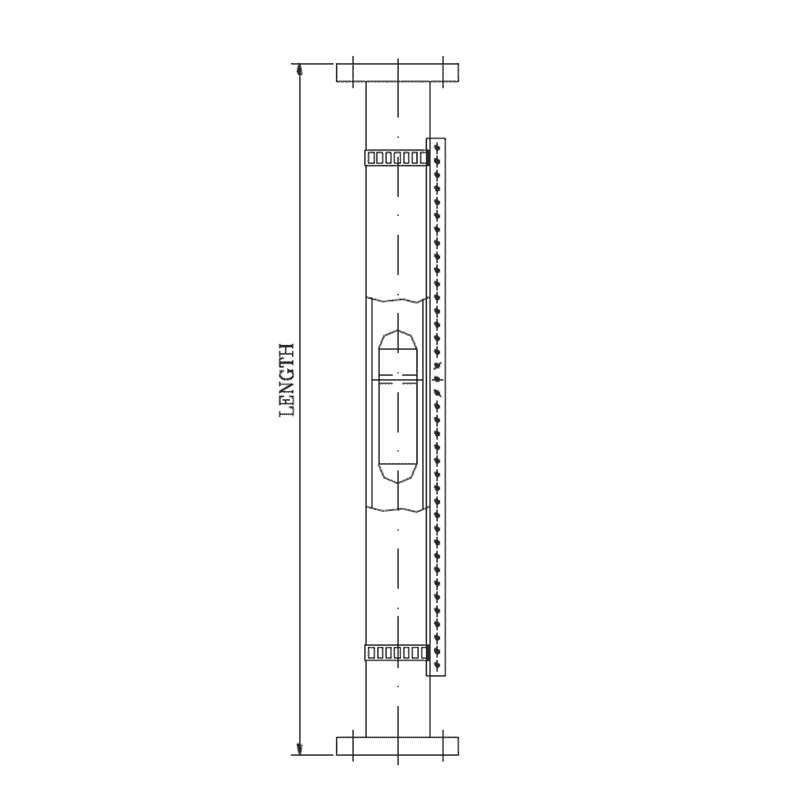

Pointer R Explosion proof – intrinsically safe for hazardous (explosive) areas.
Special models
Beside the above mentioned types we can manufacture special models. We can make models with a coating (lining) from E-CTFE, PFA or ETFA, models made from plastic, Hastelloy, Monel, Titanium or 254 SMo. We also produce magnetic level gauge with (steam)jacket for heating of cooling. For further information please contact one of our technical sales engineers.
