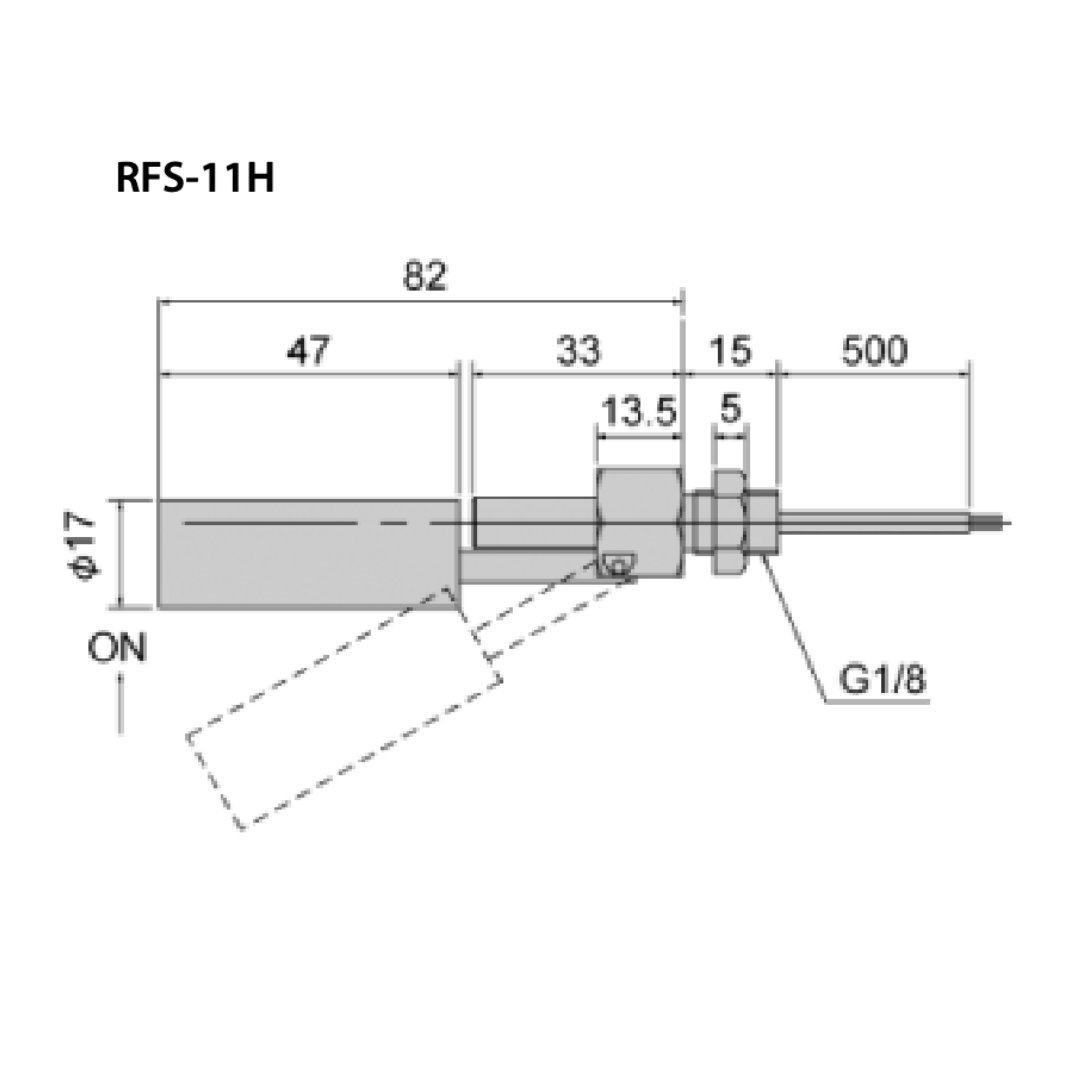

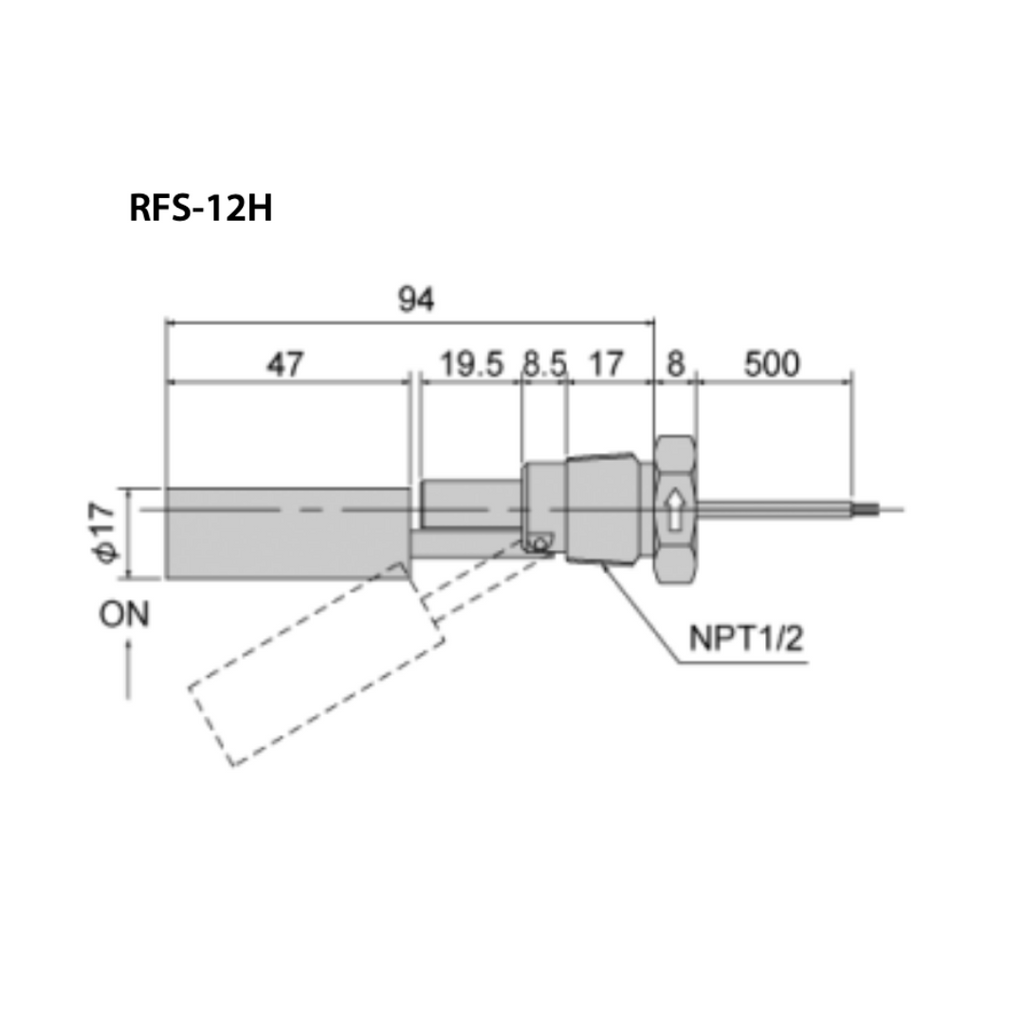

RFS-11H - 12H Side Entry Float Switch
- 180ºC High Temperature Version
- 304 grade stainless steel construction
- Hinge pin and up to 5 bar pressure
- 1/8” BSP internal fitting or 1/2” external fitting options
- N/O or N/C (reversible) contact
- 300Vac/50VA
 |
Technical Datasheet |
- Description
- Downloads
The RFS-11H and RFS-12H Side Entry Level Switches, are high-performance devices designed to monitor liquid levels in a wide range of applications. These switches feature robust construction with all components, including the stem, float, stopper, and nut, made from SUS304 stainless steel, ensuring excellent durability and resistance to corrosion.
These level switches operate within an impressive temperature range of -40ºC to +180ºC (at atmospheric pressure) and can withstand pressures of up to 0.5MPa at room temperature. Ideal for use with liquids having a specific gravity greater than 0.8, the RFS-11H and RFS-12H are versatile for various industrial environments.
With a maximum contact capacity of 50W DC/AC, the switches are suitable for controlling both DC and AC circuits. They can handle a maximum voltage of 300V and a current of up to 0.5A, providing reliable operation even in demanding conditions.
These side-entry level switches offer an efficient and reliable solution for liquid level sensing, ensuring seamless automation and control in applications such as tanks, reservoirs, and processing systems. Designed for easy integration into existing systems, they deliver precise and consistent performance. Choose the RFS-11H and RFS-12H for dependable, long-lasting liquid level monitoring in a wide range of industries.
