EUROSWITCH
Euroswitch is a leading producer of level, pressure, temperature, and flow sensors, and it has transitioned to electronic sensors as part of its ongoing research and development.
Euroswitch continues to spend significantly on research and development in traditional sensors while prioritising the usage of the latest-generation Io-Link protocols to consolidate business growth as part of Industry 4.0 technology.
EUROSWITCH was founded in 1978 in Sale Marasino (BS), a beautiful little town on Lake Iseo's beaches, specialising in designing and manufacturing level sensors. It moved into pressure sensors and started manufacturing pressure switches and vacuum switches in 1990.
In the 1990s, the company's product range was substantially extended to include temperature sensors, thermostats and vacuum switches, speed and rotation sensors, and flow metres.
One of EUROSWITCH's most valuable advantages is its ability and creativity to develop a new product customised to the customers' needs each time. Another element of success is its innovative approach to solving new challenges and raising manufacturing standards simultaneously.

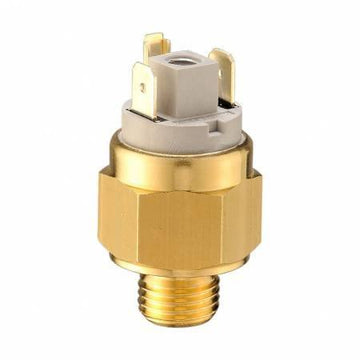

- Diaphragm Pressure Switch ≤ 48V
- N/O or N/C Contacts
- Up to 50 bar adjustment ranges
- Over-pressures up to 300 bar
- Max working pressures up to 150 bar
- 1/4” BSP thread (others available)
- Viton seal (others available)
- Brass, steel or stainless steel body
 |
Model 41 Technical Datasheet |
|
Model 41B/C Technical Datasheet |
|
Model 41V Technical Datasheet |

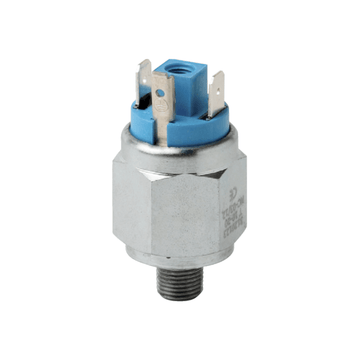

- Diaphragm Pressure Switch ≤ 250V
- N/O or N/C Contacts
- Up to 50 bar adjustment ranges
- Over-pressures up to 300 bar
- Max working pressures up to 150 bar
- 1/4” BSP thread (others available)
- Viton seal (others available)
- ATEX option available
|
Technical Datasheet |
- Case Brass: (on request Stainless Steel )
- Electric contacts: Silver AgNi, on request gold plated
- Electrical connection: N.O. (White ) N.C. (Brown )
- Max switch voltage: 48V ac / dc
- Max switch current: 0,5A
- Max fluid temperature: 80°-120°C (depending on diaphragm)
- Max Overpressure limit: 15 bar
- Max Working pressure: 10 bar
- Weight ~ 70 gr
|
Technical Datasheet |

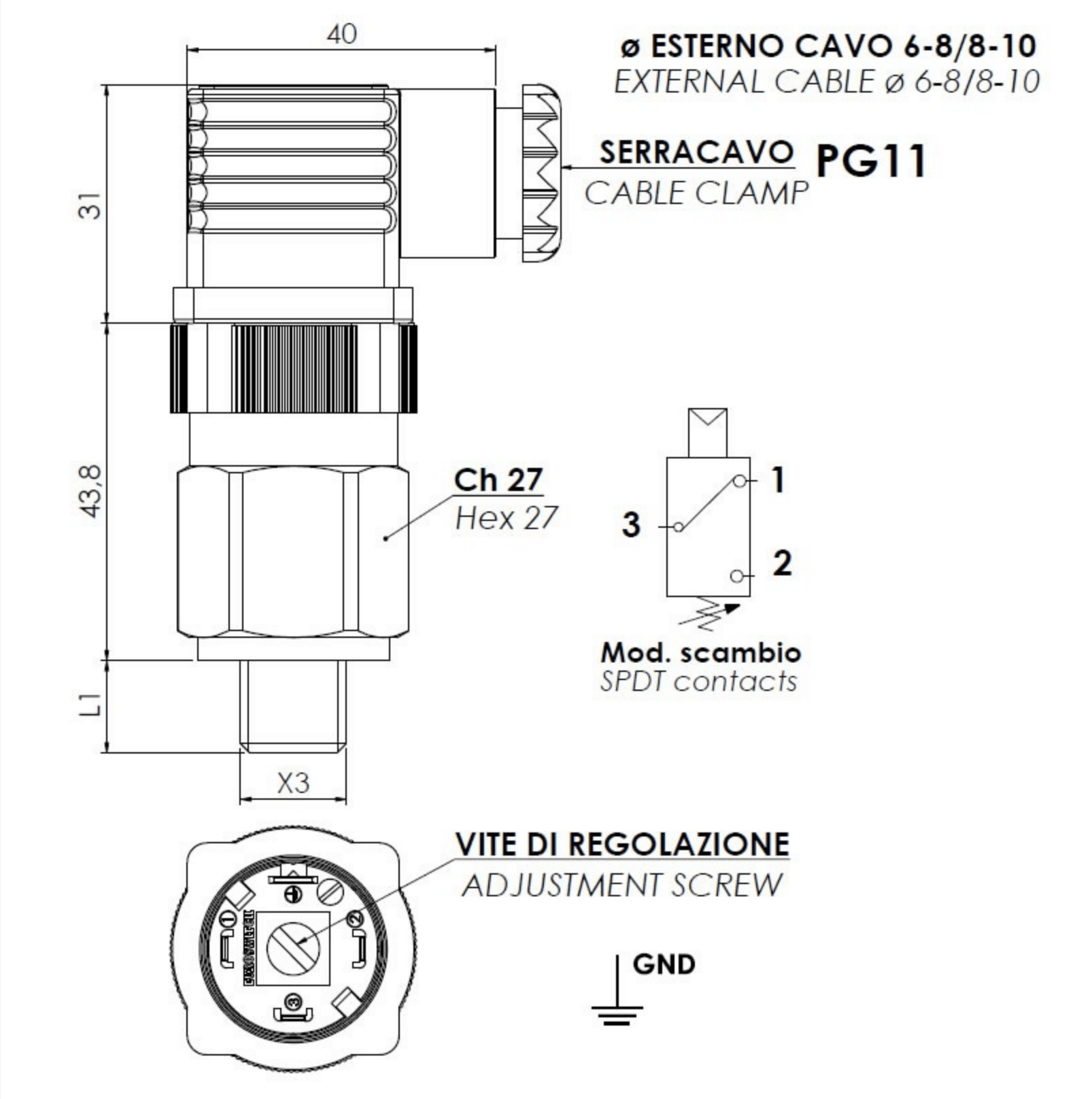

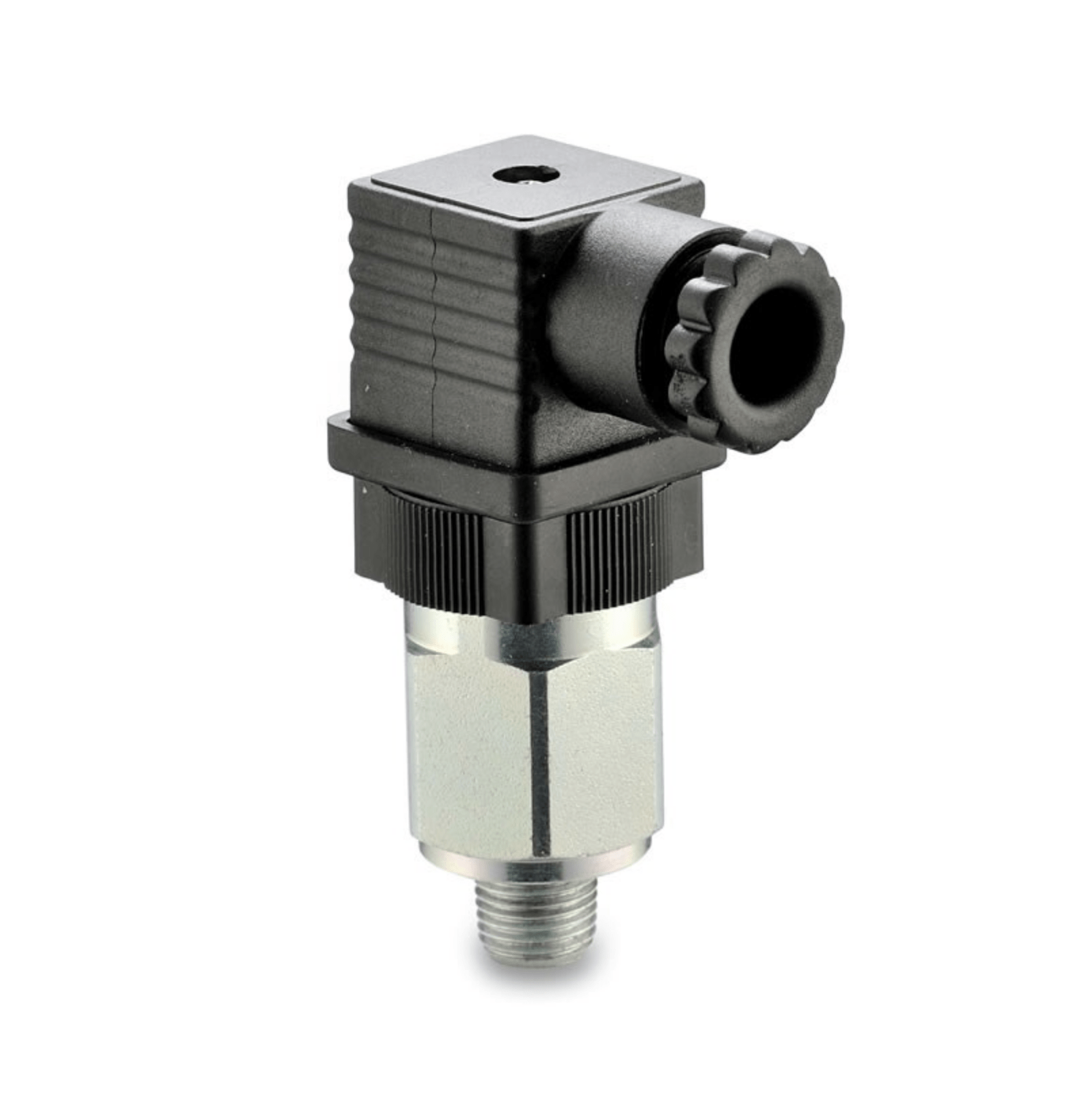

- Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 300 bar adjustment ranges
- Over-pressures up to 800 bar
- Max working pressures up to 450 bar
- 1/4” BSP thread (others available)
- Viton / NBR+Teflon Seal (Model 28N)
- Adjustable Hysterisis (10-50%)
|
Model 27N Technical Datasheet |
|
Model 28N Technical Datasheet |

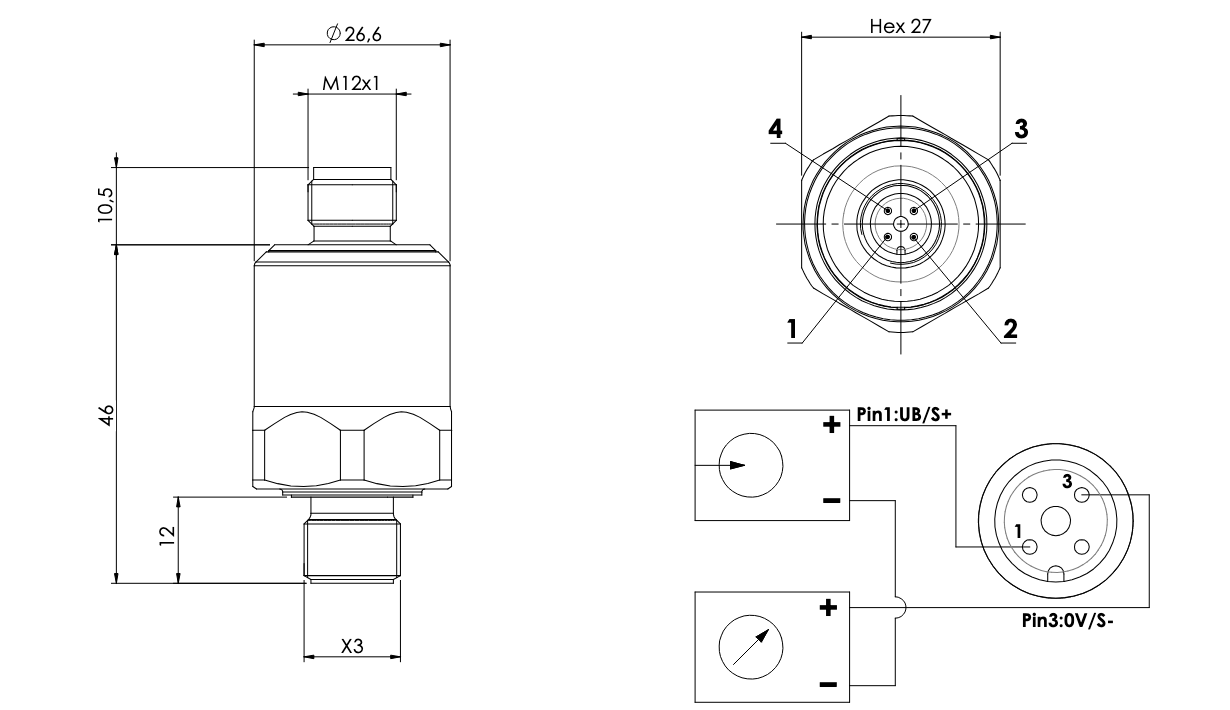

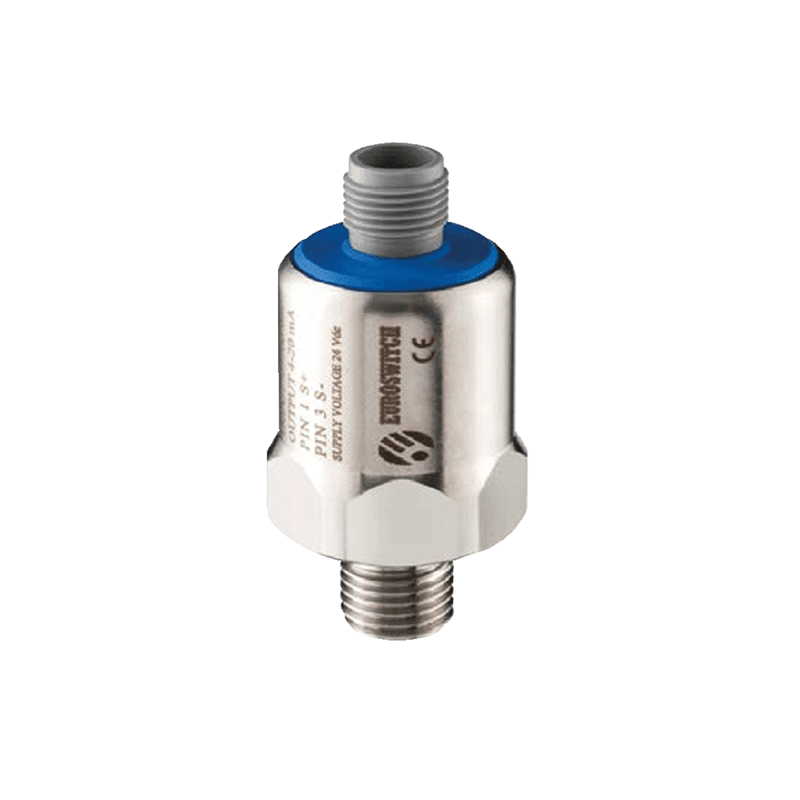

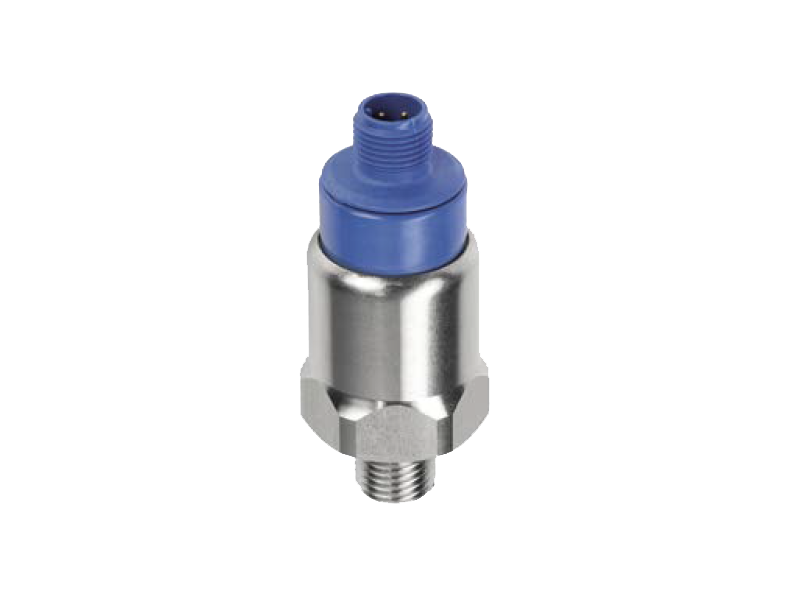

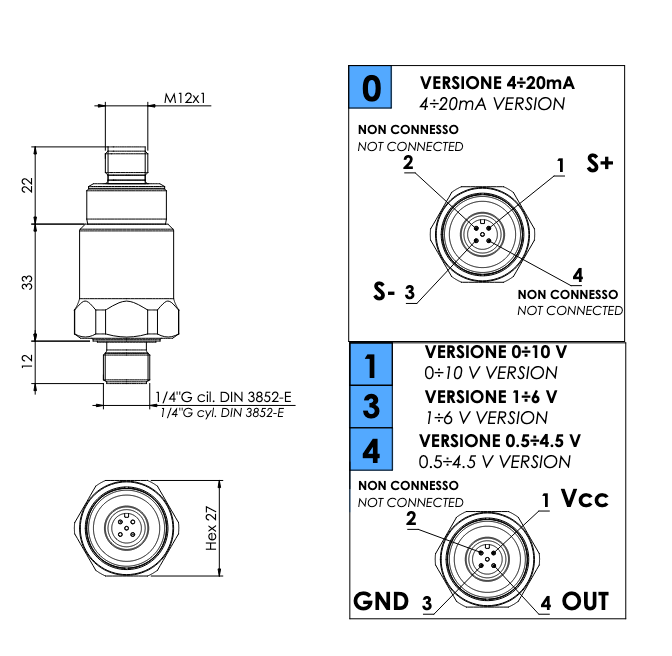

- Electronic Pressure Transducer
- 4-20mA transducer
- 0-400 bar measuring ranges
- Over-pressures up to 650 bar
- M12 electrical connector
- 1/4” BSP standard thread
- 316L stainless steel
|
ESP Technical Datasheet |

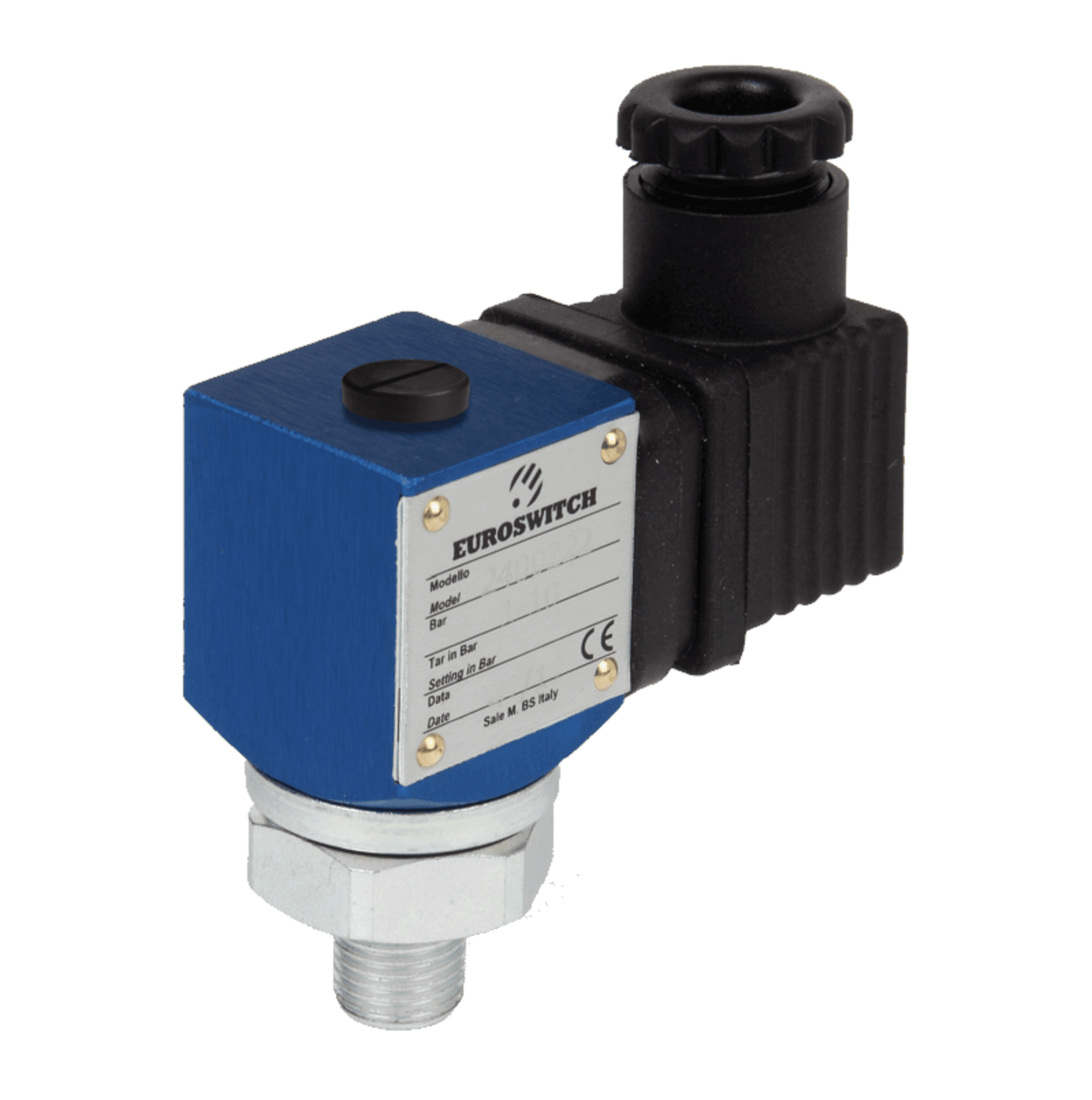

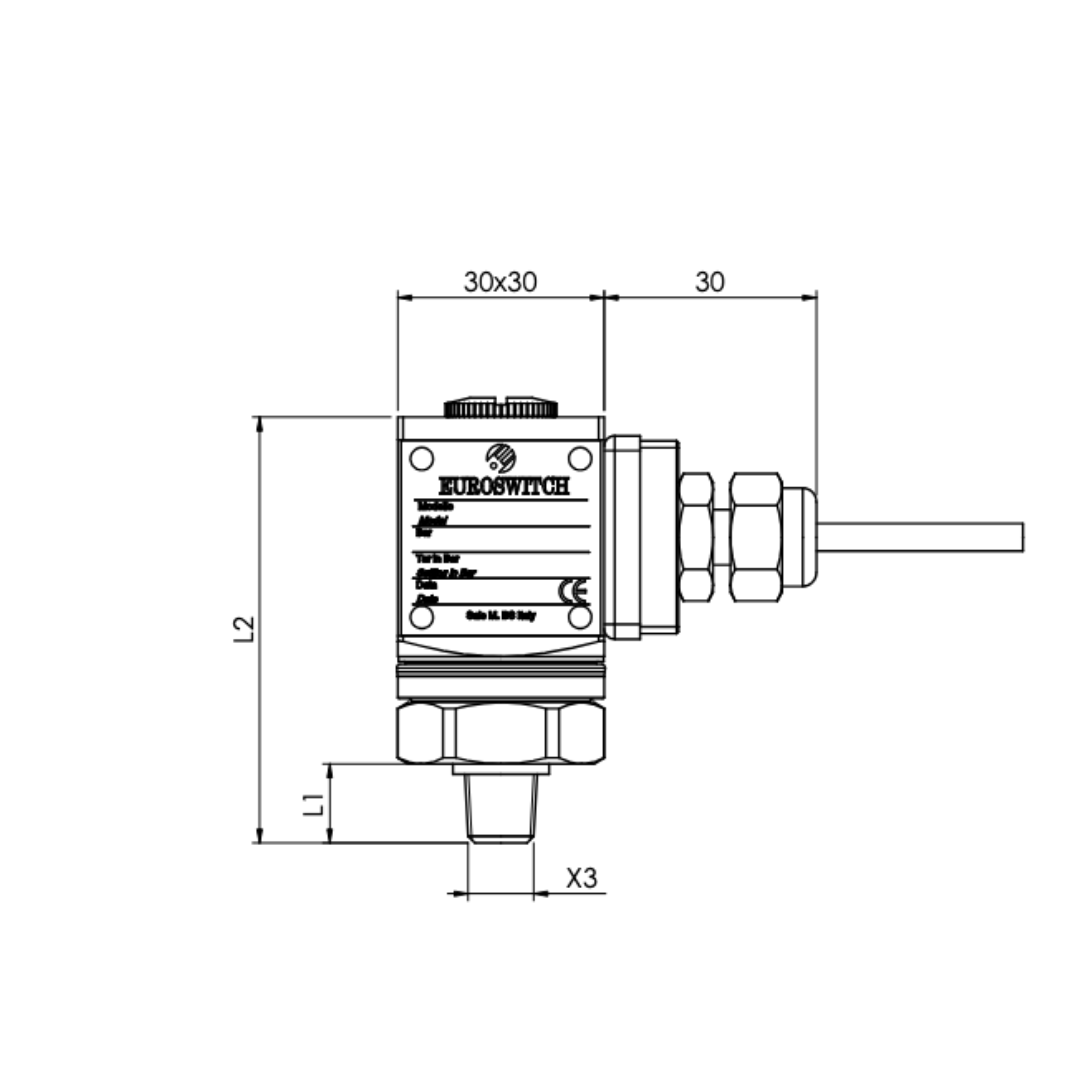

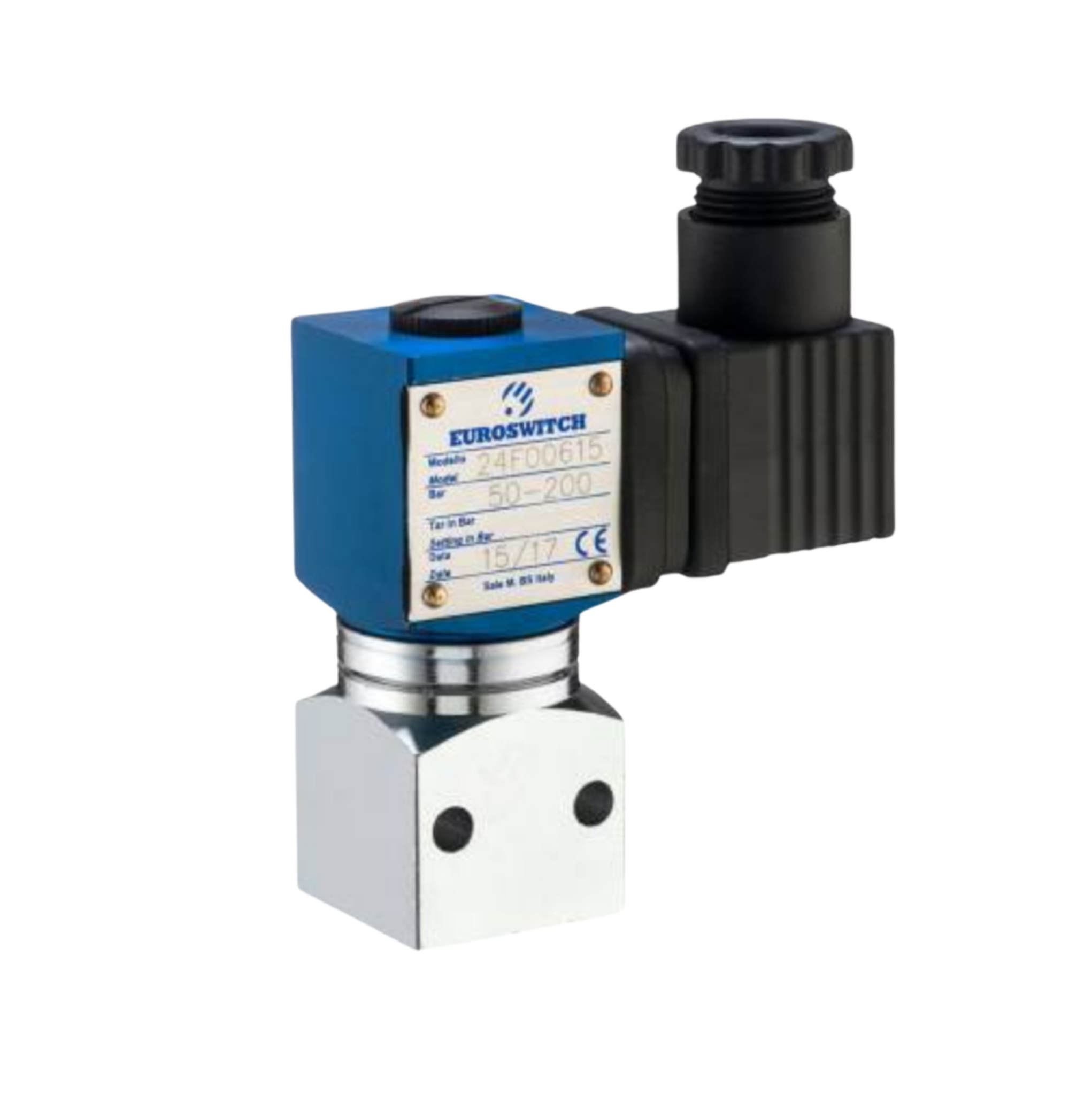

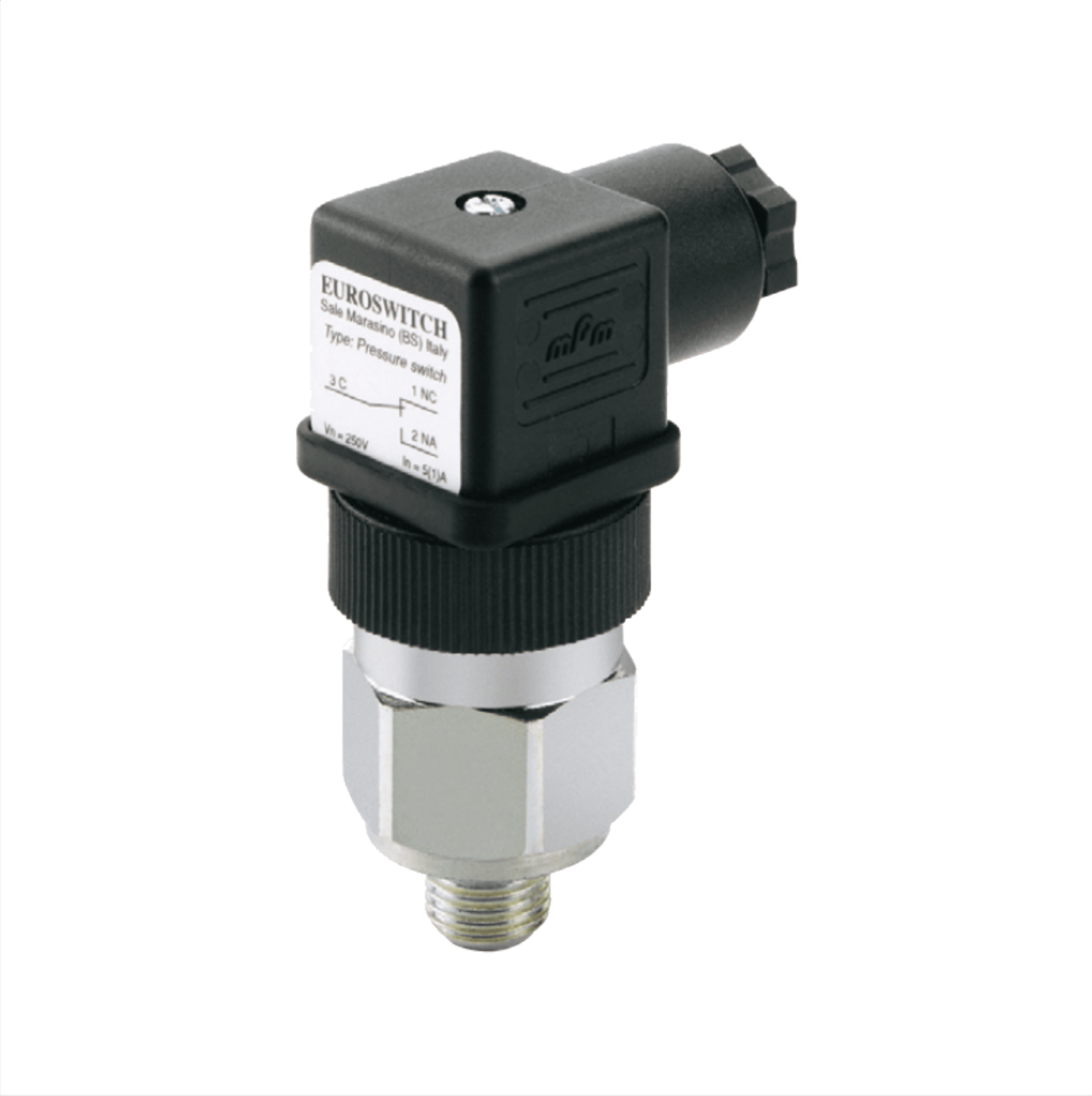

- Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 400 bar adjustment ranges
- Over-pressures up to 800 bar
- Max working pressures up to 450 bar
- 1/4” BSP male/female thread options
- Viton seal (others available)
- DIN43650 / cable options
|

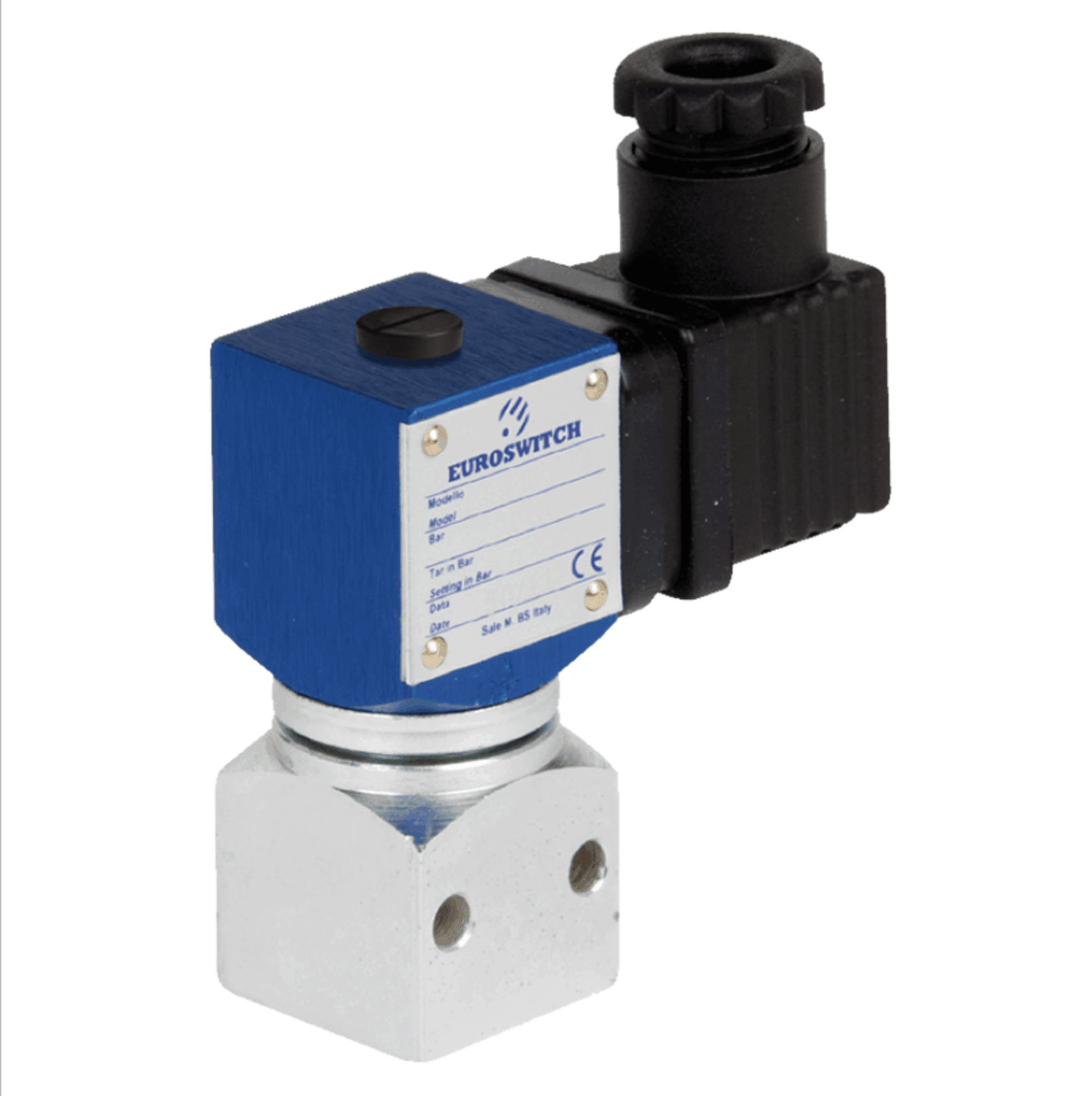

Model 24 Technical Datasheet |
|

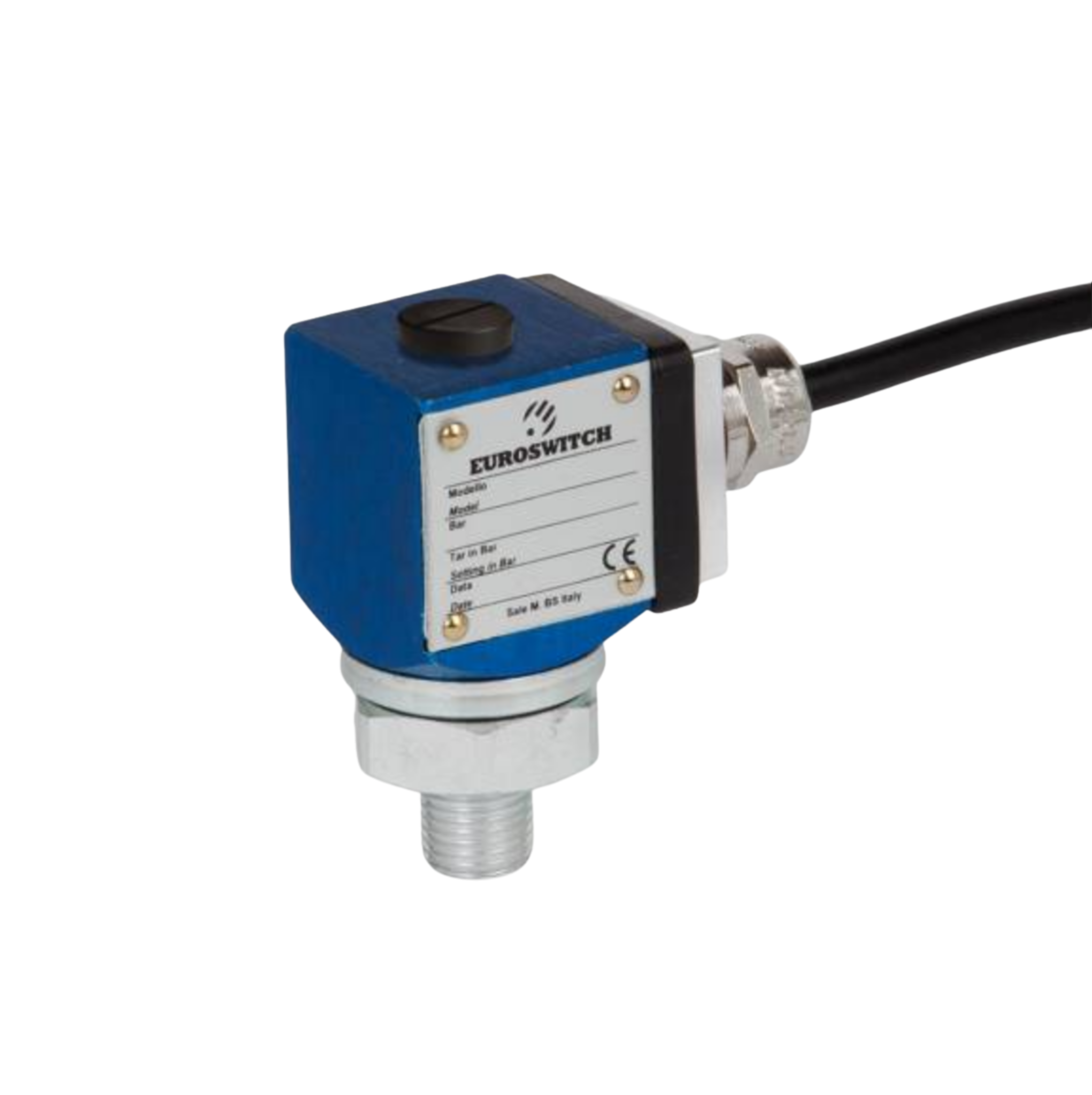

Model 24C Technical Datasheet |
|
Model 24F Technical Datasheet |

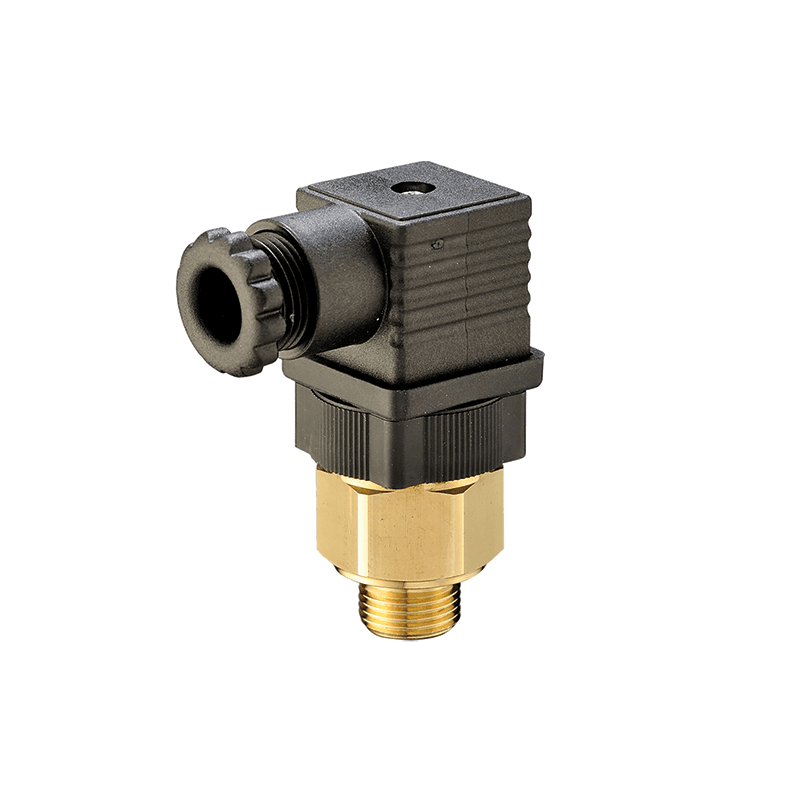

- 35°C-85°C Set Points (5° increments)
- Max temperature 85°C
- Switch rating up to 250V
- 1/2” or 3/8” BSP thread(others available)
- Brass construction (stainless option)
- ATEX option available

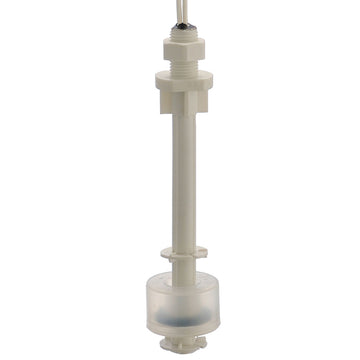

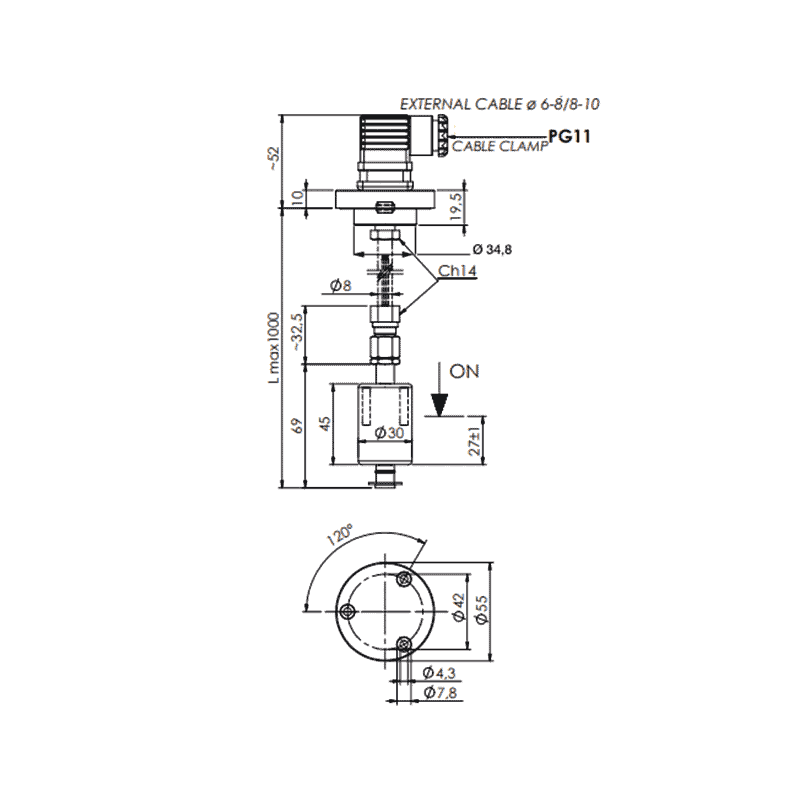

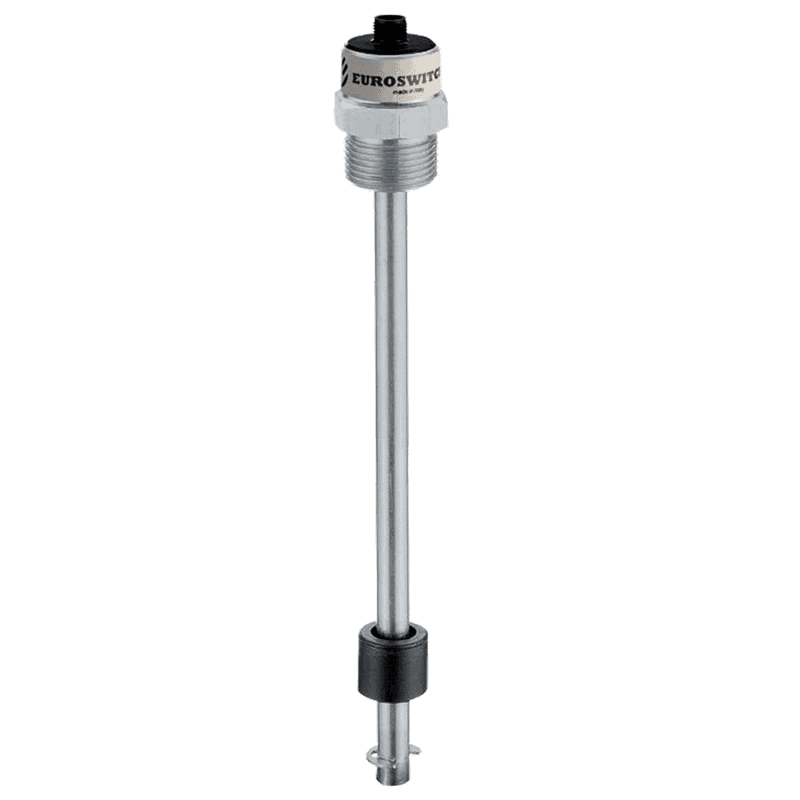

- Nylon or NBR Float
- Adjustable length to 1000 mm
- NO/NC or SPDT Reed Switch
- Temperature Switch Option (PKT)
- IP65 with Din Connector Flange or 1” BSP Options
|
Technical Datasheet |

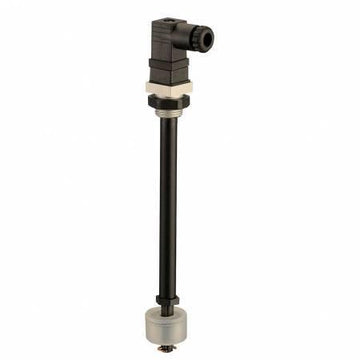

- Nylon or NBR Float
- Adjustable length to 1000 mm
- NO/NC or SPDT Reed Switch
- Temperature Switch Option (PKT)
- IP65 with Din Connector Flange or 1” BSP Options
|
Technical Datasheet |
- Use: Water - Mineral oils - Diesel fuel - Petrol
- Fixing: 1" gas AISI 304 (stainless steel on request)
- Output signals: 4-20 mA ANALOG
|
Technical Datasheet |

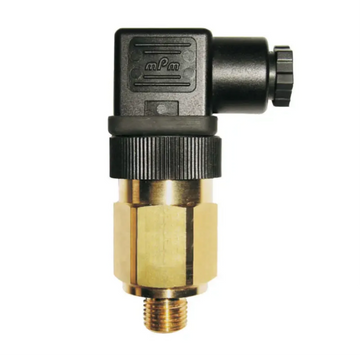

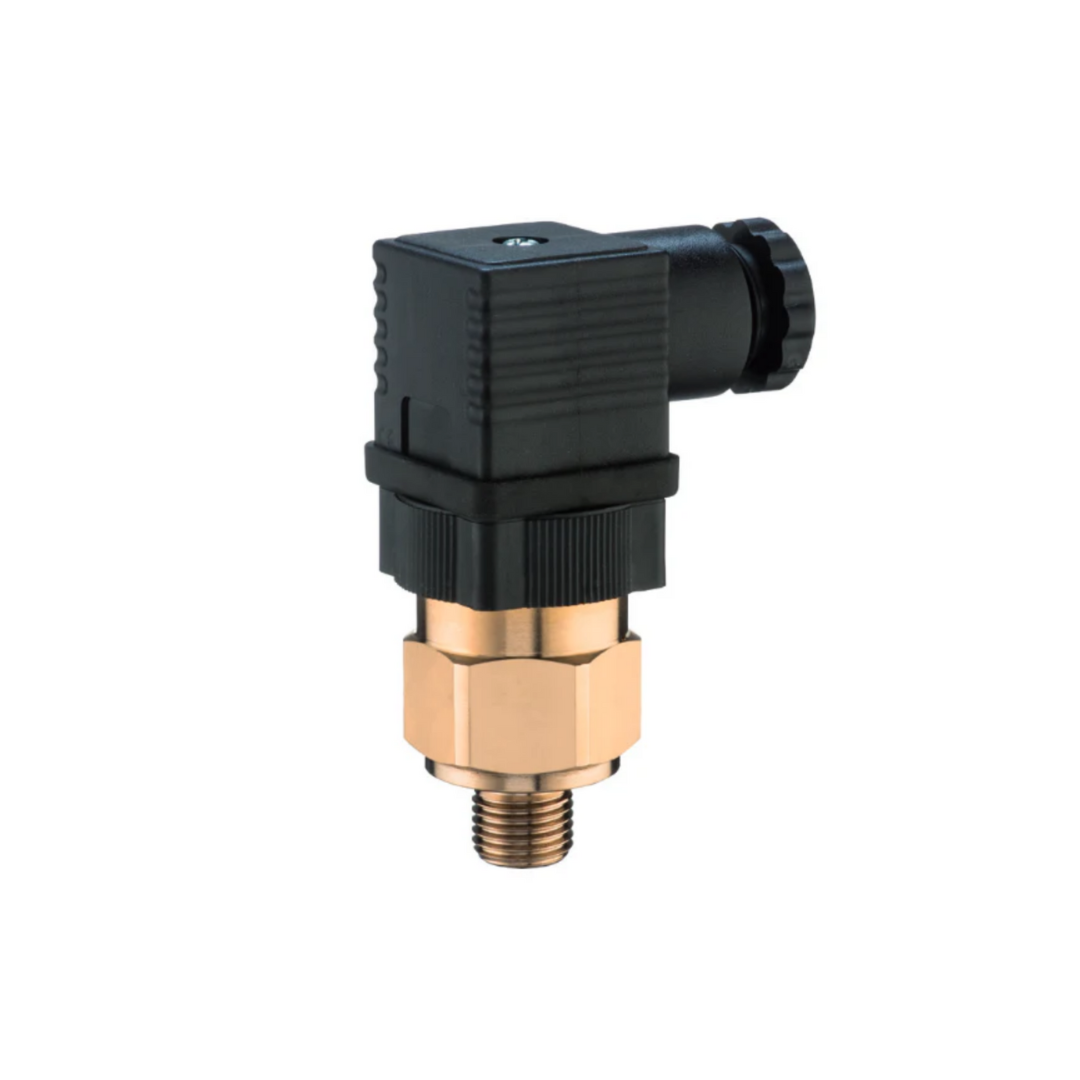

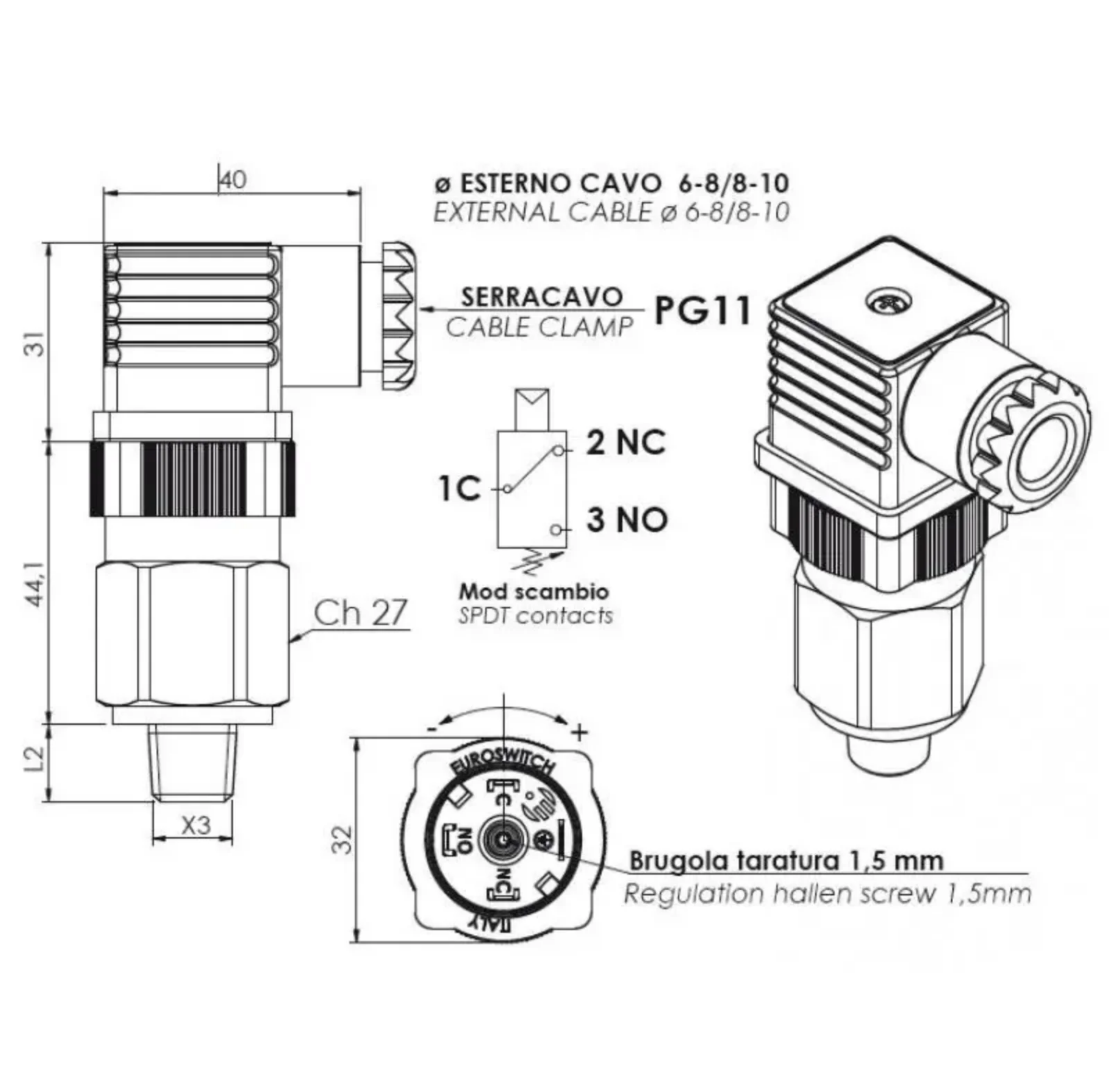

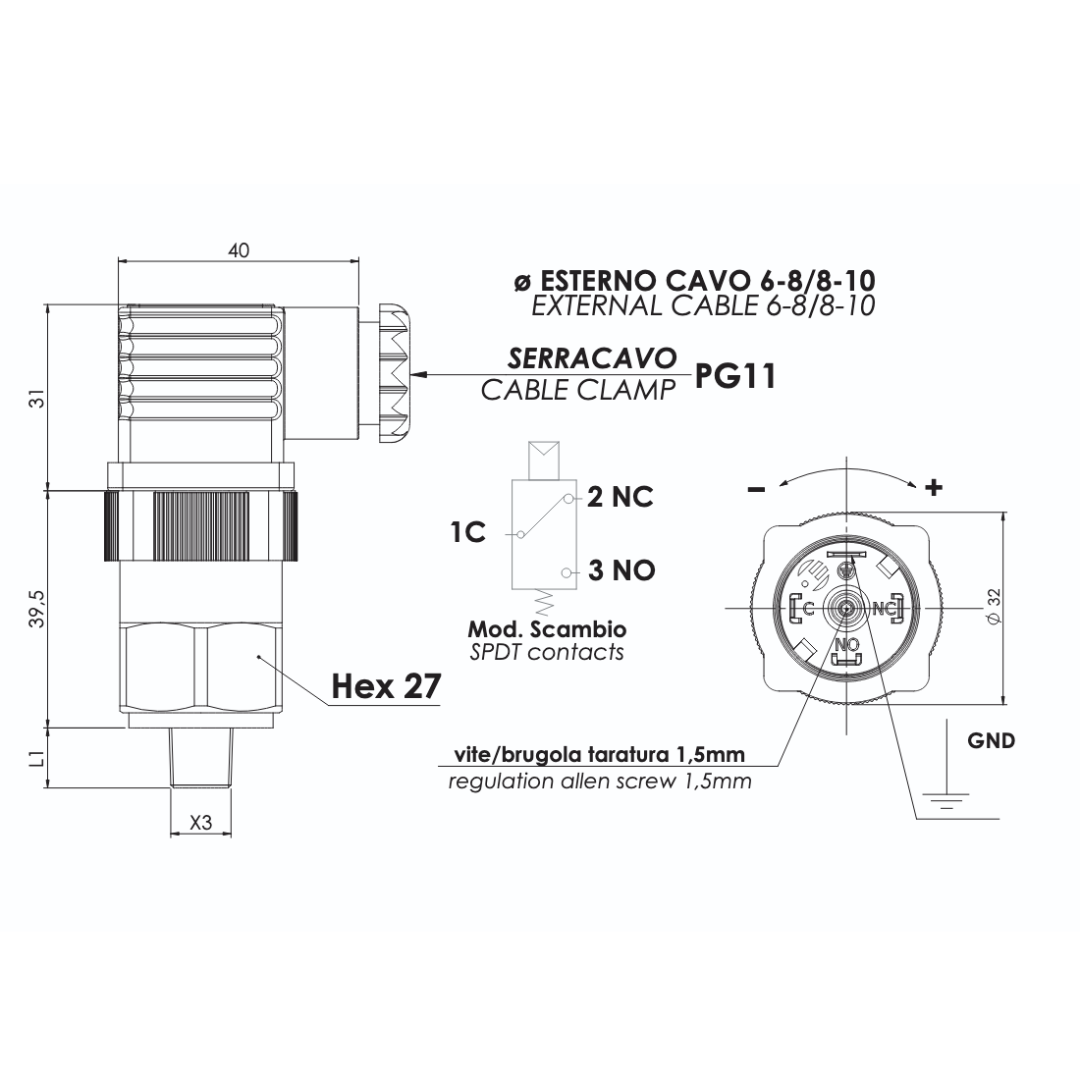

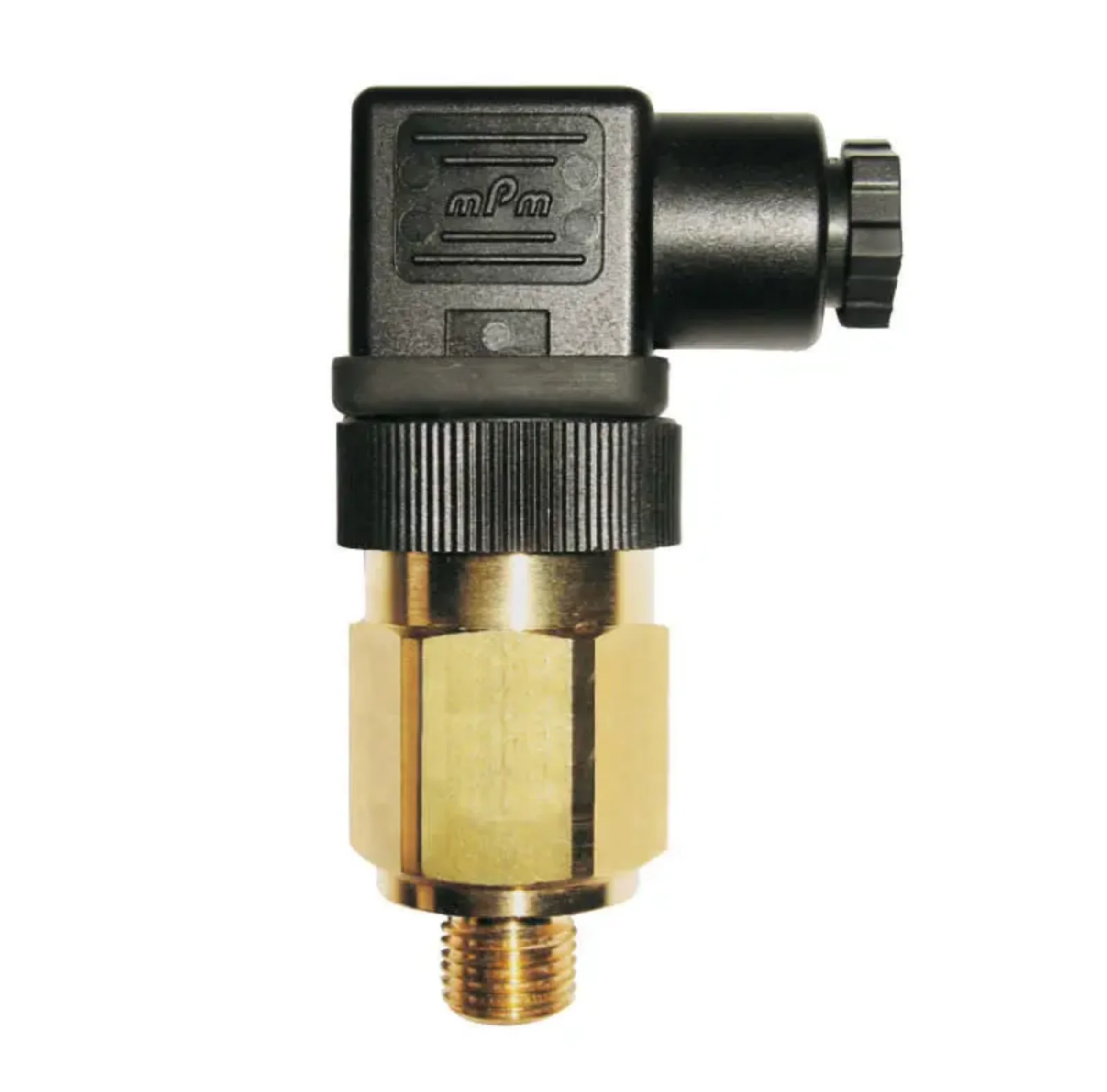

- Vacuum Switch ≤ 250V SPDT CO Contacts
- -200 / - 900 mbar adjustment ranges
- Over-pressures up to 15 bar
- Max working pressures up to 10 bar
- 1/4” BSP thread (others available)
- NBR seal or CR seal
- Brass body
|
Technical Datasheet |

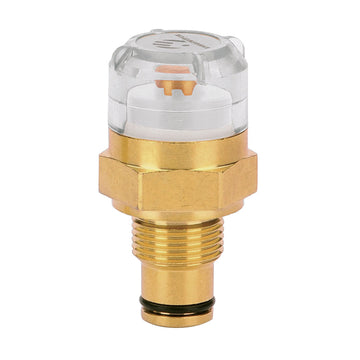

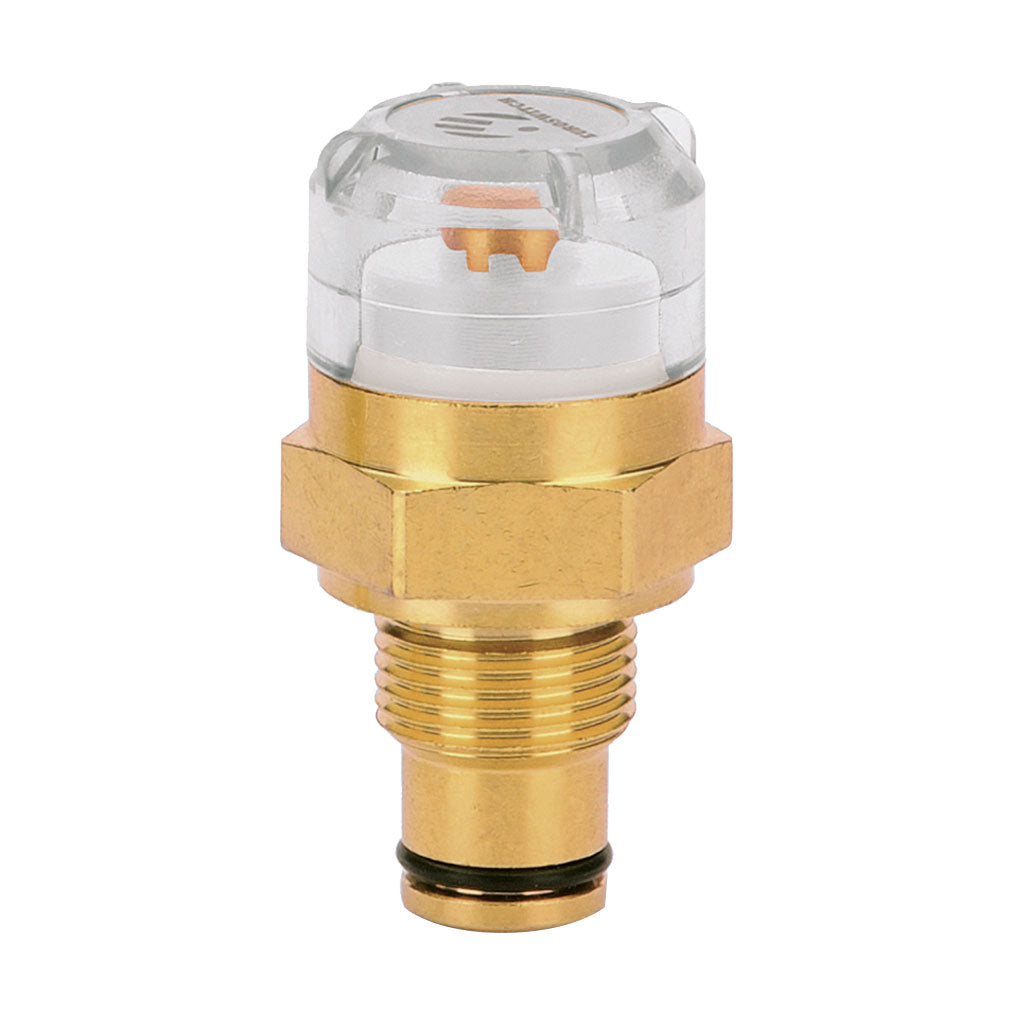

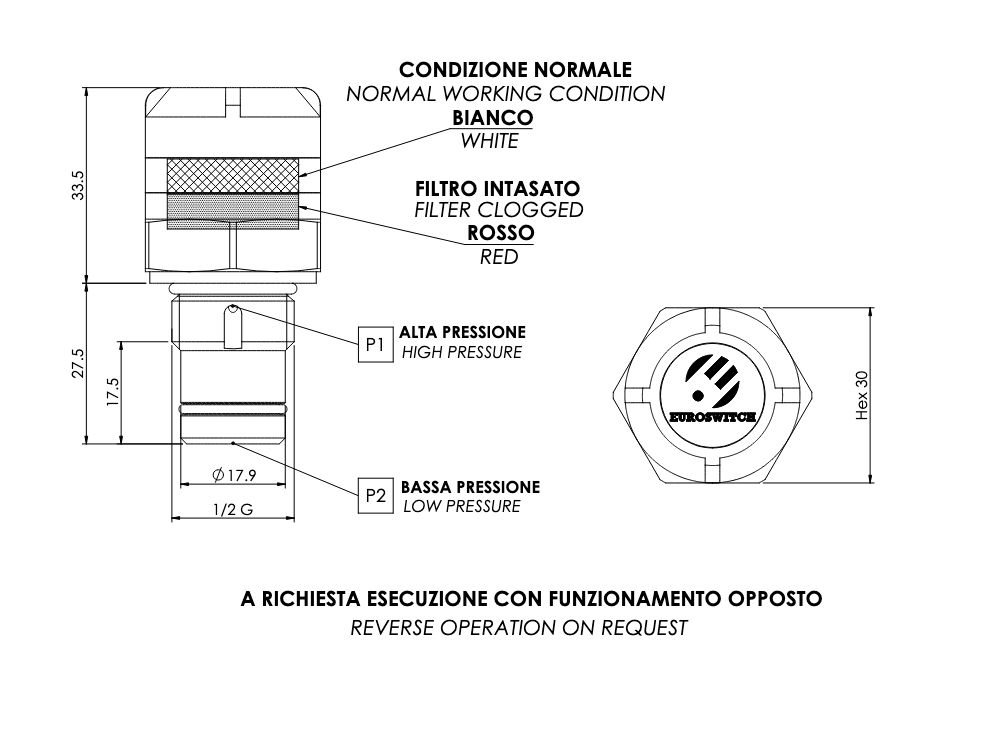

- Working fluid: Oil
- Case: Brass
- Cap: high performance Polyamid
- Visual signal: White/Red
- Thread (X3) M20x1,5 (other on request)
- Ambient temperature: -25°C / +85°C
- Fluid temperature: -10°C / +85°C
- Max working pressure: 350 ÷ 450 bar depending on the thread
- Action type: magnetic
- External pollution situation: grade 2
- Tightening torque max: 35 Nm
- Operating speed: 10 bar / 15 sec.
- Weight ~ 150 gr

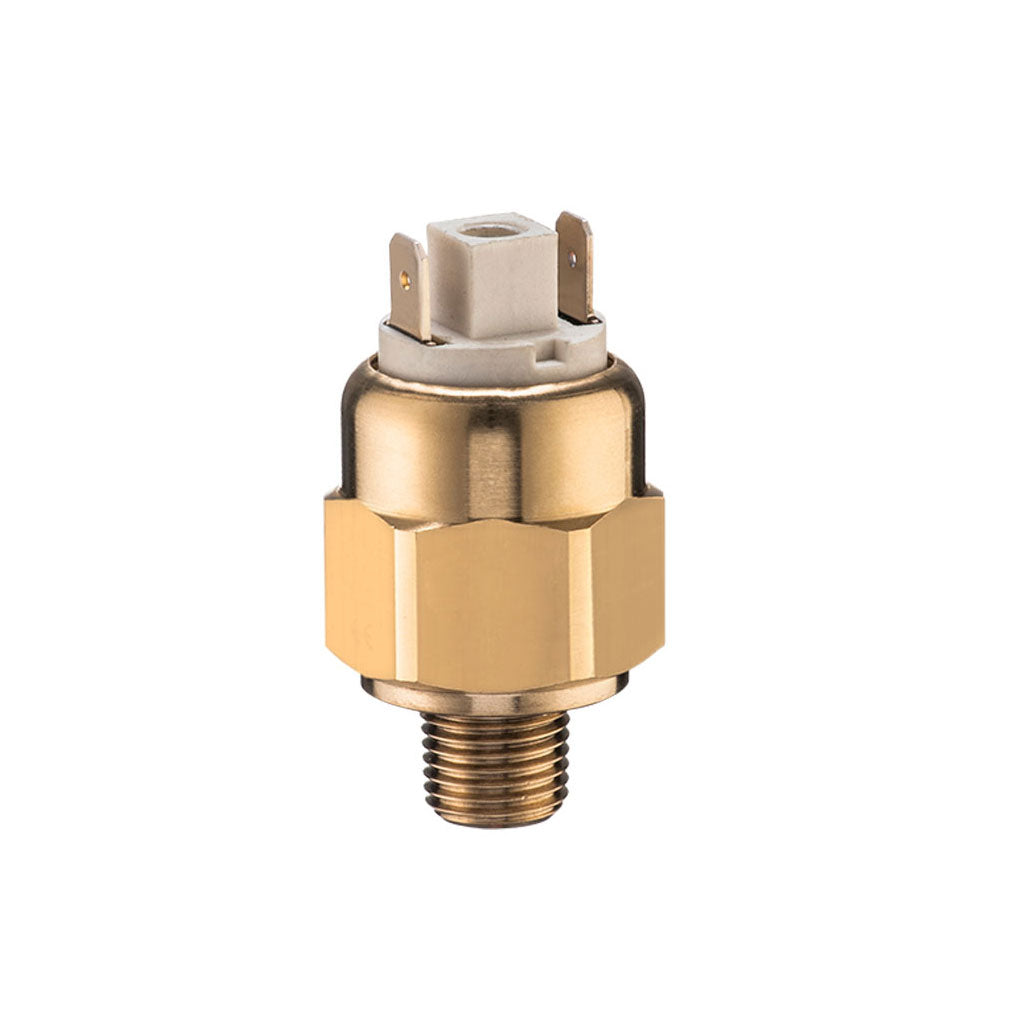

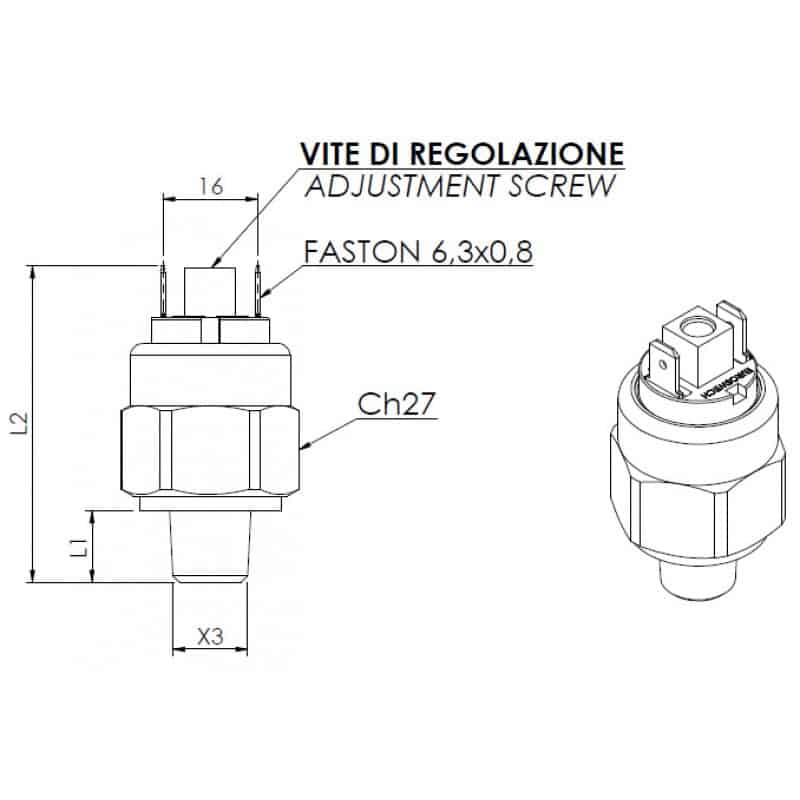

- Vacuum Switch ≤ 250V
- NO or NC Contacts
- -200 / -900 mbar adjustment range
- Over-pressures up to 35 bar
- Max working pressures up to 25 bar
- 1/4” BSP thread (others available)
- NBR seal or CR seal
- ATEX option available
|
Technical Datasheet |

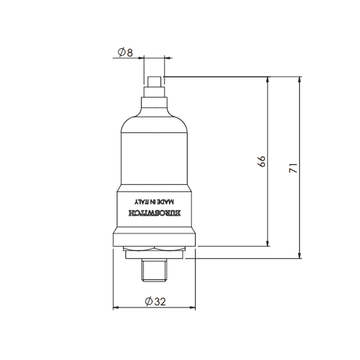

- Case Brass: (on request Stainless Steel)
- Electric contacts: Silver AgNi, on request gold plated
- Electrical connection: N.O. (White ) N.C. (Brown )
- Max switch voltage: 48V ac / dc
- Max switch current: 0,5A
- Max fluid temperature: 80°-120°C (depending on diaphragm)
- Max Overpressure limit: 35 bar
- Max Working pressure: 25 bars
- Protection degree IP00 with cover 3015010 IP54
- Weight ~ 90 gr
|
Technical Datasheet |

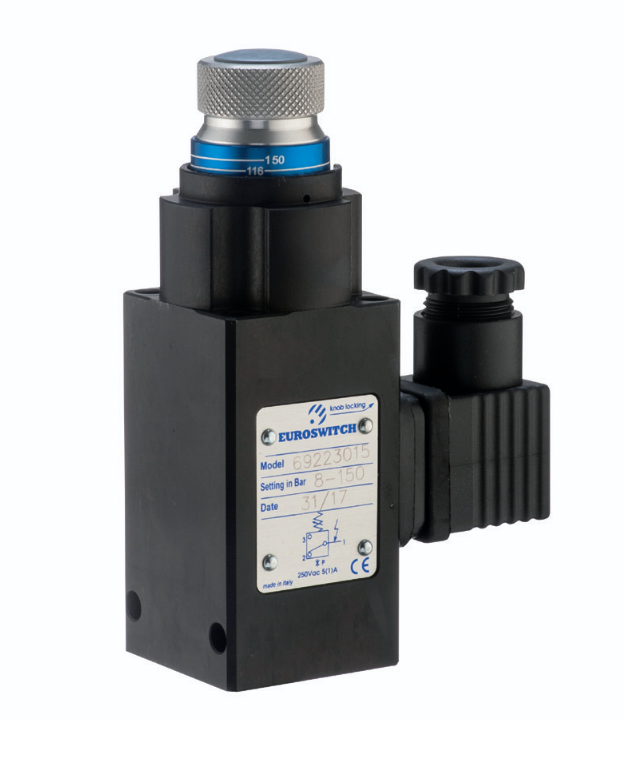

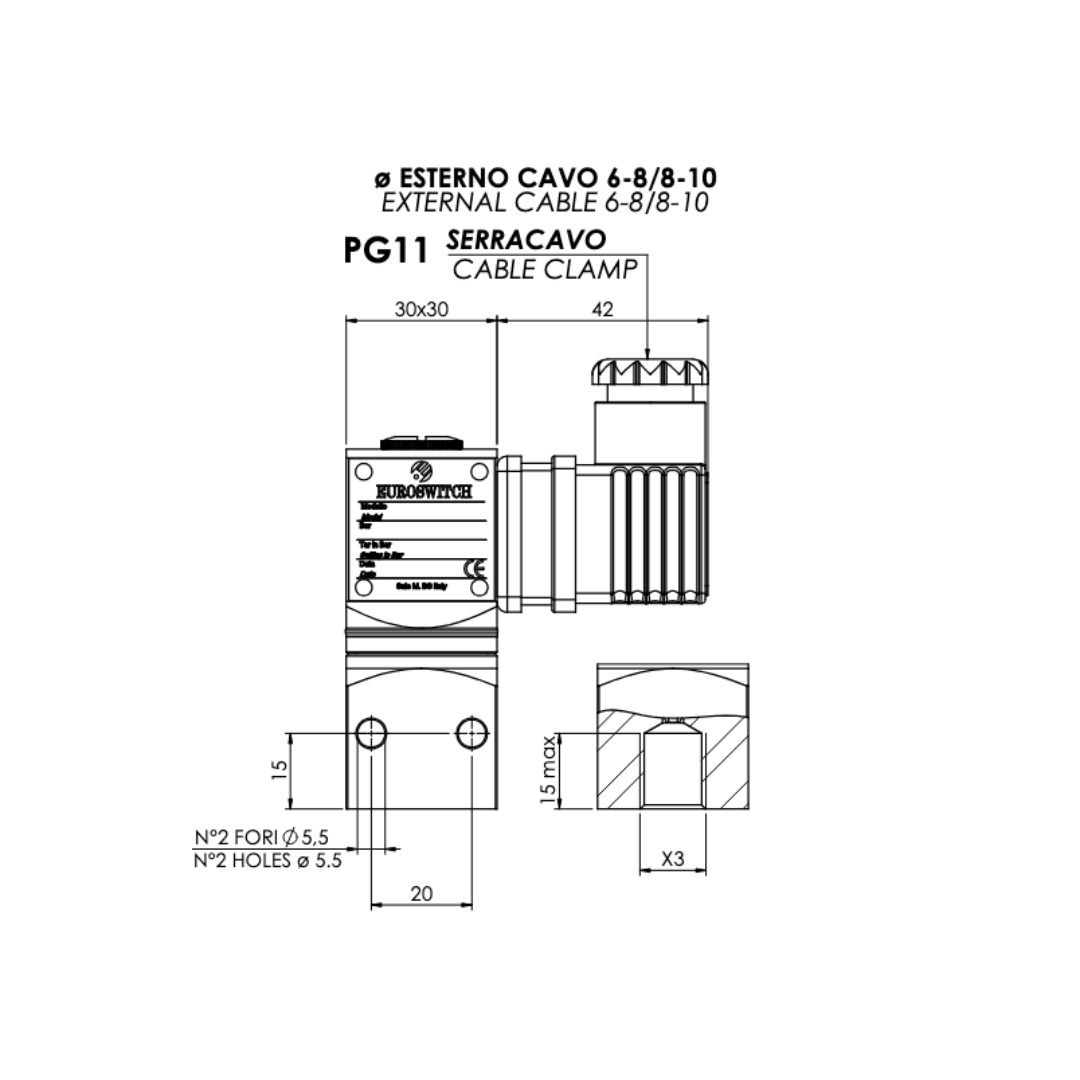

- Pressure Switch with Adjustment Knob
- SPDT C/O Contacts
- Up to 400 bar adjustment ranges
- Max over-pressure 900 bar
- Up to ≤ 250V / DIN43650
- Manifold / 1/4” BSP female (ES-692)
- NBR+Teflon seal
- ± 2% Tolerance across the range
|
691 Technical Datasheet |
|
692 Technical Datasheet |
- Piston Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 400 bar adjustment ranges
- Over-pressures up to 900 bar
- Max working pressures up to 450 bar
- 1/4” BSP thread (others available)
- NBR+Teflon piston seal
- ATEX option available
|
Technical Datasheet |
- Diaphragm Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 60 bar adjustment ranges
- Over-pressures up to 300 bar
- Max working pressures up to 150 bar
- 1/4” BSP thread (others available)
- Viton seal (others available)
- ATEX option available
|
Technical Datasheet |

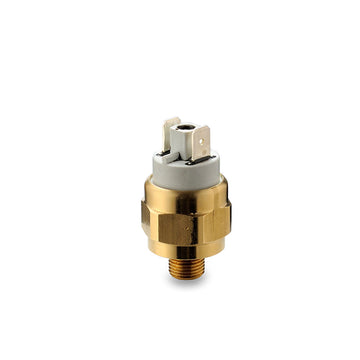

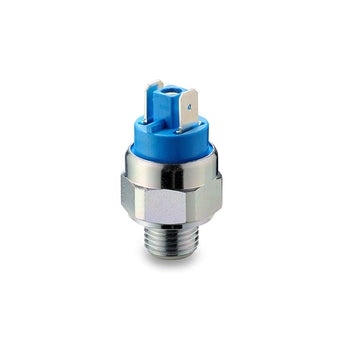

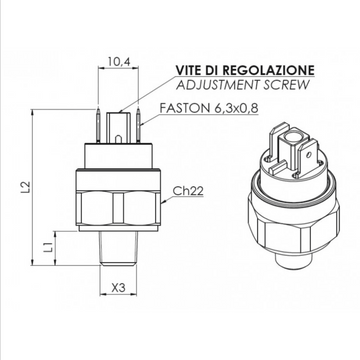

- High Amp Pressure Switch ≤ 48V
- N/O or N/C Contacts Up to 10 bar adjustment ranges
- Max over-pressure 50 bar
- Max working pressures up to 20 bar
- 1/4” BSP thread (others available)
- NBR seal (others Available)
- Max current up to 5 amps
|
Model 25R Datasheet |
|
Model 25D Datasheet |

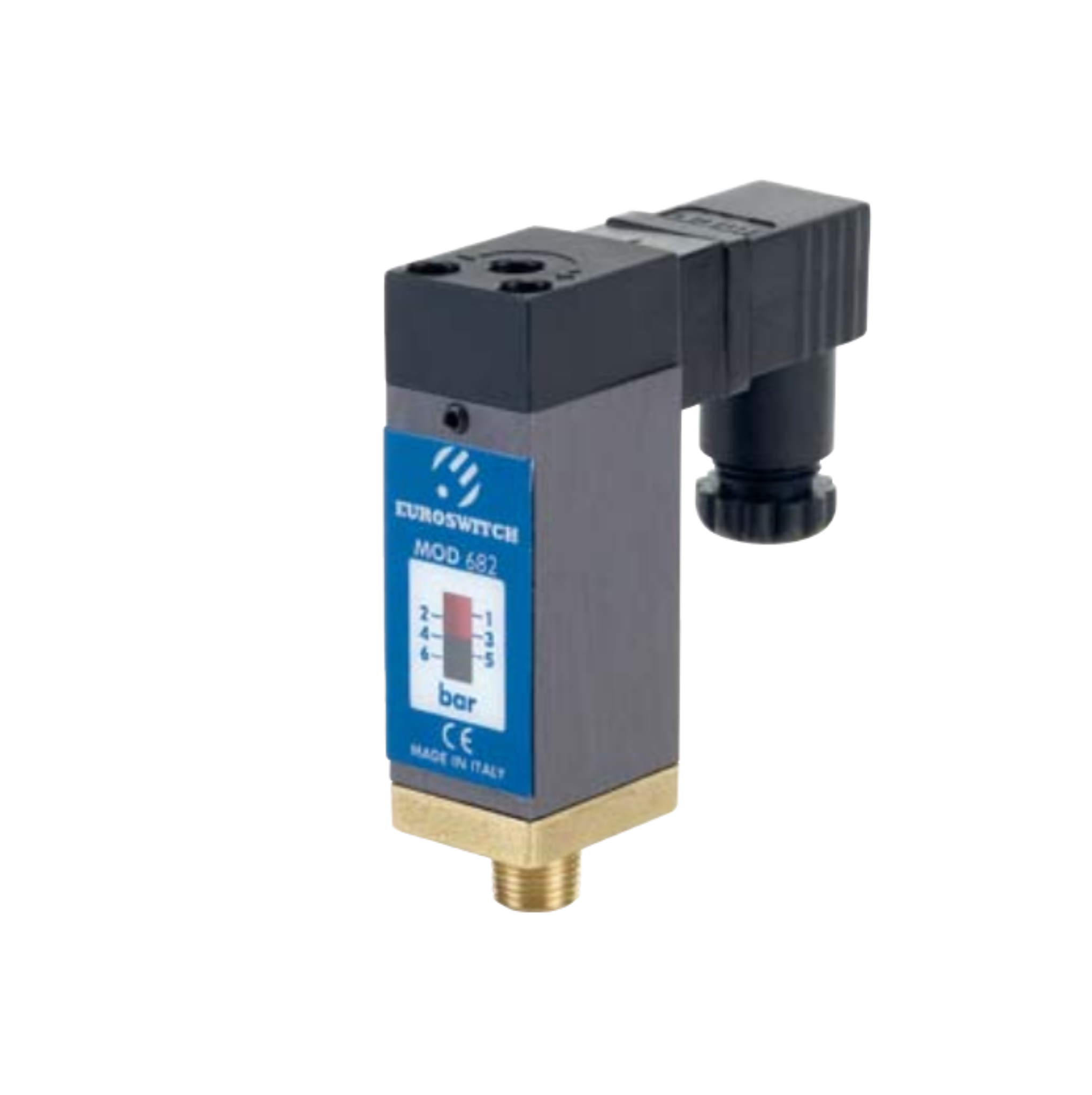

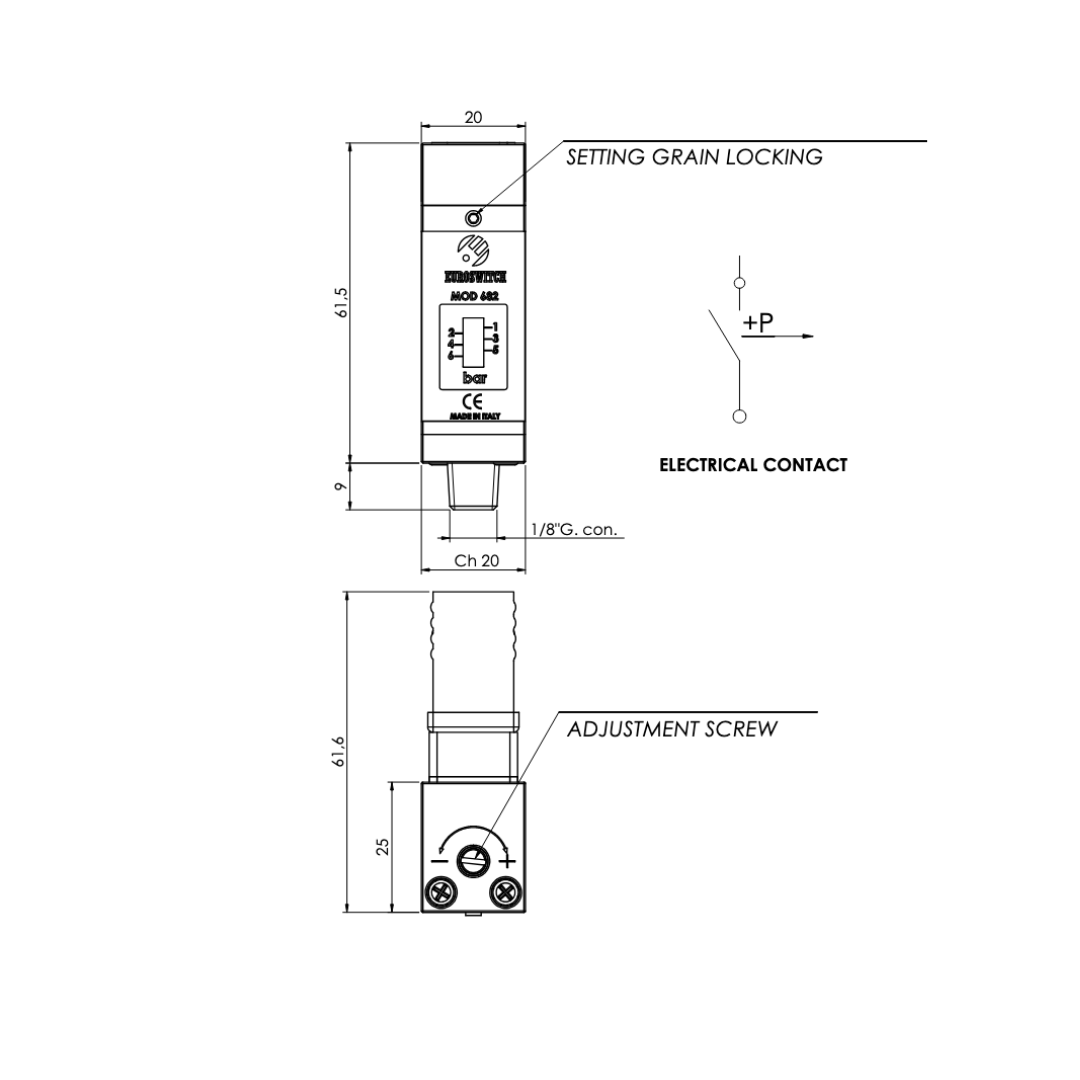

- Pressure Switch with Visual Scale
- SPST N/O Contacts
- Up to 6 bar adjustment ranges
- Max over-pressure 20 bar
- Switch rating 48V
- Air only
- Electrical cable (Model. 681)
- DIN43650 (Model. 682)
|
681 Technical Datasheet |
|
682 Technical Datasheet |
- Piston Pressure Switch ≤ 250V
- N/O or N/C Contacts
- Up to 300 bar adjustment ranges
- Over-pressures up to 800 bar
- Max working pressures up to 450 bar
- 1/4” BSP thread (others available)
- NBR+Teflon piston seal
- Steel or stainless steel body
|
Technical Datasheet |
- Piston Pressure Switch ≤ 48V
- N/O or N/C Contacts
- Up to 300 bar adjustment ranges
- Over-pressures up to 800 bar
- Max working pressures up to 450 bar
- 1/4” BSP thread (others available)
- NBR+Teflon piston seal
- Steel or stainless steel body
|
Technical Datasheet |

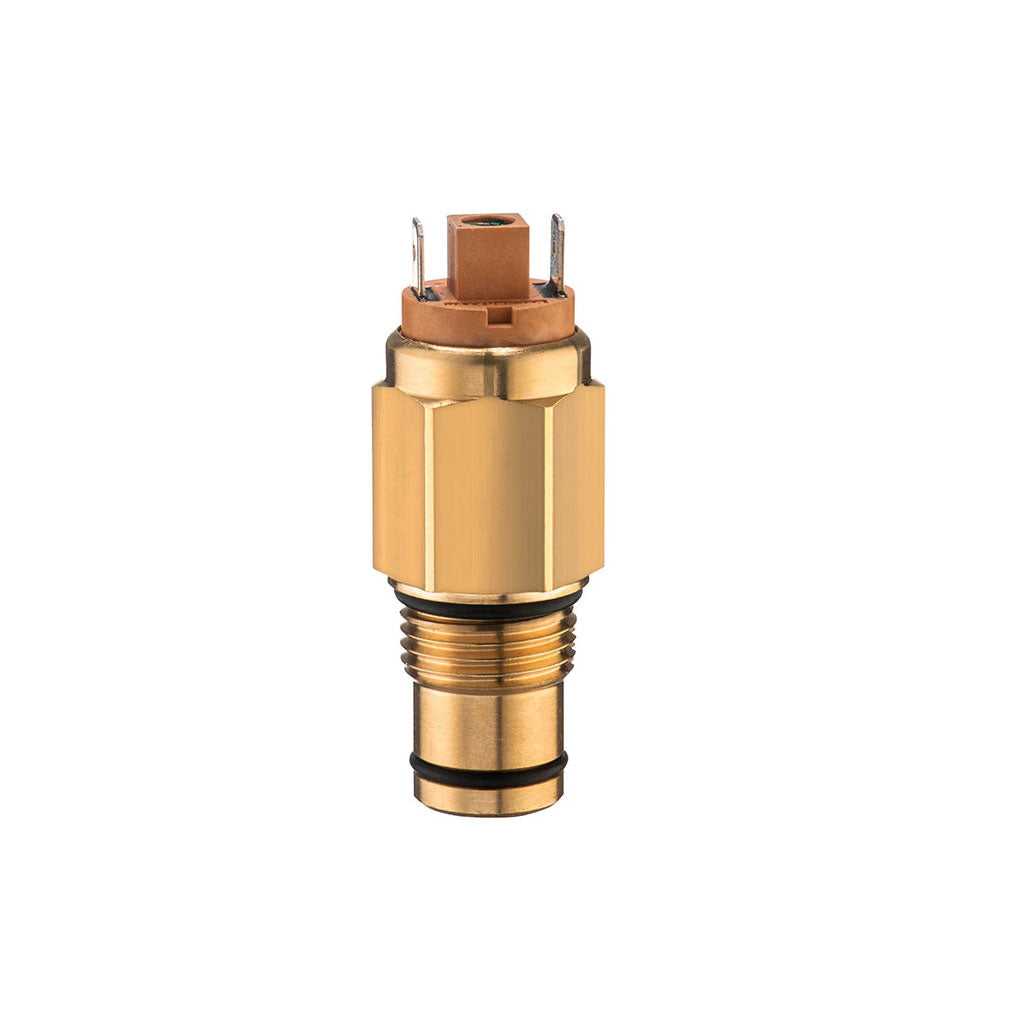

- Differential pressure range: 2-8 bar
- High-pressure tolerance: 350-450 bar
- Protection degree: IP67 certified
- Quick response time: 0.5 seconds
- Connector type: M12 x 5 PIN
|
Technical Datasheet |
- Case: Brass
- Electric Contacts: Silver
- Max Fluid Temperature: 80° to 120°c
- Max Overpressure Limit: 15 bar 15 bar
- Max Working Pressure: 10 bar 2,5 bar
- Sensor: Ceramic Element
- Response Time: ≤ 4 ms
- Tightening Torque: 30 Nm
- Protection Degree: IP 67
- Supply Voltage: 8÷30 Vdc
- Current Consumption: ≤ 25 mA
- Temperature Ranges: 0÷80°C, -20÷80°C
- Life expectancy: > 10 million cycles
- Weight: 86g
|
Technical Datasheet |

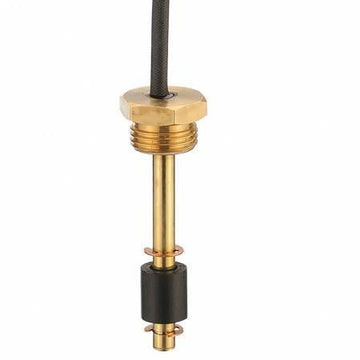

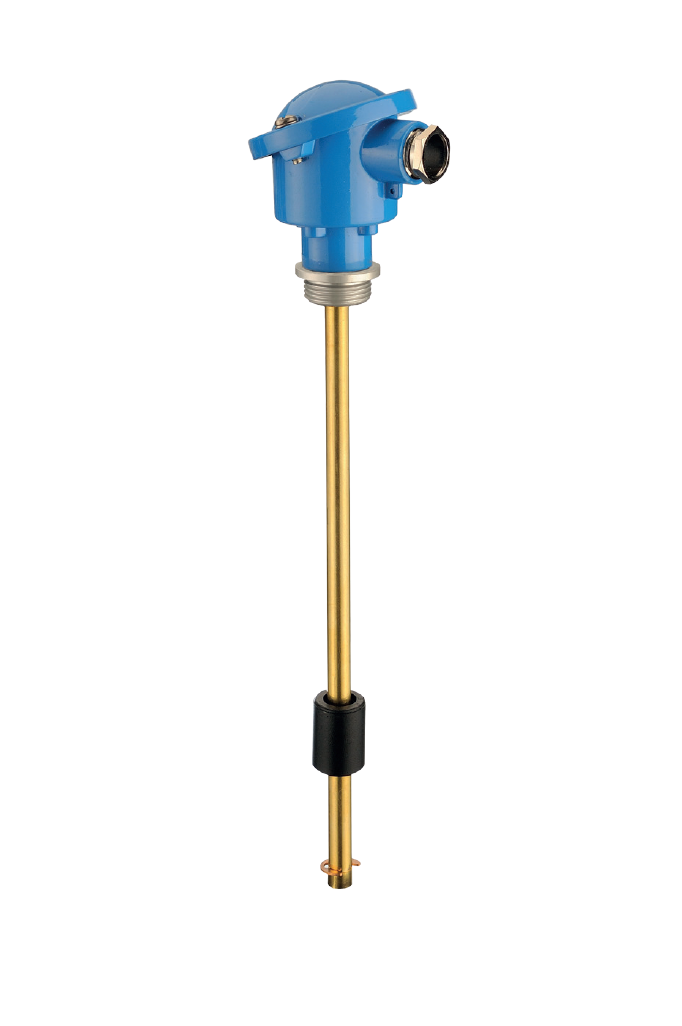

- Use: Water - Mineral oils - Diesel fuel - Petrol
- Fixing: Al 1" gas (Aisi 304 Stainless Steel on request)
- Stem: Steel
- Float: NBR
- Seeger: AISI 316
- 0-Ring: NBR
- Electrical connection: Box aluminum (M12 connector on request)
- Protection degree: IP65
- Fluid specific weight: >0,6
- Working temperature: -10°C/+80°C
- Pitch (Resolution): 10/20 mm
- Output signal: Analogic 4-20 mA Separate for level / temperature
- Length: Lmin = 100 mm Lmax = 2.000 mm
Downloads
|
Technical Datasheet |

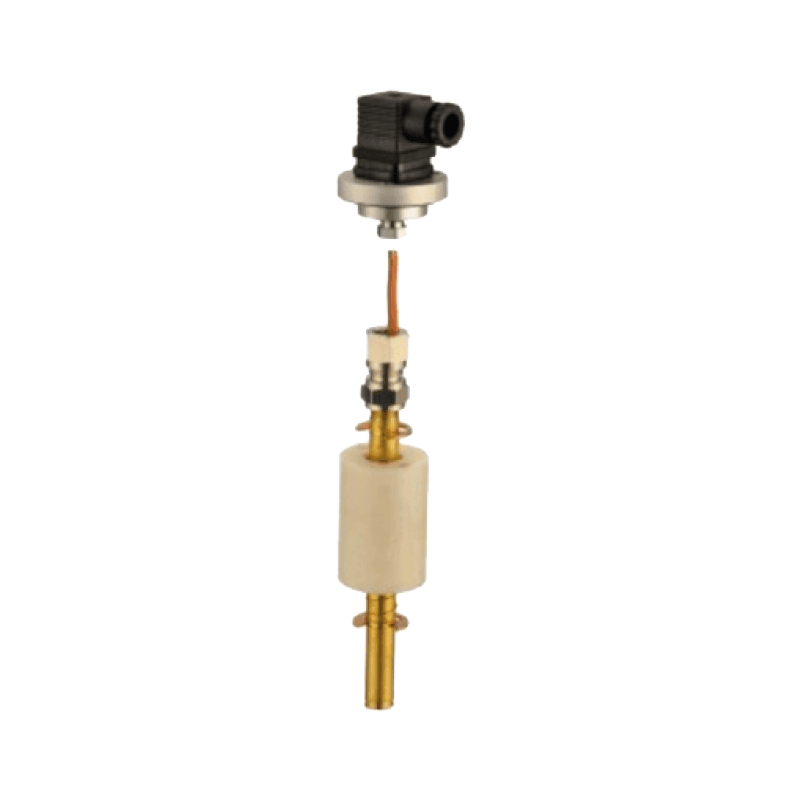

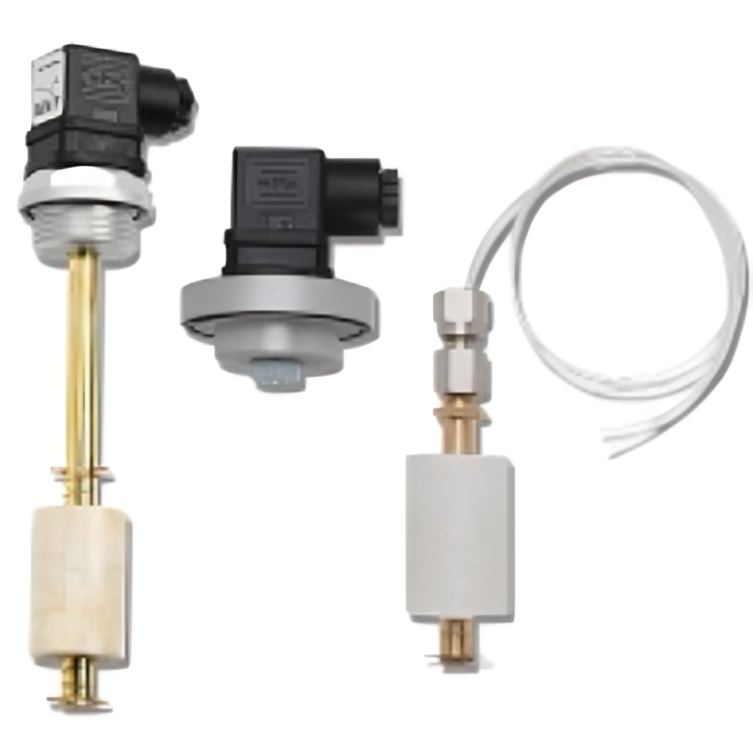

- 15-minute level switch - Simple to assemble
- 1" BSP
- N/O or N/C contacts
- Stainless steel option (call for details)
- Ideal for hydraulic & water applications
- Integral temperature switch option

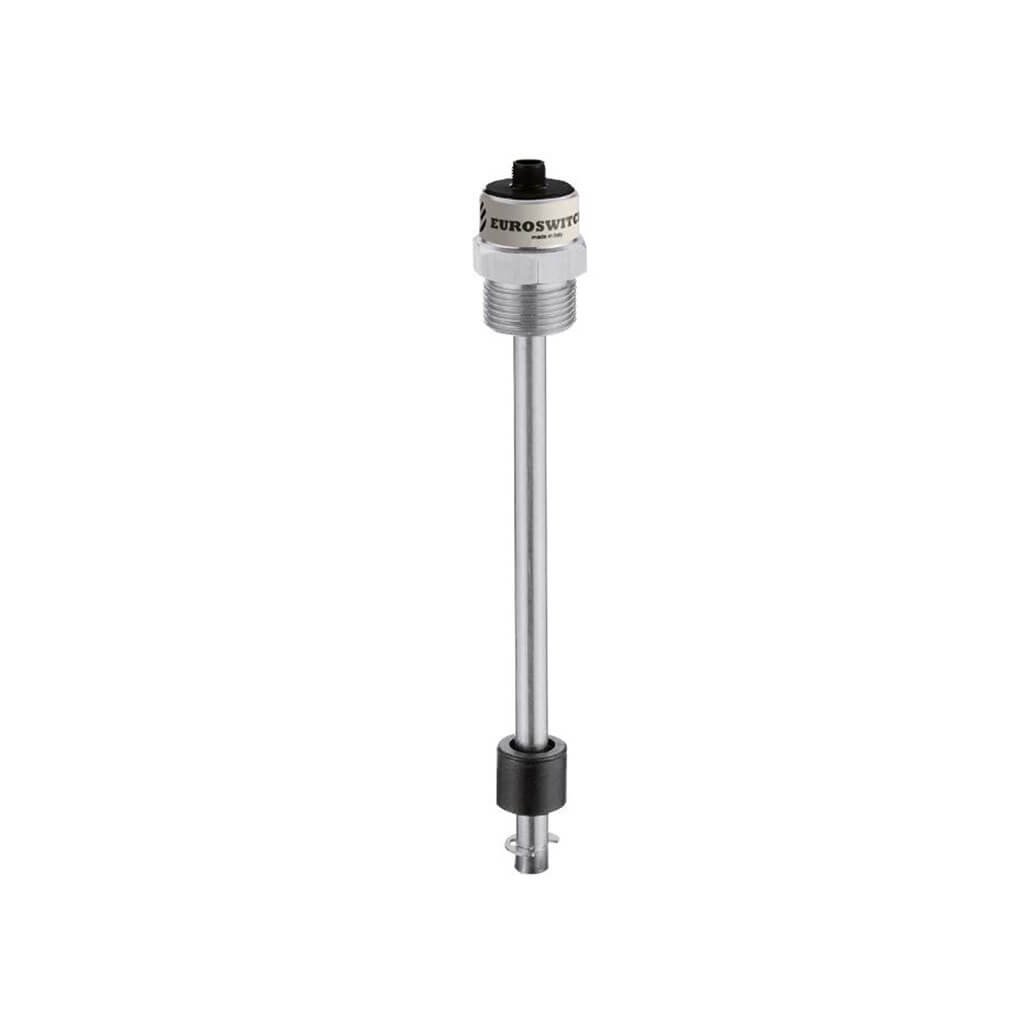

- Temperature output signal: analogic 4-20mA (+/-1°C)
- Supply voltage: 24 V +/- 10%
- Float: NBR
- Working temperature: -25 / +95° C
- Protection degree: IP65 / IP67

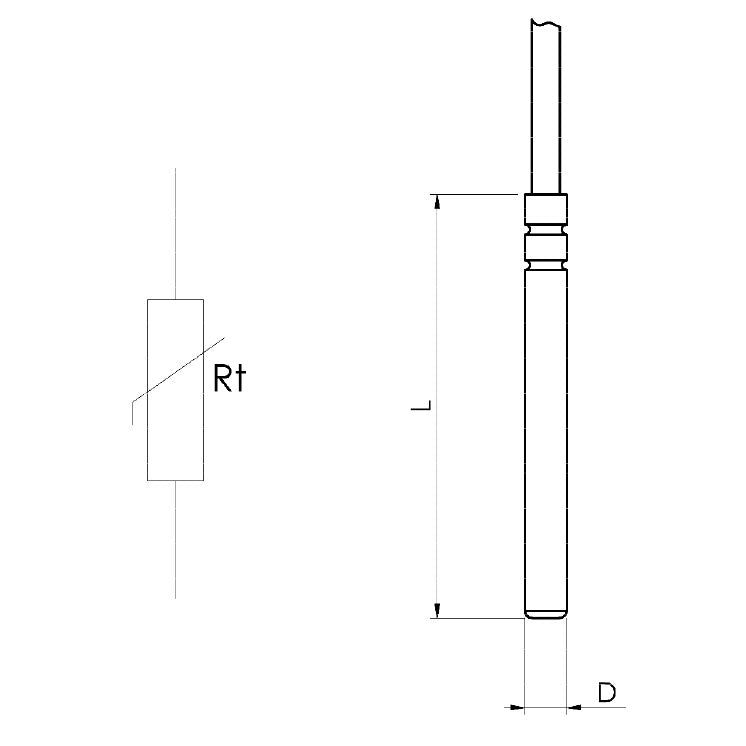

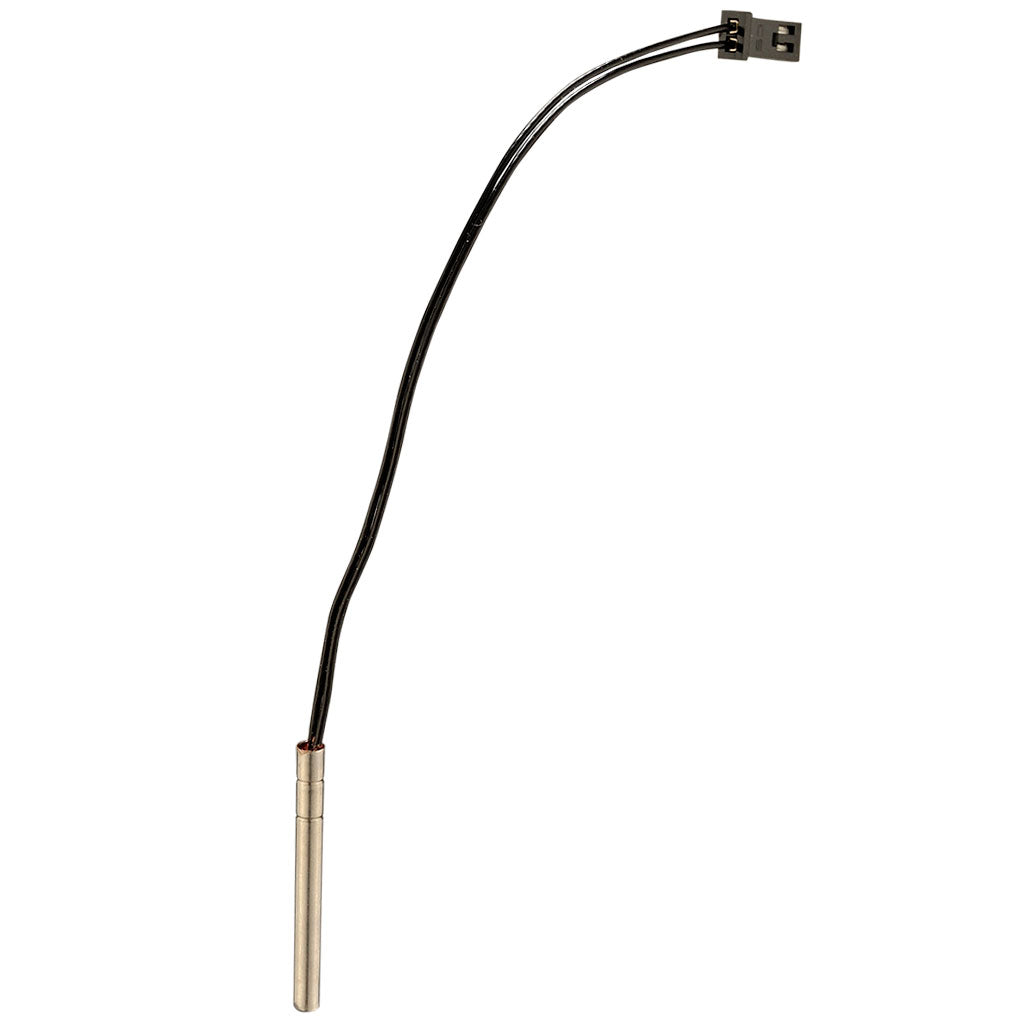

- Thermistor Coat: resin
- Case: brass (on request stainless steel)
- Working temperature: -20 + 120°C
- Connector: IP65

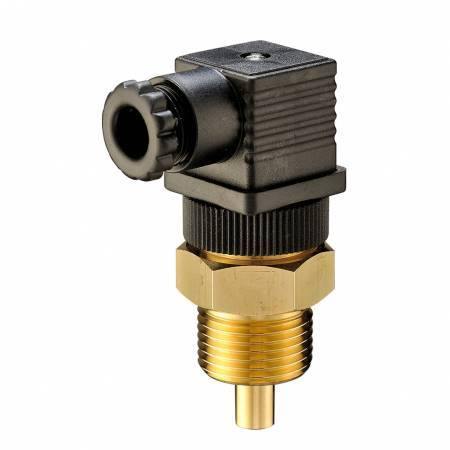

- Case: brass - stainless steel - bronze
- Working temperature: -20 / +120 °C (others on request)
- Protection degree: IP65 - IP67
- Electrical connection: PVC cable (others on request)

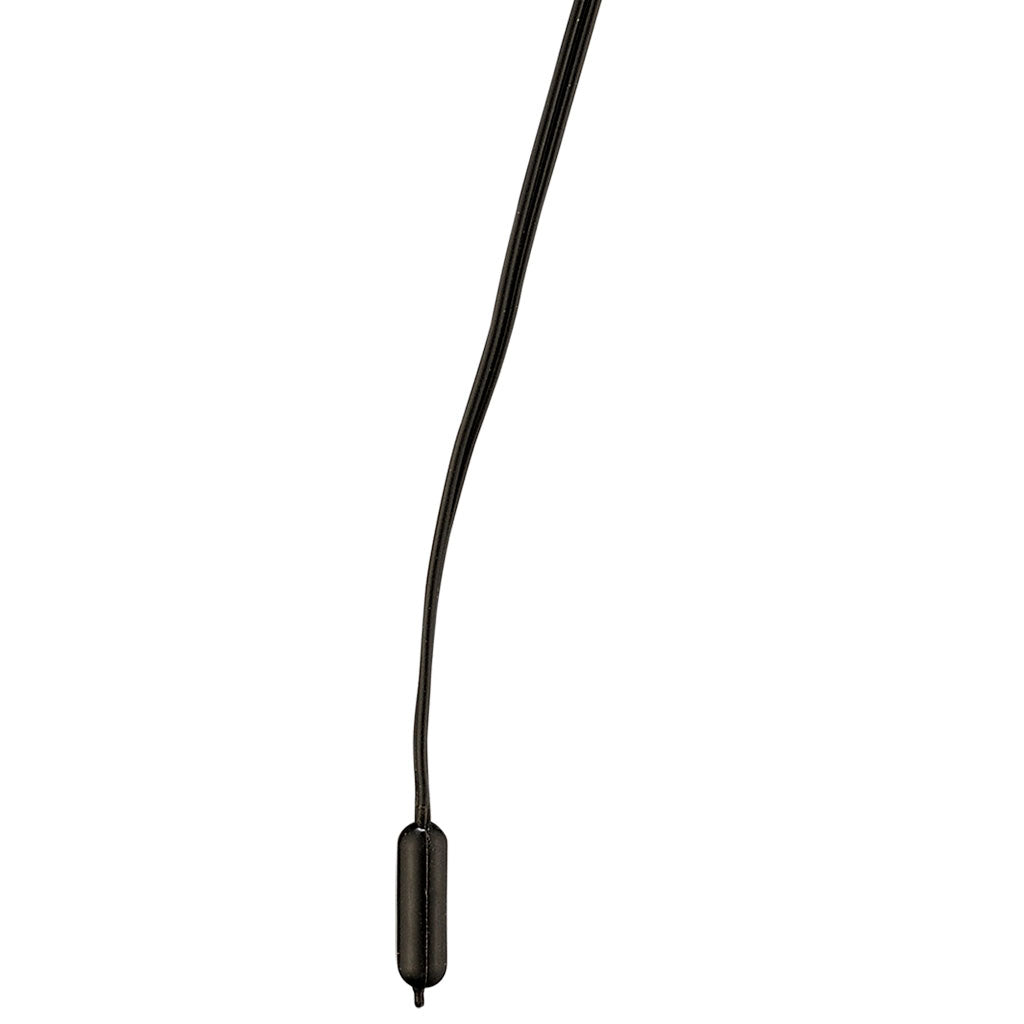

- Coat: moulded resin
- Working temperature: -20 / +120 ° C (others on request)
- Protection degree: IP65 - IP67

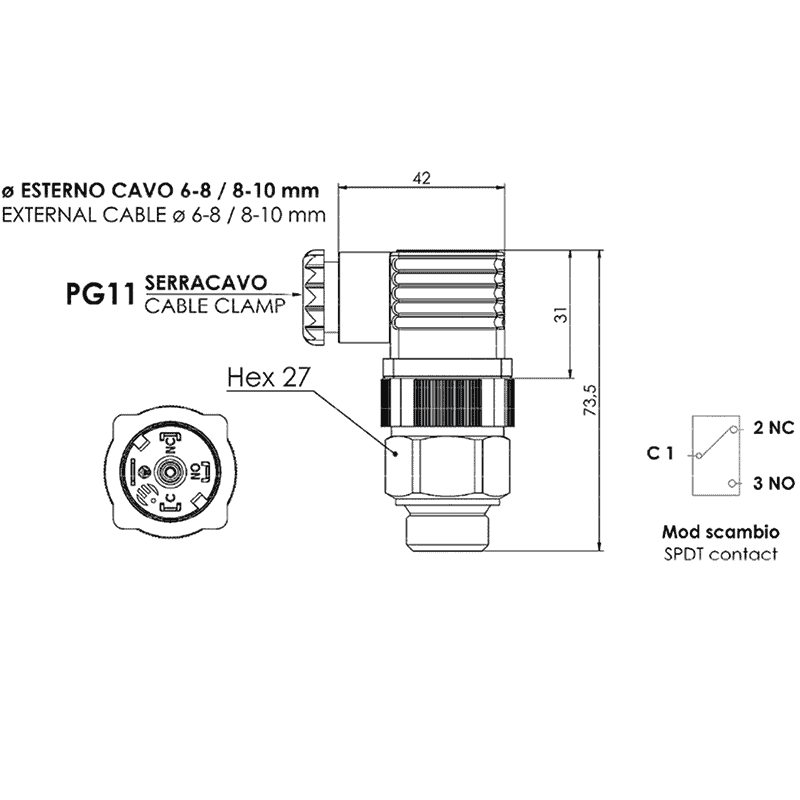

- 25°C-110°C Set Points (5° increments)
- Max temperature 120°C
- Switch rating up to 250V
- 1/2” or 3/8” BSP thread(others available)
- Brass construction (stainless option)
- ATEX option available

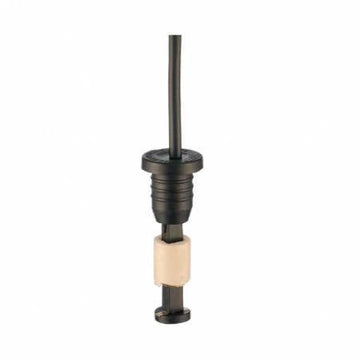

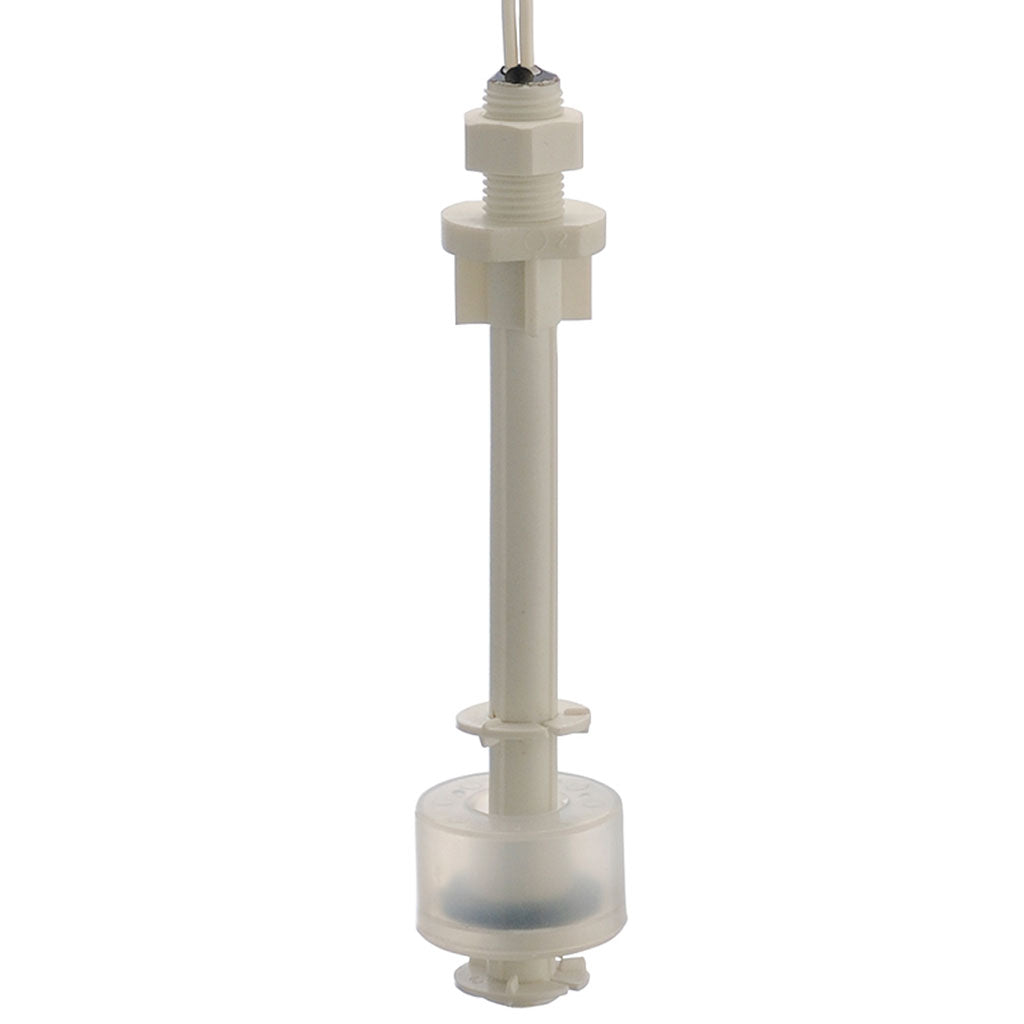

- Max switch. capacity: 5 W
- Max switch. current: 500 mA
- Max switch. voltage: 24 Vdc
- Specific liquid weight: > 0,85 (SOM) > 0,7 (SRM)
- Working temperature: - 10 / +80°C
- Weight: ~ 26 gr (L= 100 mm)
- Max switch. capacity: 10 W
- Max switch. current: 0,5 A
- Max switch. voltage: 50 V
- Specific liquid weight: > 0,7
- Working temperature: - -10°C/+100°C
- Weight: ~ 50 gr
- Max switch. capacity: 40 W - (3W SPDT)
- Max switch. current: 1 A - (0,25A SPDT)
- Max switch. voltage: 50 V
- Protection degree: IP 65
- Specific liquid weight: > 0,75
- Working temperature: -10°C / +80°C
- Lengths: L1 on request
- Max switch. capacity: 40 W - (3 W SPDT)
- Max switch. current: 50 V (250V on request)
- Specific fluid weight: > 0,75
- Working temperature: - 10°C / +80°C Weight: ~ gr 20
- Max switches voltage: 48 V ac / dc
- Max switches current: 0,5 A Action type: 1B
- Max working pressure: 350 ÷ 450 bar (depending on the thread)
- Tightening torque: 50-70 Nm
- Protection degree: IP 00 (see pages 18-20 for protection caps and connectors)
- Weight: ~ 120 g

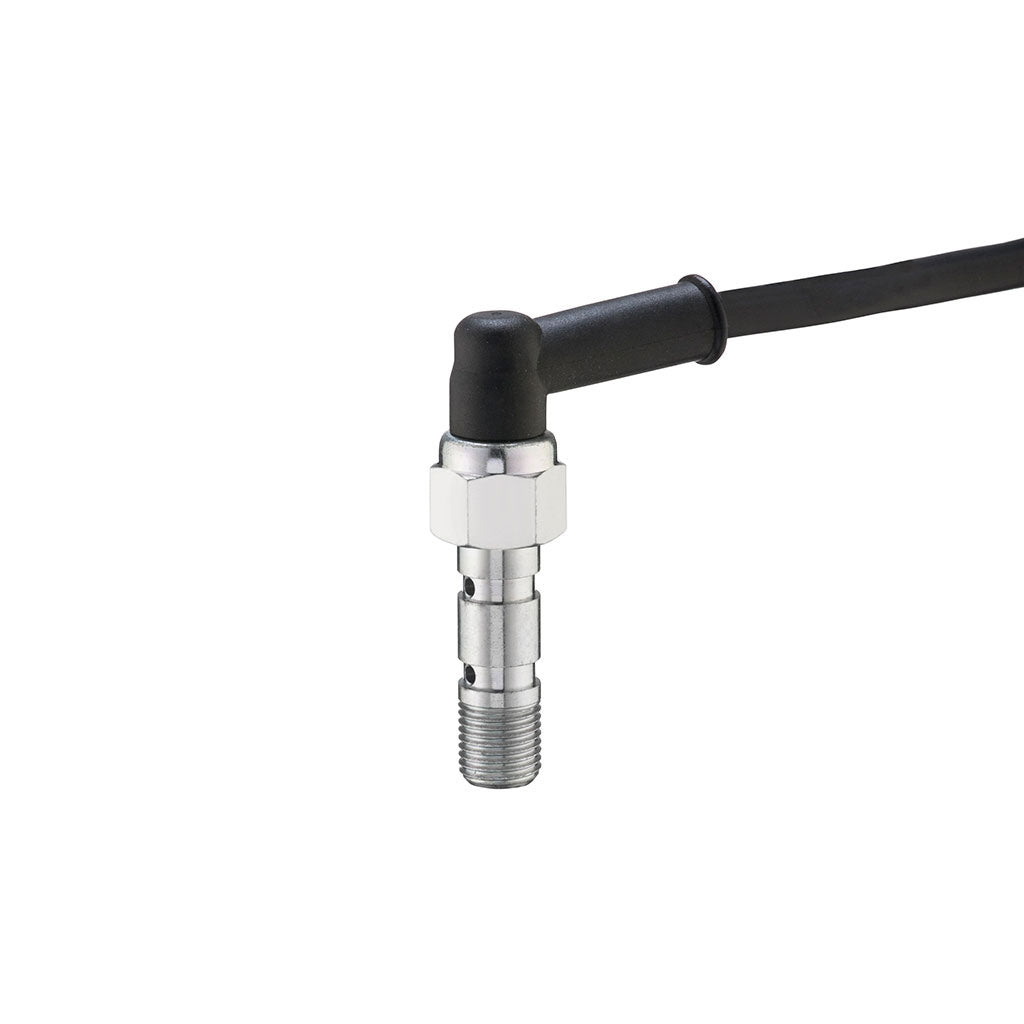

- Max switched voltage: 24 Vcc
- Resistive load: 21 (12 Vdc)VA
- Max fluid temperature: 80°C
- Overpressure limit: 350 bar
- Intervention point: 2.5 - 5.5bar 0.5 -3.5 bar
- Action type: 1B
- Diaphragm: EPDM CH (brake liquid), NBR (Idraulic oil)
- Electrical connections: Wired on request
- Operating temperature (-5°C to +45°C)
- Storage temperature (-25°C to +50°C)
- Protection degree IP20
- Kit weight 270 g
- Dimensions of ABS crate 112x62x32mm WxHxD
|

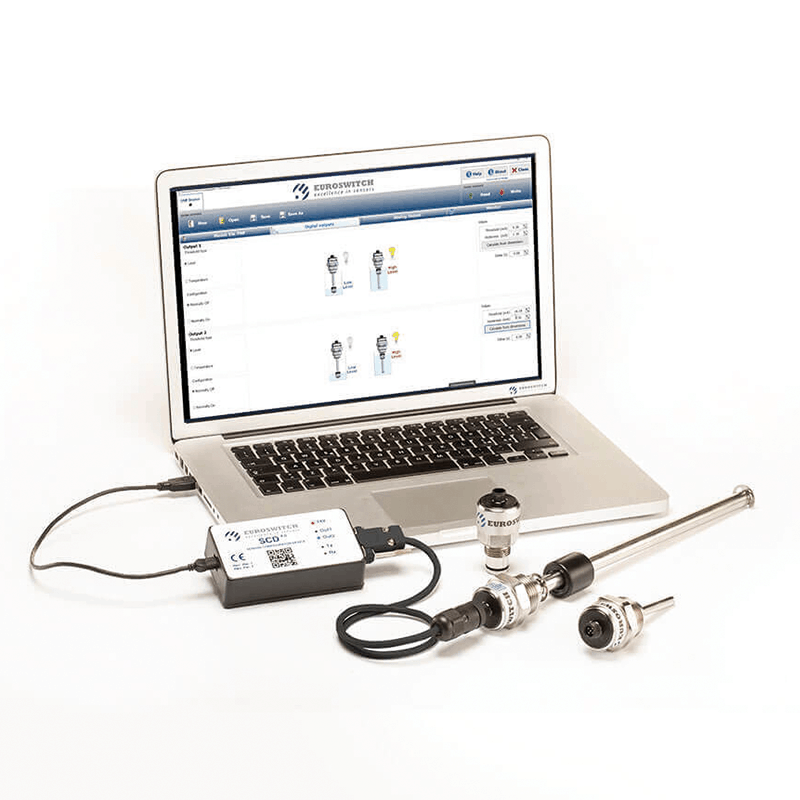

SCD 4.0 Sensor Configuration Device |
|
SCD 4.0 Manual |

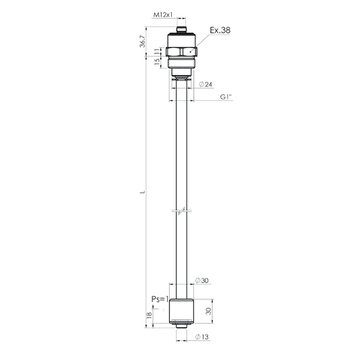

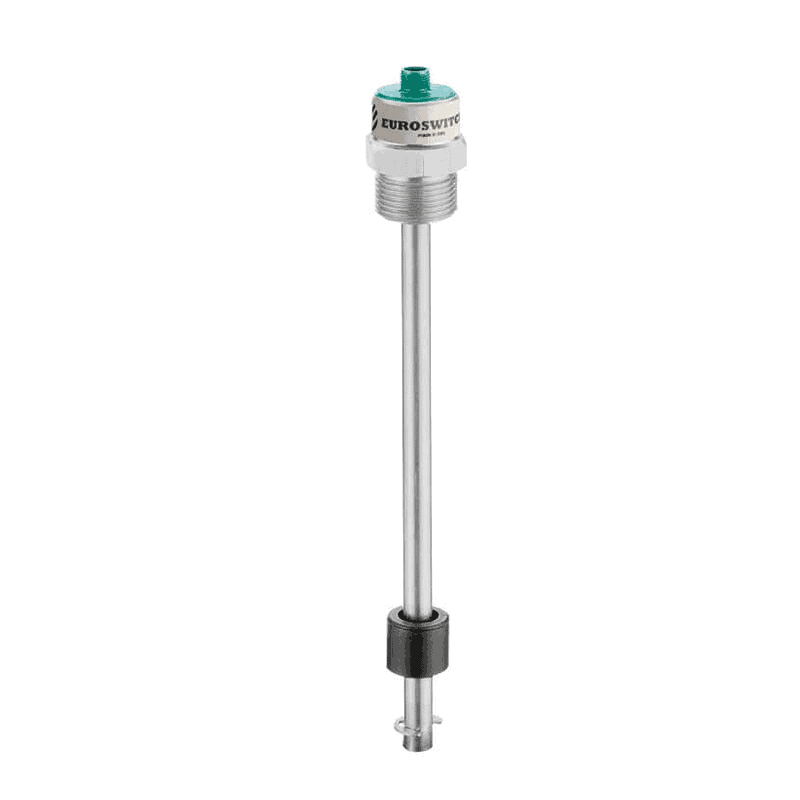

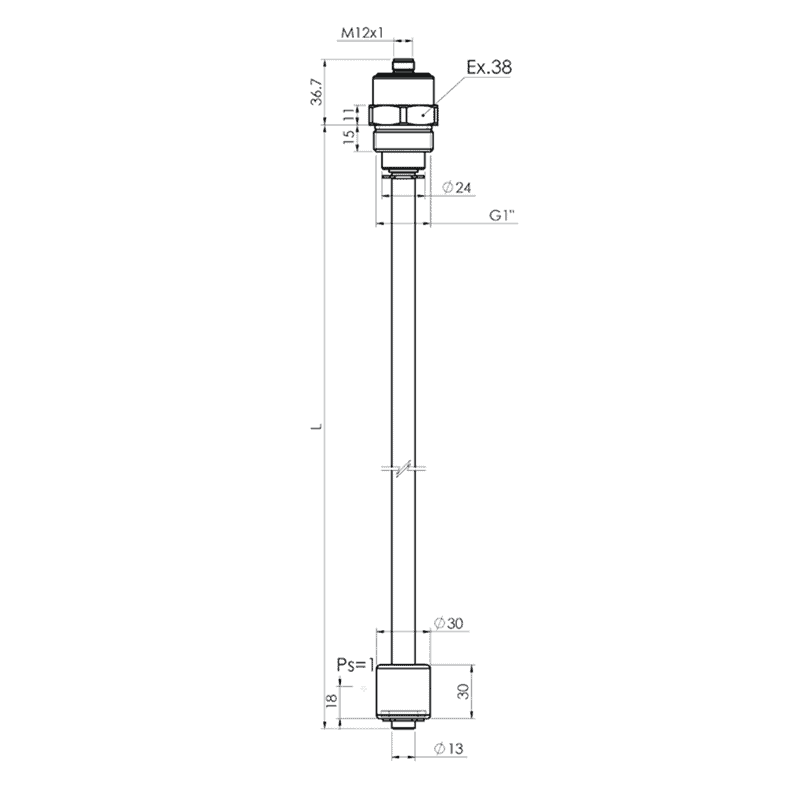

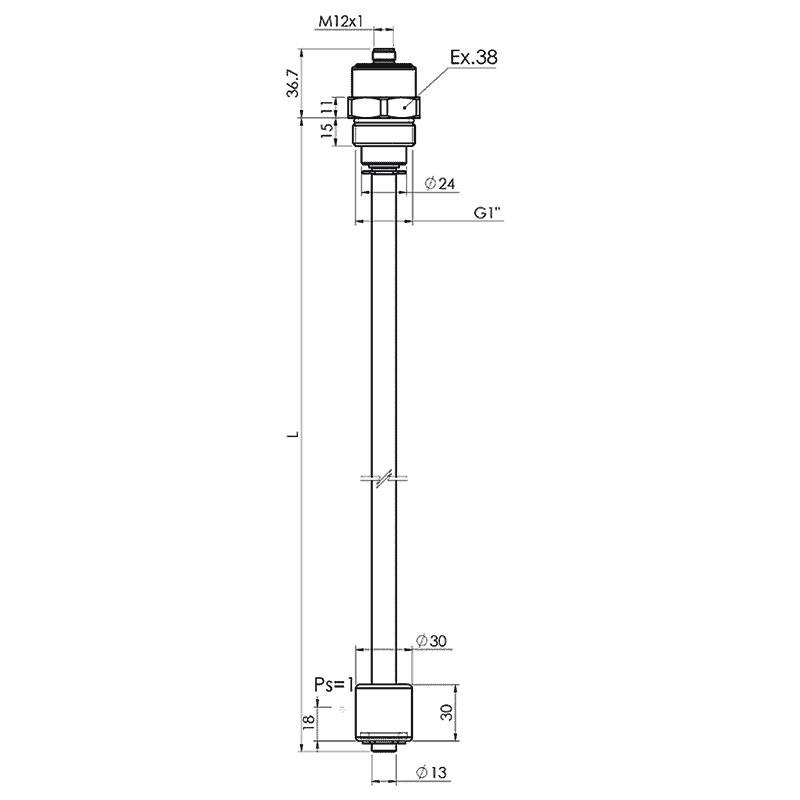

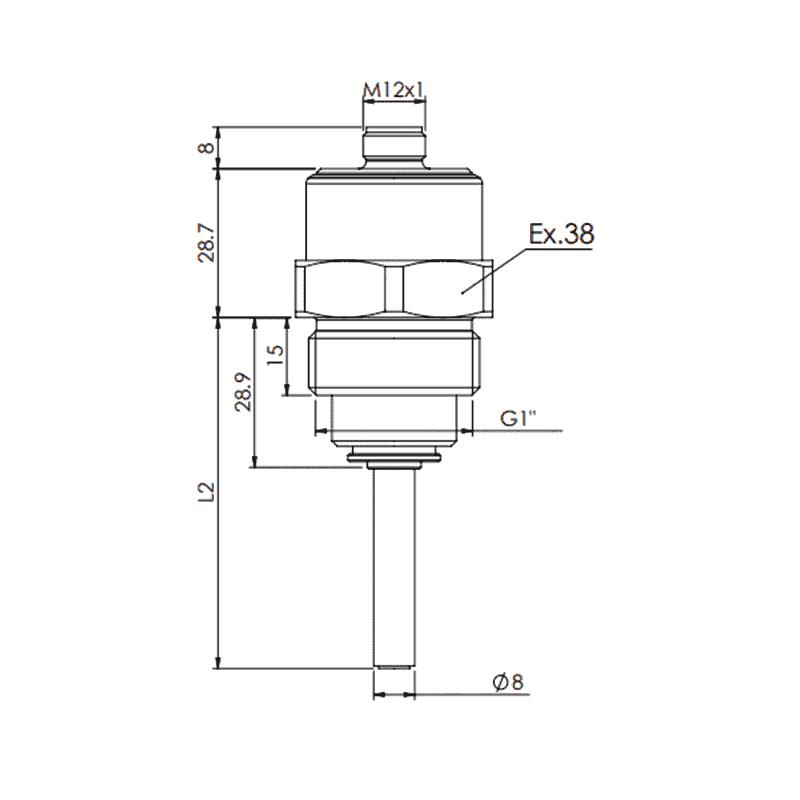

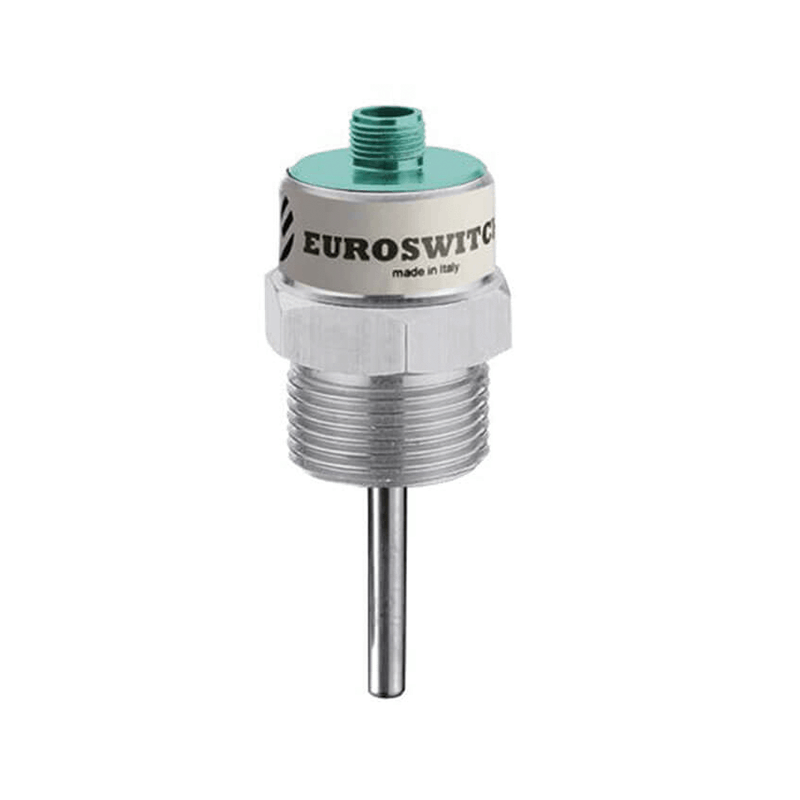

- Output signal: IO-Link
- Supply voltage: 24±10%
- Case: AISI 316
- Working temperature: -20 / +95° C
- Protection degree: IP65 / IP67
- Electrical connection: M12
- For water, mineral, oils, diesel & petrol
- 4-20mA analogue
- Built in temperature sensor
- IO-Link Communication System
- 4 setting points
- New illuminated differential indicator
|
Technical Datasheet |

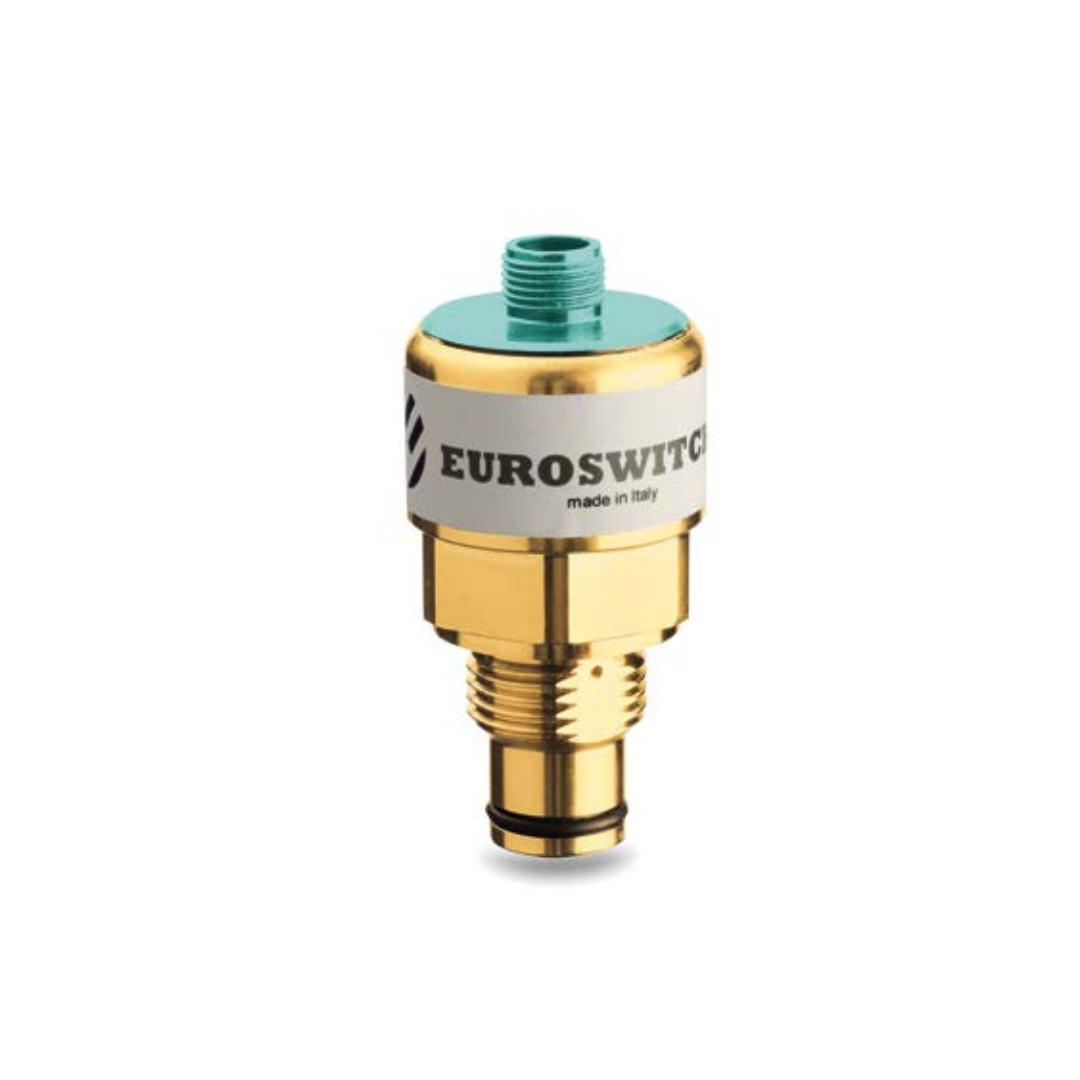

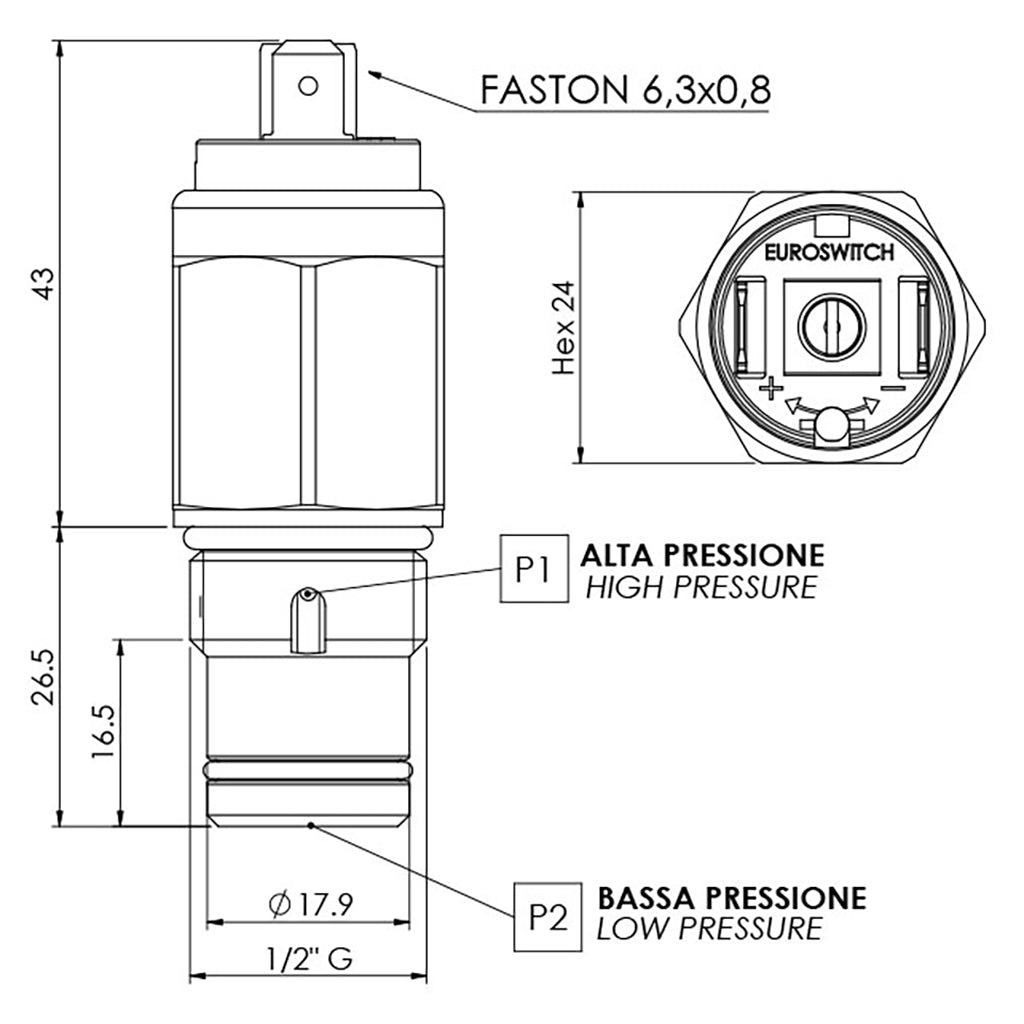

- Differential pressure indicator
- High-accuracy thermal drift control
- Wide range: 2 to 8 bar
- Fast 0.4s response time
- IP67-rated, robust brass body
|
Technical Datasheet |

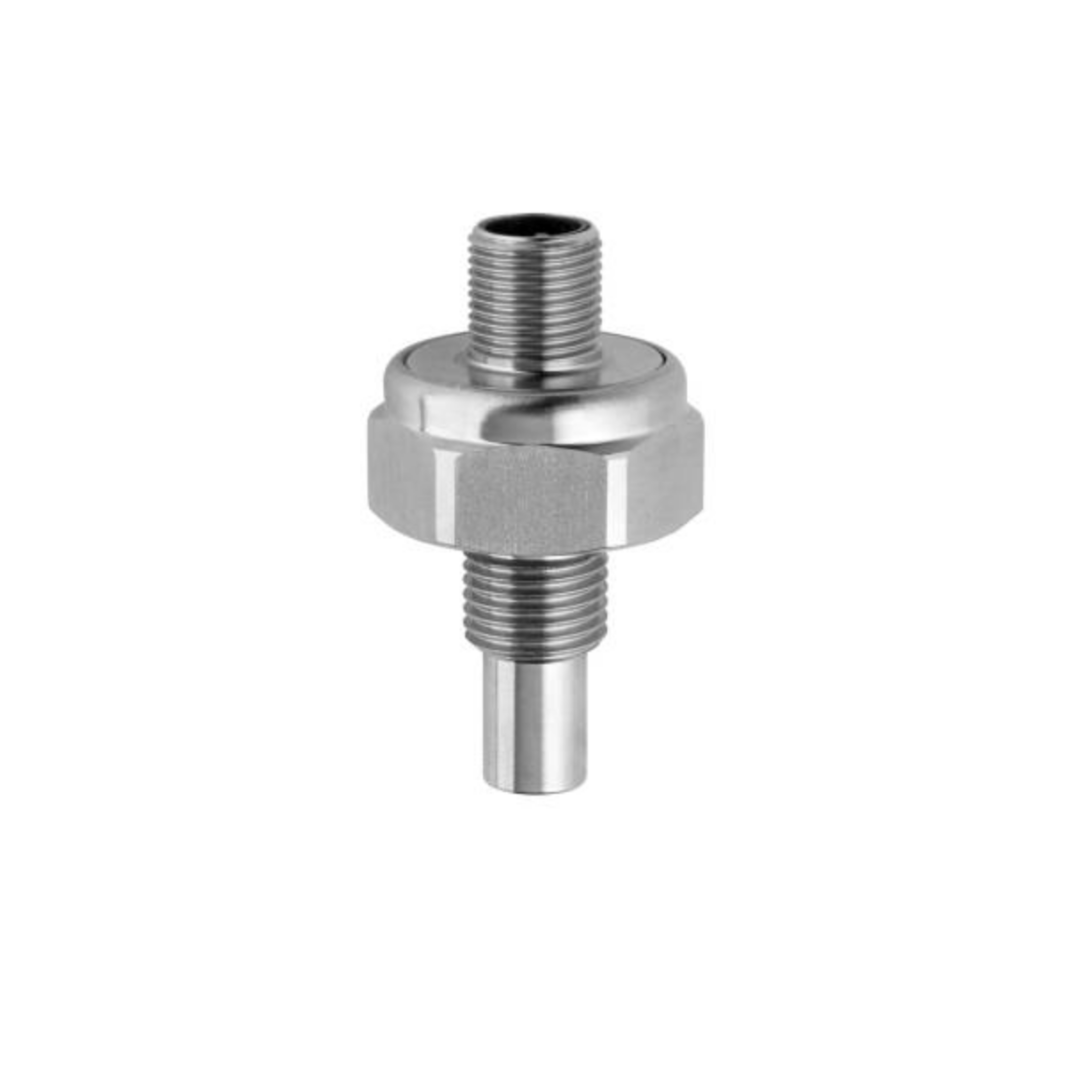

- Output signal: analogic 4-20mA
- Supply voltage: 8-30V
- Case: AISI 316
- Working temperature: -20 / +95° C
- Protection degree: IP65 / IP67
- Electrical connection: M12
- Max Torque: 50 Nm
- Use Mineral oils: Fuels
- Type of contact: Reed SPST/SPDT
- Max switch. capacity: 80 W (50W SPDT)
- Max switch. current: 1 A
- Max switch. voltage: 250 Vac (220 Vac SPDT)
- Fluid specific weight: > 0,85 with L max
- Working temperature: -15°C/+100°C
- Weight ~ gr 145
- Medium: Oil -Air
- Case: Brass (AISI on request)
- Working temperature range: -20°C ÷ +80°C
- Measuring ranges (Differential pressure): 2 ÷10 bar
- Max working pressure: 350 ÷ 450 bar (350 UL CSA version) depending on the thread
- Thread: 1/2” Gas (others on request)
- Tightening torque: 50-70 Nm
- Connector: M12 x 5 PIN
- Protection degree: IP67
- Weight ~ 140 g

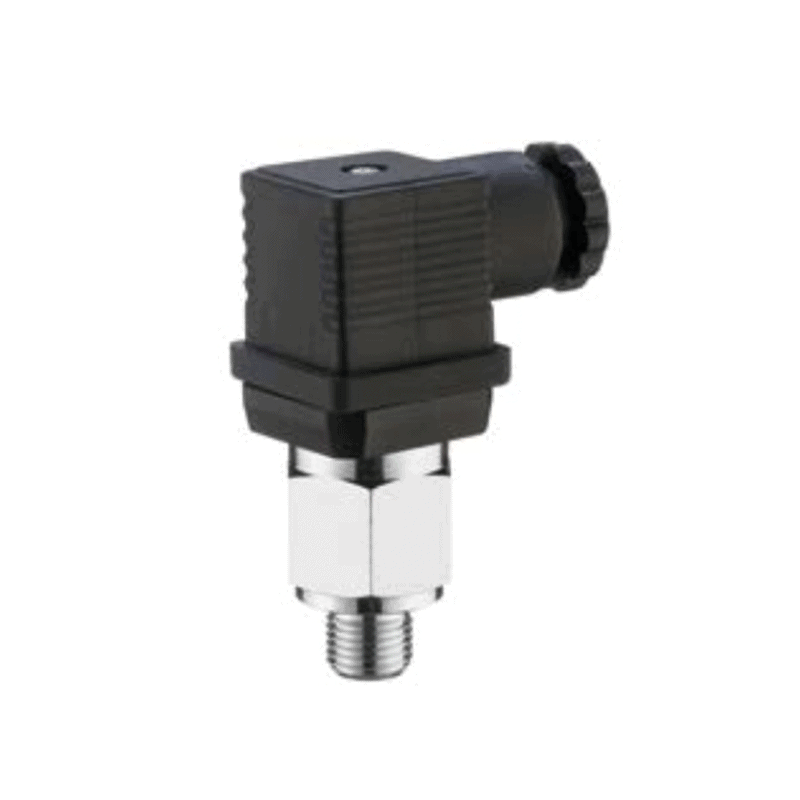

- Medium: Oil - Air
- Case: Brass Electric contact:
- Silver Max fluid temperature: 100°C - UL/CSA version 85°C
- Electrical conditions: SPDT (exchange contact)
- Max working pressure: 450 bar 350 bar depending on the thread
- Thread: 1/2” Gas standard (others on request)
- Tightening torque: 50-70 Nm
- Protection degree: IP65 with connector according to UNI EN 175301-803 (DIN43650)
- Approx. weight ~ 160 g
|
Technical Datasheet |

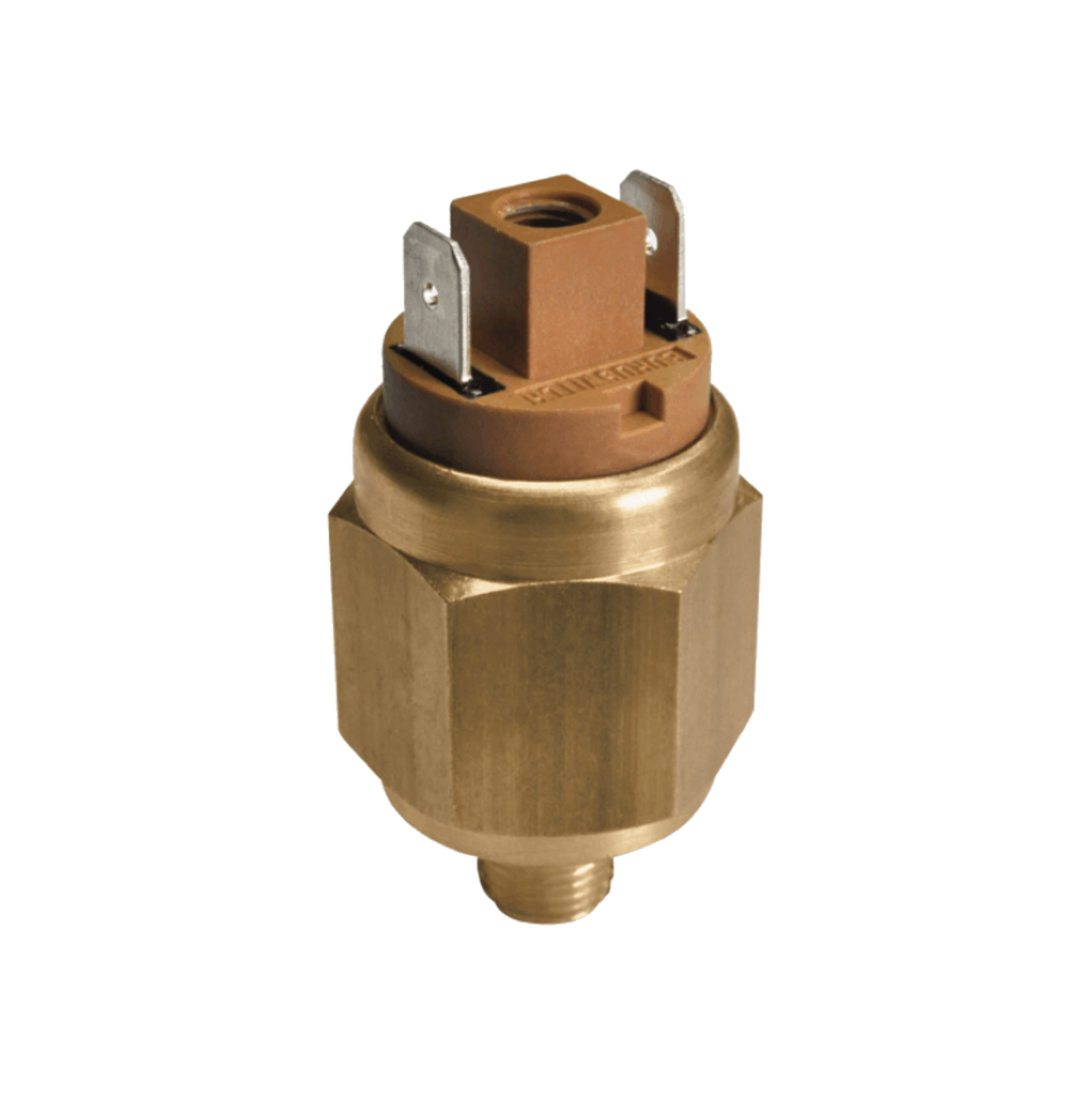

- Medium: Oil - Air
- Case: Brass
- Electric contact: Silver
- Max fluid temperature: 100°C Electrical conditions: N.O. - N.C.
- Max switches voltage: 48 V ac / dc
- Max switches current: 0,5 A
- Action type: 1B Max working pressure: 350 ÷ 450 bar (depending on the thread)
- Thread: 1/2” Gas standard (others on request)
- Tightening torque: 50-70 Nm
- Protection degree: IP 00 (see pages 18-20 for protection caps and connectors)
- Weight ~ 120 g
|
Technical Datasheet |
