Description

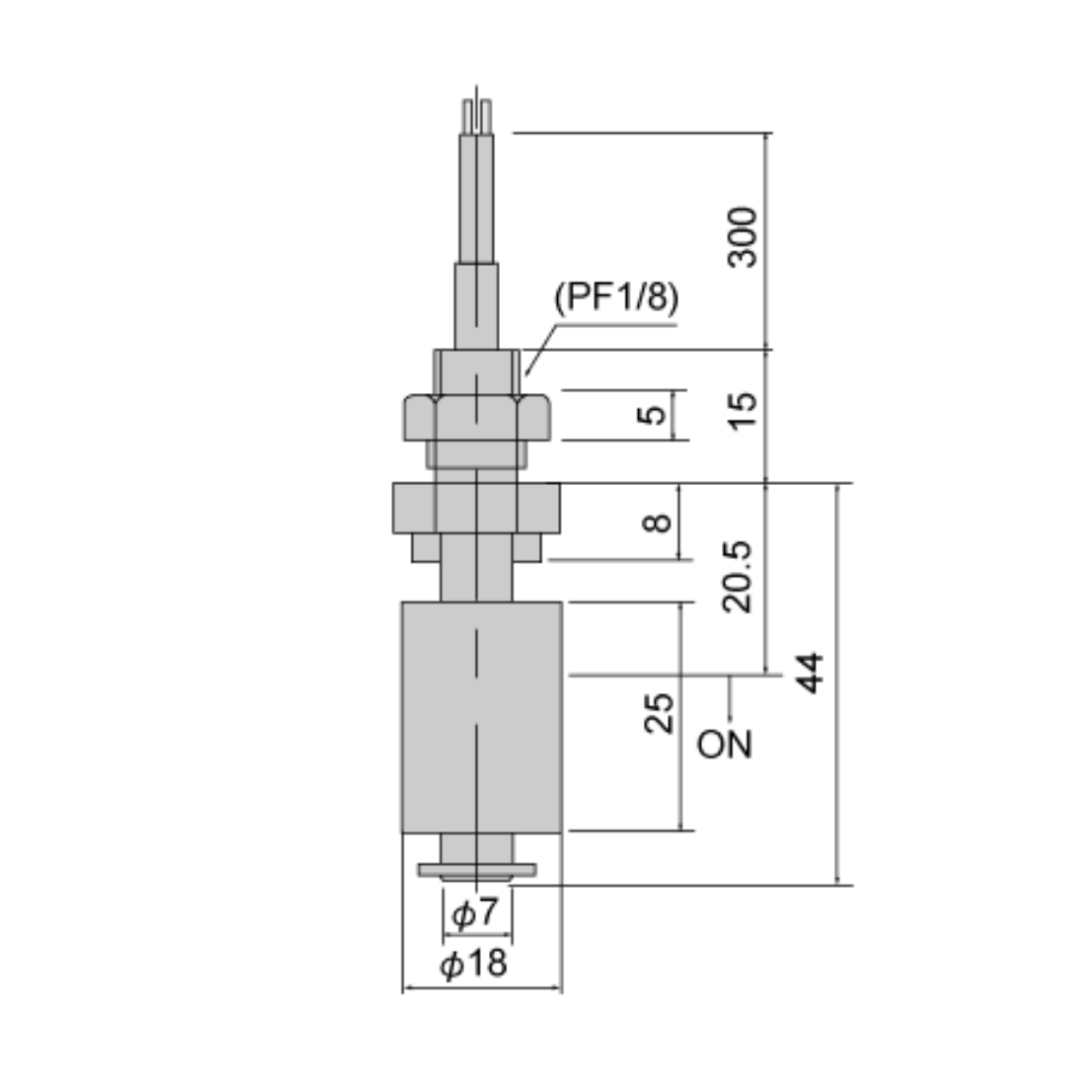

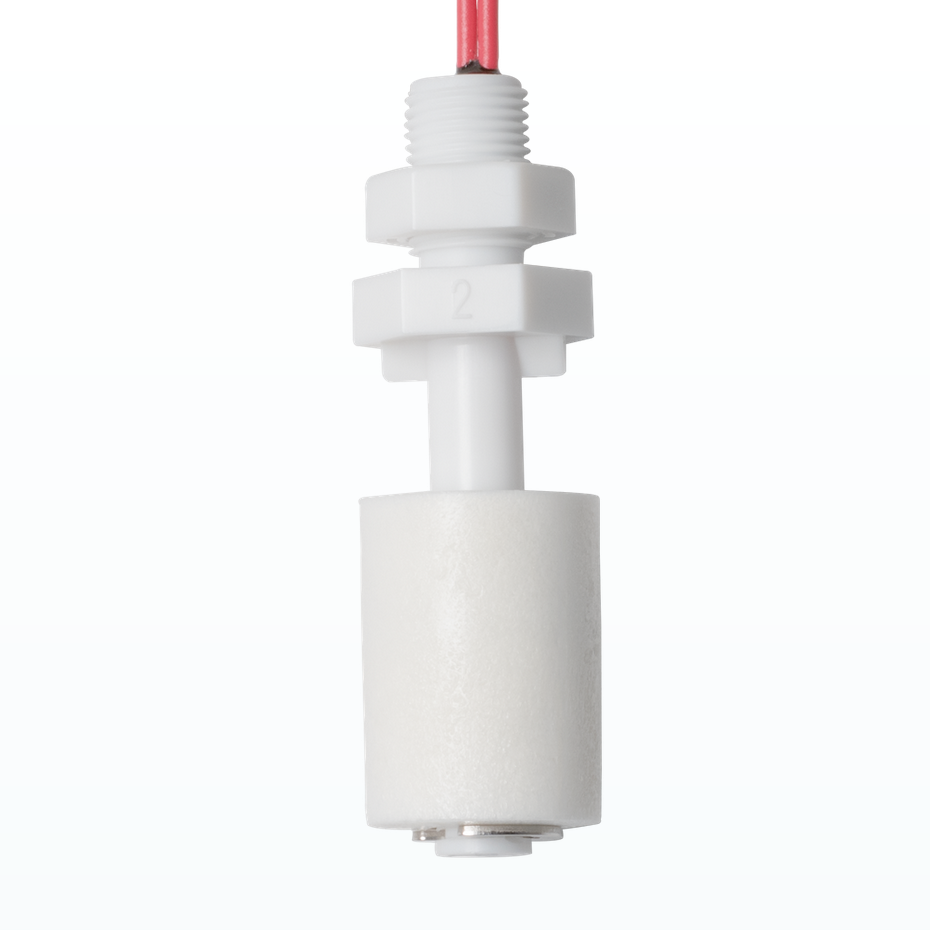

The MFS17-D Top Entry Level Switch is a reliable and efficient solution for liquid level detection in various applications. Designed with a polypropylene foamed float measuring 18 Ø, it ensures excellent buoyancy and chemical resistance, making it ideal for use in harsh environments. With a maximum pressure rating of 3 bar, the switch performs exceptionally under moderate pressure conditions.
This top-entry level switch features a polypropylene stem, which provides durability and resistance to corrosion, ensuring long-lasting performance. The switch offers reversible N/O (normally open) or N/C (normally closed) contact, allowing for flexible operation to suit different system configurations. Equipped with a 1/8" BSP thread with a nut, installation is quick and secure. The switch is rated for up to 300Vac and 66VA, making it suitable for a wide range of low-power control circuits.
Whether used in industrial tanks, reservoirs, or other fluid management systems, the MFS17-D provides accurate and reliable liquid level monitoring. Its robust design and ease of installation ensure a dependable solution for managing fluid levels in both commercial and industrial applications.
