HONSBERG

Honsberg in Remscheid has been ensuring high-quality products in measuring and monitoring technology since 1963.

Their devices measure and monitor flow, level, pressure, and temperature. Consequently, they supply the market in various areas and applications, including wastewater treatment plants, diesel engines, hardening facilities, compressors and construction machines, machine tools, paper and print machines, and cooling systems.

Customers rely on the excellent quality of their products in all of these areas and applications. In addition, they develop customised solutions for customer-specific applications in their R&D department to suit a wide variety of requirements.

Their measuring instruments are manufactured in their factory in Remscheid to the highest quality standards. As a result, their measuring instruments feature high-quality workmanship, the best materials, and consistently outstanding measurement accuracy, as well as durability and resistance.

It is precisely the harsh conditions our customers' place on Honsberg products that their high-quality equipment must withstand. After all, this is why Honsberg develops, manufactures, and tests them themselves.

Filter

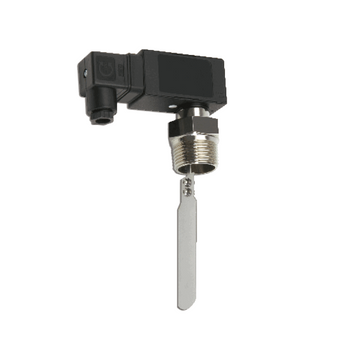

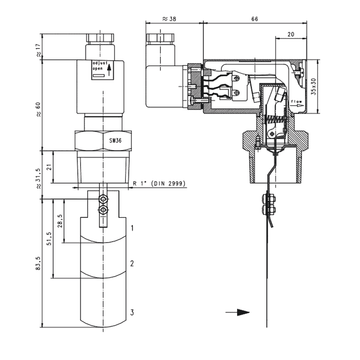

CM2K Paddle Flow Switch

Description 4 x paddles supplied with each switch Suitable for pipe sizes from 25mm to 200mm (1" to 8") 1"BSP threaded pipe fitting All stainless steel option Easily adjusted by...

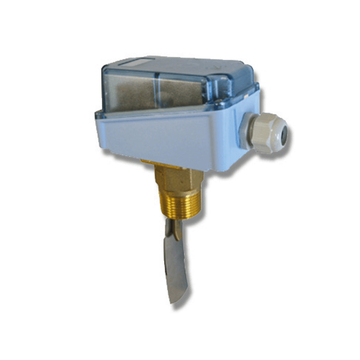

CRG Paddle Flow Switch

Description The devices function via the principle of a paddle supported by a metal bellows, and the triggering of a micro switch. Suitable for pipe sizes from 1" to 7.5""...

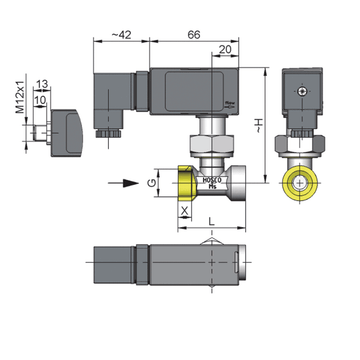

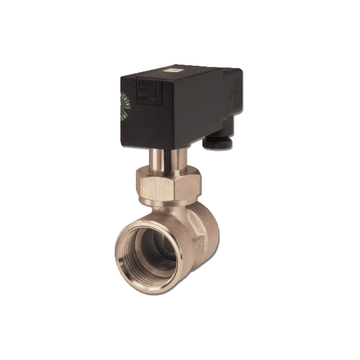

UR3K - G-A Paddle Flow Switch

Description Reed switch rated at 250Vac/50VA Sizes from 3/8″ to 2″ BSP 3 to 62 l/min adjustment ranges Brass or stainless steel bodies Up to 25 bar system pressure Temperatures...

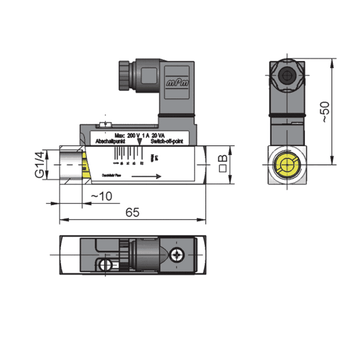

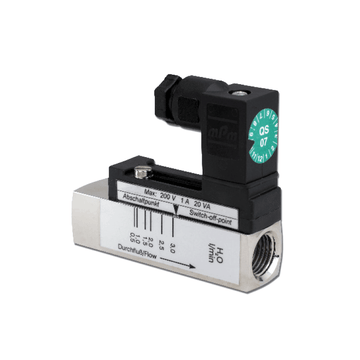

RVM Flow Switch

Description N/O reed switch rated at 220V/100VA 1/4″ BSP standard thread 40 ml/min to 3 l/min switch adjustment ranges Brass or stainless steel body 300 bar maximum system pressure Temperature...

OMNI P1 Pressure Sensor

Description  Digital Pressure transducer with 8 ranges up to 200 bar 4 – 20mA output with 2 x user adjustable switch-points Scratch proof, toughened glass display window All stainless steel...

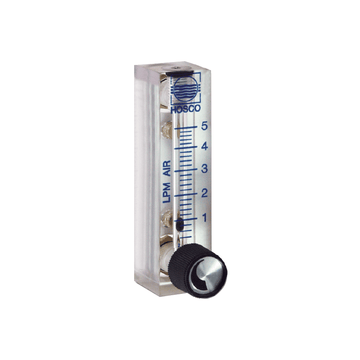

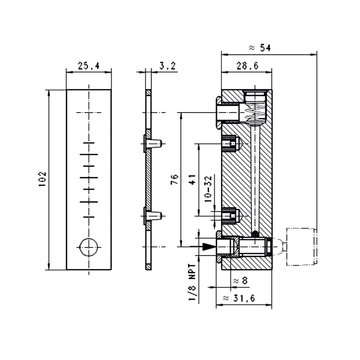

UK - UKV Variable Area Flow Meter

Description Suitable for liquids & gases 1/8″ NPT thread 0.05 to 100 Nl/min air 5 to 240 cm3/min H2O Models calibrated for Helium, Argon & CO2 Optional needle valve (Type...

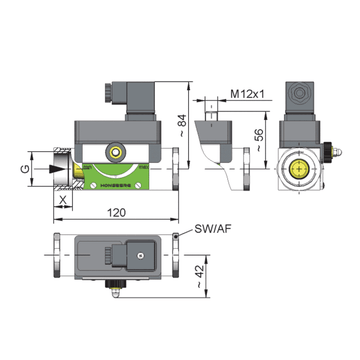

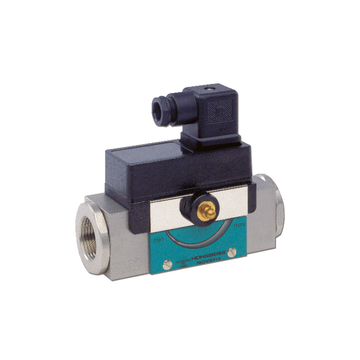

HD1K - HD2K Flow Switch

Description Nominal Pipe Sizes 8-25mm 0.1 - 80 l/min switching range 1/4" - 1" BSP threaded connections Pressure 200 bar (500 bar option) Brass or Stainless Version Viscosity Compensated Version...

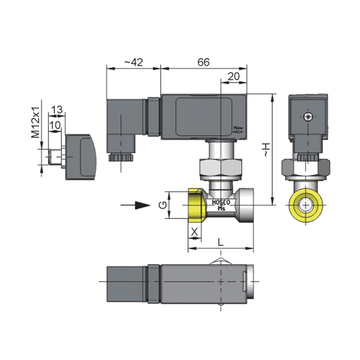

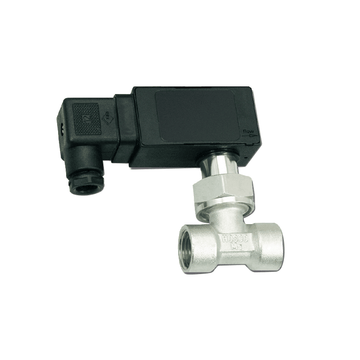

UM3K - G-A Paddle Flow Switch

Description Microswitch rated at 250Vac/5A Sizes from 3/8″ to 2″ BSP 3.5 to 76l/min adjustment ranges Brass or stainless steel bodies Up to 25 bar system pressure Temperatures up to...

NW1 Side Entry Level Switch

Description Mechanical level monitor for fluid media, with contact-free triggering of a reed contact. Float functional principle Reed switch contact, cable Screw-in thread connection type Brass/stainless steel materials Highly reproducible...

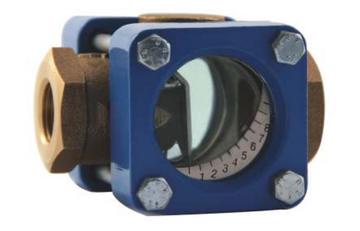

SK Flow Indicator

Description Mechanical flow indicator for fluid media. A stainless steel flap in the area of flow is lifted by the volume flow, and indicates the pre-sent flow rate. Rotor or...

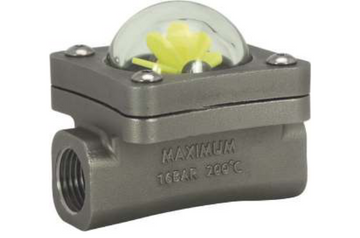

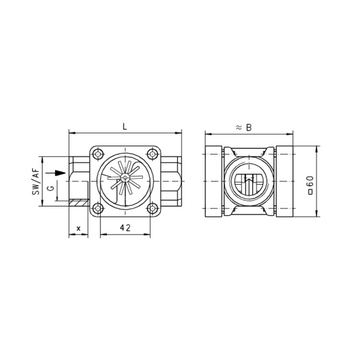

RM Flow Indicator

Description Mechanical flow indicator, for fluid media, with rotor for quantitative flow display. The rotor turns in proportion to the flow. Robust construction using red bronze / brass or stainless...

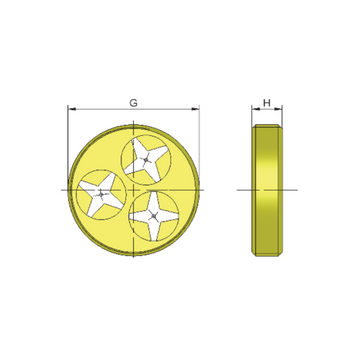

KM-G Flow Limiter

Description Mechanical Flow Regulator. The regulator consists of a star shaped stainless steel diaphragm which is pressed into a metal funnel component according to flow-proportional differential pressure. Metal insert up...

OMNI-C1 Counter

Description Momentary value indicator and totalisation Pulse output with adjustable pulse per volume Antivalent outputs Analogue output of the momentary value Simple guided menu via graphics display Technical Datasheet Downloads...

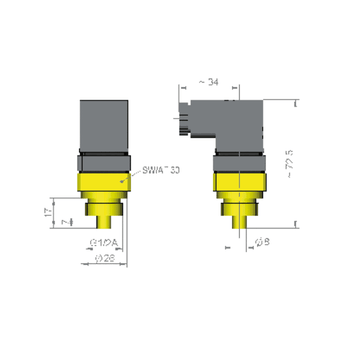

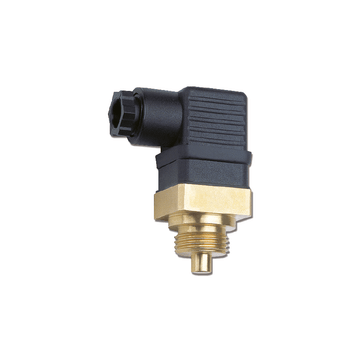

TF1 Temperature Switch

Description TF1.KV Temperature Switch Stainless Steel or Brass Body & Din Plug 30 – 100degC range (factory set in 5degC increments) 3/4″ BSP thread Maximum pressure 16 bar C/O contacts...

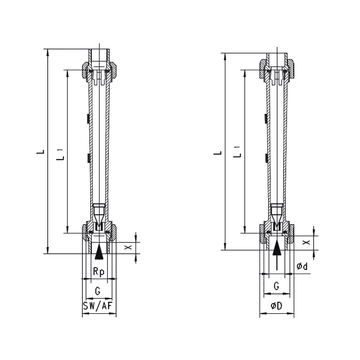

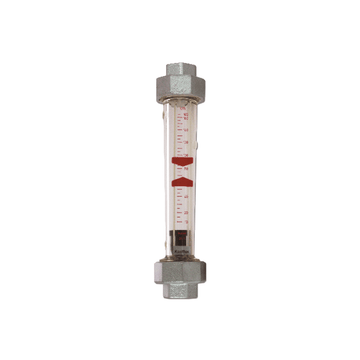

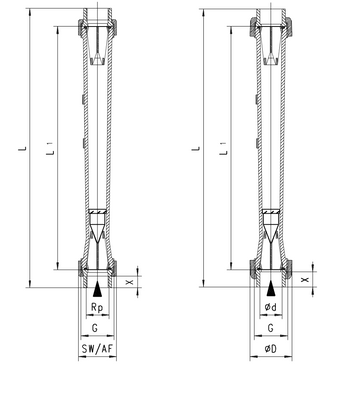

GK Variable Area Flow Meter

Description Suitable for both liquids & gases 3/8″ to 2″ BSP sizes Optional high & low switch points Optional 4 – 20mA transmitter Pressures up to 16 bar PVC or...

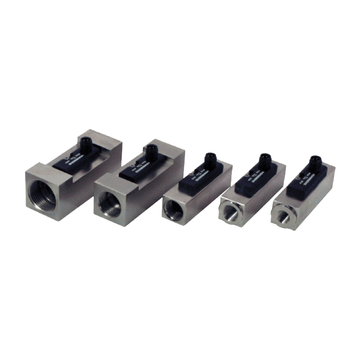

FWJ GM Flow Switch

Description Nominal Pipe Sizes 8-20 mm 1 – 16 l/min switching range 1/4″ to 3/4″ BSP threaded connections Pressure 100 bar Brass Body Mechanical Visual Display Technical Datasheet Downloads Technical...

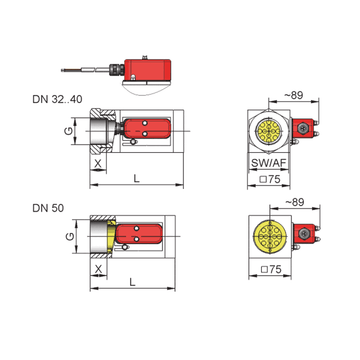

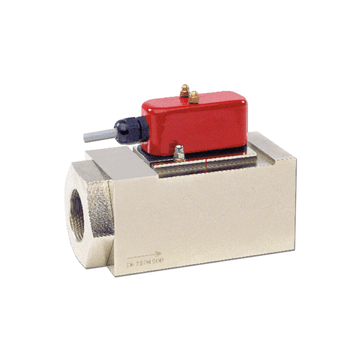

HR1MV Flow Switch

Description Nominal Pipe Sizes 32-50 mm 2 – 220 l/min switching range 1-1/4″ to 2″ BSP threaded connections Pressure 200 bar (500 bar option) Brass or Stainless Version Optional visual...

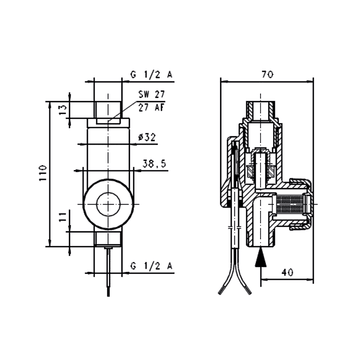

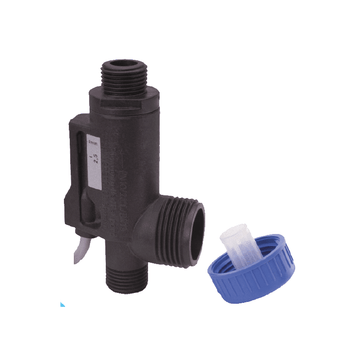

FX Plastic Flow Switch

Description For 15 mm Pipe Size 0.4 -12 l/min switching range 1/2″ BSP Male Threads Built In Filter 10 bar max Pressure Normally Open Reed Switch Rated 250Vac/10VA Technical Datasheet...

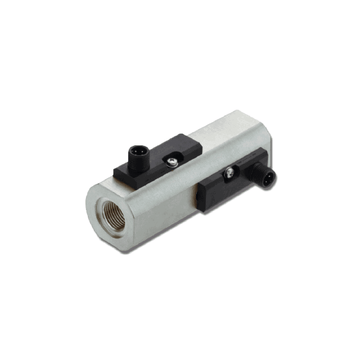

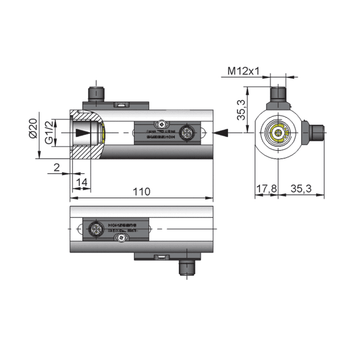

FW4V Flow Switch

Description For 15mm Pipe Size 1 l/min switching point 1/2″ threaded connections Pressure 300 bar Bi-directional flow switching Viscosity compensated Technical Datasheet Downloads FW4V Inline Piston Flow Switch Datasheet

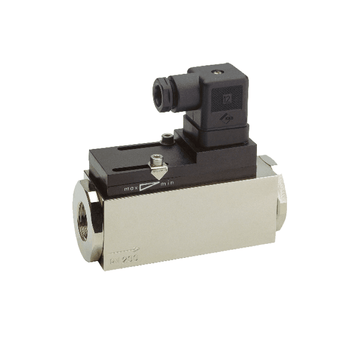

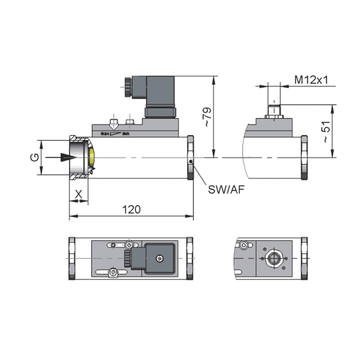

HD1F - HD2F Flow Switch

Description Mechanical flow switch, for fluid or gaseous media, with spring-supported piston and magnetic triggering of a reed switch. Robust construction in brass or stainless steel. Nominal Pipe Sizes 8-25mm 0.1...

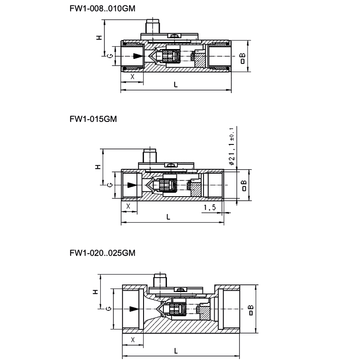

FW1-GM Flow Switch

Description 1/4″ – 1″ BSP Threaded Connections 1 – 11 l/min Switching Range Economical design High switching power Insensitive to dirt Media temperature -20..+90ºC Suitable for water (oil on request)...

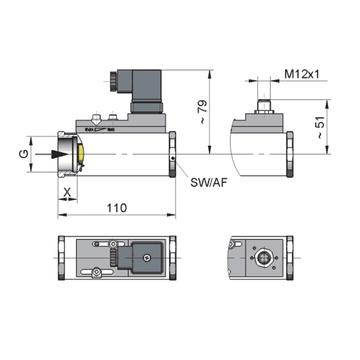

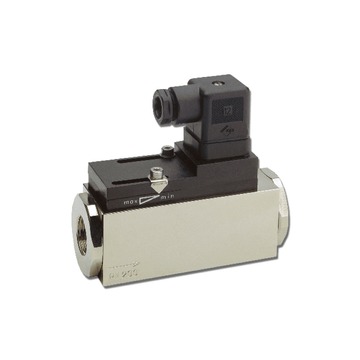

MR1K Piston Flow Switch

Description C/O reed switch rated at 250V/50VA Sizes from 1/4″ to 1″ BSP 0.4 l/min to 60 l/min adjustment ranges Brass or stainless steel body 200 bar maximum system pressure...

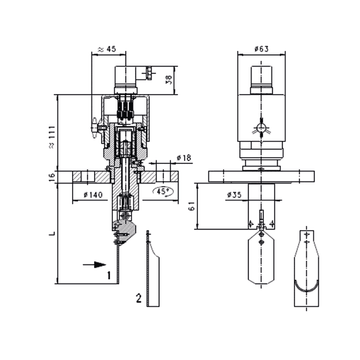

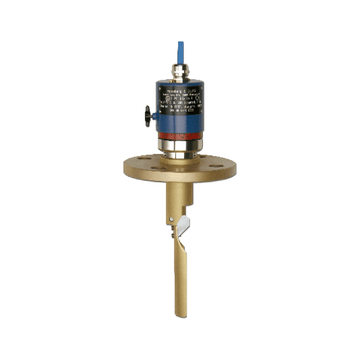

VM..E Paddle Flow Switch

Description Flange sizes from DN 40 to DN 200 Suitable for temperatures up to 90degC High temperature Option Change-over microswitch Optional ATEX Certified Switch-head Brass or stainless steel body User...

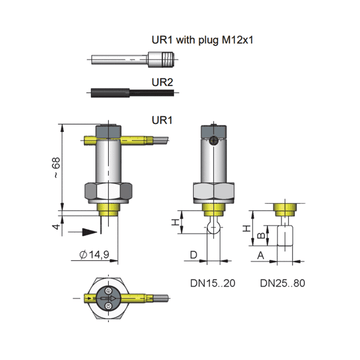

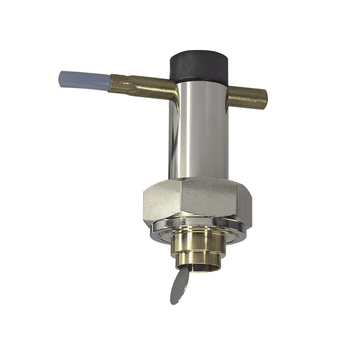

UR1-UR2..VPaddle Flow Switch

Description Nominal pipe sizes up to 80mm 5-174 l/min switching range Brass / Stainless Steel / Plastic Welded or 1/2″ BSP connection Low Pressure Loss ATEX option Technical Datasheet ATEX...

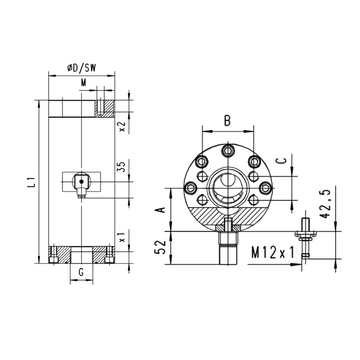

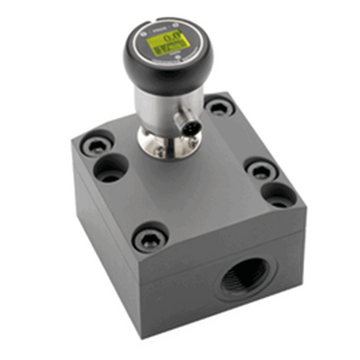

Gearwheel Volumeter VHZ

Description The VHZ gearwheel flow meter measures the flow by a volumetric principle, in which a pair of gearwheels is moved proportional to the flow rate. The movement of the...

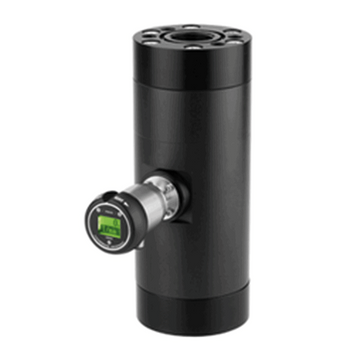

Screw Volumeter VHS

Description The VHS flow transmitter measures the flow using the volumetric principle, and is suitable for fluid, viscous, lubricant media (e.g. lubricating oil). High precision and linearity For oils and...

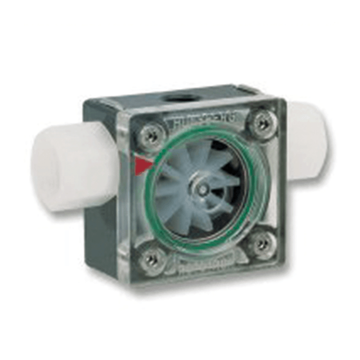

PO All Plastic Flow Indicator

Description Mechanical flow indicator, for fluid media, with rotor for quantitative flow display. The rotor turns in proportion to the flow. All plastic (POM or PVDF) flow indicator Can be...

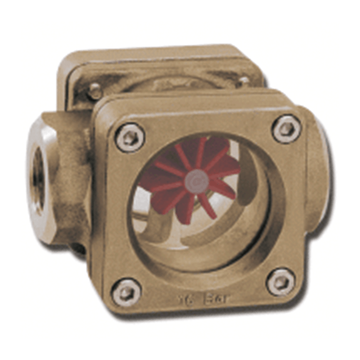

FR-GR Flow Indicator

Description Mechanical flow indicator, for fluid media, with twin rotor for quantitative flow display. The rotor turns in proportion to the flow. Robust construction in red bronze/brass. Rotor on both...

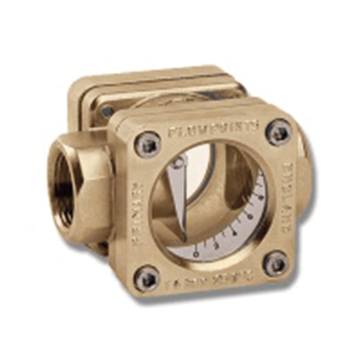

FQ Flow Indicator

Description Mechanical flow indicator for fluid media. A stainless steel flap in the area of flow is lifted by the volume flow, and indicates the pre- sent flow rate. High...

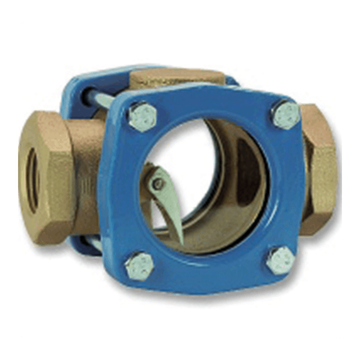

FK Flow Indicator

Description Mechanical flow indicator for fluid media. A plastic flap in the area of flow is lifted by the volume flow, and indicates the present flow rate. High temperature resistance...

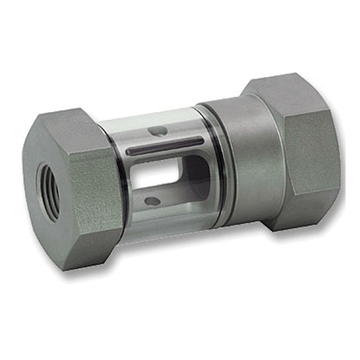

WO1 Flow Indicator 360º Visibility

Description Devices made from solid brass or stainless steel, where the medium can be visually examined through the sight glass (fluid level, colour, bubbles). A wiper makes it possible to...

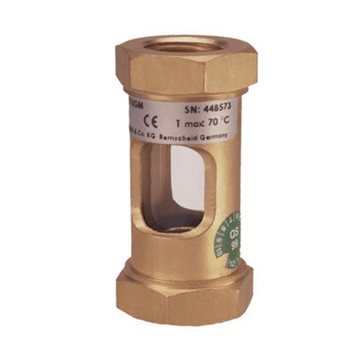

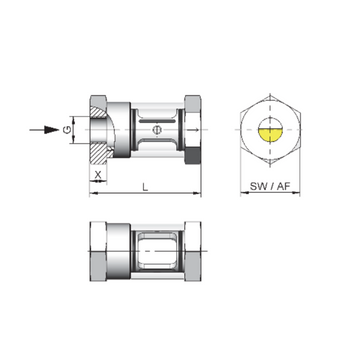

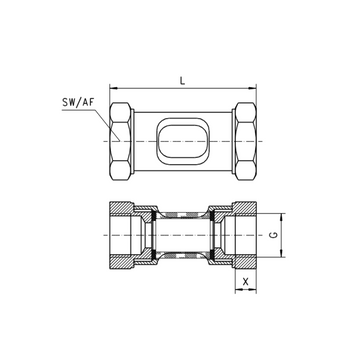

OW Flow Sight Glass with Scale

Description Easy to fit to existing pipework Sizes from 1/4″ to 2″ BSP Large glass area allow viewing from any direction Maximum pressure 6 bar Maximum temperature 70°C Brass body...

KM-A Flow Limiter

Description The constant flow is created by two crossways stainless steel spring plates which close or open an annular gap located behind them to a greater or lesser degree, according...

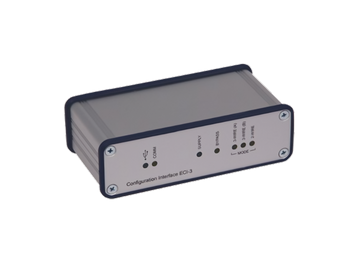

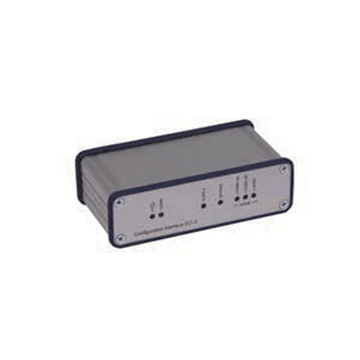

Configuration Interface ECI-3

Description The ECI-3 configuration interface enables connection of GHM HONSBERG sensors to the USB port of a computer. All sensors of the OMNI, FLEX, and LABO families, as well as...

OMNI-C Counter

Description  Simple totalisation Simple filling counter with programmable end signal Control switchover at present value Automatic, dynamic change of display unit and decimal places in the graphics display Antivalent outputs...

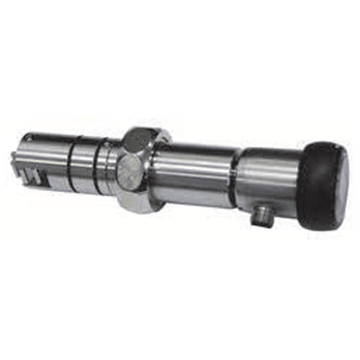

OMNI-RRH-032RMK Flow Transmitter

Description Flow transmitter with display For pipe diameters of DN 32 or larger Stainless steel version Suitable for retrofitting in existing pipelines with tapping clamps Analog output 4..20 mA or...

OMNI-RRI-032RMH Flow Transmitter

Description Flow transmitter with display For pipe diameters of DN32 or larger Plastic version Suitable for retrofitting in existing pipelines with tapping clamps Analog output 4..20 mA or 0..10 V...

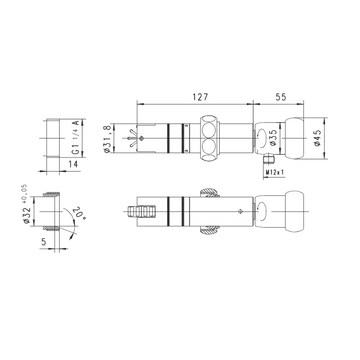

RRH-032RMK Flow Transmitter

Description Simple and affordable flow transmitter for pipe diameters of DN32 or larger Stainless steel version Suitable for retrofitting in existing pipelines with tapping clamps or weld-on nozzles Technical Datasheet...

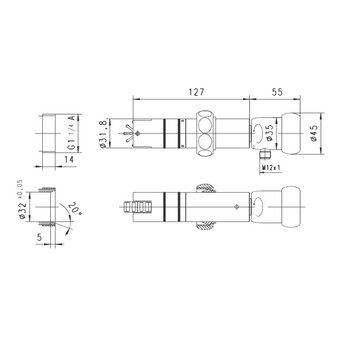

RRI-032RMH Flow Transmitter

Description Simple and affordable flow transmitter for pipe diameters of DN32 or larger Plastic version Suitable for retrofitting in existing pipelines with tapping clamps or weld-on nozzles Technical Datasheet Downloads...

OMNIPLUS-F Flow Transmitter

Description Flow transmitter for water and other liquids with integrated temperature measurement Fast response timeIntegrated volume meter with preset Measuring method without moving parts, no wear Stainless steel material coming...

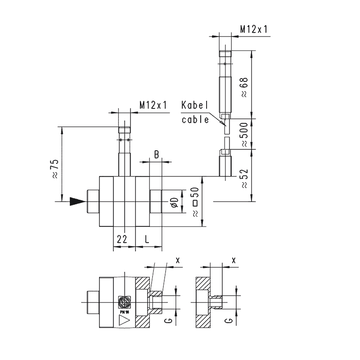

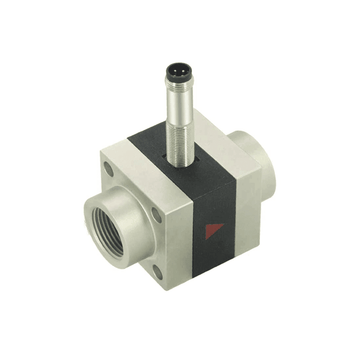

LABO XF Flow Transmitter

Description A very versatile reliable flow switch using a dynamic diaphragm made of stainless steel, which covers the whole cross section of the pipe and is deflected by the flow,...

TR Adjustable Temperature Switch

Description TR Temperature Switch Single or Double Range Option The Model TR Temperature Switch has a 50 – 130ºC range (external dial) Two Contact Option has a range of 35...

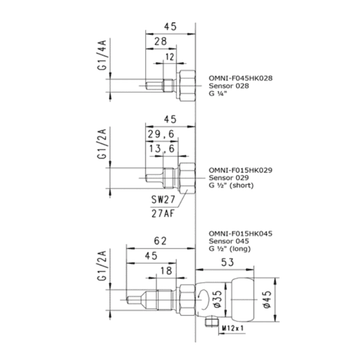

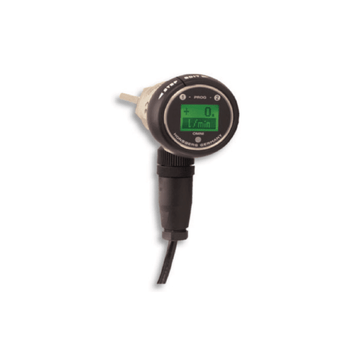

OMNI F Flow Transmitter

Description Flow sensor operating on the calorimetric principle 4 – 20mA output with 2 x user adjustable switch-points All stainless steel with no moving parts Very fast response times for...

NO - NOK Flow Indicator with Switch

Description 1/4″ to 1″ BSP sizes Visible flow scale in l/min (water) Up to 50 bar pressure Ideal for use with dirty/dark liquids May be mounted in any position with...

VF - VFR Flow Indicator

Description 1/4″ BSP standard thread Visible flow scale in l/min (water) Up to 16bar pressure Ideal for use with liquids or gases Optional adjustable switch-head available (model VFR) Brass or...

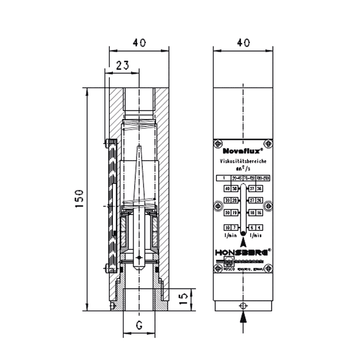

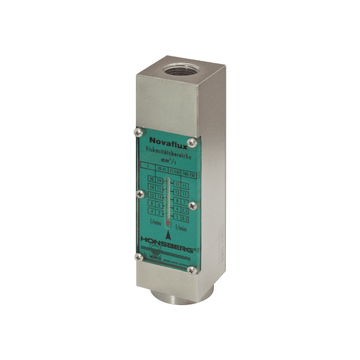

NJ - NJV Flow Switch - Indicator

Description Female thread 1/4″ to 1″ BSP 2-80 l/min measuring range Multi viscosity scale For dark and/or contaminated liquids Good repeatability Dirt resistance Viscosity Stabilised version (NJV) Technical Datasheet Downloads...

TX FT Flow Switch - Indicator

Description Suitable for use with temperatures up to 350ºC Visual flow indicator option Adjustable switch-point Up to 40 bar system pressure Standard DIN flanges Cast steel bod Technical Datasheet Downloads...

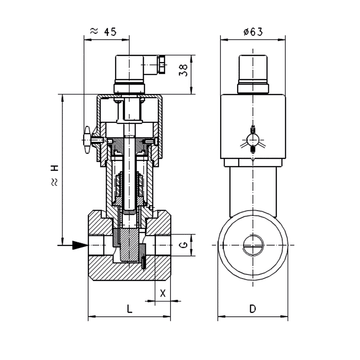

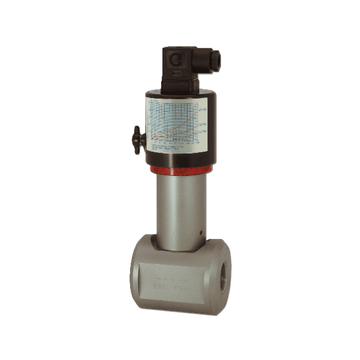

VD GR-GK Flow Switch

Description Nominal Pipe Sizes 8 – 80 mm 1 – 600 l/min switching range 720 l/min max flow 1/4″ to 3″ BSP threaded connections Pressure 100 bar Brass or Stainless...

MF 007 Flow Switch

Description For 7 mm Pipe Size 0.05 -1 l/min switching range 2 l/min max flow M10x1 threaded connections Pressure 6 bar Technical Datasheet Downloads MF007 Inline Piston Flow Switch Datasheet

MF Miniature Flow Switch

Description For 3 mm Pipe Size 1-100 Nl/min switching point 100 l/min max flow M5 threaded connections Pressure 6 bar For Air or Gas Technical Datasheet Downloads  MF Inline Piston...

FW3 Flow Switch

Description For 8mm Pipe Size 0.4 – 2.5 l/min switching range 1/4″ threaded connections Pressure 100 bar Brass or Stainless Version Technical Datasheet Downloads FW3 Inline Piston Flow Switch Datasheet

MR Flow Switch

Description Nominal Pipe Sizes 8 – 25mm 0.4 – 60 l/min switching range 1/4″ – 1″ BSP threaded connections Pressure 200 bar Brass or Stainless Version Optional visual display Technical...

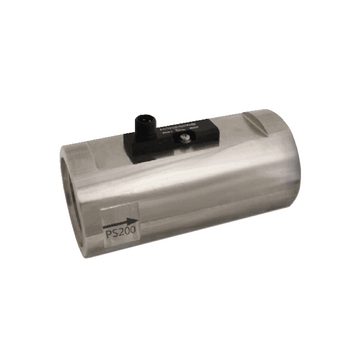

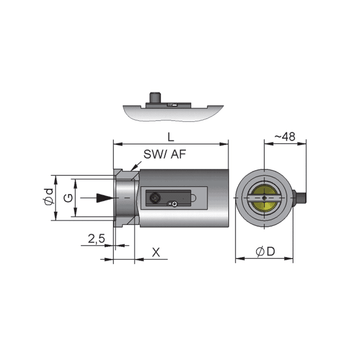

HR2K2 Flow Switch

Description Nominal Pipe Sizes 32 – 50mm 15 – 80 l/min switching range 1-1/4″ – 2″ BSP threaded connections Pressure 200 bar (500 bar option) Brass or Stainless Version Optional...

HR2K1 Flow Switch

Description Nominal Pipe Sizes 32 – 50mm 10 – 150 l/min switching range 1-1/4″ – 2″ BSP threaded connections Pressure 200 bar (500 bar option) Brass or Stainless Version Optional...

HM1K - HM2K Flow Switch

Description Mechanical flow switch, for fluid or gaseous media, with spring-supported piston and magnetic triggering of a microswitch. Robust construction in brass or stainless steel. Nominal Pipe Sizes 8-25mm 0.4...

PD Flow Switch

Description Adjusted to switch between 2 – 500 l/min 10mm to 80mm Nominal Pipe Sizes Mechanical flow switch, for fluid media Insensitive to dirt Precise setting of the switching valve...

G GR Flow Switch

Description Adjusted to switch between 0.015 and 0.4 l/min H2O Sizes from 1/4″ to 1/2″ BSP Low pressure loss design Bronze body Reed switch rated at 250Vac/1A 50VA Can be...

FM GR Flow Switch

Description 1/4″ – 1/2″ BSP Connections 0.4 – 12 l/min switching ranges 20 l/min max flow Medium Temperature -20ºC – 90ºC Female thread Fixed switch point High pressure duty Good...

FF GR Flow Switch

Description 1/4″ – 1-1/2″ BSP Connections 0.4 – 90 l/min switching ranges 150 l/min max flow Medium Temperature -20ºC – 110ºC Female thread Fixed switch value High pressure duty Good...

FW1-GP Flow Switch

Description 1/2″ – 1″ BSP Threaded Connections 1 – 11 l/min Switching Range Economical design High switching power Insensitive to dirt Media temperature -20..+90ºC Suitable for water (oil on request)...

UZ Paddle Flow Meter - Switch

Description 1/2″ – 2″ BSP Threaded Connections 2 – 500 l/min measuring range Mechanical flowmeter for liquids A bellow-supported paddle activates a metering unit Pointer range 270 Deg Rugged design...

UM3K..V Paddle Flow Switch

Description Nominal pipe sizes up to 80mm 10 – 268 l/min switching range Welded Connection (others available) Brass or Stainless steel wetted parts Low Pressure Loss User Adjustable Switch-Point SPDT...

TZ1..E Paddle Flow Meter

Description Large analog display Monitor and display Simple adjustment by means of drag indicator 40 to 1000 mm Nominal width 50 to 1050 l/min measuring range Can be used from...

UB1 Paddle Flow Switch

Description Mechanical flow switch for liquids or gaseous media. A bellow-supported paddle activates an adjustable micro-switch. Operational range a diameter 25-200 Visual functions control by transparent cover “Combination contact” gold...

VECTIS Level Sensor

Description Lever arm level sensor with analog Hall sensor Analog output and/or switching/frequency output Designed for industrial use Small, compact construction Suitable for installation from the side and from above...

Flex LC Level Sensor

Description Level sensor with reed chain Analogue output and/or switching output Alternative with temperature sensor Available in various materials Designed for industrial use Small, compact construction Very easy installation Technical...

LC Level Sensor

Description Top Entry Materials combination may be selected Reed switch chain Suitable medium temperature -20..+105ºC Stainless Steel or Brass 4-20ma or 0-10v Technical Datasheet Downloads LC Level Sensor Datasheet

MW3 Side Entry Level Switch

Description 220Vac/1A 50VA reed switch 3/4″ BSP thread Microswitch SPDT Change Over Contacts Brass or stainless steel body Spansil (Buna) or stainless steel float Protected to IP65 with standard Din...

NW3 Side Entry Level Switch

Description 220Vac/1A 50VA reed switch 3/4″ BSP thread Reed Switch N/O or N/C contacts depending on installation Brass or stainless steel body Spansil (Buna) or stainless steel float Protected to...

OMNI DP1 Pressure Transmitter

Description Ideally suitable for liquid applications Can also be used for high differential pressures High chemical resistance through the use of high quality materials Head can be turned for alignment...

EDP1 Differential Pressure Transmitter

Description Differential Pressure Transmitter Designed for pressure from 1 to 200 bar Up to 400 bar over- pressure proof Standard 4 0 20mA output All stainless steel wetted parts 2...

Flex P1 Pressure Sensor

Description Flush stainless-steel membrane or ceramic measuring cell Switching output and/or analogue output (4..20 mA/0..10 V) IP67 type of protection Infinitely rotatable cable outlet for precise alignment Robust stainless-steel housing...
