Dinel

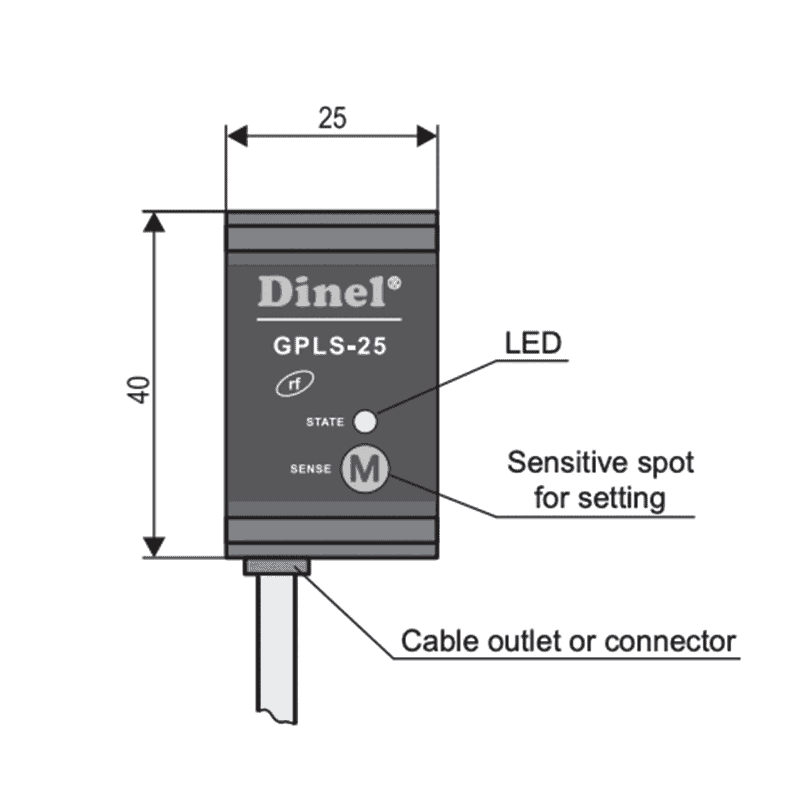

GPLS-25 Thru-Wall Level Switch

  • Level Sensing through 8mm Glass/Plastic
  • 2 or 3 Wire Connections
  • Simple Setup in Miniature Form Switch
  • Max Switching Current 40mA(PNP 100mA)
  • Temperature range of -20 to 80 °C
  • IP67 Rated

Technical Datasheet
£0.00 In Stock Sold out
Through wall level switches GPLS–25 are intended for liquid (conductive and non-conductive) level detection on glass or plastic gauge-pipes, tubes and tanks. The sensitivity and modes (SO – normally open or SC – normally closed) of the switches can be easily set by placing magnetic pen on sensitive spot. The connection is done by means of two wires directly into a circuit with relay or to binary input of control system.
.
