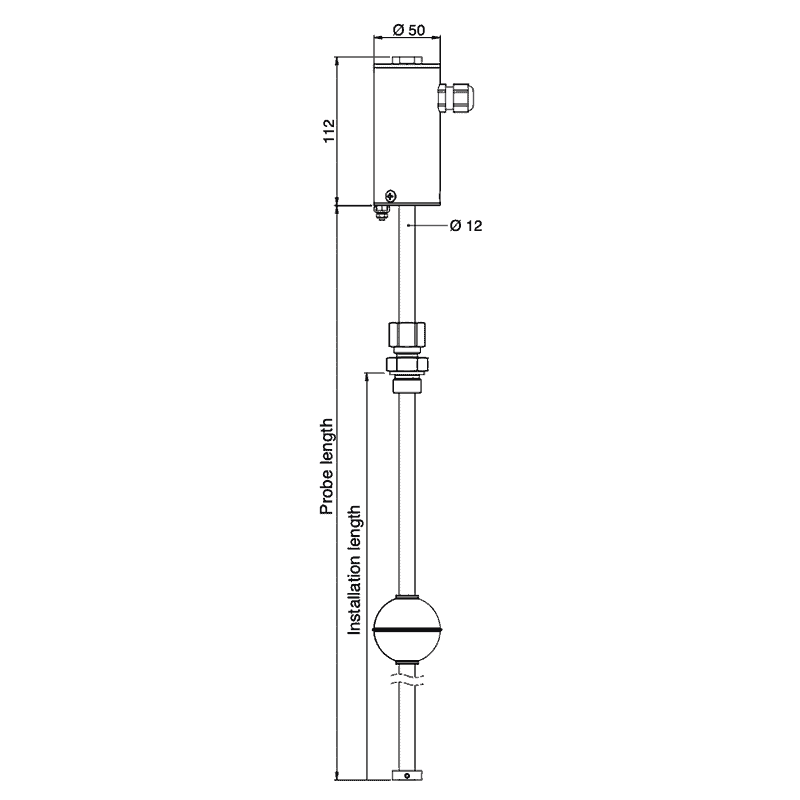

torrix_dwg
torrix_level_sensor_fafnir
torrix_dwg
FAFNIR

Torrix Series Level Sensor

£0.00 In Stock Sold out

ORDER BY 1:00PM NEXT DAY DELIVERY DEPENDING ON STOCK

WE STOCK 100% QUALITY PRODUCTS

QUALITY GUARANTEE AND EASY RETURNS

Description

The most versatile level sensor in our range, it is easy to install and reliable throughout it’s lifetime. Forget complicated installations and time consuming and costly troubleshooting, TORRIX Level Sensor is very easy to use and to troubleshoot. With its high-precision magnetostrictive measuring principle, it archives an accuracy of up to ± 0.3 mm, and is among the very best in its class.

  • Easy to install and to configure
  • Absolutely maintenance-free
  • Measurement of the separation layer and the filling level via HART®
  • Temperature-compensated measuring principle
  • 2-wire terminal (4 to 20 mA)
  • Robust long life design
  • Resistant to shock and vibration (OIML D11)
  • Measuring range freely configurable along the entire probe length
  • Use in Ex zone 0 (ATEX approval)

Technical Datasheet

Downloads

Technical DatasheetTorrix Level sensor
