VALVULAS

VALVULAS is a company that focuses on designing and manufacturing high-quality float valves. They have established themselves as leaders in the industrial and residential sectors with over 25 years of experience.

By working with VALVULAS, we can provide one-of-a-kind solutions to projects requiring fluid-level control for any application while avoiding the need for sophisticated and expensive technology.



fig_200_ev_float_valve fig_200_ev_float_valve_dwg
valvulas
Fig 200 EV Float Valve
  • 10mm to 65mm port diameter
  • 3/8” to 2 1/2” BSP connection
  • All 316 stainless steel
  • Flow rates up to 75,966 litres per hr
  • Rated up to 10 Bar
  • Silcon seal (others available)
fig_200_b_flanged_foat_valve fig_200_b_flanged_foat_valve_dwg_1 fig_200_b_flanged_foat_valve_dwg_2
valvulas
Fig 200 B Float Valve
  • 10mm to 100mm port diameter
  • DN10 to DN100 flange connection
  • All 316 stainless steel
  • Flow rates over 291,714 litres per hr
  • Rated up to 10 Bar Silcon seal (others available)
fig_100_304_stainless_ball_valve fig_100_304_stainless_ball_valve_dwg
valvulas
Fig 200 Float Valve
  • 10mm to 80mm port diameter
  • 3/8” to 4” BSP connection
  • 304 (100) or 316 (200) stainless steel
  • Flow rates up to 291,714 litres per hr
  • Rated up to 10 Bar
  • Silcon seal (others available)
fig_100_304_stainless_ball_valve fig_100_304_stainless_ball_valve_dwg
valvulas
Fig 100 Float Valve
  • 10mm to 80mm port diameter
  • 3/8” to 4” BSP connection
  • 304 (100) or 316 (200) stainless steel
  • Flow rates up to 291,714 litres per hr
  • Rated up to 10 Bar
  • Silcon seal (others available)

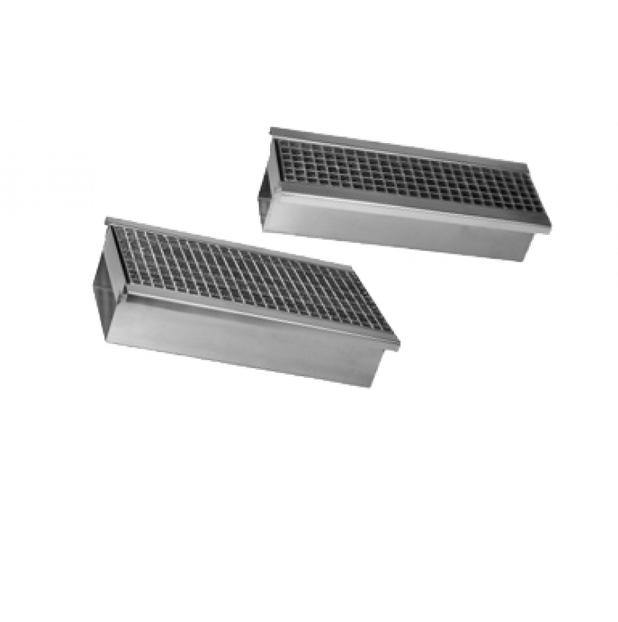

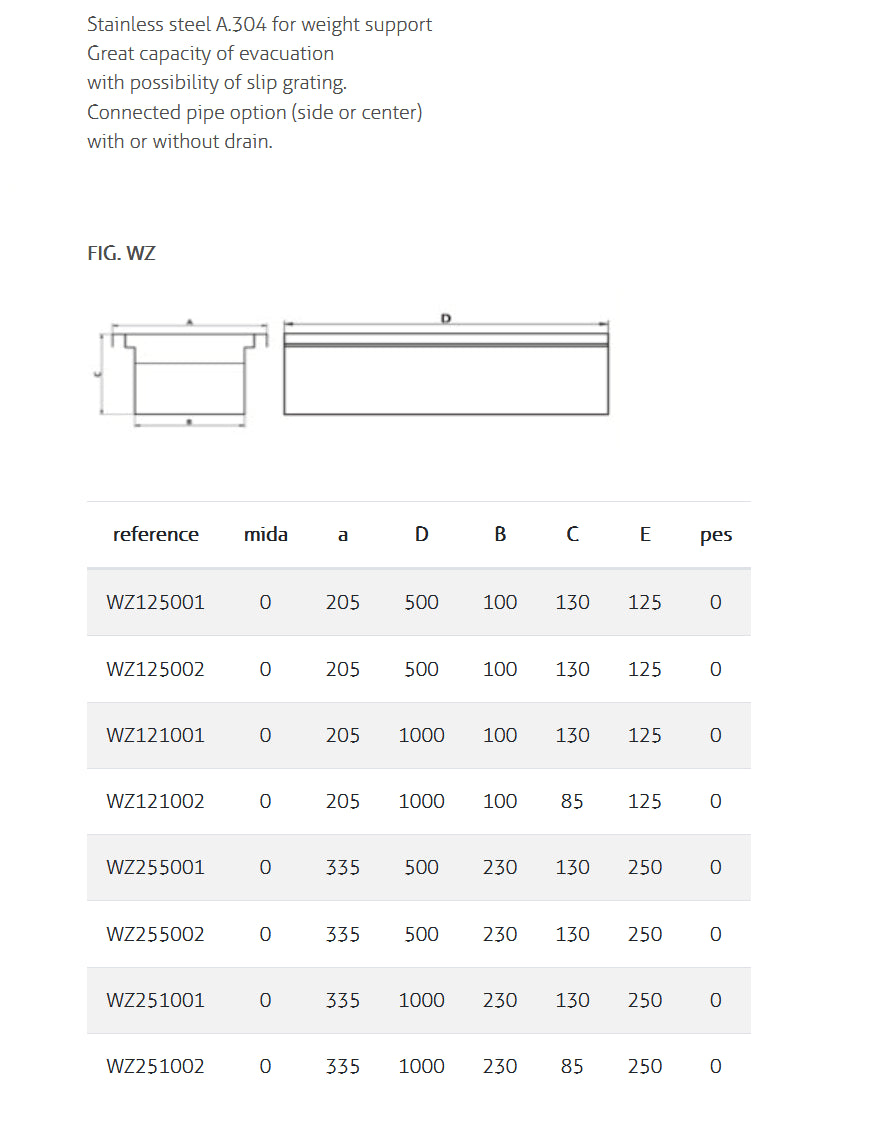

Long Drain - PVL Long Drain
Valvulas
Long Drain
  • Stainless steel A.304 for weight support
  • Great capacity of evacuation with possibility of slip grating.
  • Connected pipe option (side or center) with or without drain.

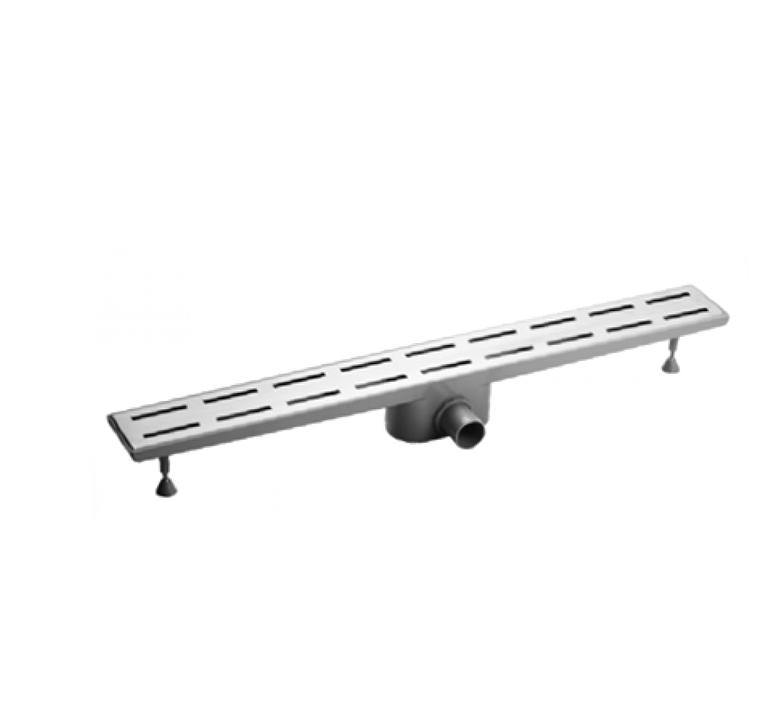

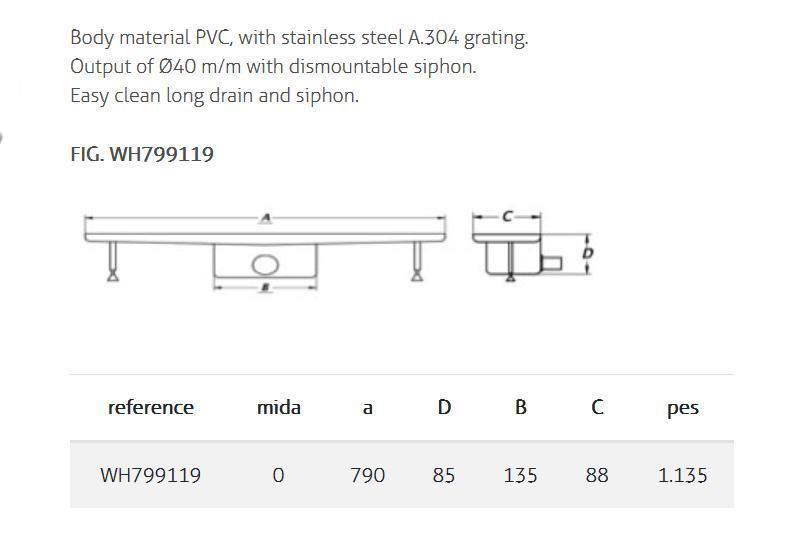

Domestic Long Drain 190x90mm - PVL Domestic Long Drain 190x90mm
Valvulas
Domestic Long Drain 190x90mm
  • Body material PVC, with stainless steel A.304 grating.
  • Output of Ø40 m/m with dismountable siphon.
  • Easy clean long drain and siphon.

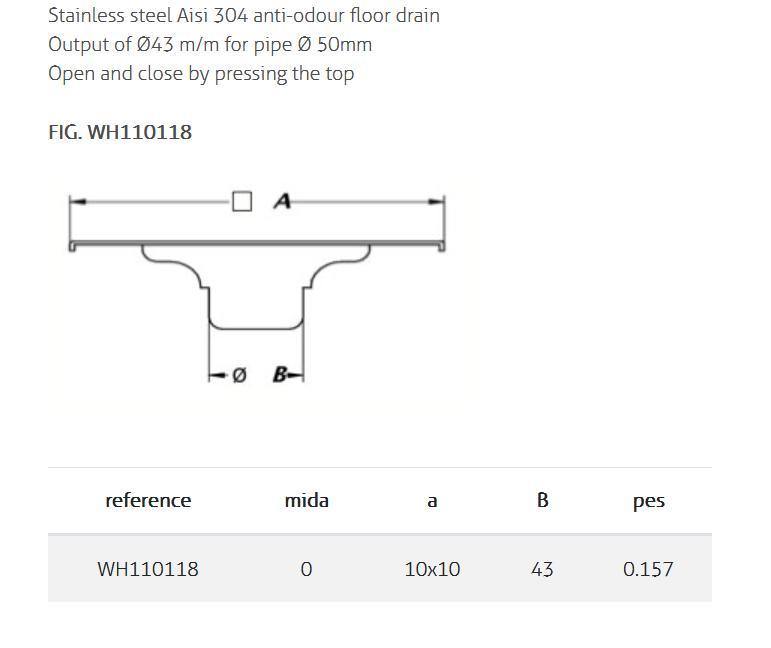

Click SS Floor 10x10cm - PVL Click SS Drain Floor 10x10cm
Valvulas
Click SS Floor 10x10cm
  • Stainless steel Aisi 304 anti-odour floor drain
  • Output of Ø43 m/m for pipe Ø 50mm
  • Open and close by pressing the top

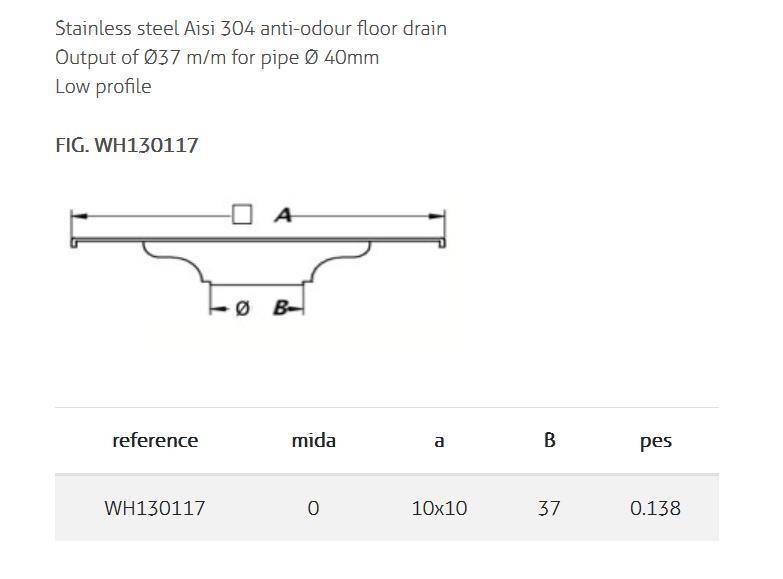

SS Drain Floor With Siphon 10x10cm - PVL SS Drain Floor With Siphon 10x10cm
Valvulas

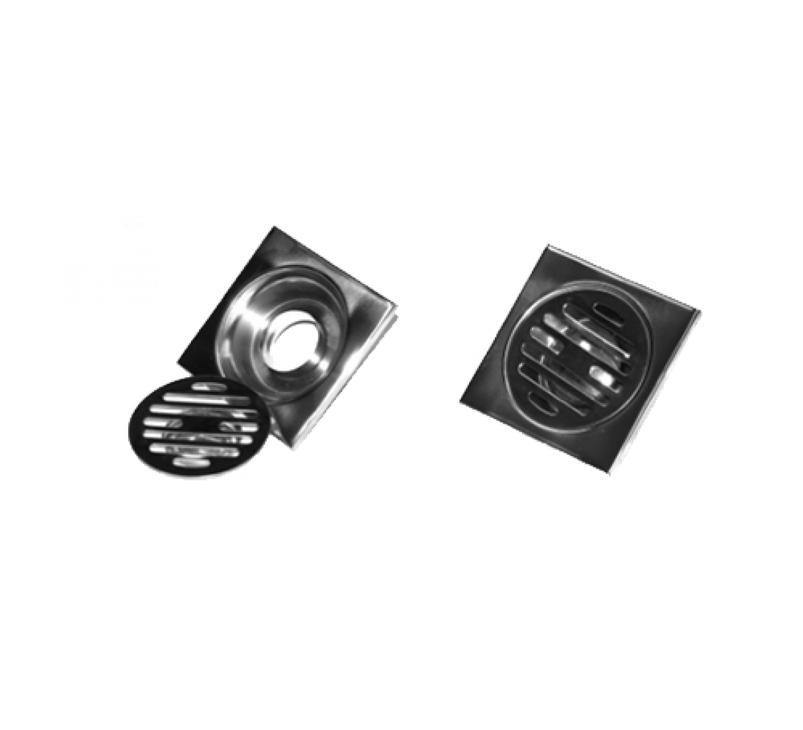

SS Drain Floor With Siphon 10x10cm
  • Stainless steel Aisi 304 anti-odour floor drain
  • Output of Ø37 m/m for pipe Ø 40mm
  • Low profile

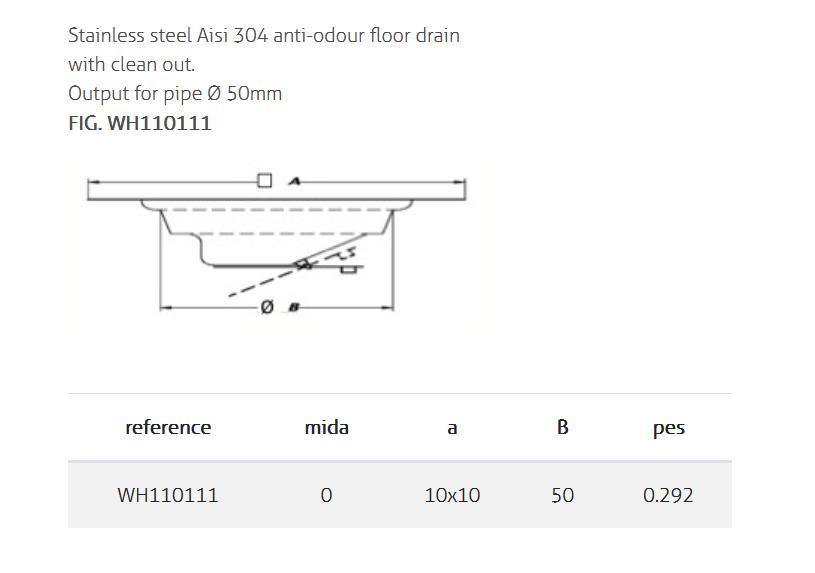

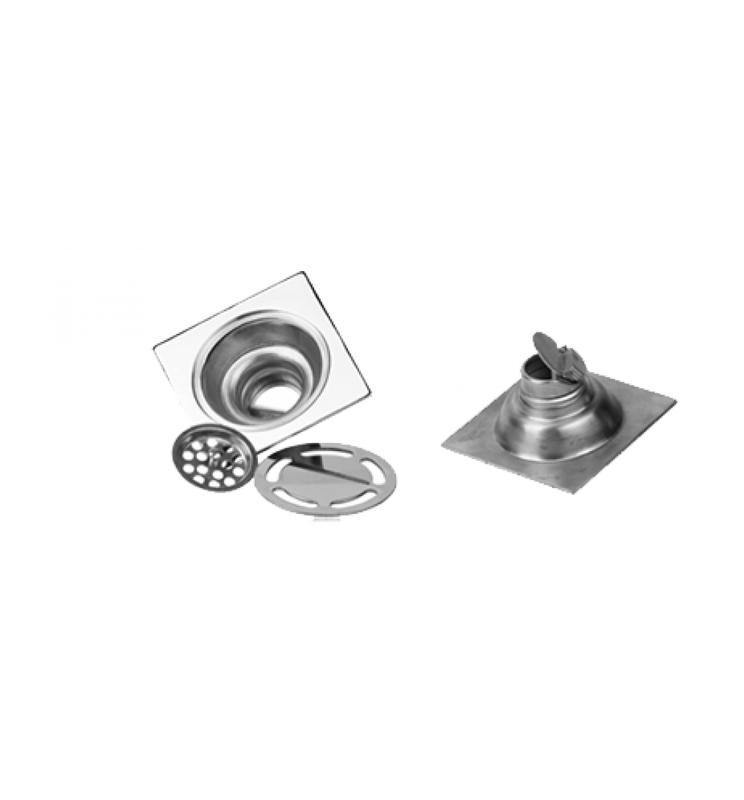

SS Drain Floor 10x10 cm - PVL SS Drain Floor 10x10 cm
Valvulas
SS Drain Floor 10x10 cm
  • Stainless steel Aisi 304 anti-odour floor drain with clean out.
  • Output for pipe Ø 50mm

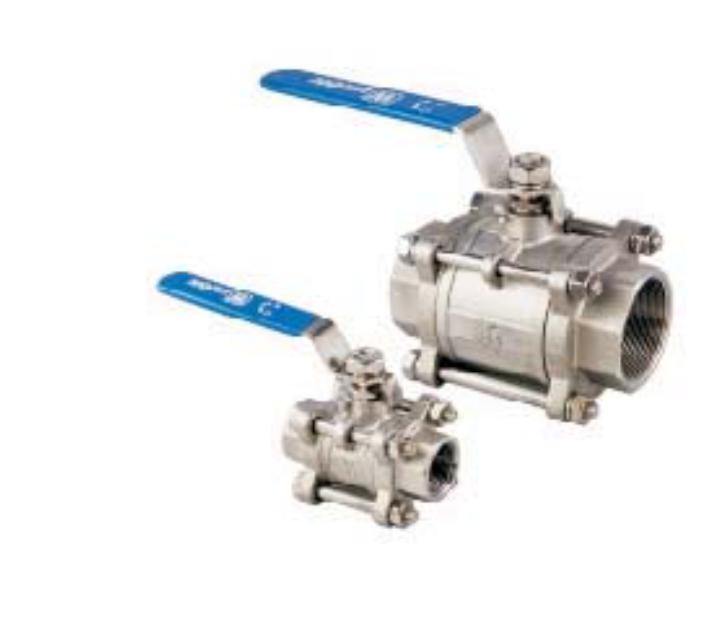

3 Pcs Full Bore Ball Valve - PVL 3 Pcs Full Bore Ball Valve
Valvulas

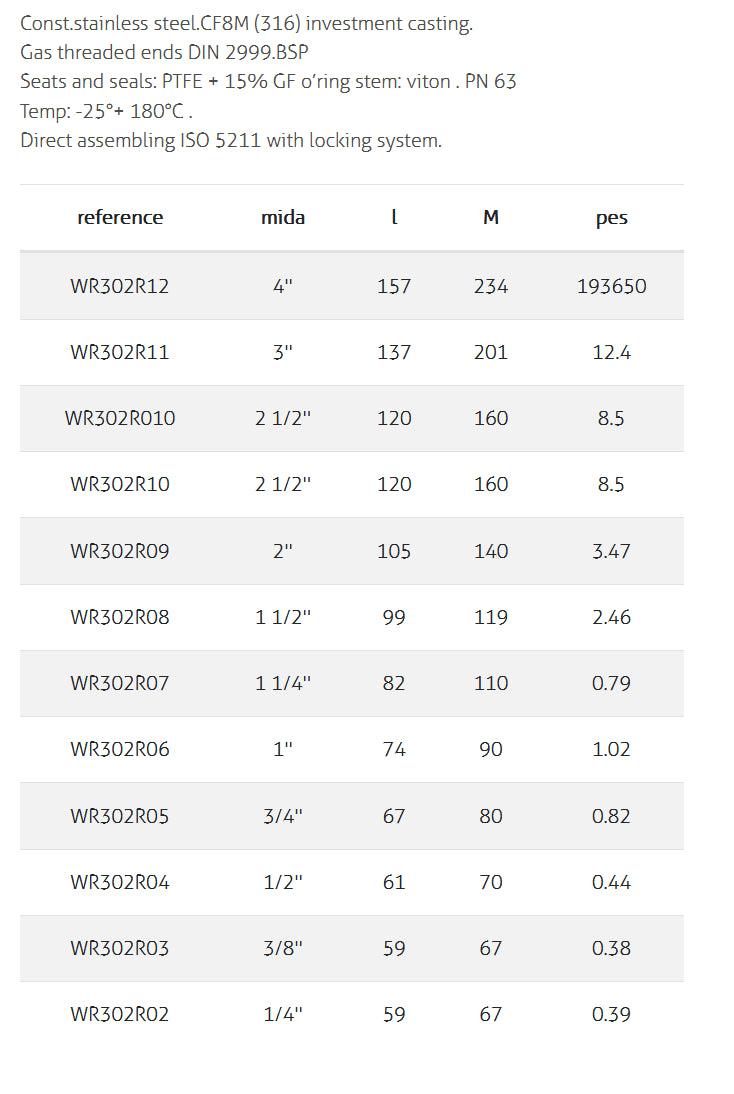

3 Pcs Full Bore Ball Valve
  • Const.stainless steel.CF8M (316) investment casting.
  • Gas threaded ends DIN 2999.BSP
  • Seats and seals: PTFE + 15% GF o’ring stem: viton . PN 63 Temp: -25°+ 180°C
  • Direct assembling ISO 5211 with locking system.

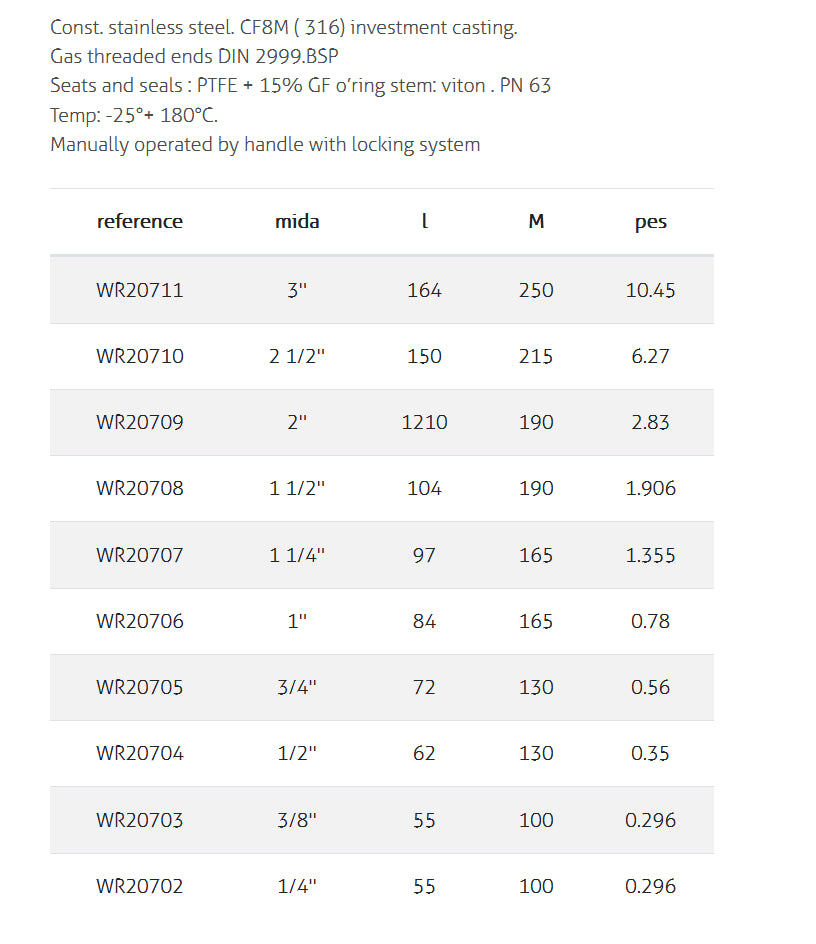

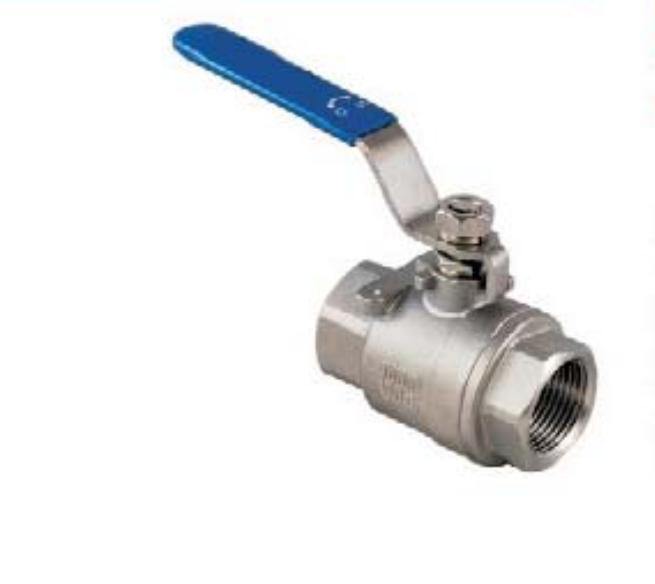

2 Pcs Full Bore Ball Valve - PVL 2 Pcs Full Bore Ball Valve
Valvulas
2 Pcs Full Bore Ball Valve
  • Const. stainless steel. CF8M ( 316) investment casting.
  • Gas threaded ends DIN 2999.BSP
  • Seats and seals : PTFE + 15% GF o’ring stem: viton . PN 63
  • Temp: -25°+ 180°C.
  • Manually operated by handle with locking system
Strainer For Check Valve A.316 - PVL Strainer For Check Valve A.316
Valvulas

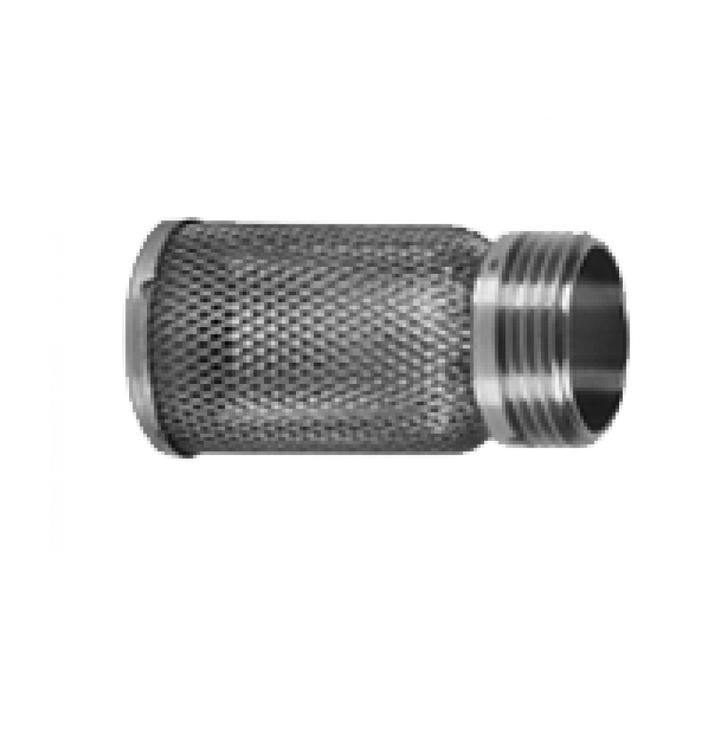

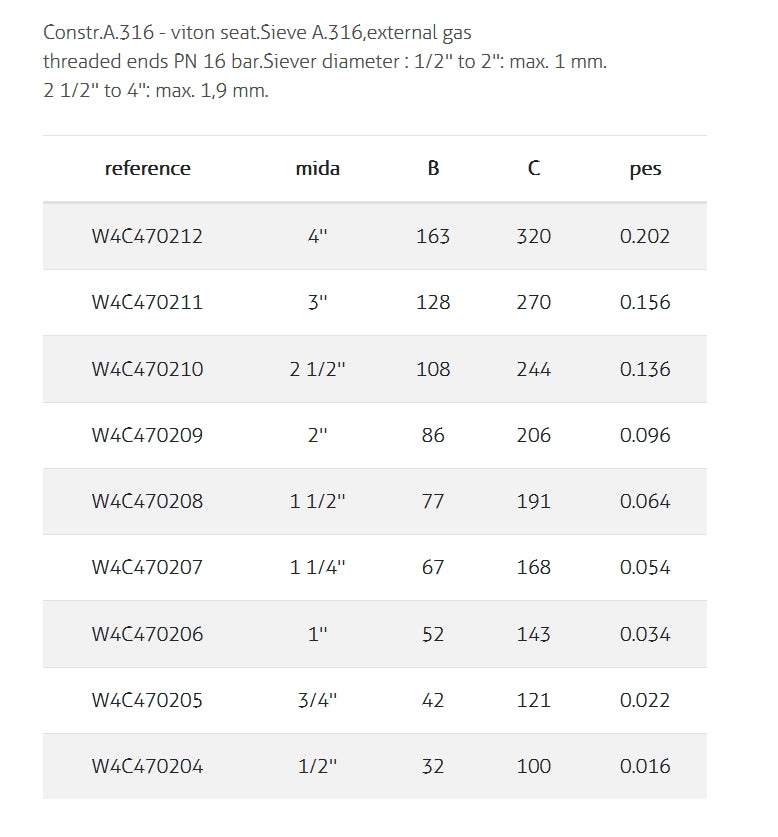

Strainer For Check Valve A.316
  • Constr.A.316 - viton seat.
  • Sieve A.316, external gas threaded ends PN 16 bar.
  • Siever diameter : 1/2" to 2": max. 1 mm. 2 1/2" to 4": max. 1,9 mm.

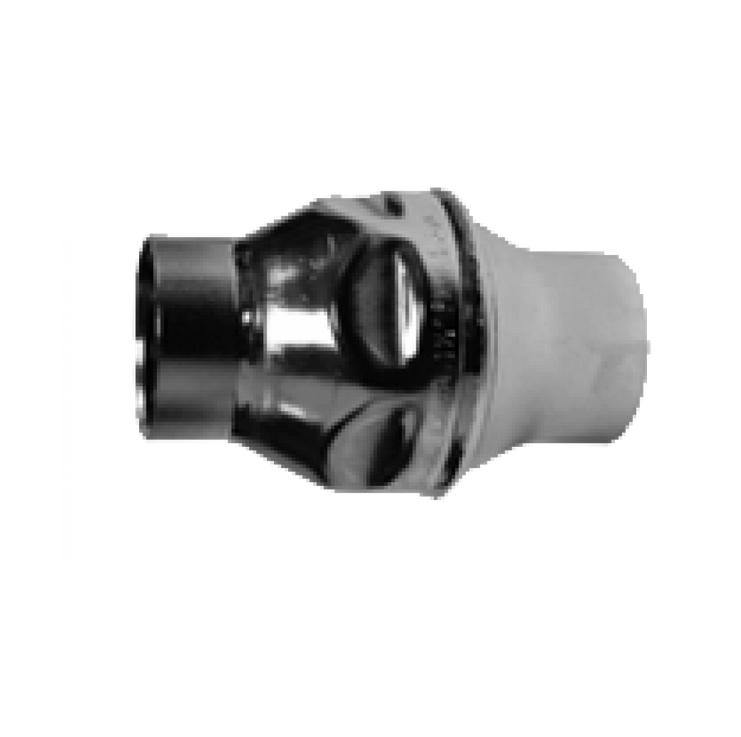

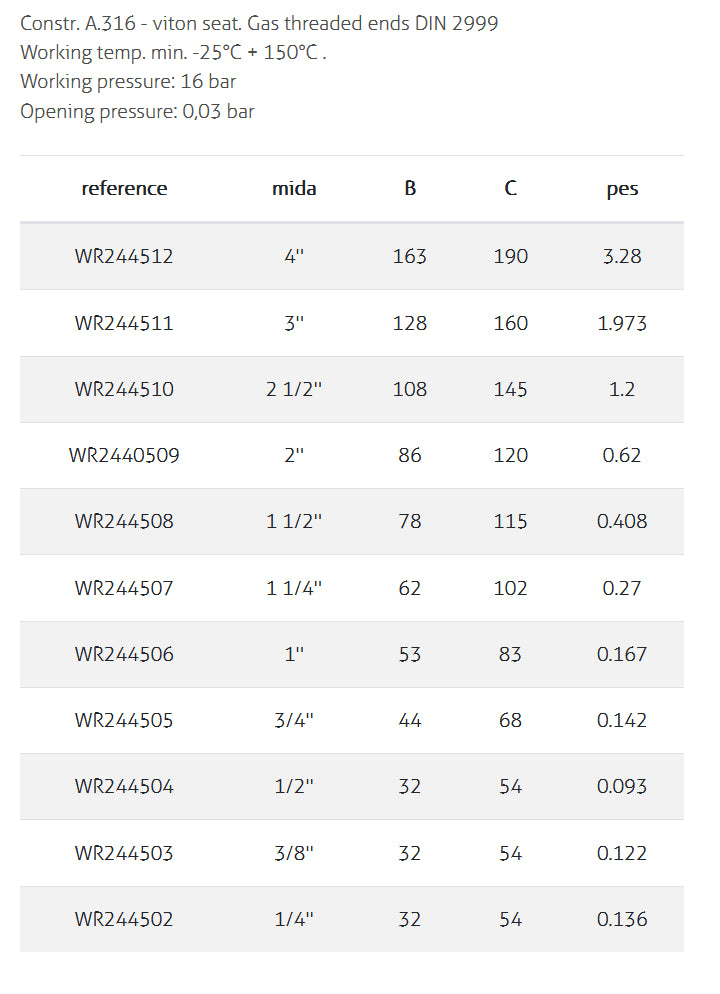

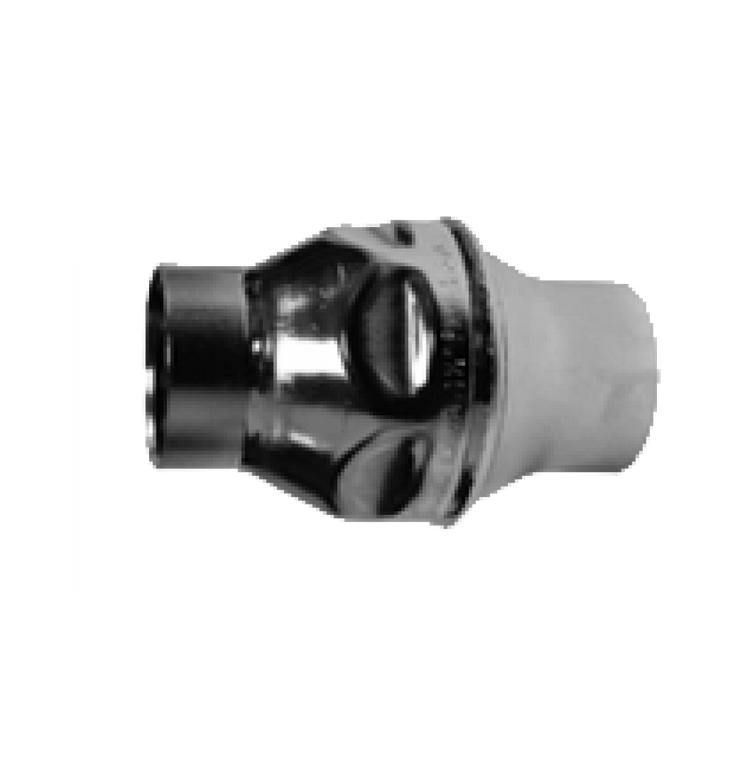

Chromax Check Valve IDRJA - PVL Chromax Check Valve IDRJA
Valvulas

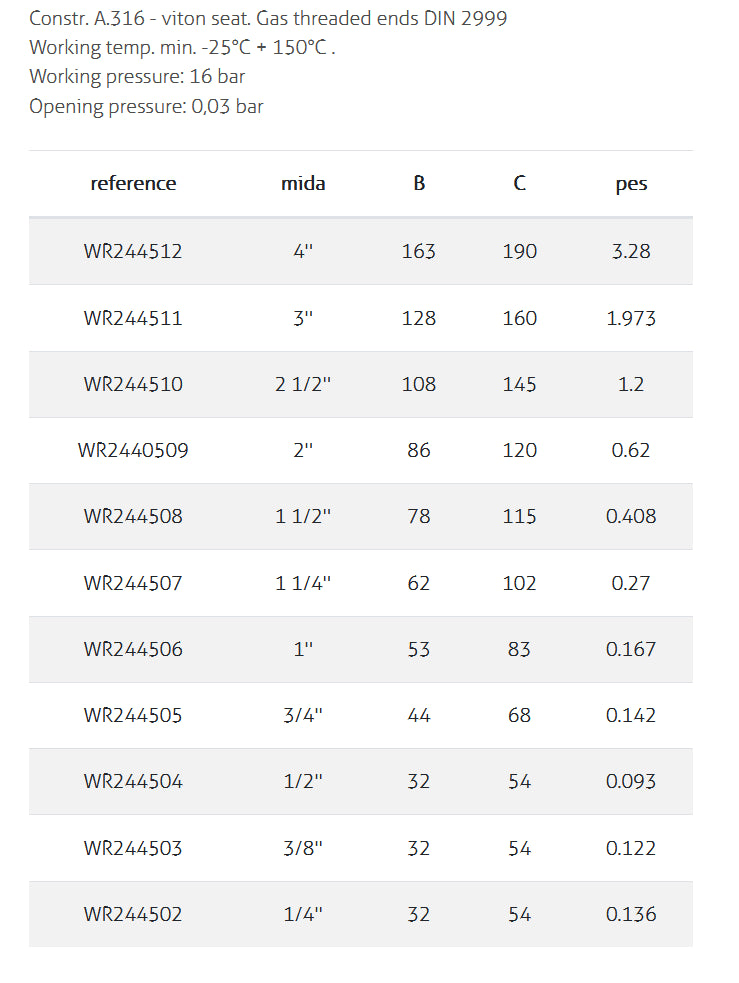

Chromax Check Valve IDRJA
  • Constr. A.316 - viton seat. Gas threaded ends DIN 2999
  • Working temp. min. -25°C + 150°C .
  • Working pressure: 16 bar
  • Opening pressure: 0,03 bar

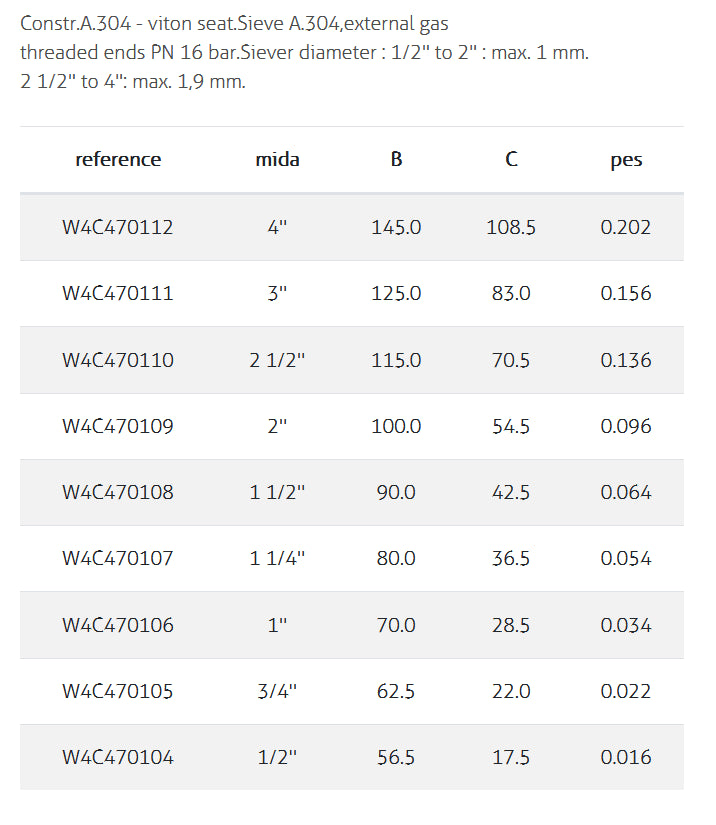

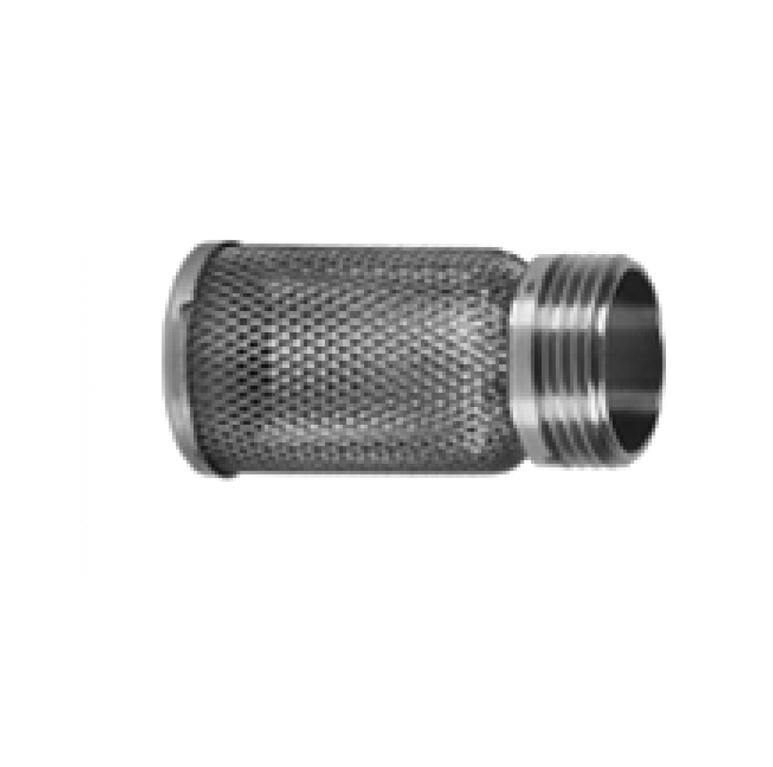

Strainer For Check Valve A.304 - PVL Strainer For Check Valve A.304
Valvulas
Strainer For Check Valve A.304
  • Constr.A.304 - viton seat.
  • Sieve A.304, external gas threaded ends PN 16 bar.
  • Siever diameter : 1/2" to 2" : max. 1 mm. 2 1/2" to 4": max. 1,9 mm.
Chromax Check Valve IDRJA - PVL Chromax Check Valve IDRJA
Valvulas
Chromax Check Valve IDRJA
  • Constr. A.316 - viton seat. Gas threaded ends DIN 2999
  • Working temp. min. -25°C + 150°C .
  • Working pressure: 16 bar
  • Opening pressure: 0,03 bar

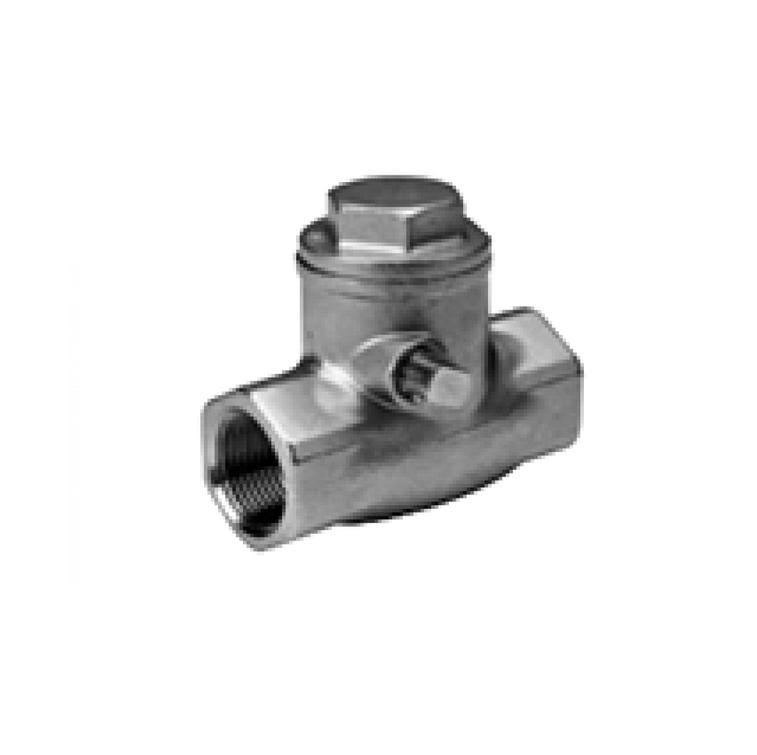

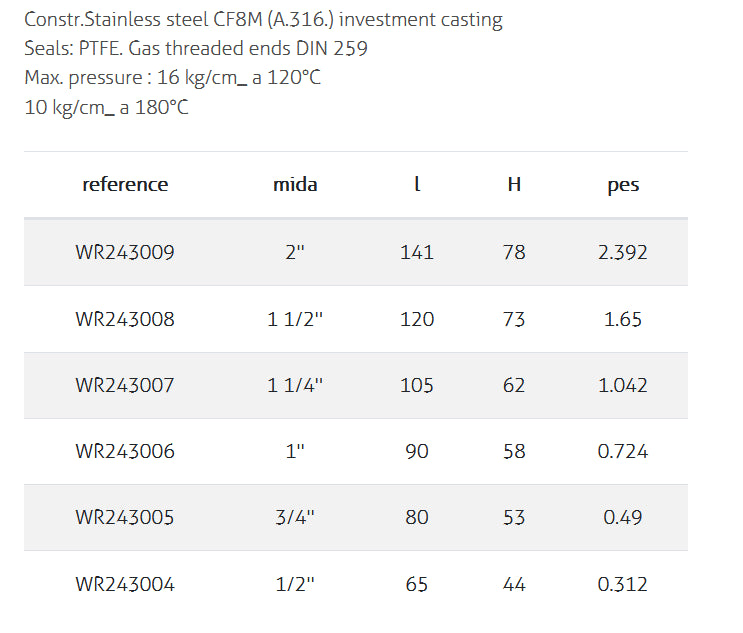

Swing Check Valve PN-16 - PVL Swing Check Valve PN-16
Valvulas
Swing Check Valve PN-16
  • Constr.Stainless steel CF8M (A.316.) investment casting
  • Seals: PTFE. Gas threaded ends DIN 259
  • Max. pressure : 16 kg/cm a 120°C 10 kg/cm_a 180°C

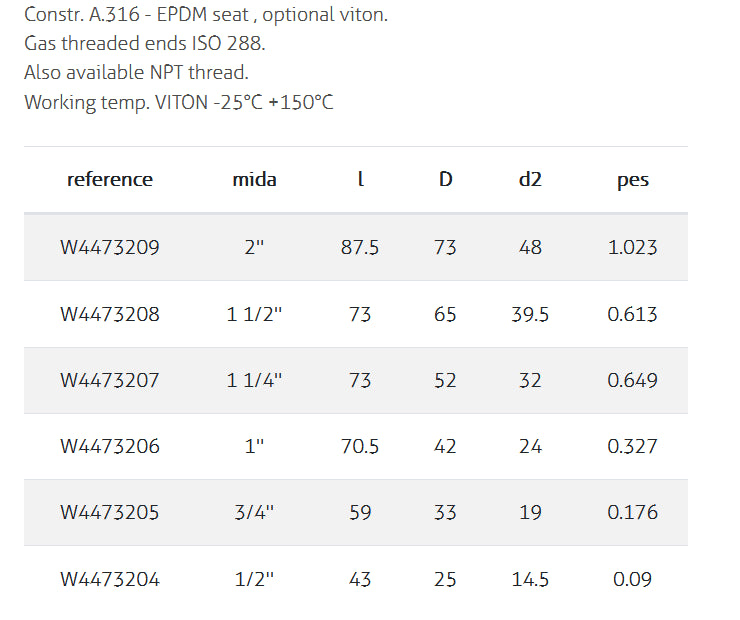

Check Valve A.316 - PVL Check Valve A.316
Valvulas

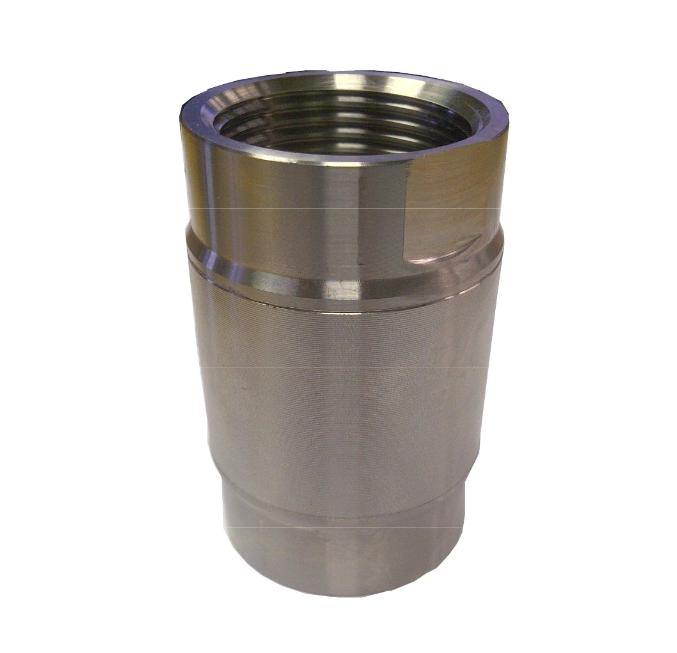

Check Valve A.316
  • Constr. A.316 - EPDM seat , optional viton.
  • Gas threaded ends ISO 288.
  • Also available NPT thread.
  • Working temp. VITON -25°C +150°C

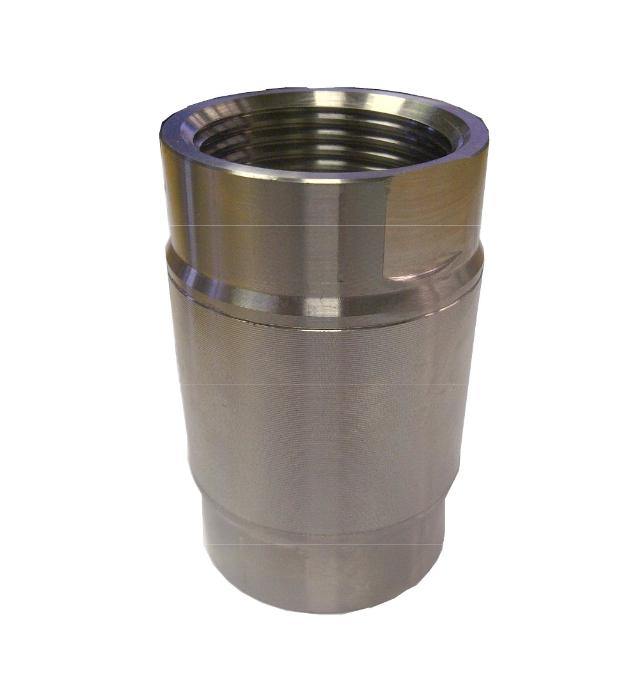

Check Valve A.304 - PVL Check Valve A.304
Valvulas

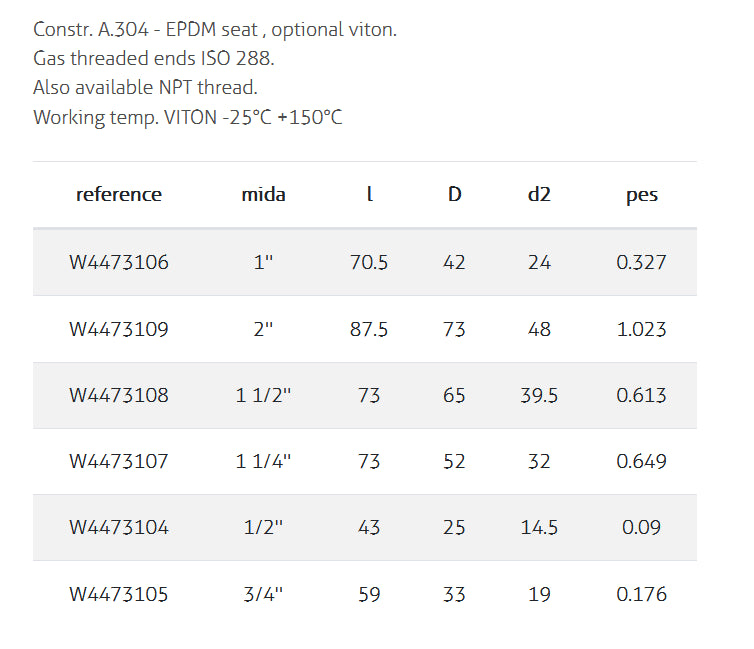

Check Valve A.304
  • Constr. A.304 - EPDM seat , optional viton.
  • Gas threaded ends ISO 288.
  • Also available NPT thread.
  • Working temp. VITON -25°C +150°C

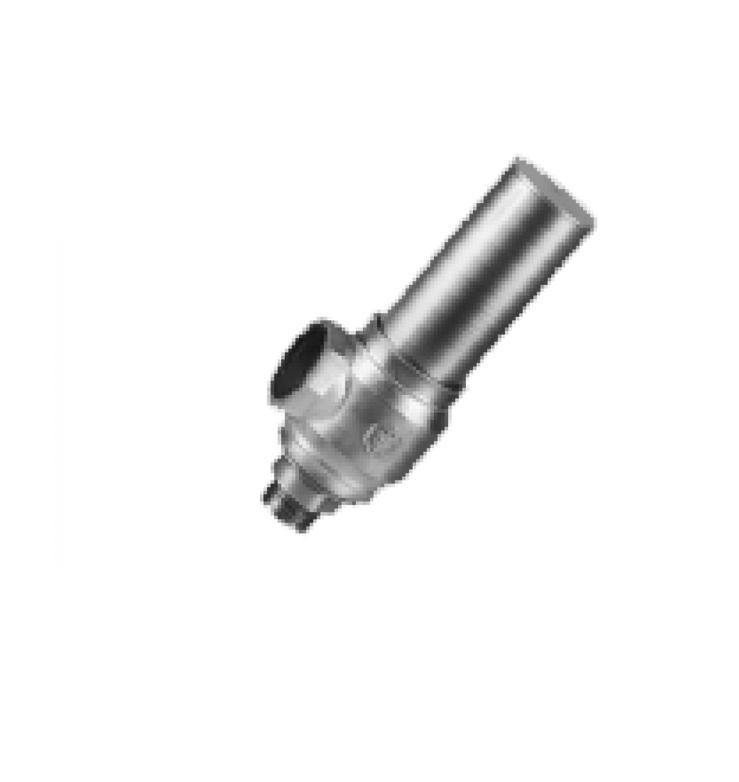

Joint Relief Valve - PVL Joint Relief Valve
Valvulas

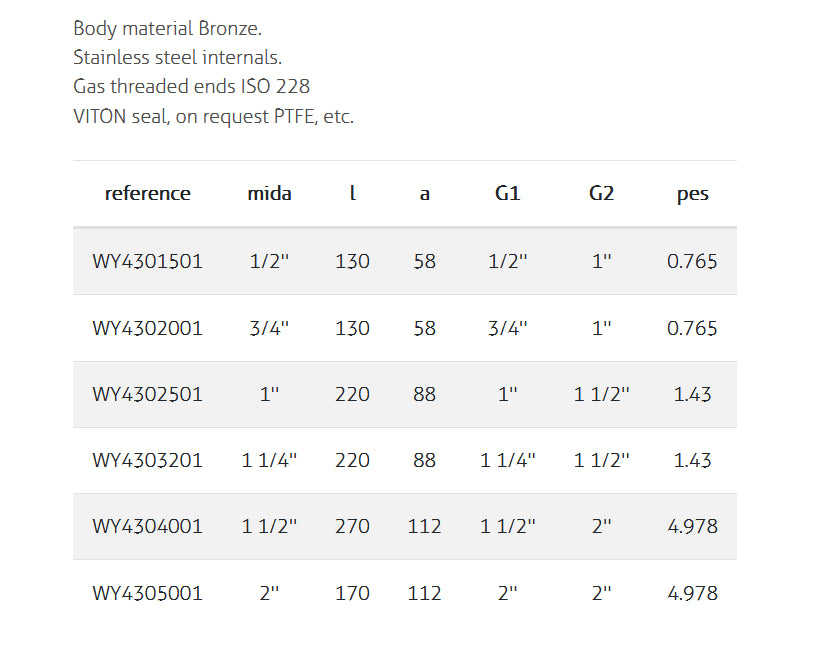

Joint Relief Valve
  • Body material Bronze.
  • Stainless steel internals.
  • Gas threaded ends ISO 228
  • VITON seal, on request PTFE, etc.

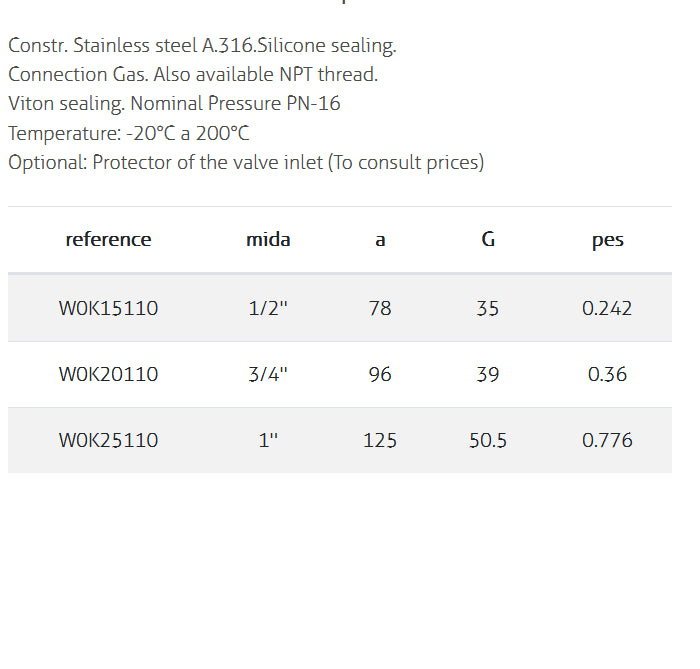

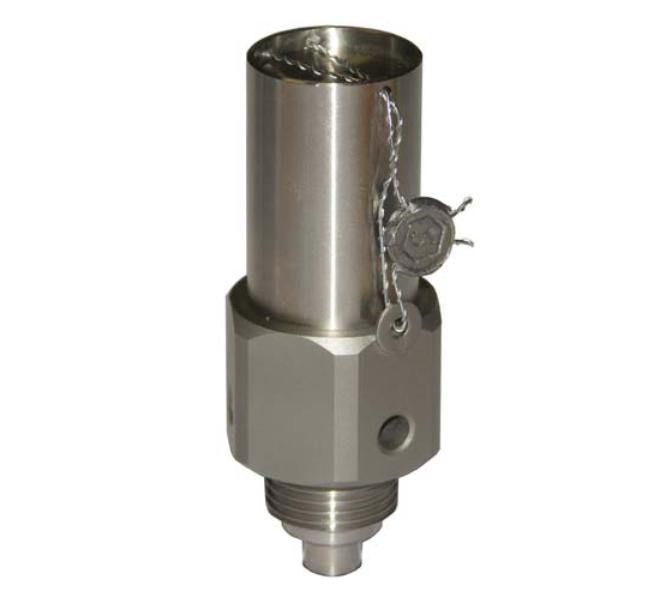

Vacuum Braker Valve - PVL Vacuum Braker Valve
Valvulas
Vacuum Braker Valve
  • Constr. Stainless steel A.316.Silicone sealing.
  • Connection Gas. Also available NPT thread.
  • Viton sealing. Nominal Pressure PN-16
  • Temperature: -20°C a 200°C
Magnetic Level Switch With Vertical Floating - PVL Magnetic Level Switch With Vertical Floating
Valvulas

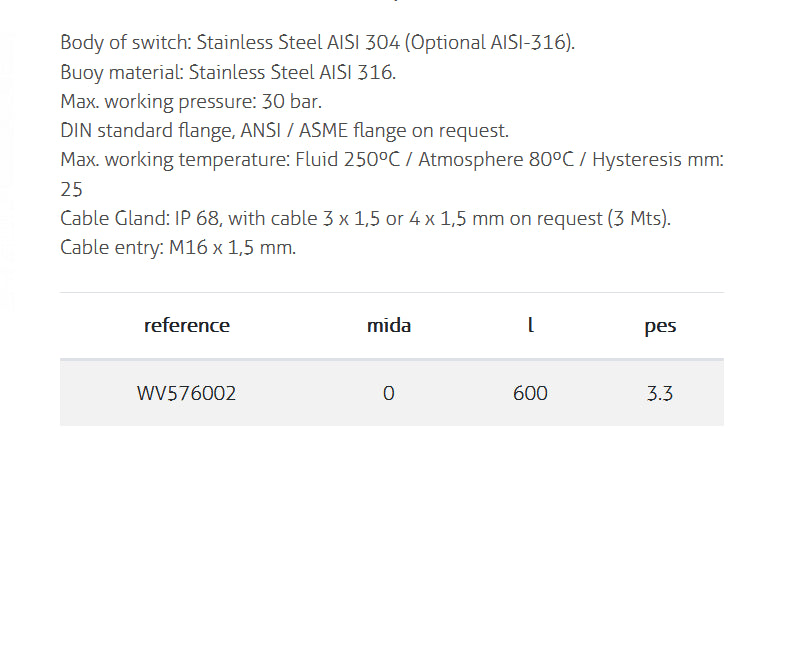

Magnetic Level Switch With Vertical Floating
  • Body of switch: Stainless Steel AISI 304 (Optional AISI-316).
  • Buoy material: Stainless Steel AISI 316.
  • Max. working pressure: 30 bar.
  • DIN standard flange, ANSI / ASME flange on request.

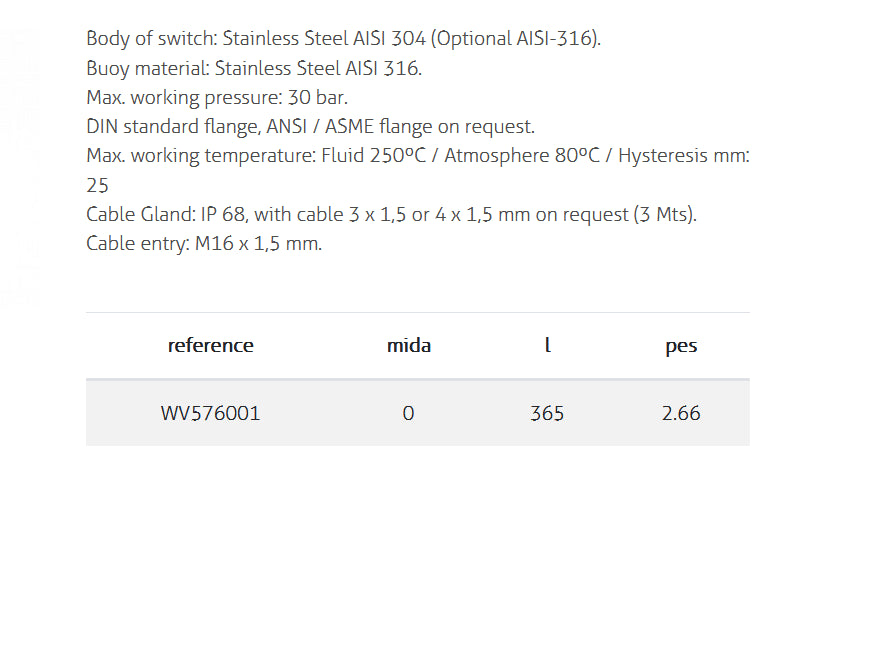

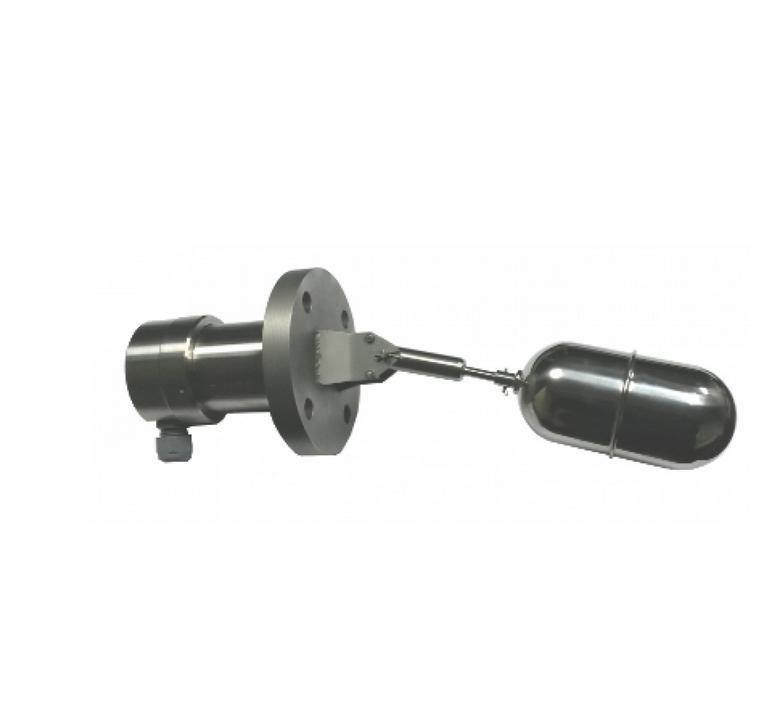

Magnetic Level Switch With Horizontal Floating - PVL Magnetic Level Switch With Horizontal Floating
Valvulas
Magnetic Level Switch With Horizontal Floating
  • Body of switch: Stainless Steel AISI 304 (Optional AISI-316).
  • Buoy material: Stainless Steel AISI 316. Max. working pressure: 30 bar.
  • DIN standard flange, ANSI / ASME flange on request.
  • Cable entry: M16 x 1,5 mm.
Electric Level Switch Mini With Cylindrical Passant Buoy - PVL Electric Level Switch Mini With Cylindrical Passant Buoy
Valvulas

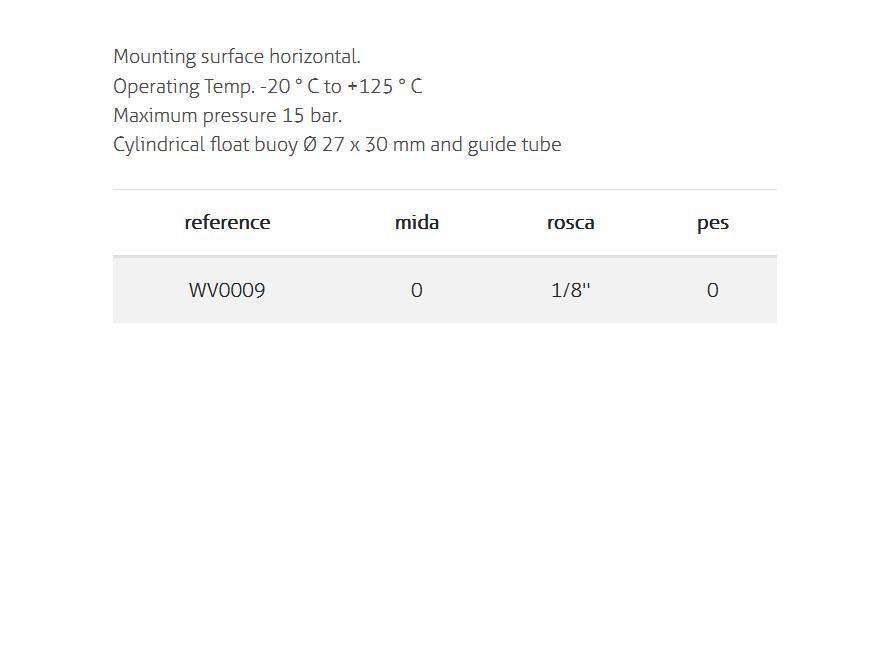

Electric Level Switch Mini With Cylindrical Passant Buoy
  • Mounting surface horizontal.
  • Operating Temp. -20 ° C to +125 ° C
  • Maximum pressure 15 bar.
  • Cylindrical float buoy Ø 27 x 30 mm and guide tube

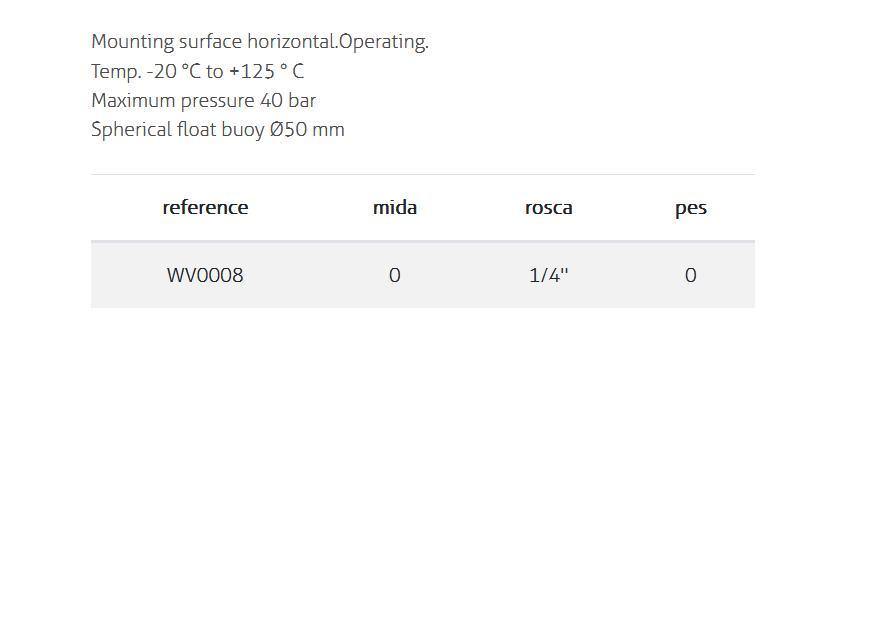

Electric Level Switch Mini With Spherical Passant Buoy - PVL Electric Level Switch Mini With Spherical Passant Buoy
Valvulas
Electric Level Switch Mini With Spherical Passant Buoy
  • Mounting surface horizontal.Operating.
  • Temp. -20 °C to +125 ° C
  • Maximum pressure 40 bar
  • Spherical float buoy Ø50 mm

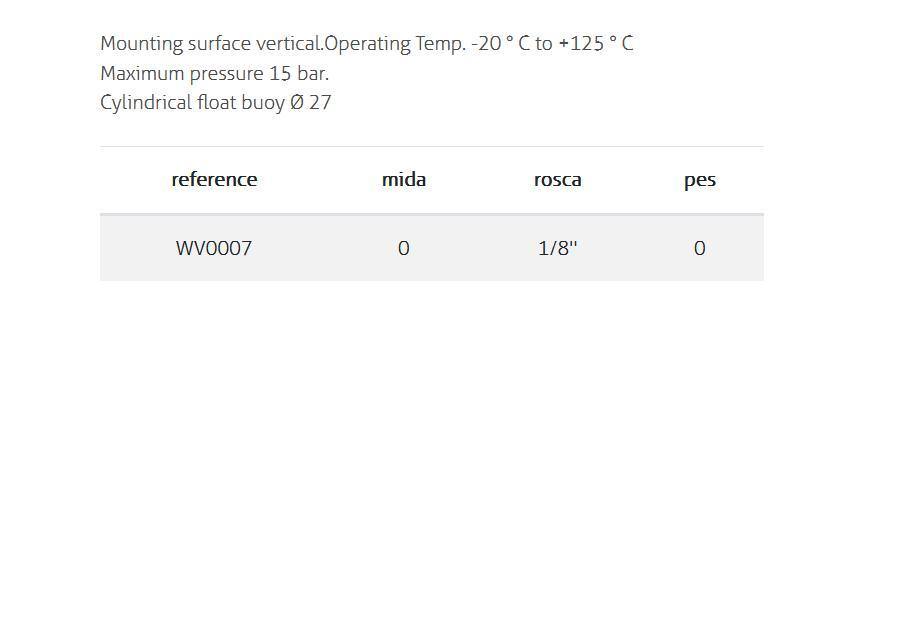

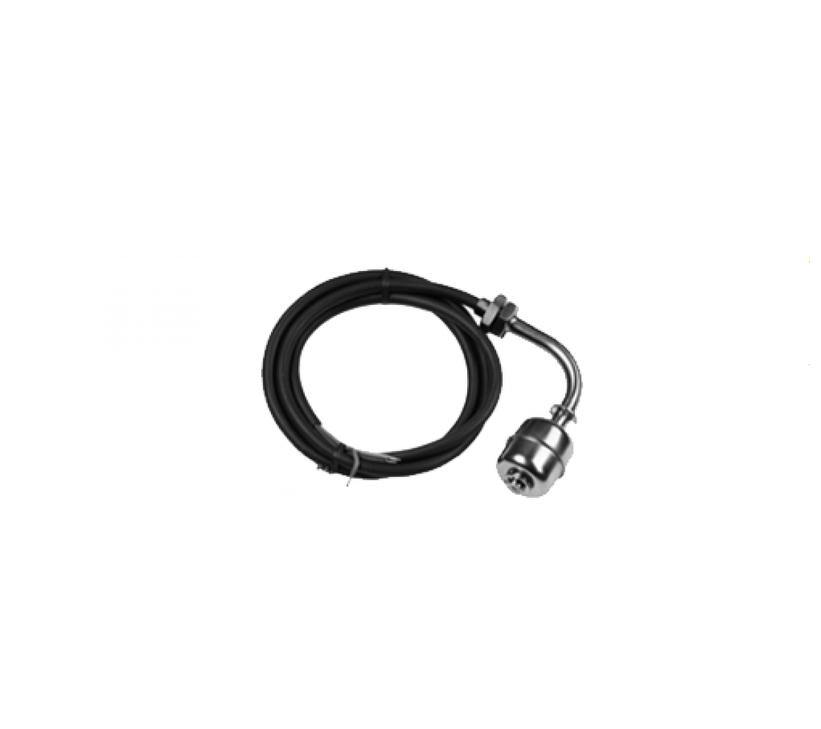

Curved Electric Level Switch Mini With Cylindrical Passant Buoy - PVL Curved Electric Level Switch Mini With Cylindrical Passant Buoy
Valvulas
Curved Electric Level Switch Mini With Cylindrical Passant Buoy
  • Mounting surface vertical. Operating Temp. -20 ° C to +125 ° C
  • Maximum pressure 15 bar.
  • Cylindrical float buoy Ø 27

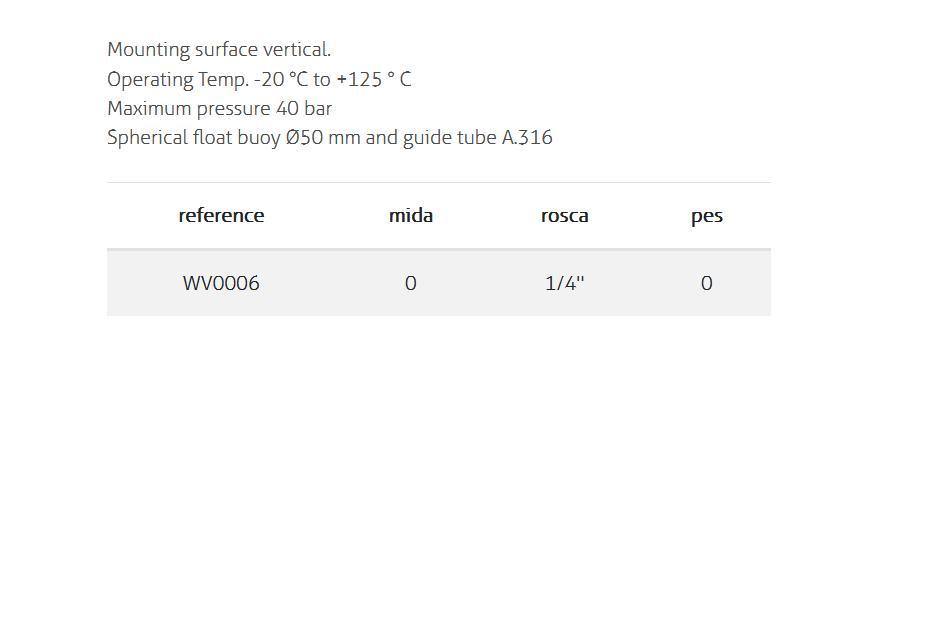

Curved Electrical Level Switch Mini With Spherical Passant Buoy - PVL Curved Electrical Level Switch Mini With Spherical Passant Buoy
Valvulas
Curved Electrical Level Switch Mini With Spherical Passant Buoy
  • Mounting surface vertical.
  • Operating Temp. -20 °C to +125 ° C
  • Maximum pressure 40 bar
  • Spherical float buoy Ø50 mm and guide tube A.316
Switch Mini Of Magnetic Level - PVL Switch Mini Of Magnetic Level
Valvulas

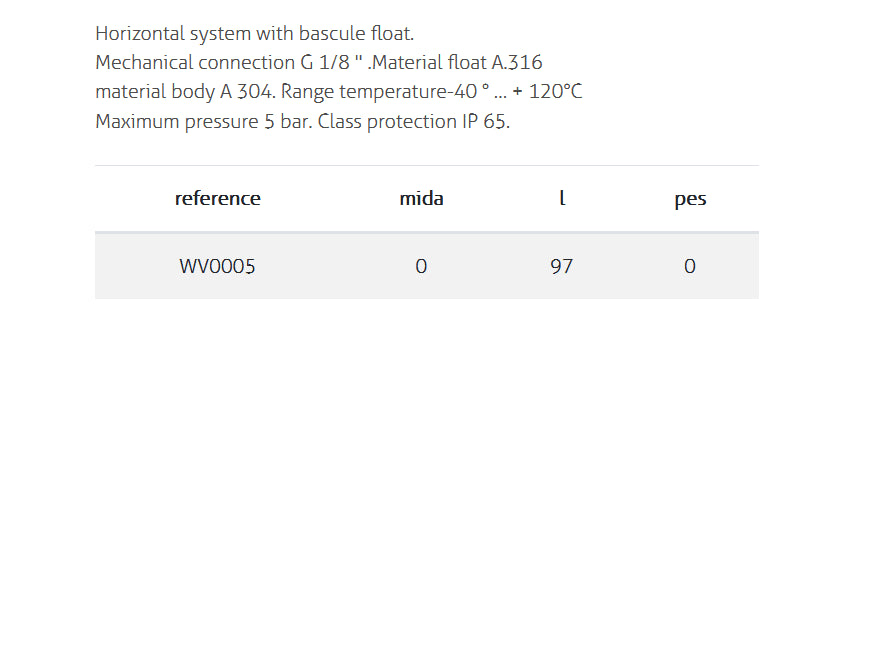

Switch Mini Of Magnetic Level
  • Horizontal system with bascule float.
  • Mechanical connection G 1/8"
  • Material float A.316 material body A 304. Range temperature-40 ° + 120°C
  • Maximum pressure 5 bar. Class protection IP 65.
Switch Of Differential Of Adjustable Level - PVL Switch Of Differential Of Adjustable Level
Valvulas

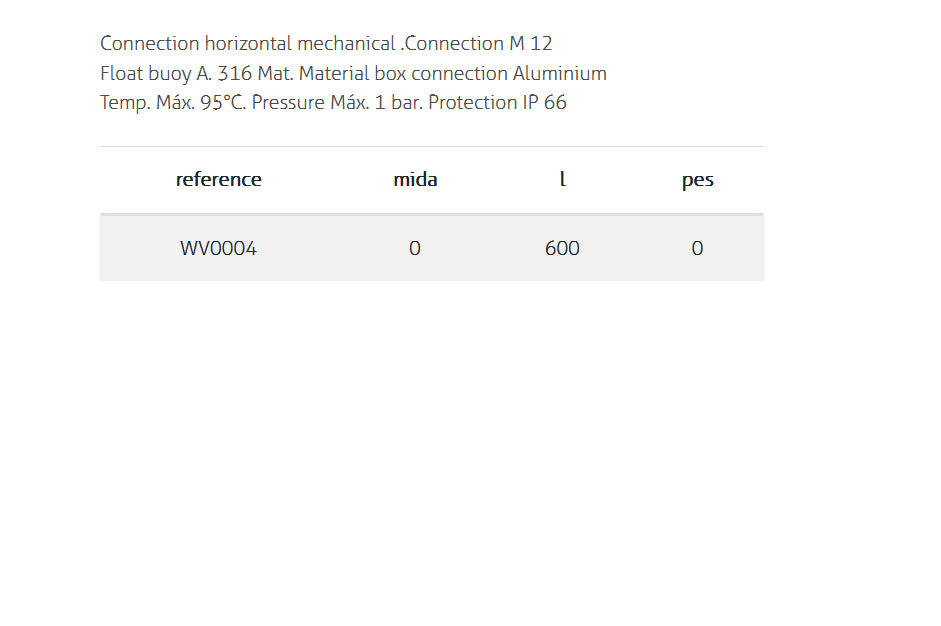

Switch Of Differential Of Adjustable Level
  • Connection horizontal mechanical .Connection M 12
  • Float buoy A. 316 Mat. Material box connection Aluminium
  • Temp. Máx. 95°C. Pressure Máx. 1 bar. Protection IP 6
Pneumatic Level Switch - PVL Pneumatic Level Switch
Valvulas

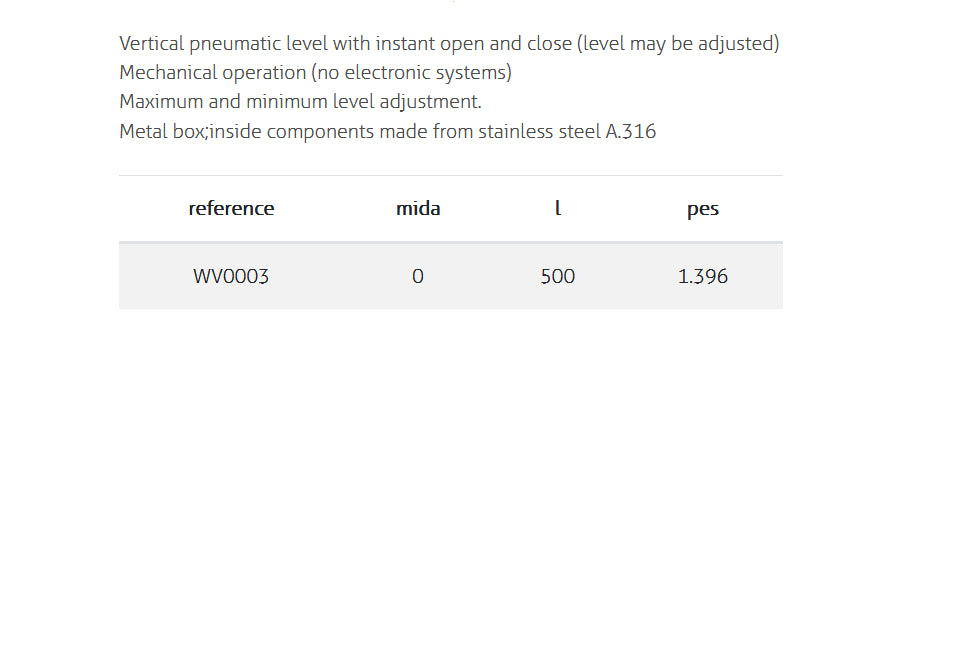

Pneumatic Level Switch
  • Vertical pneumatic level with instant open and close (level may be adjusted)
  • Mechanical operation (no electronic systems)
  • Maximum and minimum level adjustment.
  • Metal box inside components made from stainless steel A.316

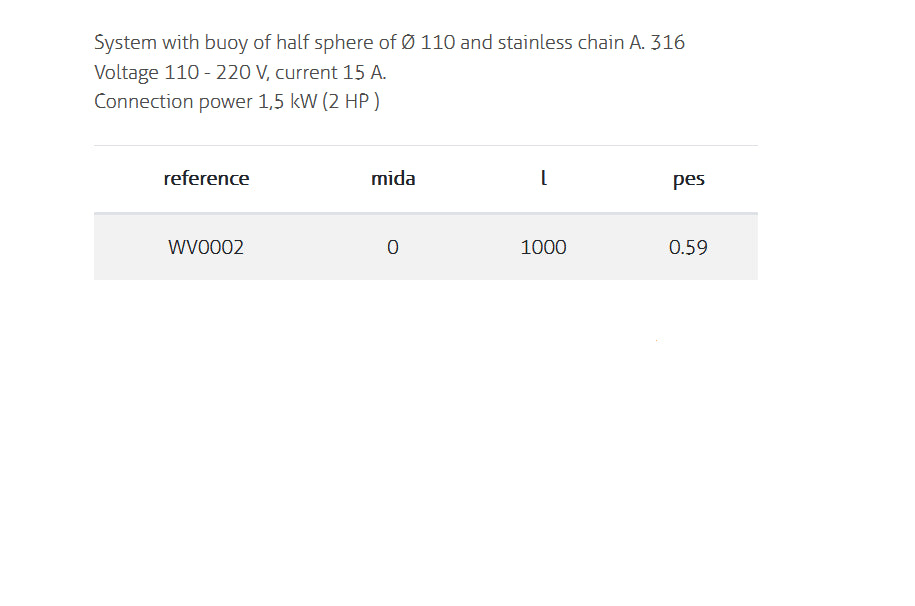

Electrical Level Switch With Stainless Steel Regulating - PVL Electrical Level Switch With Stainless Steel Regulating
Valvulas
Electrical Level Switch With Stainless Steel Regulating
  • System with buoy of half sphere of Ø 110 and stainless chain A. 316
  • Voltage 110 - 220 V, current 15 A.
  • Connection power 1,5 kW (2 HP )

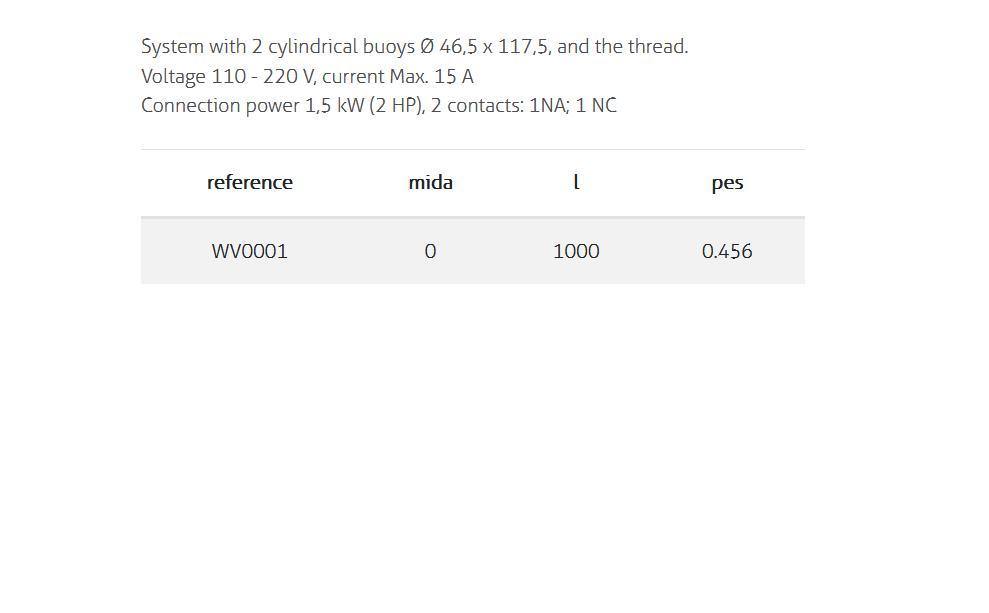

Electrical Level Switch With Regulating Synthetic Resin - PVL Electrical Level Switch With Regulating Synthetic Resin
Valvulas
Electrical Level Switch With Regulating Synthetic Resin
  • System with 2 cylindrical buoys Ø 46,5 x 117,5, and the thread.
  • Voltage 110 - 220 V, current Max. 15 A
  • Connection power 1,5 kW (2 HP), 2 contacts: 1NA; 1 NC

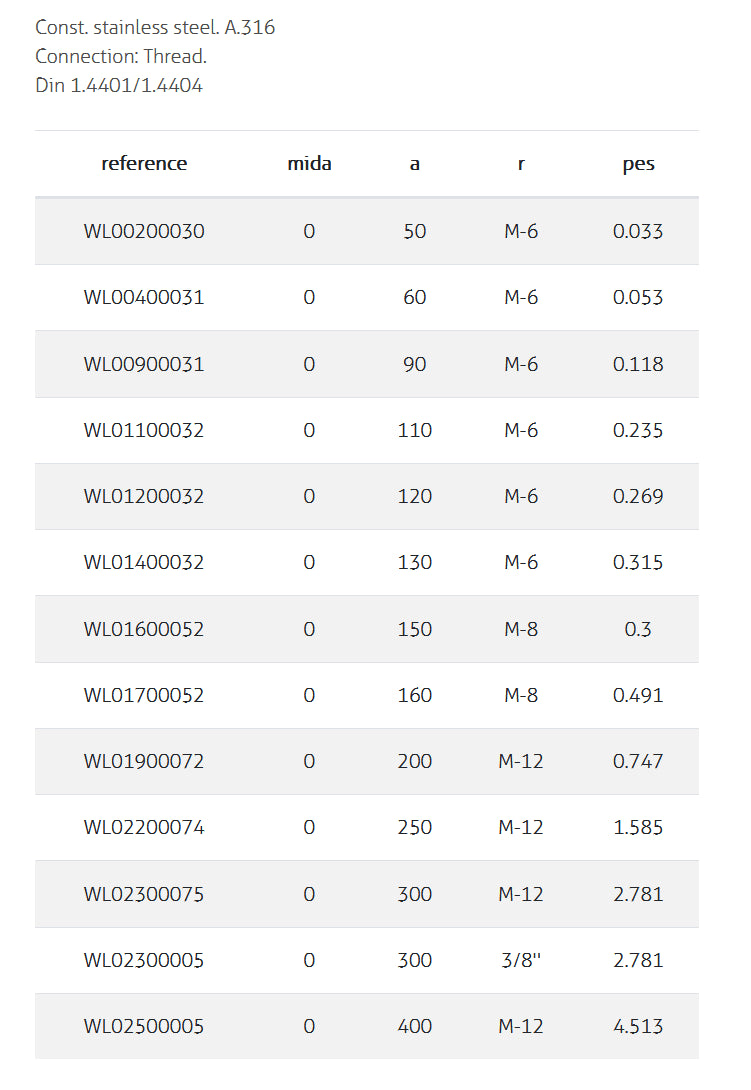

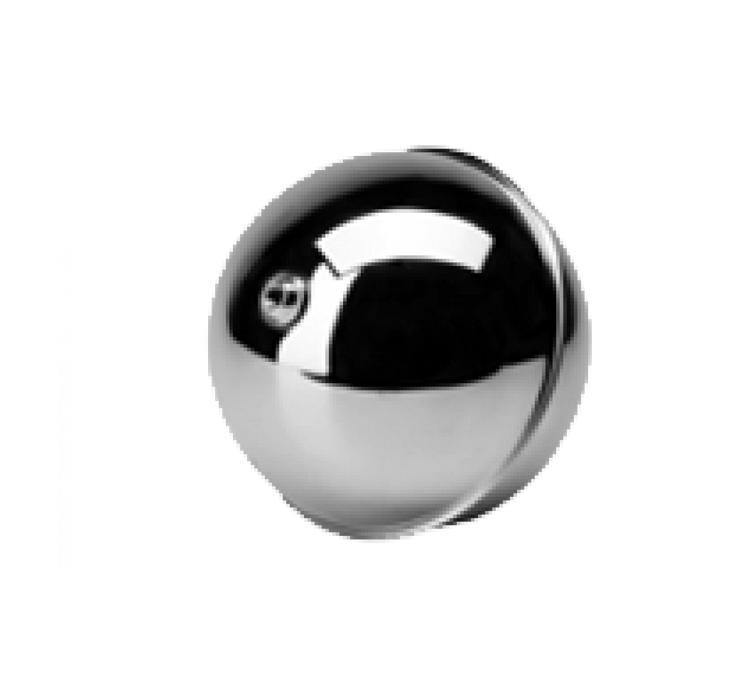

Spherical Buoy Buoy A.316 - PVL Spherical Buoy Buoy A.316
Valvulas
Spherical Buoy Buoy A.316
  • Made from stainless steel
  • ISI 316 / DIN 1.4401.
  • Welded in a protective argon atmosphere.
Floating and Sumersed Valve - PVL Floating and Sumersed Valve
Valvulas

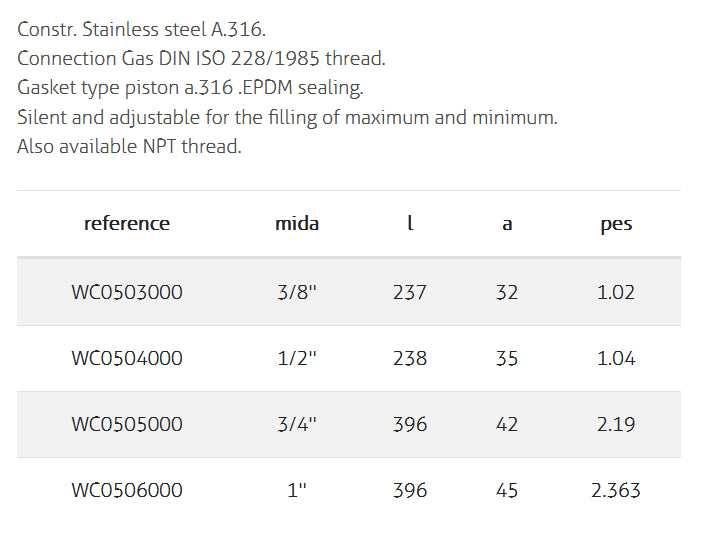

Floating and Sumersed Valve
  • Connection with Gas thread cylindrical
  • DIN – ISO 228/1985.
  • Nominal pressure PN – 16, maximum variable pressure 10 bar.

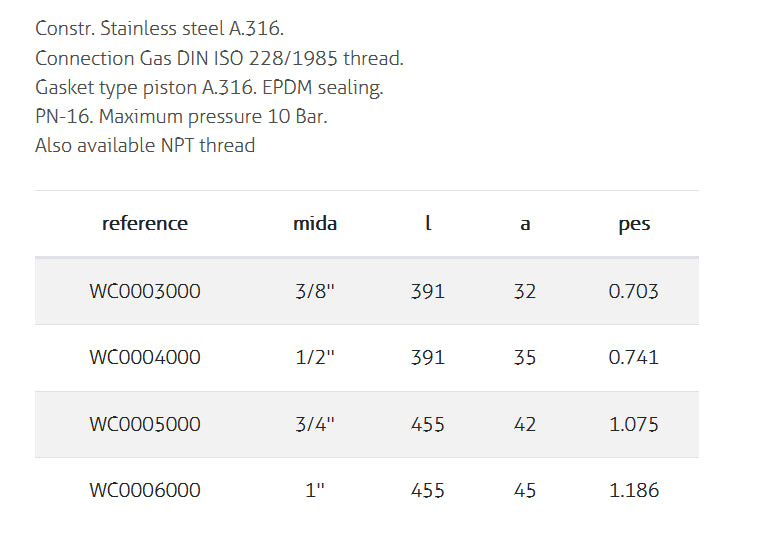

Floating Valve Instant - Close Sliding Float - PVL Floating Valve Instant / Close Sliding Float
Valvulas
Floating Valve Instant - Close Sliding Float
  • Made from stainless steel
  • Only two positions, fully open and fully closed
  • Connection with Gas thread cylindrical DIN – ISO 228/1985
  • Nominal pressure PN – 16, maximum variable pressure 10 bar

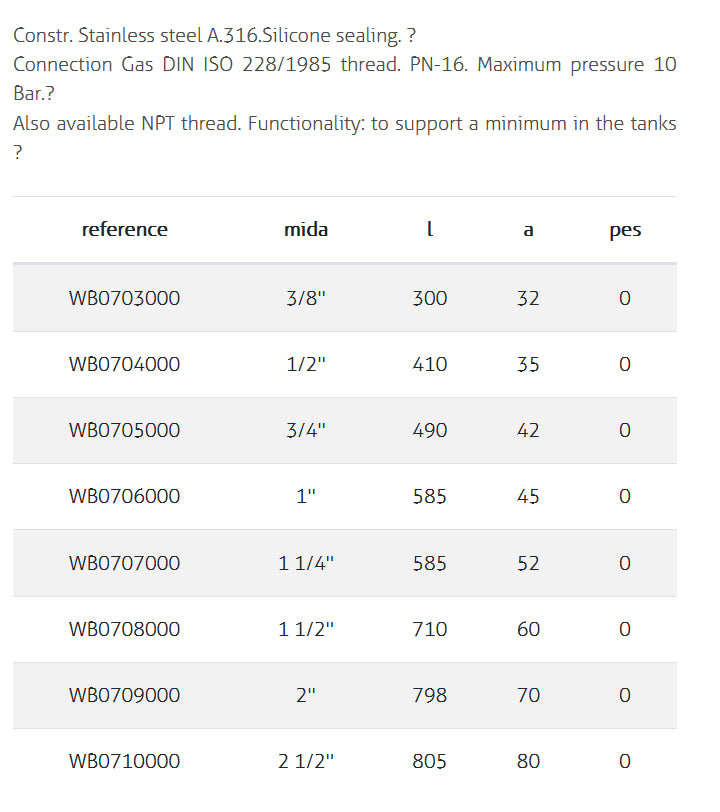

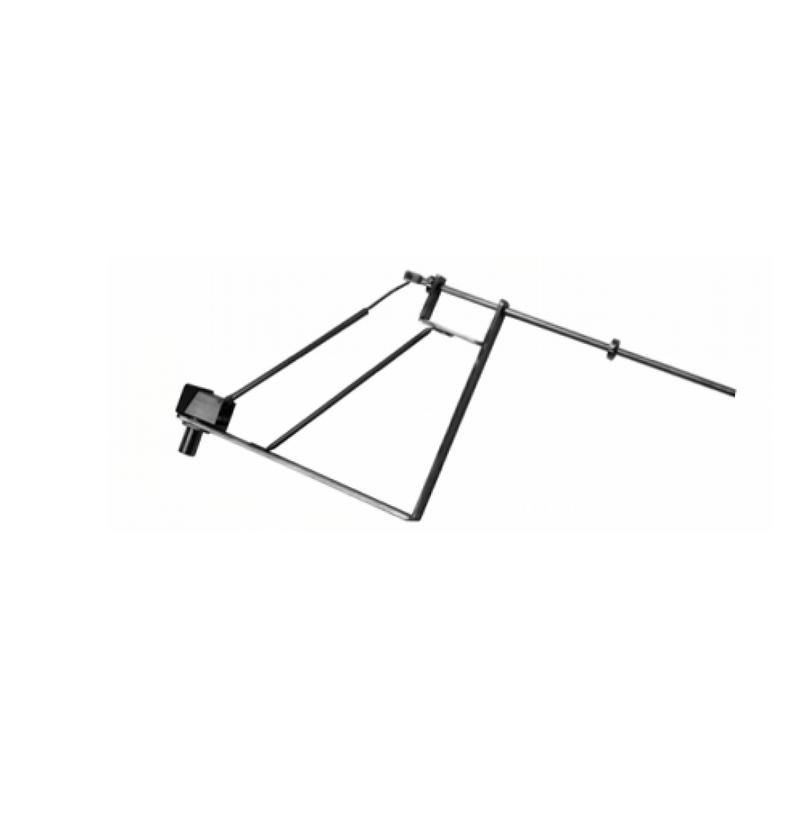

Floating Valve SS A.316 Guided - PVL Floating Valve SS A.316 Guided
Valvulas
Floating Valve SS A.316 Guided
  • Constr. Stainless steel A.316.Silicone sealing.
  • Connection Gas DIN ISO 228/1985 thread. PN-16. Maximum pressure 10 Bar.
  • Also available NPT thread. Functionality: to support a minimum in the tanks

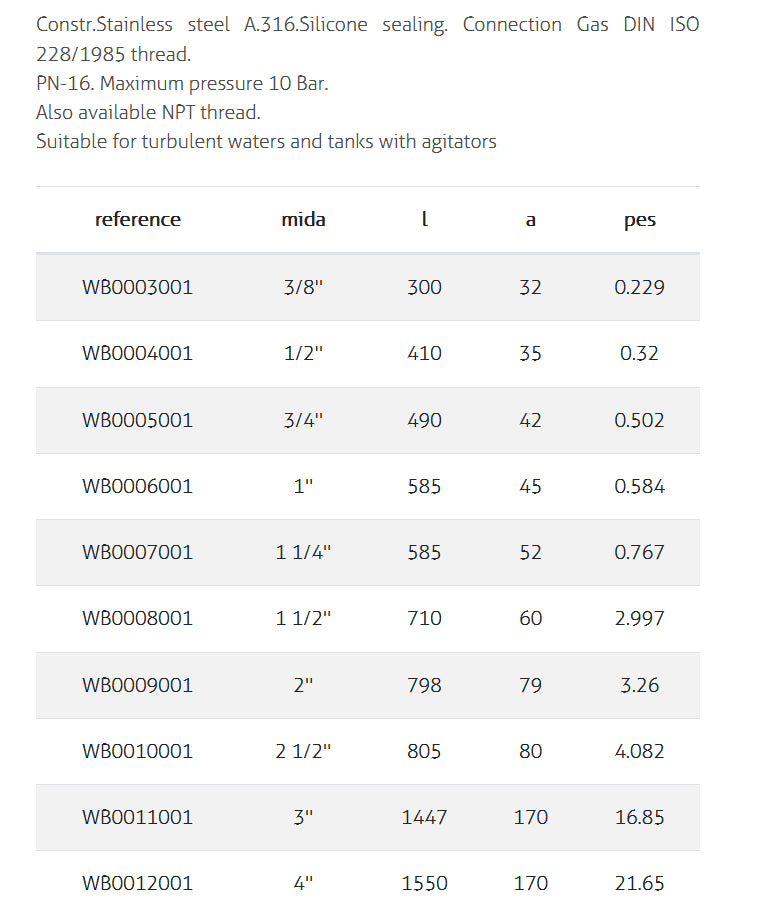

Floating Valve SS A.316 With Reinforced Lever - PVL Floating Valve SS A.316 With Reinforced Lever
Valvulas
Floating Valve SS A.316 With Reinforced Lever
  • Valve system patented and guarantees a perfect seal with minimum force from the float.
  • Connection with Gas Thread, cylindrical DIN-ISO 228/1985.
  • Made from stainless steel 18/8 (AISI 316 / DIN 1.4401 & CF8M, DIN 1.4408).
  • Nominal pressure PN-16. Maximum variable pressure 10 bar.

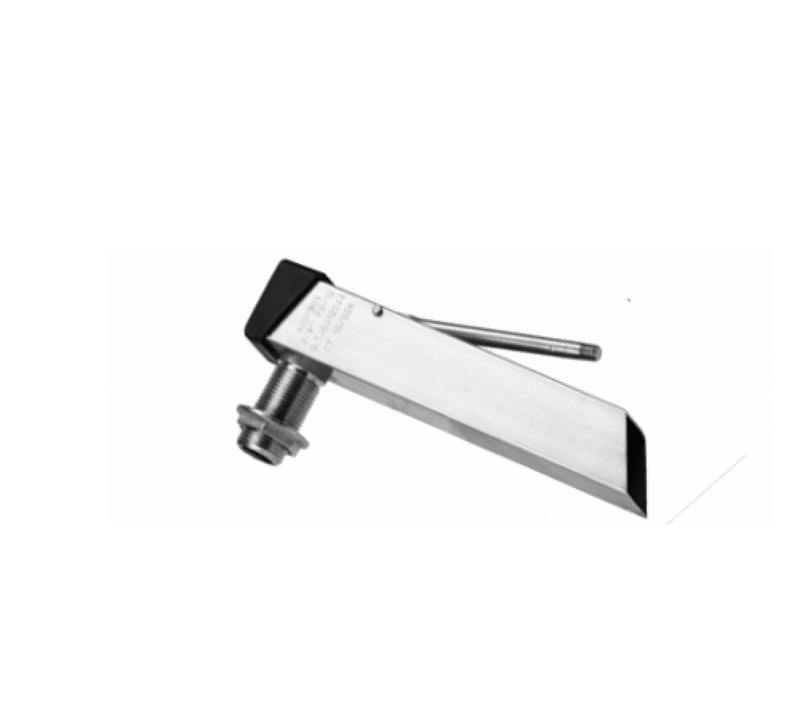

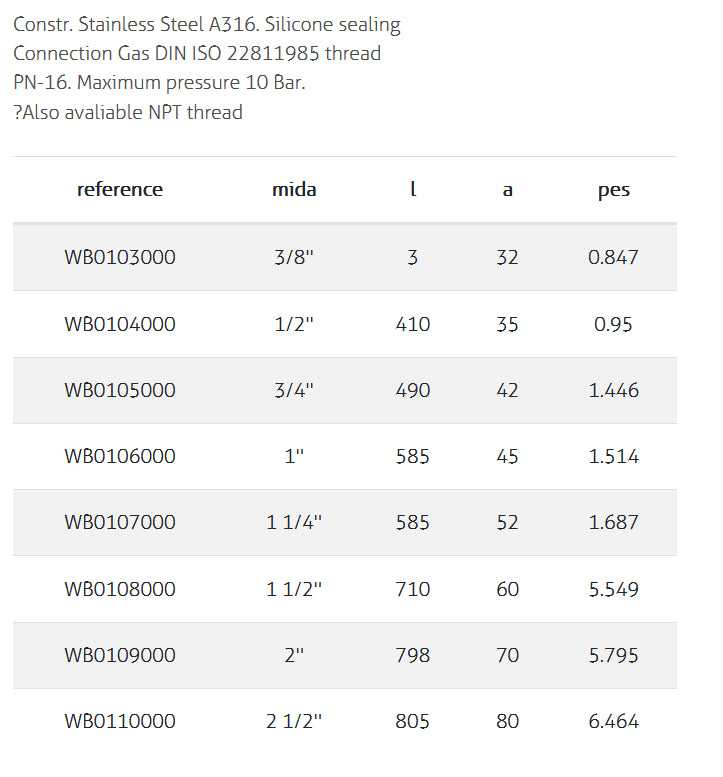

Antibubble Floating Valve A.316 - PVL Antibubble Floating Valve A.316
Valvulas
Antibubble Floating Valve A.316
  • Valve system patented and guarantees a perfect seal with minimum force from the float.
  • Connection with Gas Thread, cylindrical DIN-ISO 228/1985.
  • Made from stainless steel 18/8 (AISI 316 / DIN 1.4401 & CF8M, DIN 1.4408).
  • Swing type valve with silicone shutter, available in VITON, EPDM, BUNA, PTEF, etc. on demand.
Floating Calce SS A.316 With Vertical Inflow - PVL Floating Calce SS A.316 With Vertical Inflow
Valvulas
Floating Calce SS A.316 With Vertical Inflow
  • Valve system patented and guarantees a perfect seal with minimum force from the float.
  • Connection with Gas Thread, cylindrical DIN-ISO 228/1985.
  • Made from stainless steel 18/8 (AISI 316 / DIN 1.4401 & CF8M, DIN 1.4408).
  • Swing type valve with silicone shutter, available in VITON, EPDM, BUNA, PTEF, etc. on demand.
Floating Valve SS.A316 With Flange - PVL Floating Valve SS.A316 With Flange
Valvulas
Floating Valve SS.A316 With Flange
  • Made from stainless steel 18/8/2 (AISI 316, DIN 1.4401 y CF8M, DIN 1.4408).
  • Swing type valve with silicone shutter, available in VITON, EPDM, PTEF, etc., on demand.
  • Valve system patented and guarantees a perfect seal with minimum force from the float.
  • Connection with flange PN – 16/10, DIN 2576 (2527)
  • Nominal pressure PN – 16, maximum variable pressure 10 bar

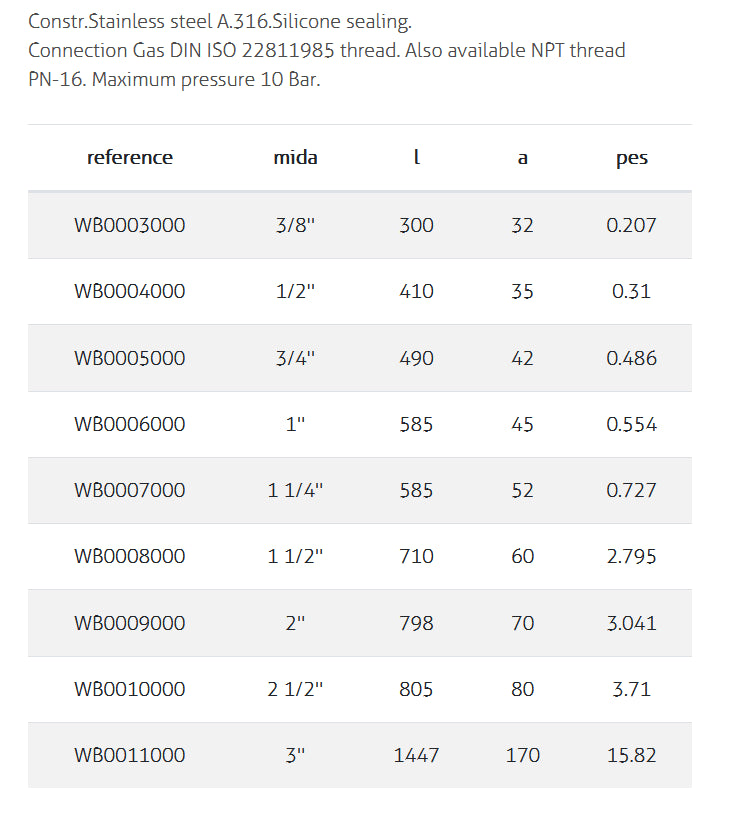

Floating Valve SS A.316 - PVL Floating Valve SS A.316
Valvulas
Floating Valve SS A.316


  • Connection with Gas Thread, cylindrical DIN-ISO 228/1985.
  • Made from stainless steel 18/8 (AISI 316 / DIN 1.4401 & CF8M, DIN 1.4408).
  • Swing type valve with silicone shutter
  • Available in VITON, EPDM, BUNA, PTEF

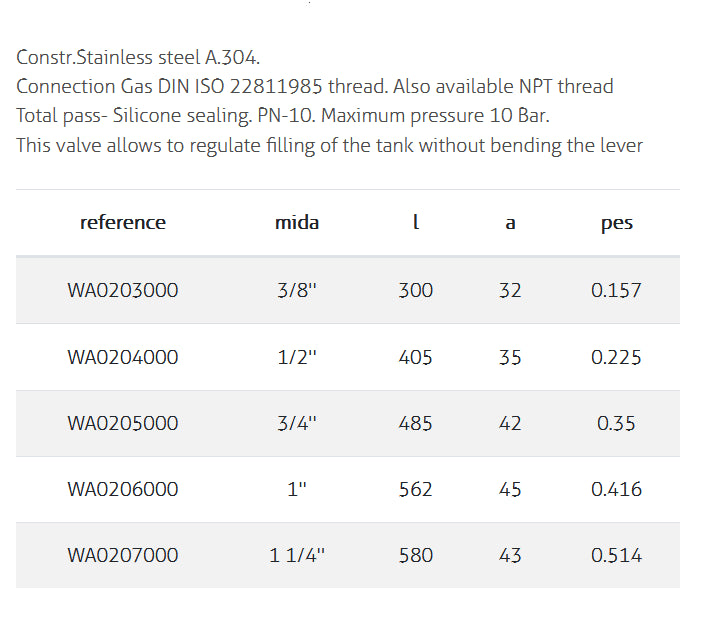

Articulated Floating Valve A.304 - PVL Articulated Floating Valve A.304
Valvulas
Articulated Floating Valve A.304
  • Constr.Stainless steel A.304. Connection Gas DIN ISO 22811985 thread.
  • A lso available NPT thread. Total pass- Silicone sealing. PN-10.
  • Maximum pressure 10 Bar.
  • This valve allows to regulate filling of the tank without bending the lever.
Floating Valve SS A.304 Guided - PVL Floating Valve SS A.304 Guided
Valvulas
Floating Valve SS A.304 Guided
  • Const.Stainless steel A.304
  • Connection Gas DIN ISO 228/1985 thread
  • Also avaliable NPT thread
  • Total pass - Silicone sealing PN-10. Maximum pressure 10 Bar.
  • Functionality: to suport a minimum in the tanks.

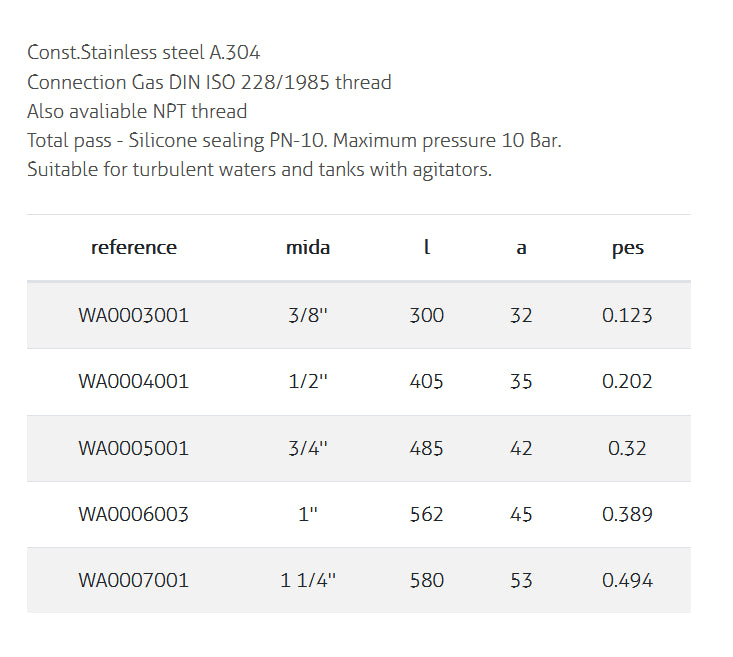

Floating Valve SS A.304 With Reinforced Lever - PVL Floating Valve SS A.304 With Reinforced Lever
Valvulas
Floating Valve SS A.304 With Reinforced Lever
  • Made from stainless steel
  • Swing type valve with silicone shutter
  • Available in Viton, EPDM, Buna, PTFE
  • Connection with Gas thread cylindrical DIN – ISO 228/1985.
  • Nominal pressure PN – 10, maximum variable pressure 10 bar

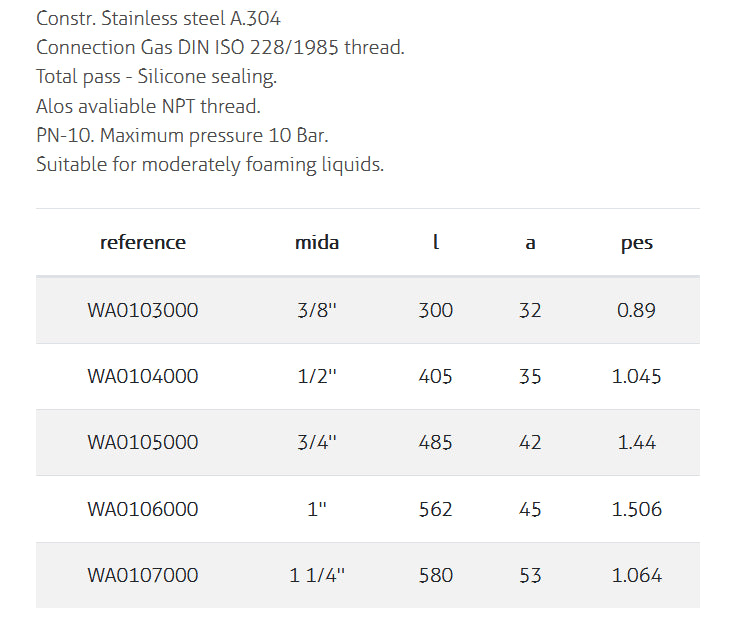

Antibubble Floating Valve A.304 - PVL Antibubble Floating Valve A.304
Valvulas
Antibubble Floating Valve A.304
  • Made from stainless steel 18/8 (AISI – 304/DIN 1.4301)
  • Connection with Gas thread cylindrical DIN – ISO 228/1985
  • Nominal pressure PN – 10, maximum variable pressure 10 bar
Floating Valve SS A.304 With Flange - PVL Floating Valve SS A.304 With Flange
Valvulas
Floating Valve SS A.304 With Flange
  • Made from stainless steel
  • Swing type valve with silicone shutter
  • Available in Viton, EPDM, Buna, PTFE
  • Connection with Gas thread cylindrical DIN – ISO 228/1985
  • Nominal pressure PN – 10, maximum variable pressure 10 bar

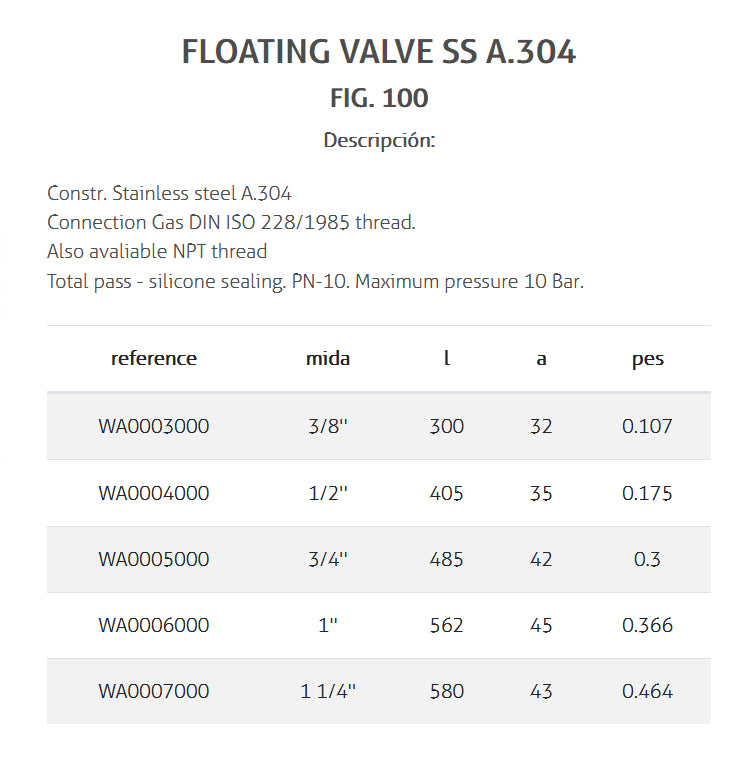

Floating Valve SS A.304 - PVL Floating Valve SS A.304
Valvulas
Floating Valve SS A.304
  • Made from stainless steel
  • Swing type valve with silicone shutter
  • Available in Viton, EPDM, Buna, PTFE
  • Connection with Gas thread cylindrical DIN – ISO 228/1985.
  • Nominal pressure PN – 10, maximum variable pressure 10 bar

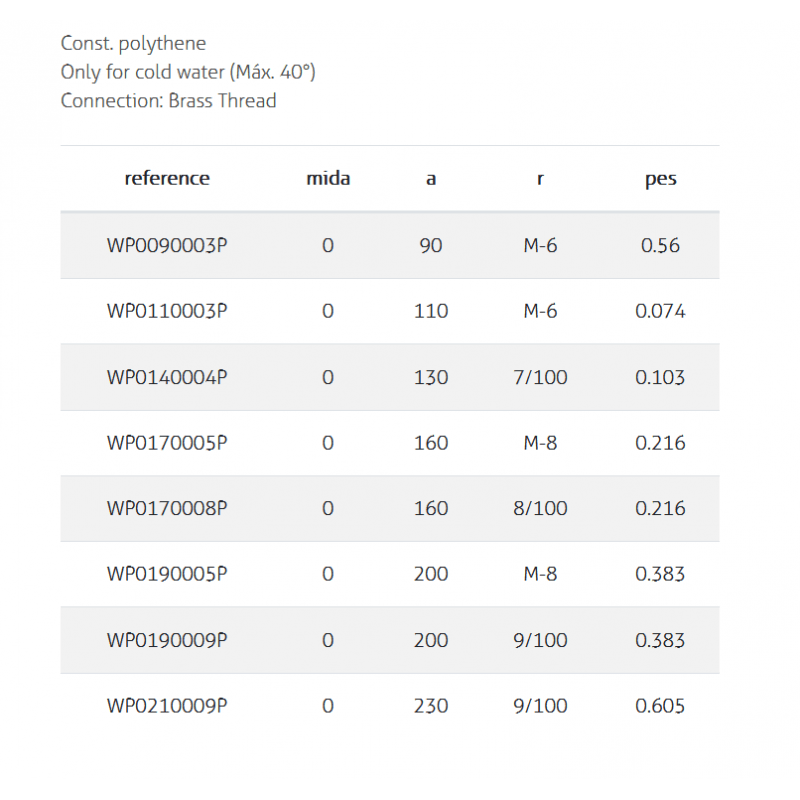

Spherical Buoy Polythene - PVL Spherical Buoy Polythene - PVL
Valvulas
Spherical Float Polythene
  • Connection : Threaded, female thread
  • Finishing : Lustrous
  • Colour: White ivory
  • Working temperture: “Válvulas CT” recommend not to exceed 40º C

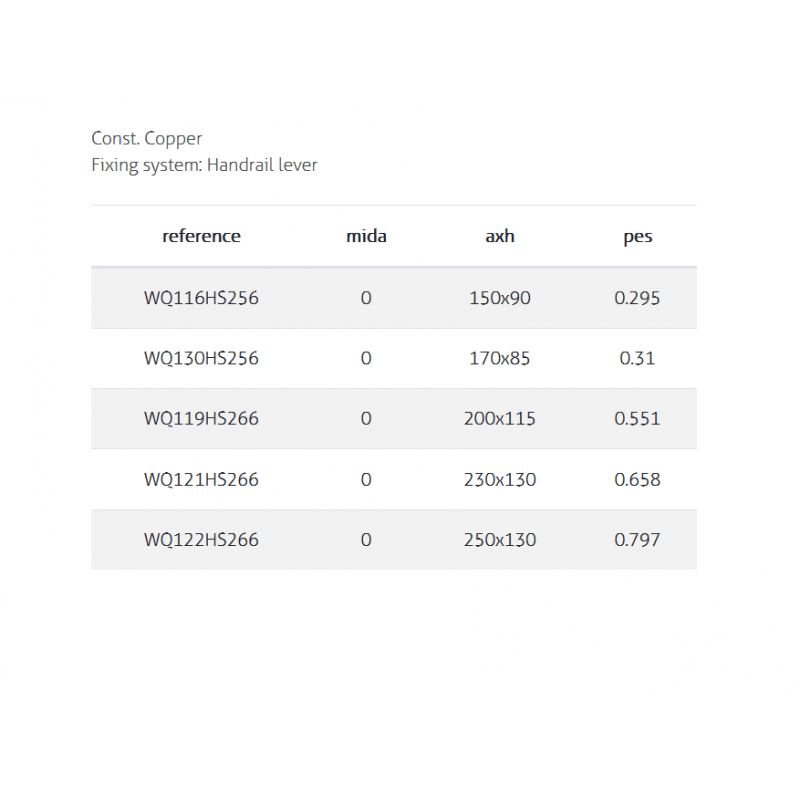

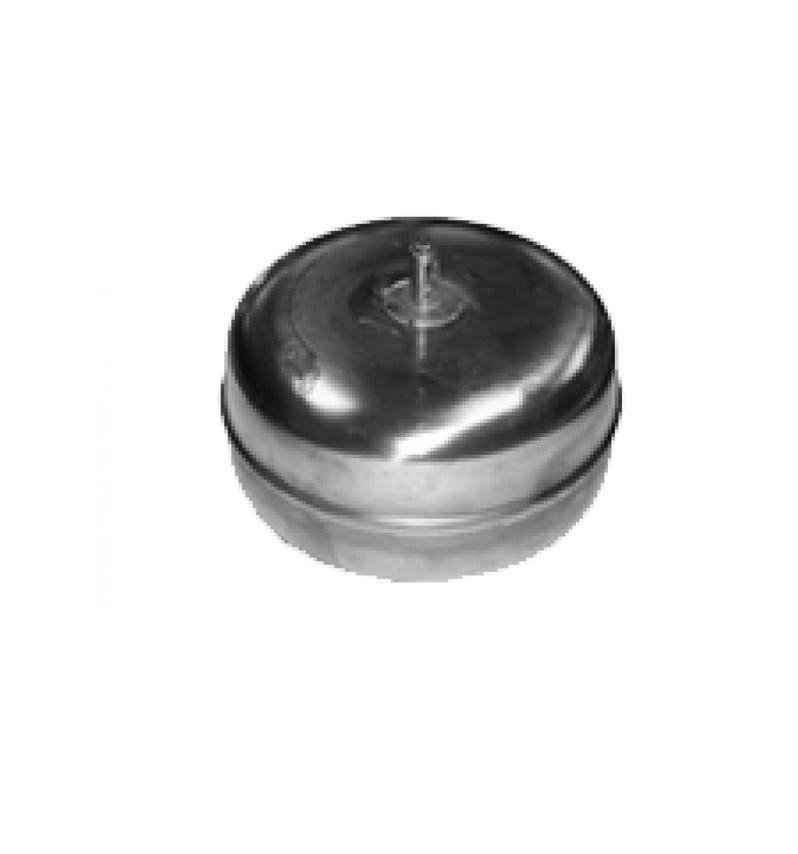

Copper Sliding Flat Buoy - PVL Copper Sliding Flat Buoy - PVL
Valvulas
Copper Sliding Flat Float
  • Const. Copper
  • Fixing system: Handrail lever
Brass Flat Buoy - PVL Brass Flat Buoy - PVL
Valvulas
Brass Flat Float
  • Const. Brass
  • Connection: Thread
Cylindrical Reinforced Buoy Monel Alloy 400 - PVL Cylindrical Reinforced Buoy Monel Alloy 400 - PVL
Valvulas
Cylindrical Reinforced Float Monel Alloy 400
