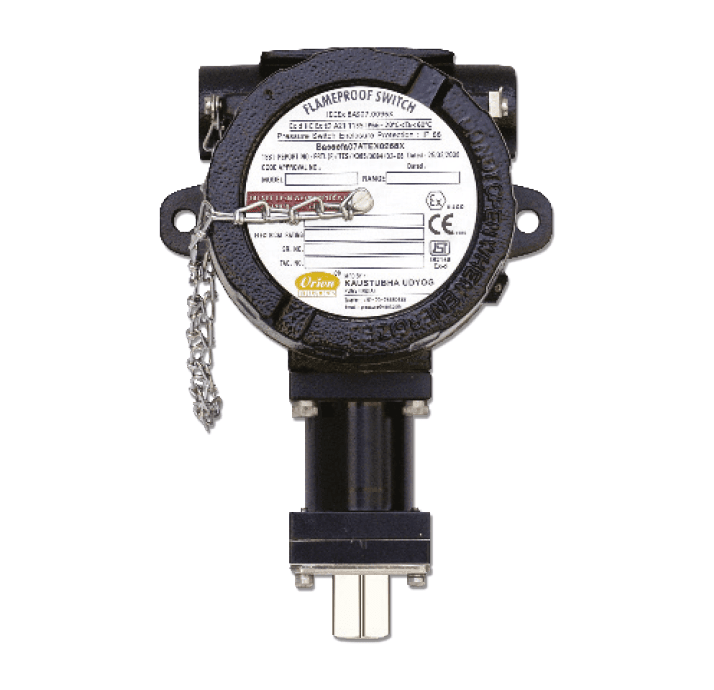

Flameproof ATEX Exd Switch with an Adjustable Change Over Contacts (SPDT) or (DPDT)
Compound Pressure, Low Pressure, High Range, Differential options.
For Adjustable Switching Pressure Ranges Up to 400 bar.
1/4″ BSP Thread (Others Available)
Stainless Steel Diaphragm (Others Available)
Ranges available up to 400 bar.
Maximum working pressures up to 500 bar
Black Epoxy powder coated die cast aluminium and all stainless steel enclosures.
Flameproof EExd IIC T6 – ATEX & IECEx.
Field set point adjustment against a reference scale – optional.
SPDT or DPDT switching and optional gold alloy contacts.
Optional wetted materials include – Monel, Titanium, Tantalum & Hastelloy C
Terminal block for easy field wiring.
Hermetically sealed microswitch options.
316 stainless steel wetted parts.
NACE MR-01-75 compatibility – optional.
Custom Versions Available and Very Competitive Pricing for
Quantity Orders Resellers and OEMs.
Call Us Now to Discuss your Requirements
01892 664499

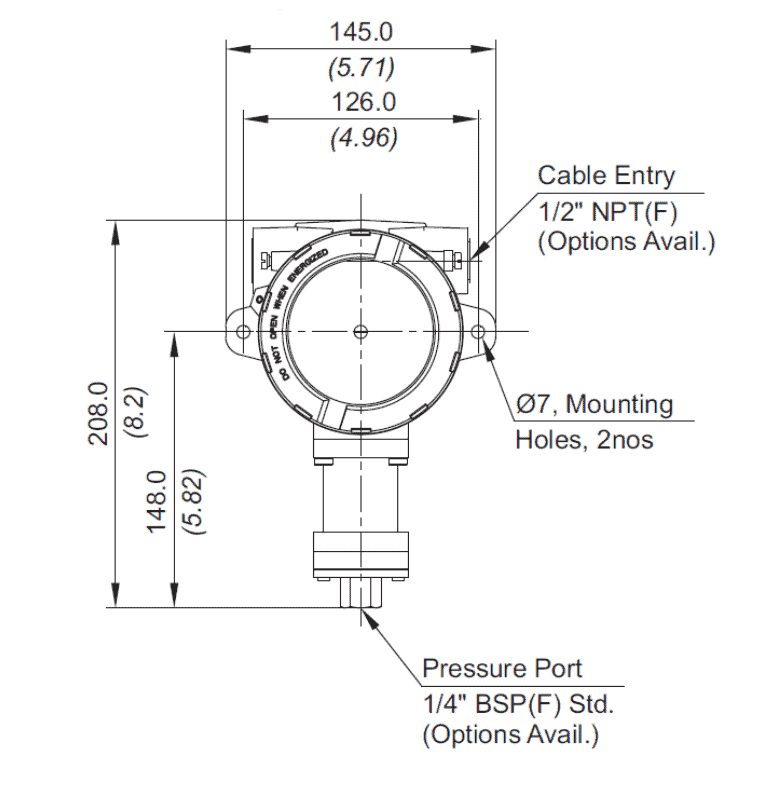

FC Standard Version Datasheet
