EUROSWITCH
Model 37 Vacuum Switch
- Vacuum Switch ≤ 250V
- NO or NC Contacts
- -200 / -900 mbar adjustment range
- Over-pressures up to 35 bar
- Max working pressures up to 25 bar
- 1/4” BSP thread (others available)
- NBR seal or CR seal
- ATEX option available
 |
Technical Datasheet |
- Description
- Downloads
- Product Catalogue
Description

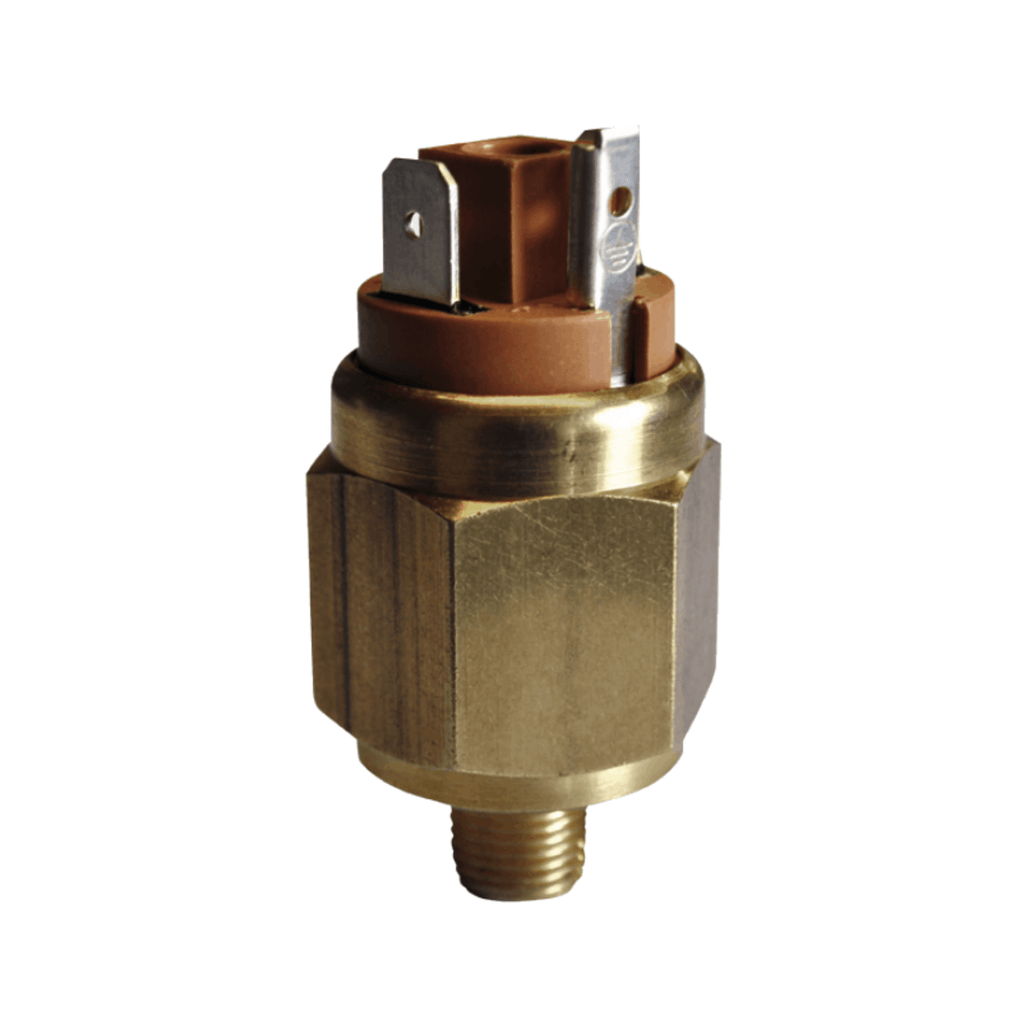

The Model 37 Vacuum Switch is a diaphragm vacuum switch with a choice of normally open or normally closed contacts. It can be used for adjustable switching pressure ranges from -200 to -900 mbar, and has a max working pressure of 10 bar. It also has an overpressure limit of 15 bar and a max switching voltage of 250 volts. The product is made with a brass body and nitrile diaphragm as standard, and can operate at temperatures between -15°C and 100°C.
