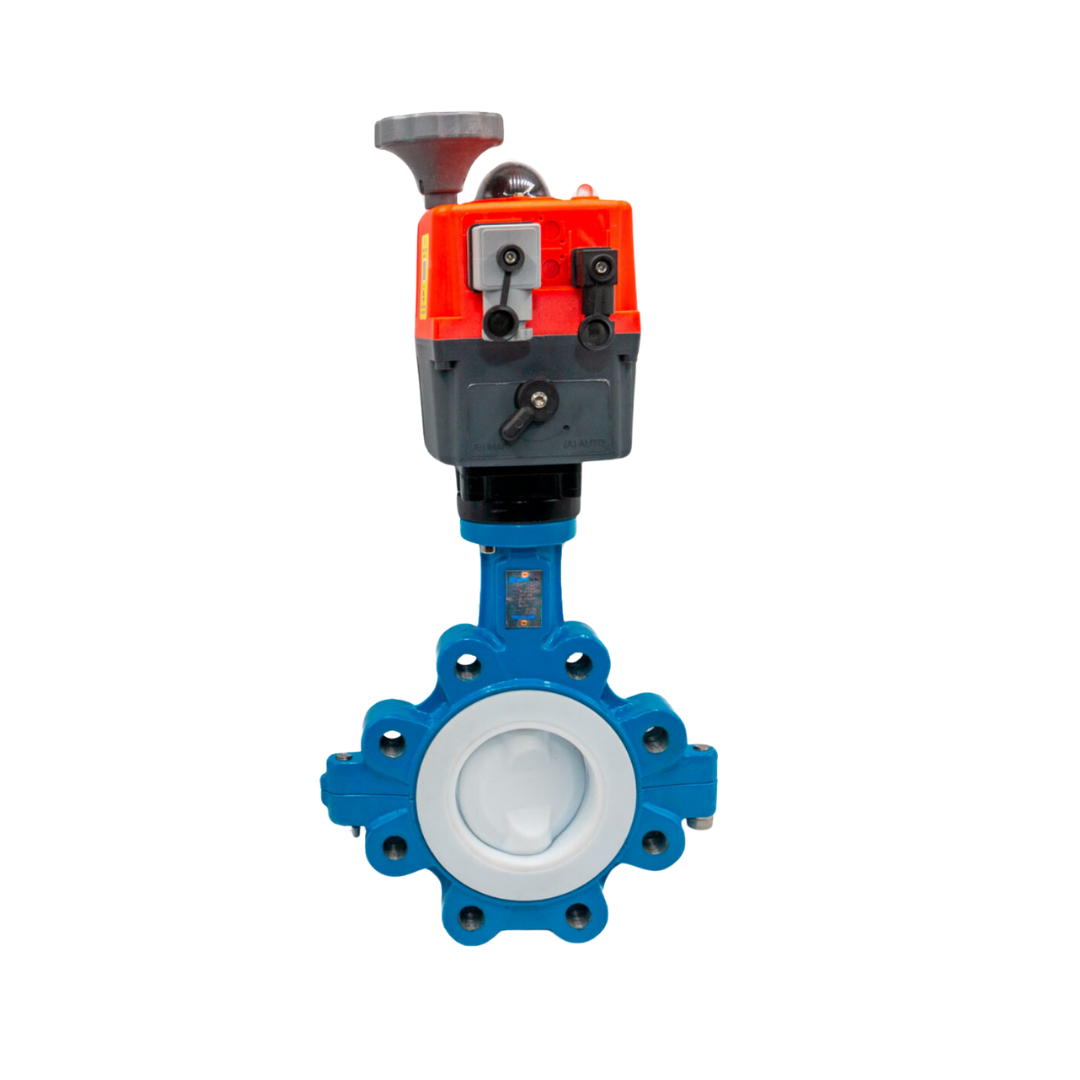

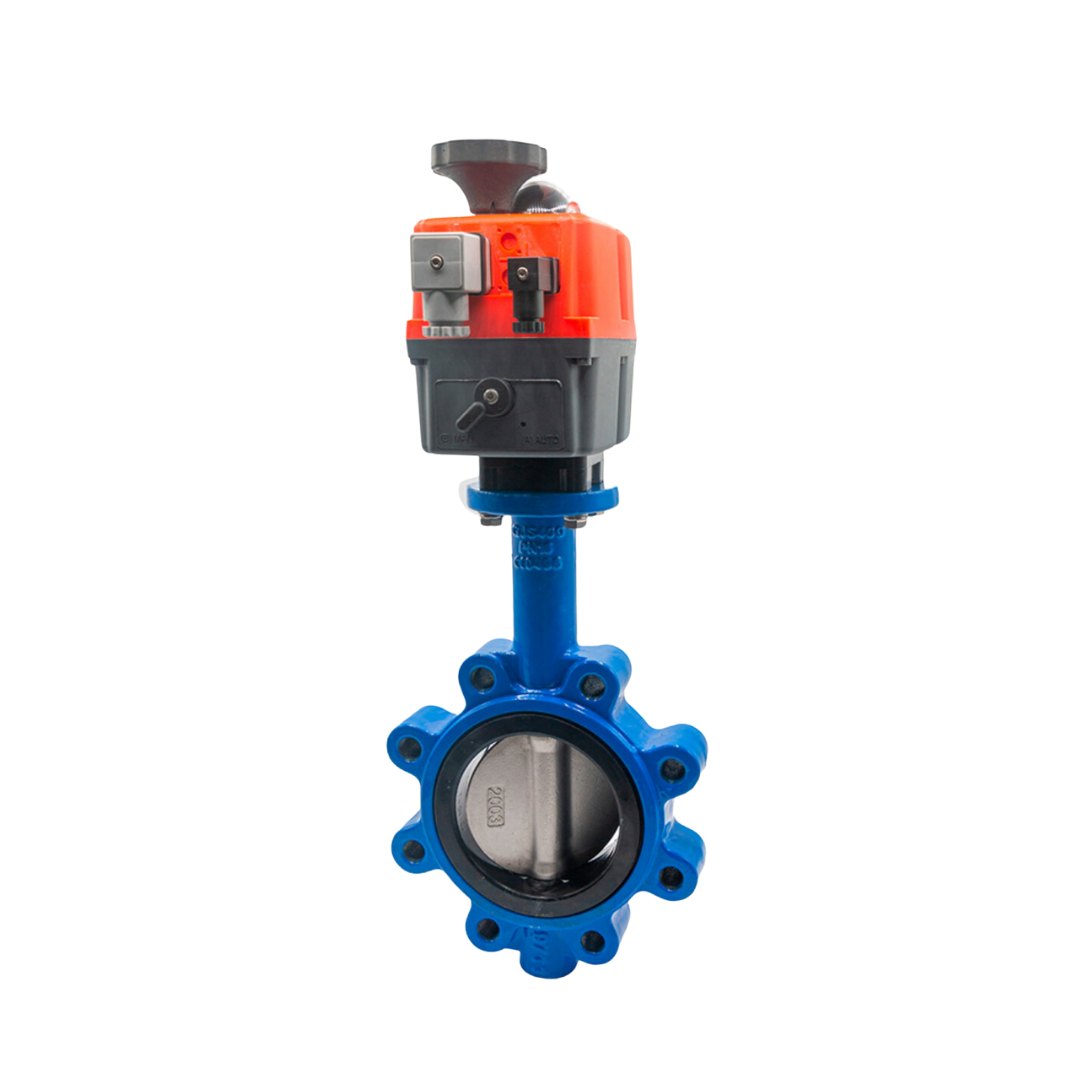

Electric Butterfly Valves
Discover the pinnacle of precision and reliability with the VALVESEAL Electric Butterfly Valve Collection. These valves are engineered for diverse industrial applications and are designed to handle rigorous conditions while ensuring optimal performance.
- Maximum Pressure: 16 Bar
- Temperature Range: -20°C to +200°C
- Body: SS CF8
- Disc: SS CF8M + PTFE (PFA)
- Seat: PTFE
- Elastic Spacer: Silicone Rubber
- Bushing: SS + PTFE
- Gland: SS 304
- Stem: SS 410
- Belleville Spring: SS 304
- V-Ring: PTFE
- Hexagonal Bolt: SS 304
- Maximum Working Pressure: 16 Bar
- Maximum Working Temperature: -20°C to +200°C
- Body: Carbon Steel A216 WCB
- Disc: Stainless Steel CF8M + PTFE (PFA)
- Seat: PTFE
- Elastic Spacer: Silicone Rubber
- Bushing: Stainless Steel + PTFE
- Gland: Stainless Steel 304
- Stem: Stainless Steel 410
- Belleville Spring: Stainless Steel 304
- V-Ring: PTFE
- Hexagonal Bolt: Stainless Steel 304
- Working Conditions: Maximum
- Working Pressure: 16 Bar
- Maximum Working Temperature: -20°C to +200°C
- Body: Carbon Steel A216 WCB
- Disc: Stainless Steel CF8M + PTFE (PFA)
- Seat: PTFE
- Elastic Spacer: Silicone Rubber
- Bushing: Stainless Steel + PTFE
- Gland: Stainless Steel 304
- Stem: Stainless Steel 410 Belleville
- Spring: Stainless Steel 304
- V-Ring: PTFE
- Hexagonal Bolt: Stainless Steel 304
- Electric Safety: UNE-EN 4-1 : 2007 + CORR:2010
- Emissions: UNE-EN 61000.6-2:2006 + e:2009
- CE Compliance: 2006/42/CE
- Vibration Test: UNE-EN 60068-2-6:2008
- IP Code: IP-67
- Interface: ISO 5211
- Torque Limiter
- Range from DN40 up to DN150
- User-friendly
- Electric safety UNE-EN 4-1 : 2007 + CORR:2010
- IP code: IP-67
- Interface: ISO 5211
- Torque limiter
- Voltage: 12VAC/VCD 50/60Hz
- Range from DN40 up to DN250
- Compact design – low weight
- User-friendly
- Electric safety UNE-EN 4-1 : 2007 + CORR:2010
- IP code: IP-67
- Interface: ISO 5211
- Voltage: 12VAC/VCD 50/60Hz
