HD2124.1 – Manometer – Thermometer – 2 Inputs

Login to see prices In Stock Sold out

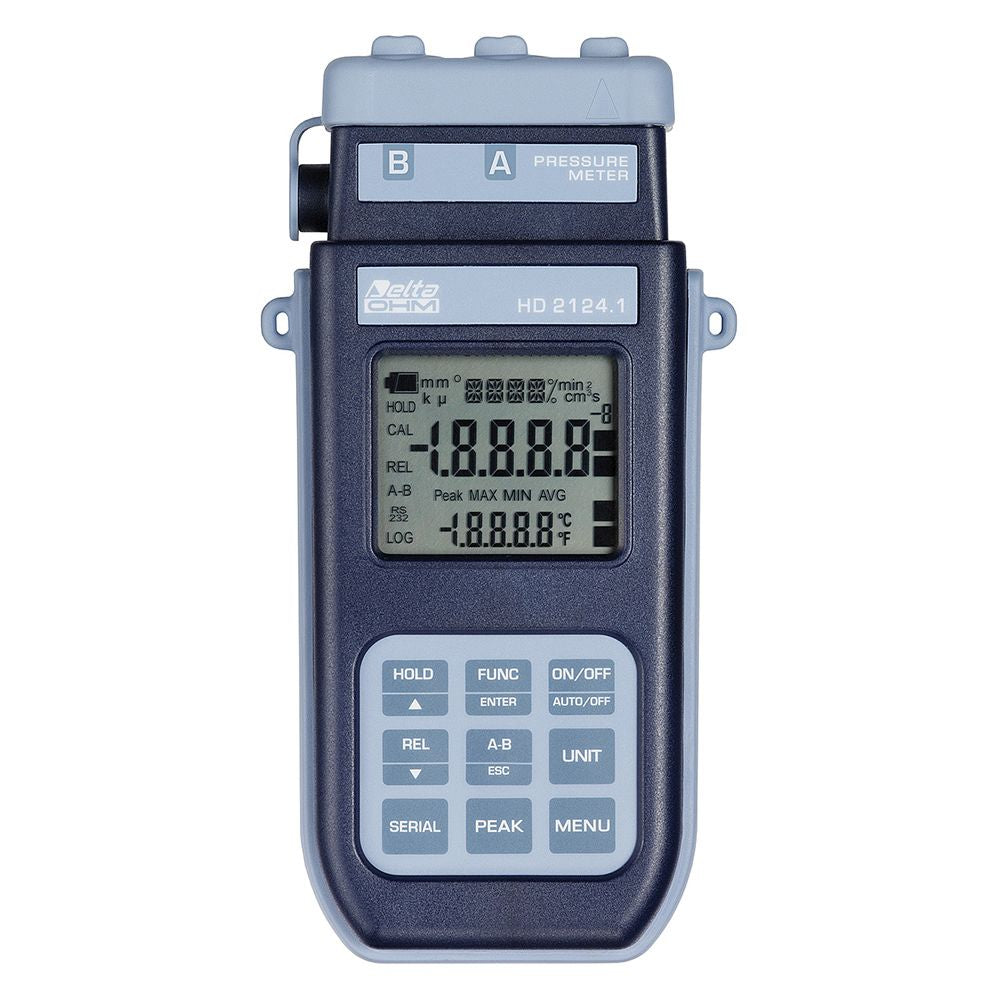

Handheld manometer-thermometer with two inputs and LCD display. It performs measure of absolute, relative, differential pressure and temperature.

In order to measure the pressure you use the electronic module probes series TP704 and TP705.

Temperature is measured by means of Pt100 with SICRAM module or direct 4 wires Pt100 probes for immersion, penetration, contact or air. Measuring range -200 °C…+650 °C. Temperature probes are equipped with SICRAM module and factory calibration data are stored inside. Storage of maximum, minimum, average value and the difference between the two inputs. Output RS232 C for data transfer in real time to a PC or printer.

Peak function detects the presence of pressure peaks, other functions: REL, HOLD and auto power off which can be disabled, IP 66 protection degree.

Complete with carrying case, instruction manual, 4 batteries, Software DeltaLog9 downloadable here. The SICRAM module PP471, pressure probes, temperature probes and cables for downloading have to be ordered separately.

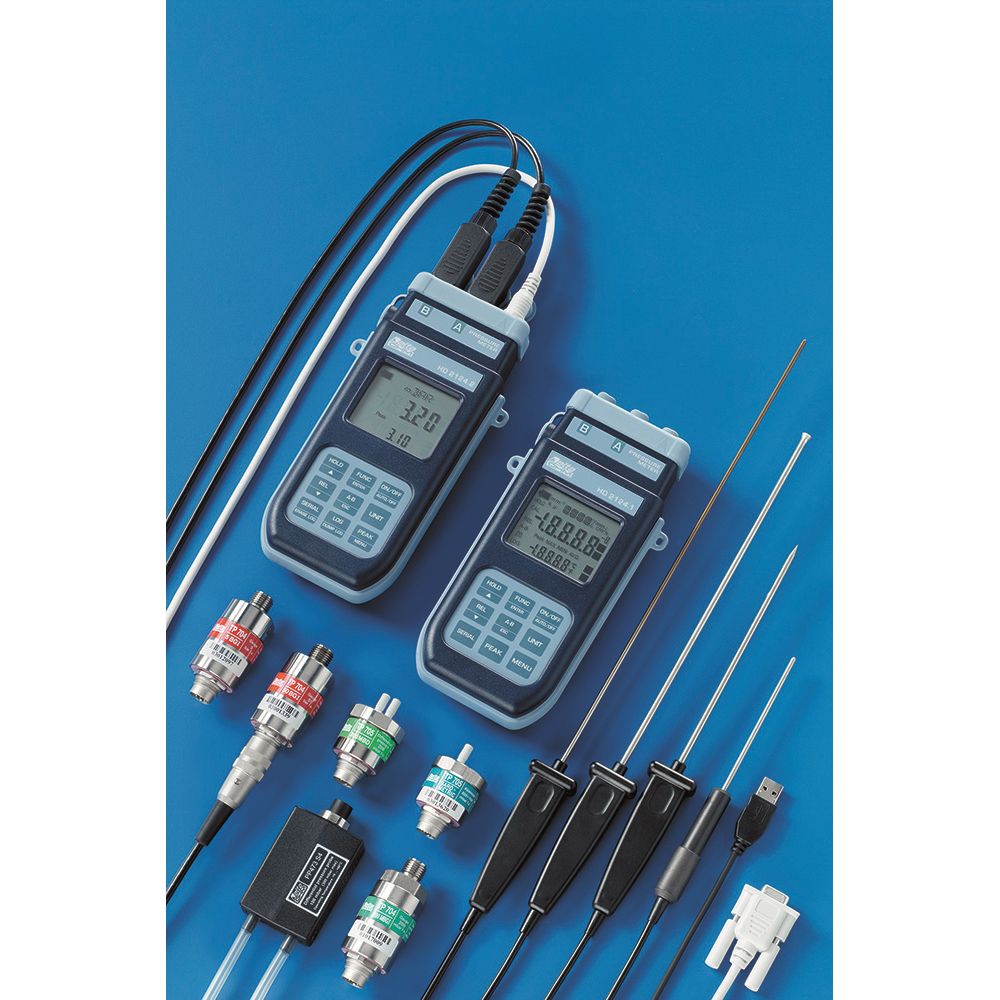

TP704 and TP705 series pressure probes and TP47… series temperature probes are suitable.

Available as well in version with data logging function HD2124.2
