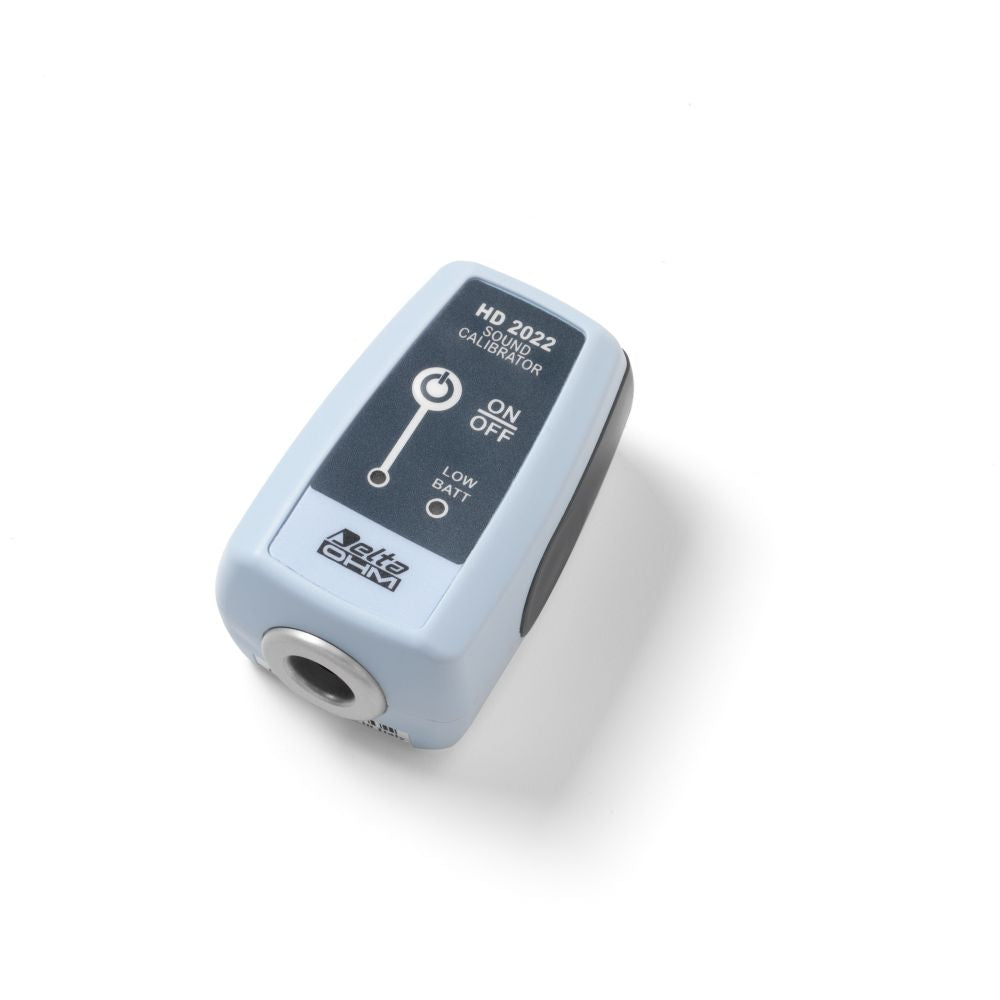

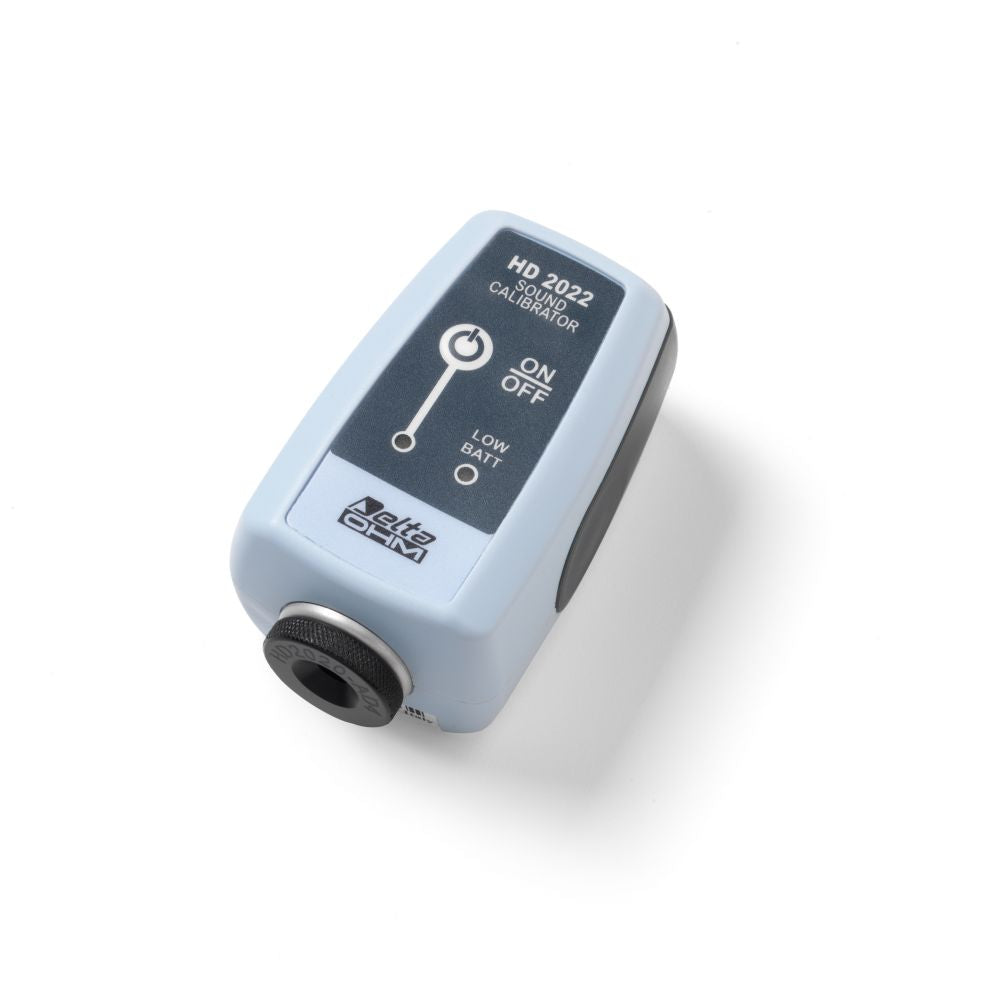

HD2022 sound level calibrator is a portable, battery operated sound source, suitable for sound level meters (portable and laboratory) and acoustic stations. It allows calibrating 1/2” (1/4” with HD2020AD4 adapter) microphones with mechanical dimensions compliant with IEC 61094-1 and IEC 61094-4.

The generated sound pressure level is equal to 114 dB at 1000 Hz frequency. A LED signals the low battery condition.

Advantages:

  • The 1000 Hz frequency allows calibrating sound level meters with any frequency weighting (LIN, A, B, …), without applying any correction factor.
  • The generated sound pressure level is indipendent of atmospheric pressure: you don't need to adjust the value according to static pressure over a wide range of values.
  • The calibrator can be conveniently used both in laboratory and in the field. The 114 dB sound level allows performing calibrations even in high background noise environments.
  • Its simplicity of use allows even unskilled staff to use it.

ISO 17025 calibration certificate according to IEC 60942 included.
