Pressure Vacuum Level

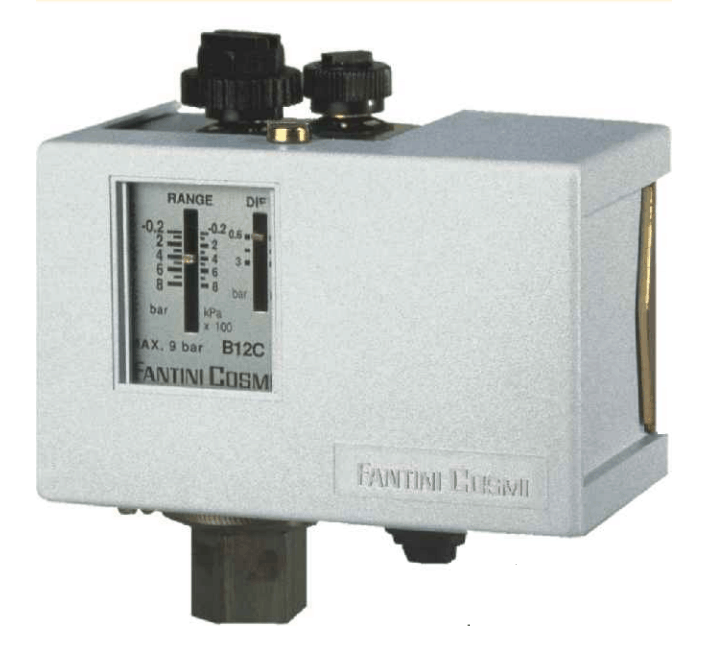

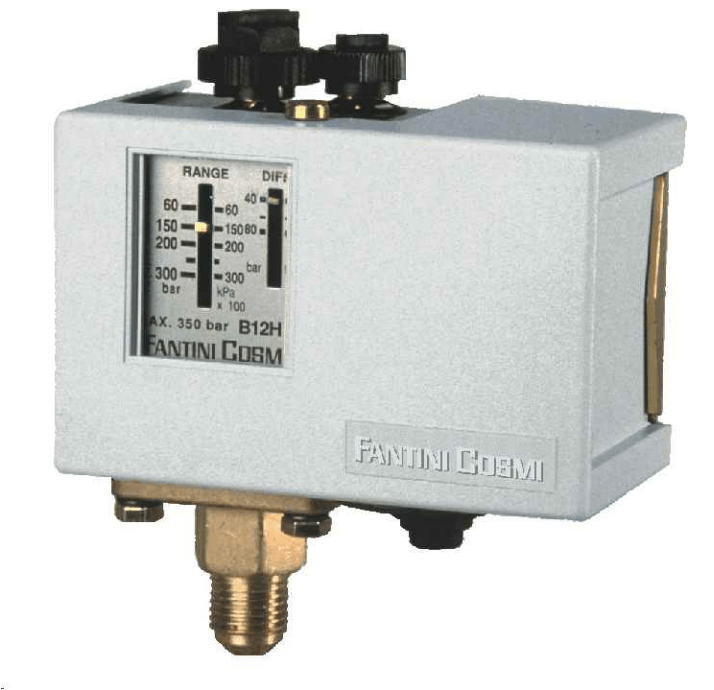

B12 Pressure Switch
- Pressure Switch With Scale
- SPDT C/O Contacts
- 0.2 - 300 bar adjustment ranges
- Adjustable differential
- Max working pressures up to 350 bar
- 1/4” BSP thread
- Switch rating 415Vac/16A (6A ind)
- Snap action SPDT micro-switch
 |
B12 -0.2 to 12 Bar Datasheet |
|
B12 12 to 300 Bar Datasheet |
- Description
- Downloads
Description
The B12 Pressure Switch is a versatile and robust device designed for applications that require precise pressure monitoring and control. Suitable for a wide range of industrial and hydraulic systems, this switch is capable of handling adjustable switching pressures ranging from 0.2 to 300 bar, making it ideal for various demanding environments.
Downloads
