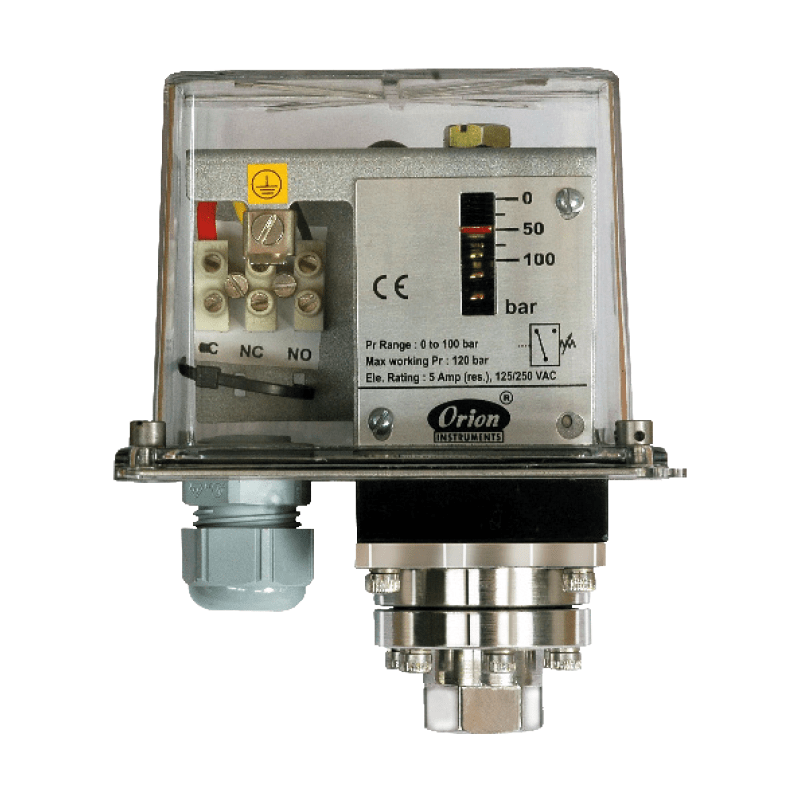

MZ Series Pressure Switch

The MZ Series Pressure Switch is a versatile and reliable solution designed for various industrial applications. With adjustable change-over contacts (SPDT), this switch caters to various pressure ranges including compound, low, high, and differential pressures. The switch supports adjustable switching pressure ranges up to 400 bar and can handle maximum working pressures of up to 500 bar, making it ideal for demanding environments.

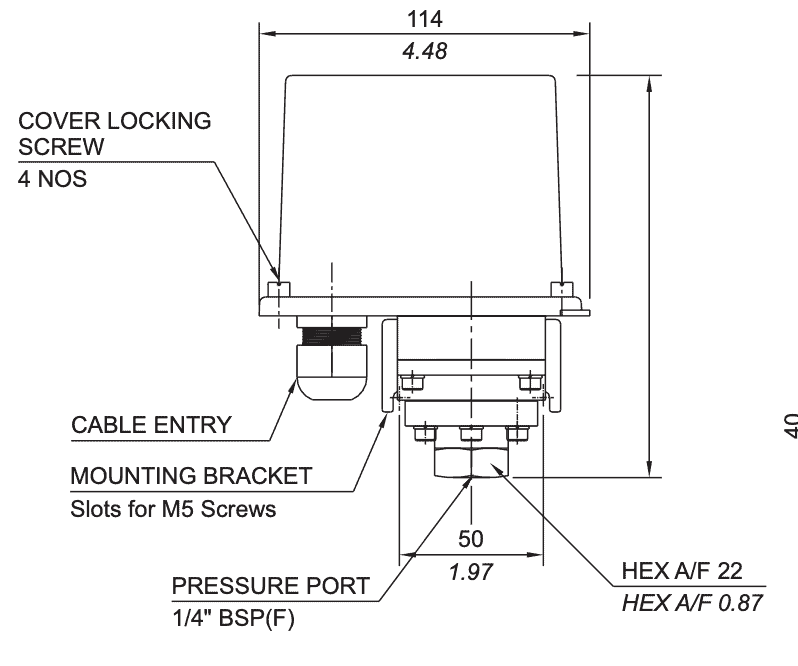

Equipped with a 1/4″ BSP thread, the MZ Series offers compatibility with various connection types, and options for other thread types are available to suit specific requirements. The switch features a durable stainless steel diaphragm, with alternative materials like Monel available for specialized applications. Its robust IP66-rated polycarbonate body ensures protection against dust and water ingress, guaranteeing long-lasting performance in harsh conditions.

Field set point adjustment is facilitated by an easy-to-use reference scale, and the option for adjustable differential adds further flexibility. The terminal block ensures straightforward field wiring, while the 316 stainless steel wetted parts provide excellent corrosion resistance. Whether for low or high-pressure environments, the MZ Series Pressure Switch is engineered to deliver precision, durability, and adaptability in your critical applications.
