BECK

When the pressure is on, whether in Europe, Asia, the Middle East, or America, Beck's innovative technology comes into its own - worldwide. Beck's customised pressure switches and pressure sensors maintain an unprecedented degree of intrinsic safety. Manufactured exclusively at Beck's company headquarters in Germany.

Beck has stayed at the forefront of global industrial markets for almost five decades. Beck technology is well-suited to our customer's specific needs. Beck uses lean, partially automated manufacturing methods to produce mechanical pressure switches and electronic pressure transmitters.

Among their most important fields of application are filling level technology and ventilation and air conditioning. Throughout the whole spectrum of Beck's vast and varied range, every Beck product stands out for its simplicity of maintenance, resilience, and reliability, in addition to a favourable cost-performance ratio.



  • Temperature range: Ambient temperature from –20° C to 85° C.
  • Diaphragm material: NBR, Silicone, FKM (Viton ®), EPDM.
  • Electrical connection: AMP connection 6.3 mm x 0.8 mm DIN 46244
  • Storage and operating temperature –20°C to +85°C
  • Media temperature 0 to 85°C
  • Humidity max. 95% rH., non-condensing
  • Membrane Material: NBR, Silicone, FKM, EPDM
  • Protection Class: IP65 according to EN 60529

Technical Datasheet

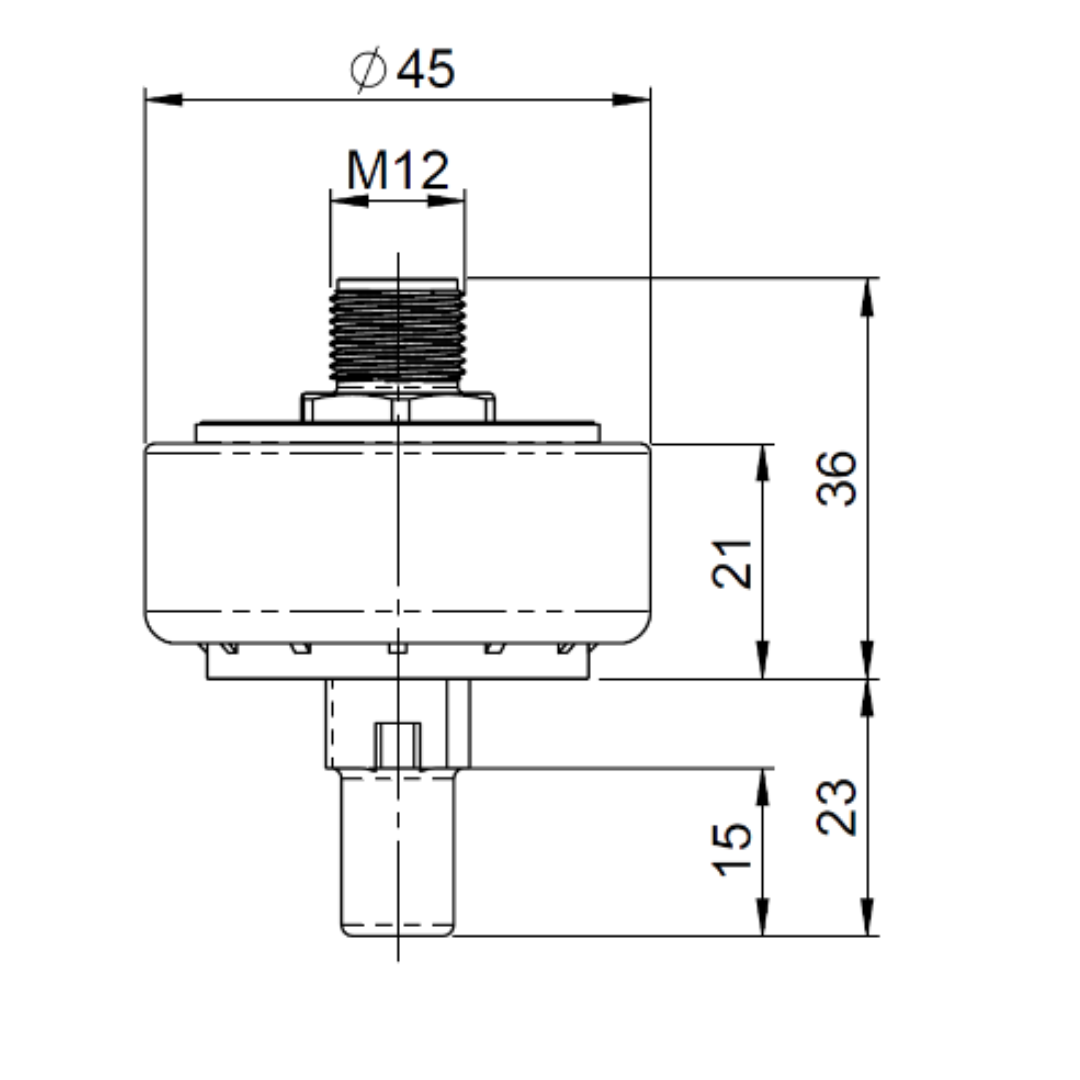

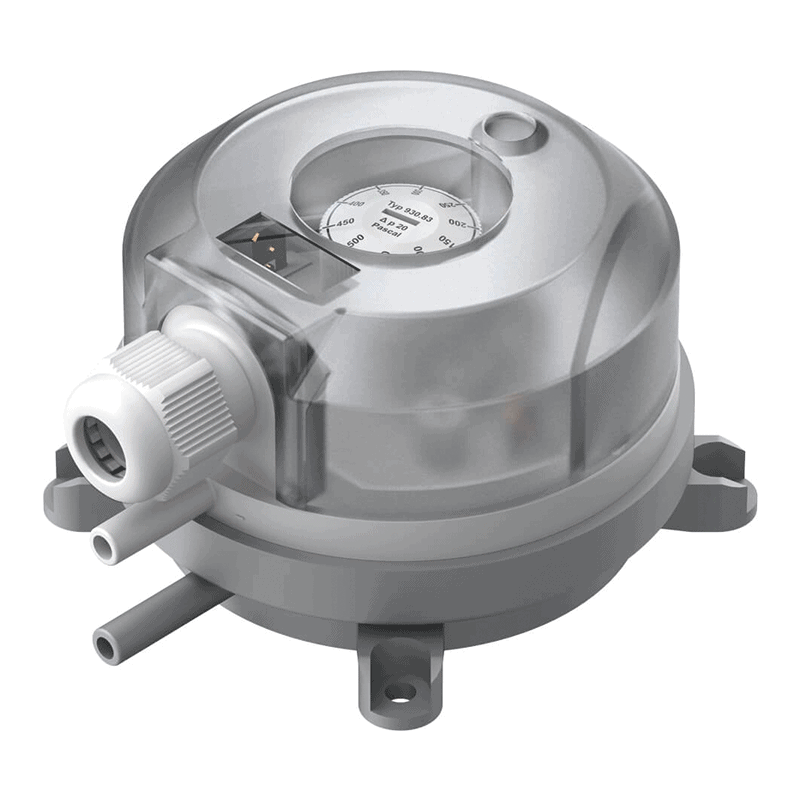

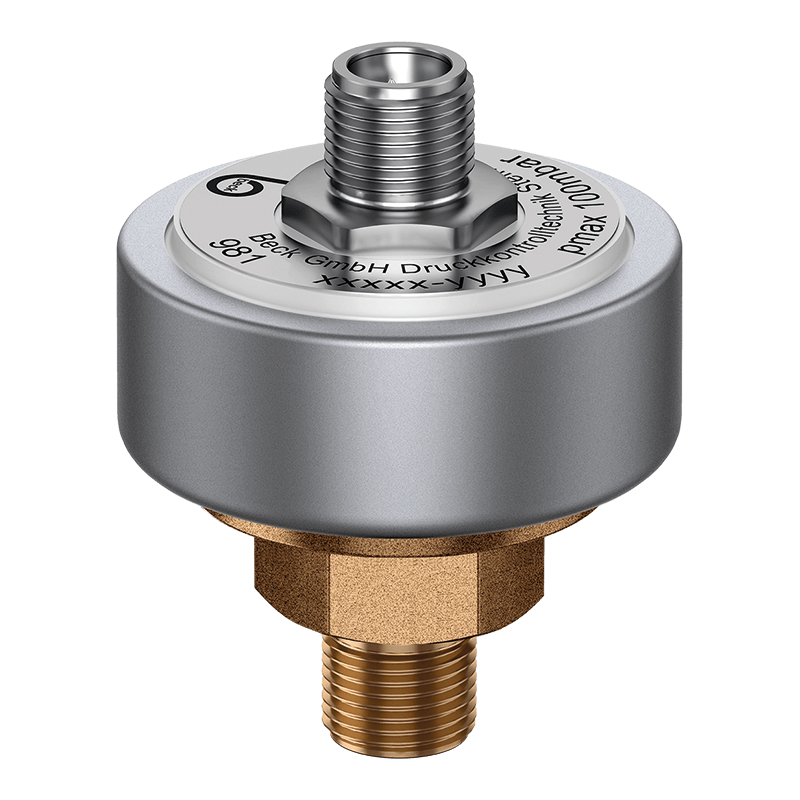

  • Differential Pressure Transmitter for Air Up to 250 kPa pressure ranges
  • Manual/automated offset compensation
  • 4-20 mA or 0-10 V DC output
  • 6.0 mm Ø push-on tube connection
  • mbar or pascal pressure units
  • Optional LED display

Technical Datasheet

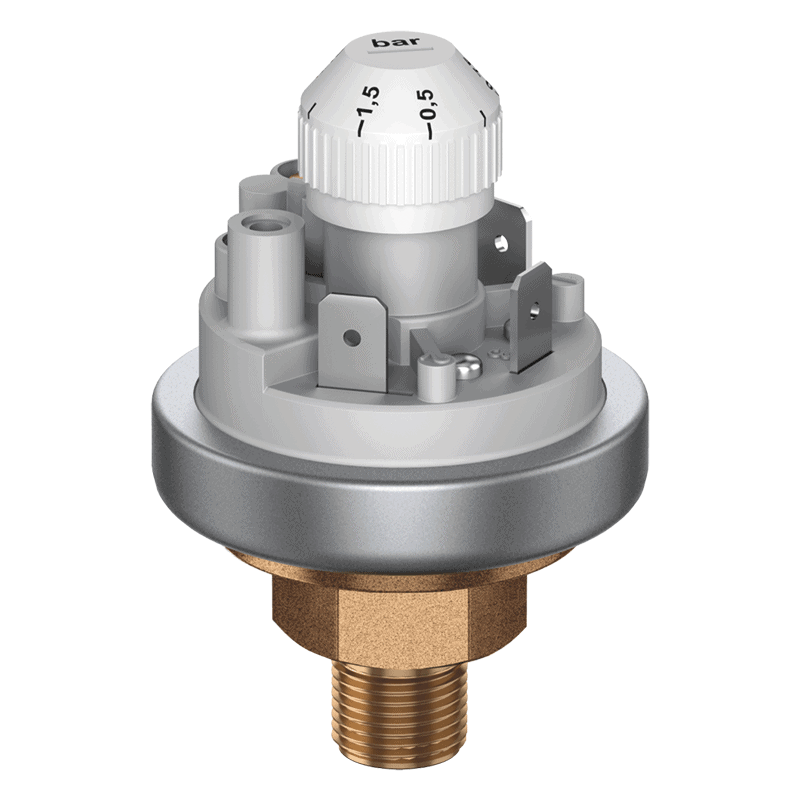

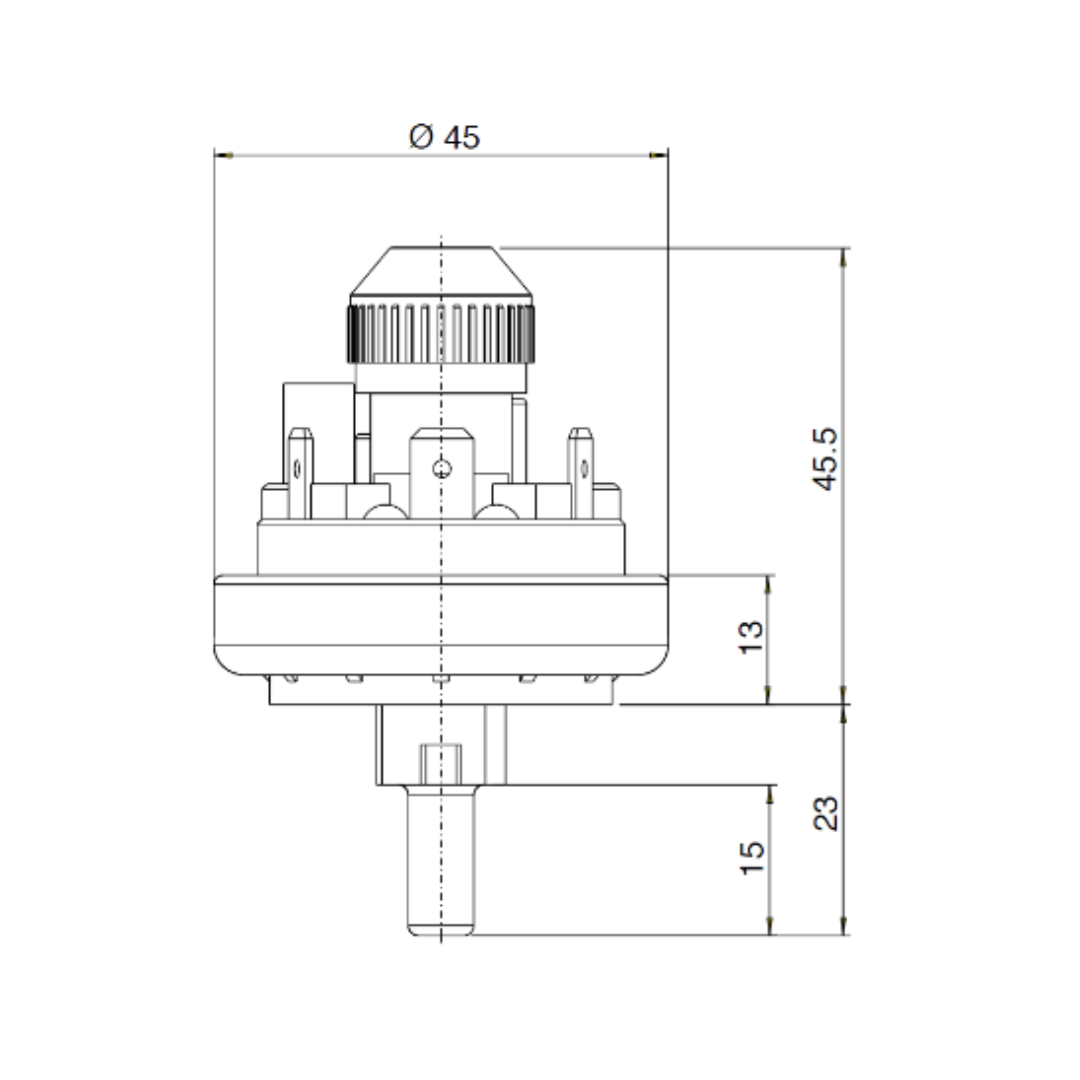

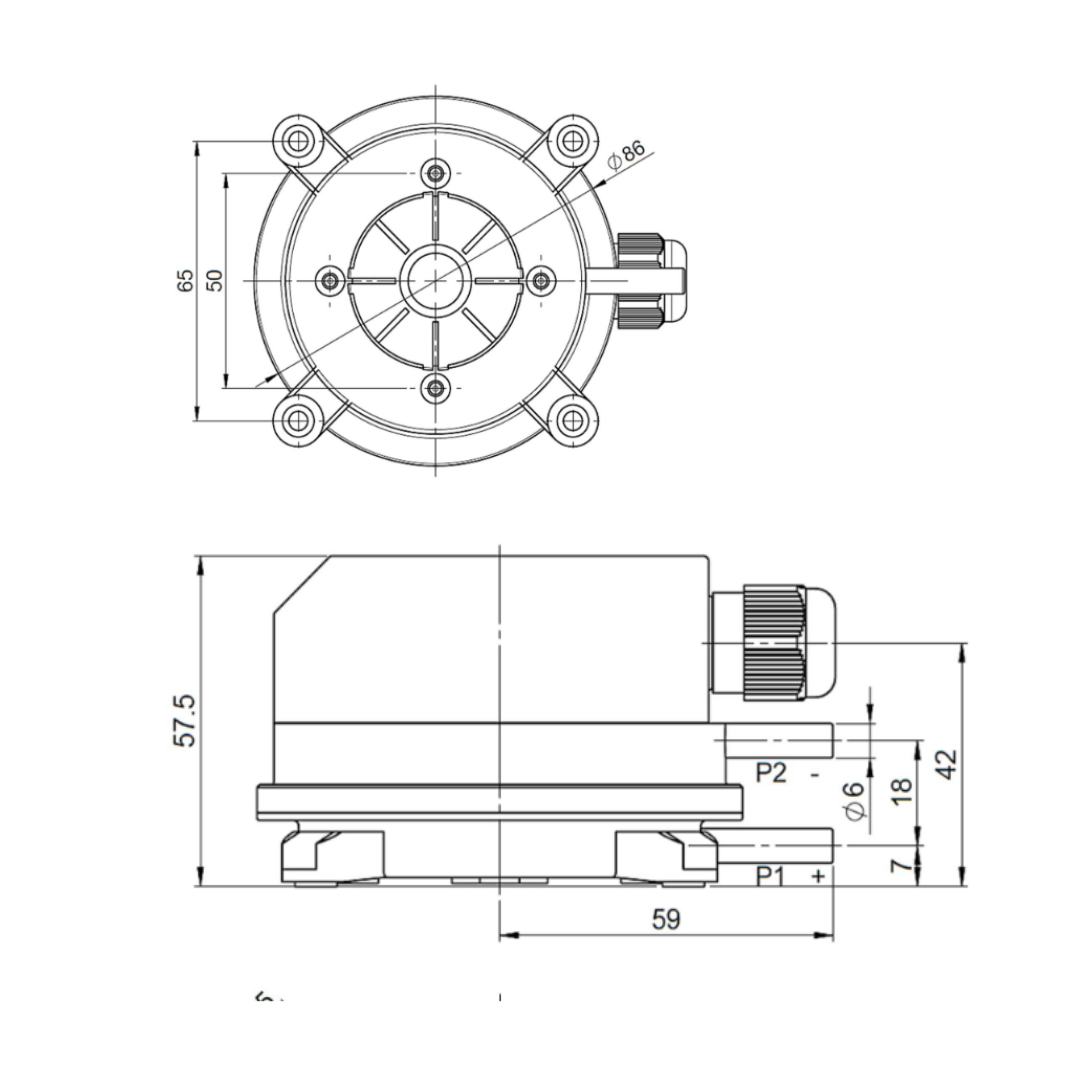

  • Differential Pressure Switch SPDT C/O Contacts
  • Up to 25 mbar adjustment ranges
  • Over-pressures up to 50 mbar
  • Graduated knob for easy adjustment
  • 6.0 mm Ø push-on tube connection
  • Silicone diaphragm
  • Ideal for very low pressure

Technical Datasheet
  • Temperature range: Ambient temperature from –20°C to +85°C
  • Diaphragm material: NBR, Silicone, FKM (Viton® ), EPDM.

Technical Datasheet
