BIERI

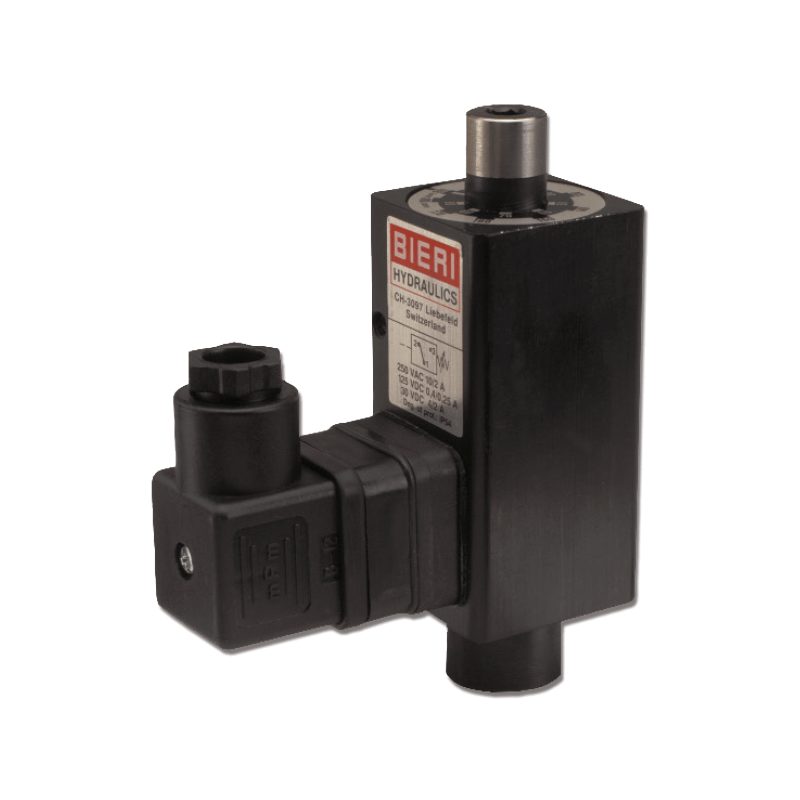

DV7.33 Pressure Switch

High Pressure Switch ≤ 250V
N/O or N/C Contacts
Up to 1,000 bar adjustment ranges
Over-pressures up to 1200 bar
1⁄4” BSP female thread
Switch body rotates 360 deg
Nitrile Seal - Steel Body
For Oil Use only

Description
Downloads
Product Catalogue

Description

Piston type hydro-mechanical pressure switch with one change-over switch, easily adjustable over the entire pressure range, with scale for presetting of the pressure switching point. 7 pressure ranges for the optimal adaptation to any operating pressure.
