Euroswitch

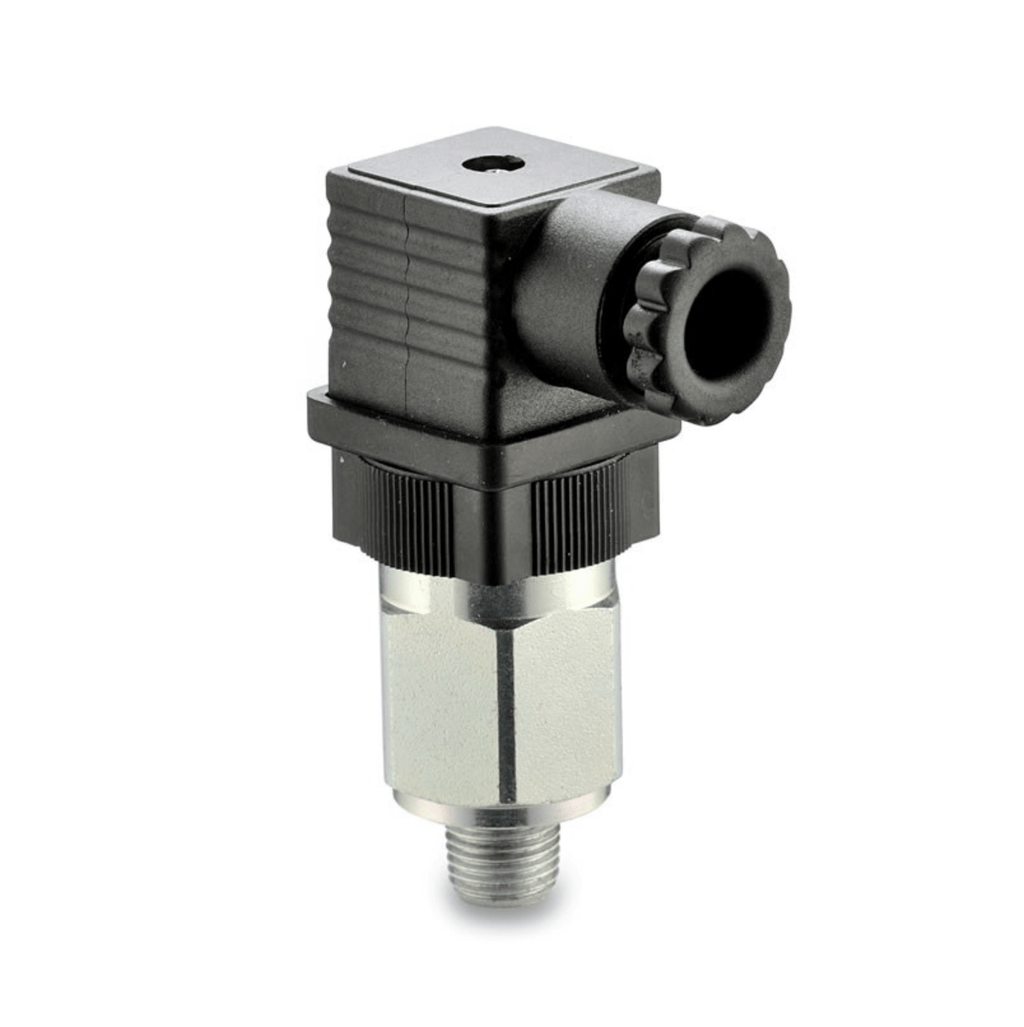

Model 27N/28N Pressure Switch
- Pressure Switch ≤ 250V
- SPDT C/O Contacts
- Up to 300 bar adjustment ranges
- Over-pressures up to 800 bar
- Max working pressures up to 450 bar
- 1/4” BSP thread (others available)
- Viton / NBR+Teflon Seal (Model 28N)
- Adjustable Hysterisis (10-50%)
 |
Model 27N Technical Datasheet |
|
Model 28N Technical Datasheet |
£0.00
In Stock
Sold out
- Product Details
- 27N Techical Data
- 28N Technical Data
- Downloads
Product Details
Looking for a pressure switch that can handle a wide range of applications? Look no further than the Model 27N/28N. This versatile switch can be adjusted to fit your specific needs, with pressure ranges from 0.3 – 1.5 bar all the way up to 100 – 400 bar. Plus, it features hysteresis adjustment options of 30 – 50%, so you can get exactly the performance you need. The durable zinc plated steel construction is built to withstand even the harshest environments, and with a max switching voltage of 250 volts, this switch is ready for anything.
27N Techical Data
28N Technical Data
