EUROSWITCH

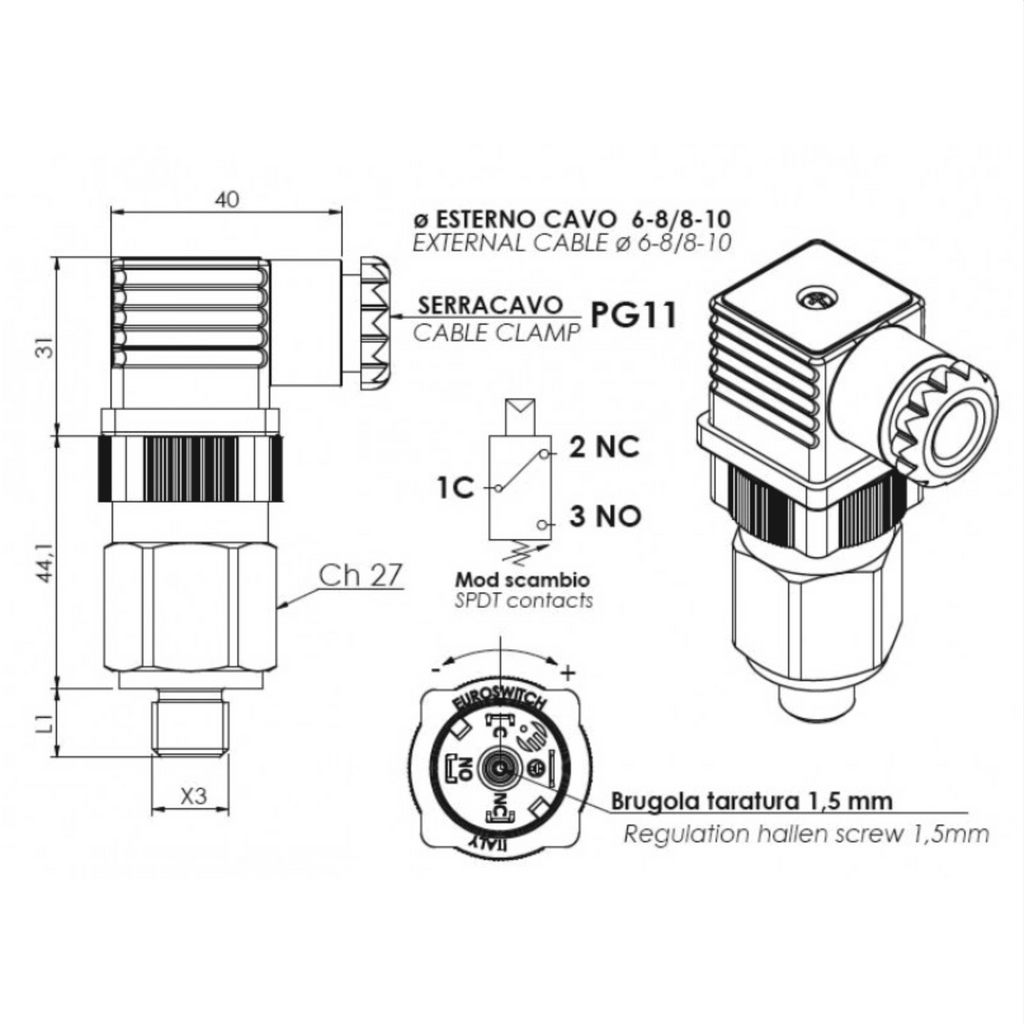

Model 48 Pressure Switch
| Sensitive element | Piston |
| Setting range | 50 - 400 bar |
| Contact type | SPDT |
| Contact rating | 3(2) A / 250 Vac |
| Electrical connection | Connector UNI EN 175301-803 (DIN 43650) IP65 |
| Certifications | ATEX / UL CSA |
| Datasheets | Technical Datasheet |
In Stock
Sold out
- Product Description
- Technical Data
- Downloads
Product Description
The Model 48 Pressure Switch is a piston-style pressure switch with changeover contacts (SPDT), perfect for adjustable switching pressure ranges up to 400 bar. It offers adjustment range options of 50 – 200 bar and 200- 400 bar, making it versatile for a variety of applications. With max working pressures of 450 bar and an overpressure limit of 800 bar, this product can handle intense use. Additionally, the Model 48 Pressure Switch has a max switching voltage of 250 volts and operating temperatures from -10°C to 120°C with a Viton diaphragm.
