EUROSWITCH

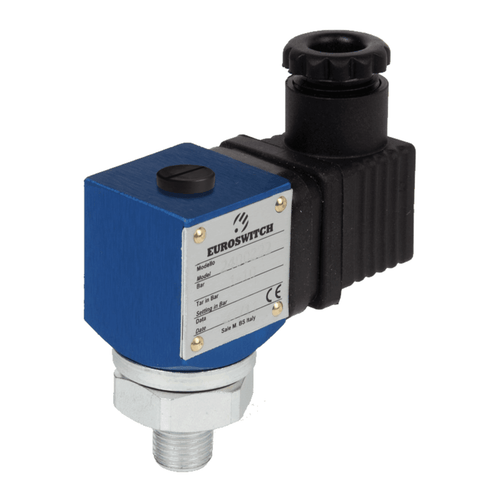

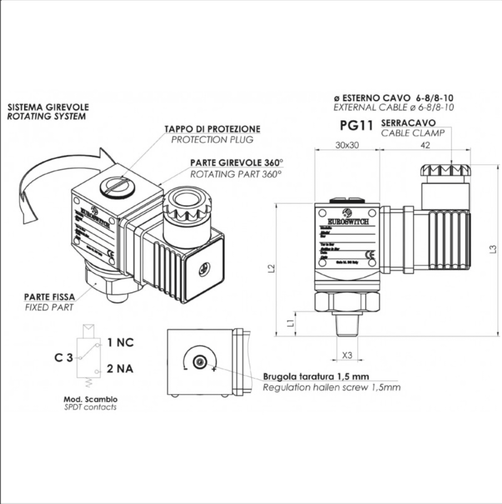

Model 24 Pressure Switch

£0.00 In Stock Sold out

ORDER BY 1:00PM NEXT DAY DELIVERY DEPENDING ON STOCK

WE STOCK 100% QUALITY PRODUCTS

QUALITY GUARANTEE AND EASY RETURNS

Description

  • Diaphragm Pressure Switch with Change Over Contacts (SPDT)
  • For Adjustable Switching Pressure Ranges up to 60 bar
  • Adjustment Range Options :- 0.3 – 5 Bar, 1 – 10 Bar, 10 – 25 Bar, 25 – 80 Bar, 50 – 200 Bar, 100 – 400 Bar
  • Max working Pressures up to 450 bar
  • Over Pressure Limit up to 800 bar
  • Max Switching Voltage up to 250 Volts
  • Operating Temperatures -10°C to 120°C with
  • Viton Diaphragm Viton (FKM) Diaphragm as Standard – (Others available e.g Nitrile (NBR) or EPDM)
  • Zinc Plated Steel Standard option ( Brass or Stainless Steel Options)

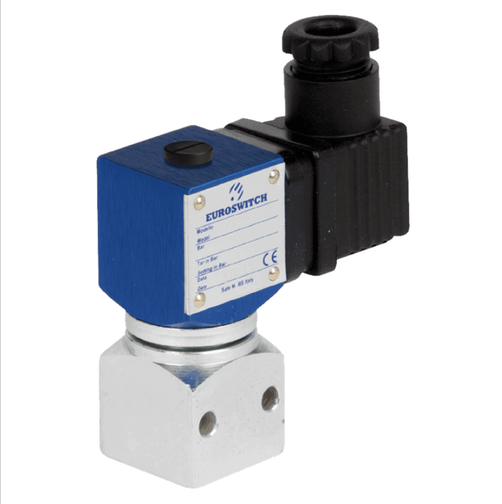

  • 1/4″ BSP Parallel Thread Standard (Female Thread Option – Model 24F)

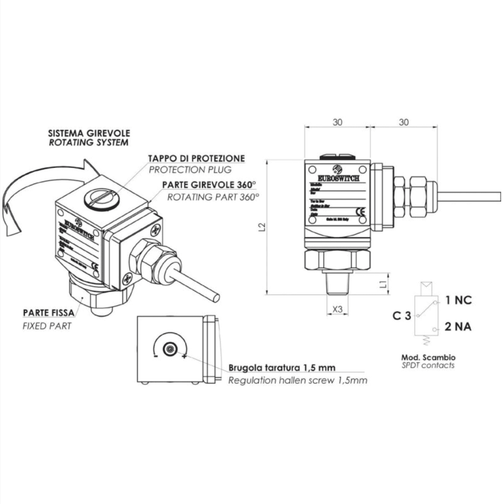

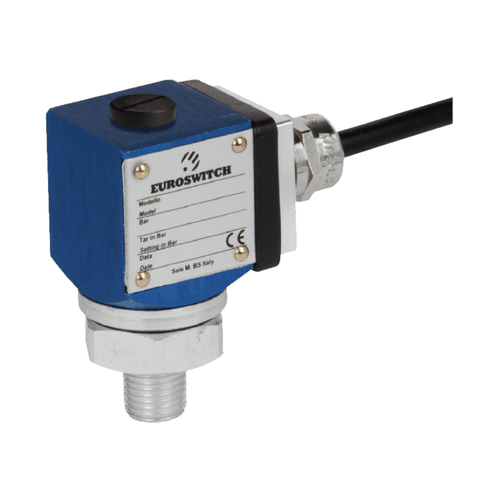

  • (DIN 43650) IP65 Standard (Flying Leads Version Available – Model 24C )

Technical Datasheet

Downloads

Technical DatasheetModel 24 Datasheet

Technical DatasheetModel 24C Datasheet

Technical DatasheetModel 24F Datasheet
