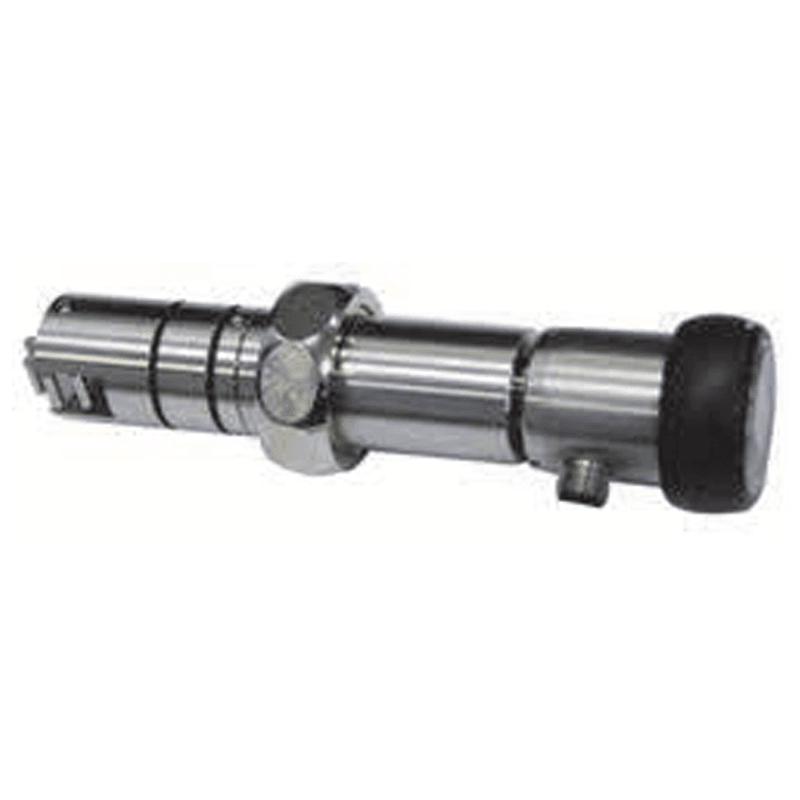

OMNI-RRH-032RMK Flow Transmitter
- Flow transmitter with display
- For pipe diameters of DN 32 or larger
- Stainless steel version
- Suitable for retrofitting in existing pipelines with tapping clamps
- Analog output 4..20 mA or 0..10 V
- Two programmable switches
- Selectable units in the display
- Parameter change with rotating ring
- Electronics housing with non-scratch, chemically resistant glass
- Rotatable electronic housing for best reading position
- Description
- Downloads
The OMNI-RRH-032RMK is a high-performance flow transmitter designed for precise measurement and control in pipes DN 32 and larger. Housed in robust stainless steel with a scratch-resistant mineral glass display, this device is ideal for retrofitting into existing pipelines using tapping clamps or welded nozzles.
Equipped with a high-contrast, backlit LCD, the OMNI-RRH displays flow values in multiple units (m/s, l/min, m³/h) with four-digit precision. It features both analog outputs (4–20 mA or 0–10 V) and two programmable switching outputs, with alerts shown via a bright red LED and display messages. The rotating magnetic ring interface allows easy parameter configuration—without opening the housing, ensuring full protection.
Its modular design includes optional features such as Counter C or C1 for totalising flow volume and generating pulse outputs, and a gooseneck option for thermal decoupling and flexible mounting. Built-in simulation mode simplifies commissioning by simulating output values for system testing.
With IP67 protection (IP68 when oil-filled), wide temperature tolerance, and simple M12 plug-in connection, the OMNI-RRH-032RMK is engineered for reliability in industrial flow monitoring applications.
