HR1MV Flow Switch
- For 32-50 mm pipe size
- 2-220 l/min switching range
- 1 1/4” - 2” threaded connections
- Brass or stainless steel option
- Pressure up to 200 bar
- Viscosity stabilised
- Description
- Downloads

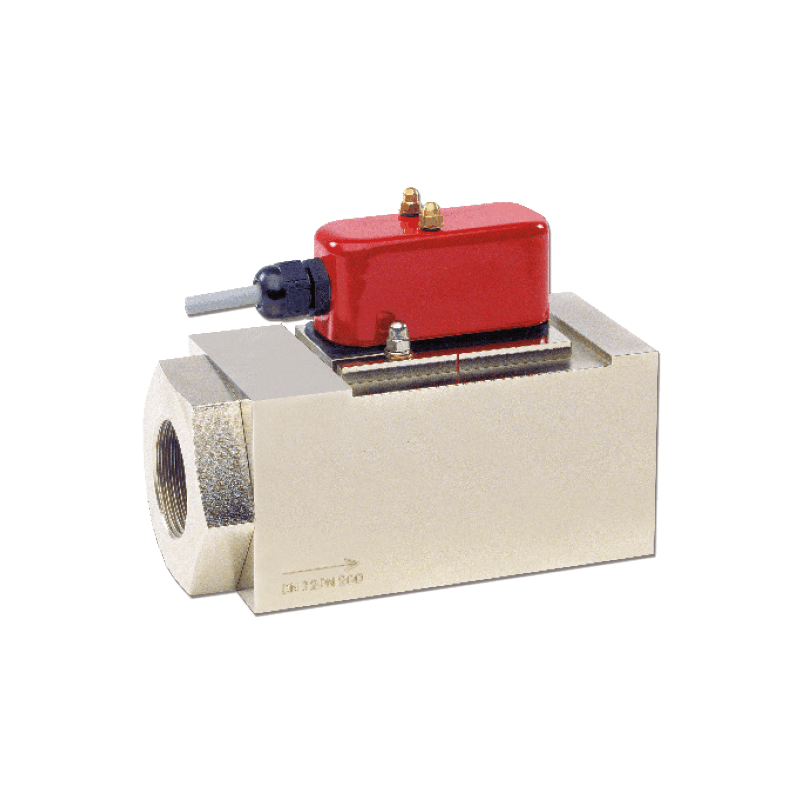

The Honsberg HR1MV Flow Switch is a high-performance inline flow monitoring device designed for precise control in medium to large pipework systems. Suitable for pipe sizes from 32 mm to 50 mm with 1 1/4" to 2" BSP threaded connections, it supports a broad switching range of 2 to 220 l/min, making it ideal for a wide range of industrial applications.
Built to withstand demanding conditions, the HR1MV is rated for pressures up to 200 bar, with an optional upgrade to 500 bar for high-pressure systems. Available in brass or stainless steel, it is compatible with various media and environments, including aggressive fluids and challenging industrial settings.
The flow switch features viscosity compensation, ensuring consistent and accurate switching performance regardless of media thickness or temperature changes. Optional visual displays enhance monitoring capability, while the ATEX-certified version provides safe operation in potentially explosive atmospheres.
Whether used in hydraulic systems, process control, or chemical handling, the Honsberg HR1MV offers durability, precision, and flexibility, all in a compact and easy-to-install package.
