HONSBERG

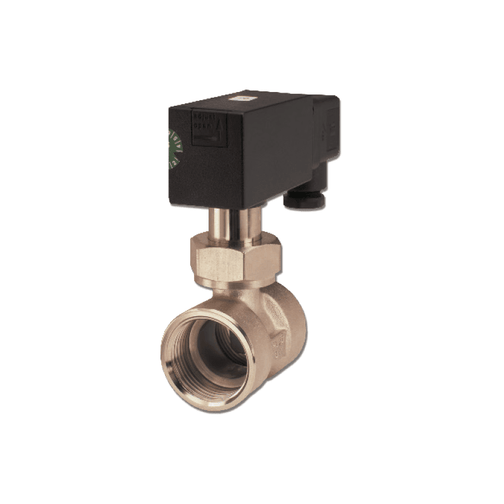

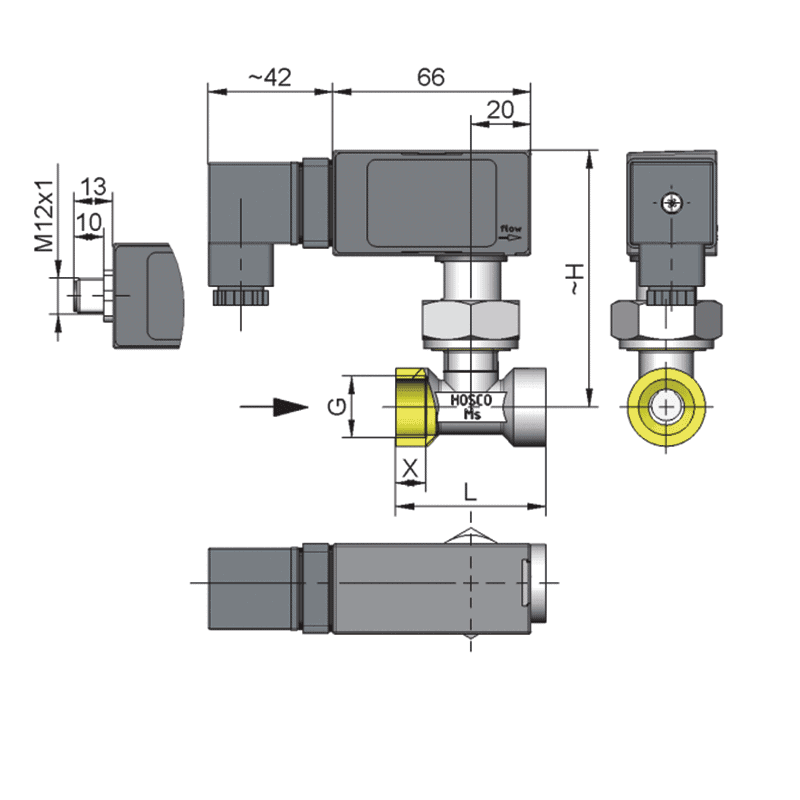

UR3K - G-A Paddle Flow Switch

  • Nominal pipe sizes 10-50 mm
  • 3.5 - 69 l/min switching range
  • 3/8” - 2” BSP threaded connections
  • Low pressure loss
  • Brass or stainless steel option
  • C/O reed switch rated at 230Vac/1A

= The UR3K G-A Paddle Flow Switch is a reliable and easy-to-use reed switch that is perfect for a variety of applications. With an adjustable range of 3 to 62 l/min, this flow switch can be used in a wide range of systems with up to 25 bar system pressure. The UR3K G-A Paddle Flow Switch is also available in brass or stainless steel bodies for added durability, and can withstand temperatures up to 110°C.

Technical Datasheet
