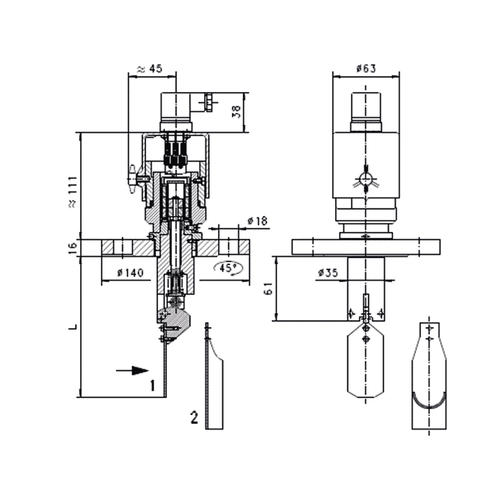

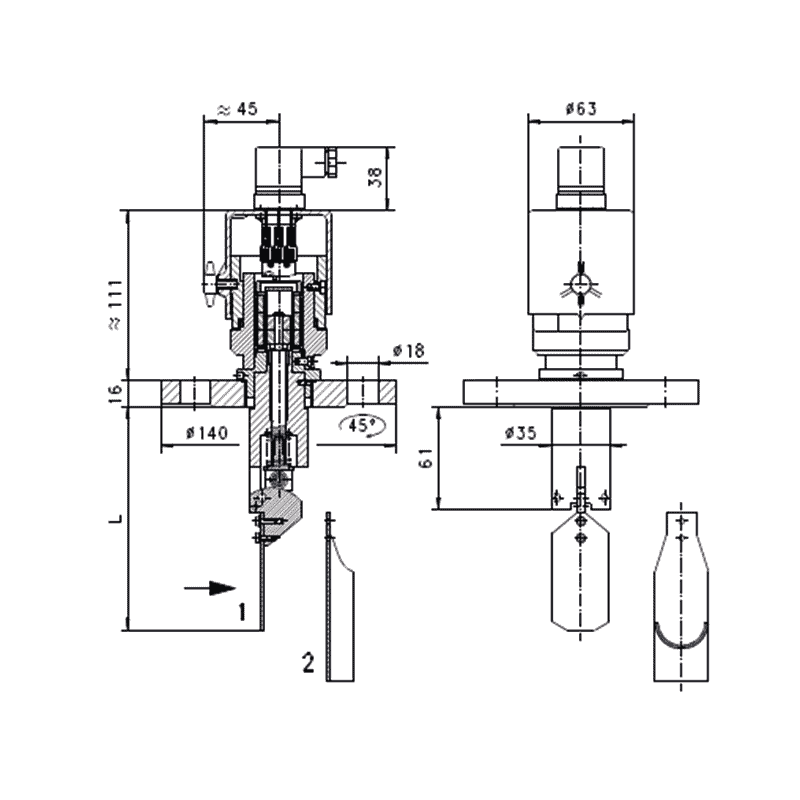

vm_e_dwg
HONSBERG

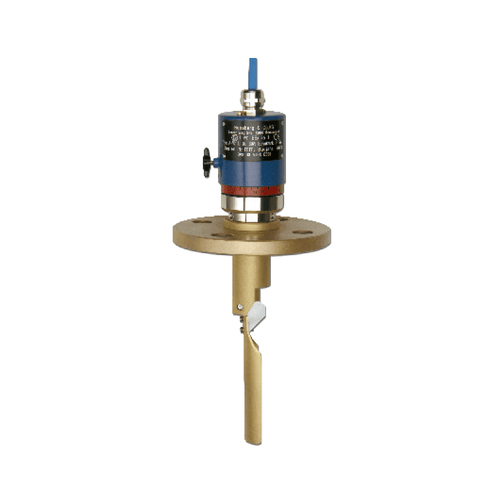

VM..E Paddle Flow Switch

  • 40 to 200mm nominal width
  • 40 to 1050 l/min switching range
  • -20-+90 °C (-20-+200 °C option VMX)
  • Flange process connection DIN 2527
  • Precise stepless adjustment
  • ATEX option available
£0.00 In Stock Sold out

Description

  • Flange sizes from DN 40 to DN 200
  • Suitable for temperatures up to 90degC
  • High temperature Option
  • Change-over microswitch
  • Optional ATEX Certified Switch-head
  • Brass or stainless steel body
  • User adjustable switch-point
  • (Multiply water flow-rates by 15 to obtain flow-rates for air)

Downloads

VM E Paddle Flow SwitchVM E Paddle Flow Switch
