OMNI-RRI-032RMH Flow Transmitter
- Flow transmitter with display
- For pipe diameters of DN32 or larger
- Plastic version
- Suitable for retrofitting in existing pipelines with tapping clamps
- Analog output 4..20 mA or 0..10 V
- Two programmable switches
- Selectable units in the display
- Parameter change via rotating ring
- Electronics housing with non-scratch, chemically resistant glass
- Rotatable electronic housing for best reading position
- Description
- Downloads

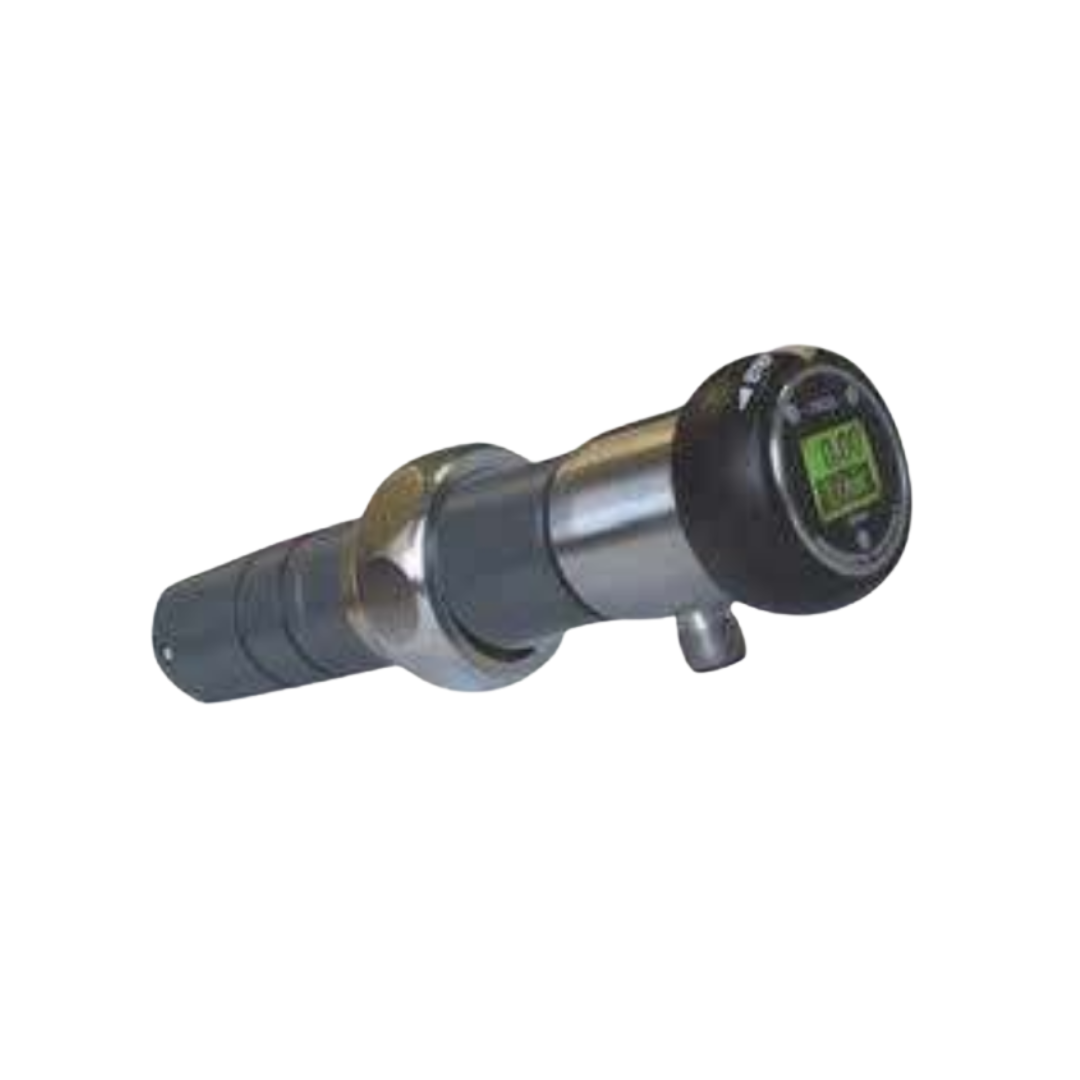

The OMNI-RRI-032RMH is a versatile plastic flow transmitter designed for reliable measurement and monitoring in pipelines DN 32 and larger. Built for retrofitting, it is ideal for use with tapping clamps or welded nozzles, making it perfect for upgrades or new installations in water and chemical systems.
This transmitter features a high-contrast, backlit LCD that displays flow values (in m/s, l/min, or m³/h) with 4-digit accuracy. It includes an analog output (4–20 mA or 0–10 V) and two programmable switching outputs for flexible integration. A prominent red LED and on-screen text warn of threshold violations.
Setup is simple via a magnetic rotating ring, allowing parameter adjustments without opening the sealed housing. The electronics are housed in a robust, chemically resistant case with a scratch-proof glass front, ensuring long-term durability.
Optional features include Counter C or C1, for totalising volume and generating pulse outputs, and a gooseneck for flexible sensor positioning. A simulation mode supports easy commissioning and system testing.
Lightweight (approx. 0.38 kg), IP67-rated, and CE-compliant, the OMNI-RRI-032RMH is a smart, cost-effective solution for flow monitoring in various industrial applications requiring plastic sensor construction and dependable performance.
