Chemline
- Series: 700 Sizes: 3/8″- 4″
- Ends: True Union Socket, Threaded or ChemFlare™, Spigot Bodies with Plain, Socket, Threaded or Flanged ends
- Diaphragms: EPDM, FKM-B (Viton®), or PTFE

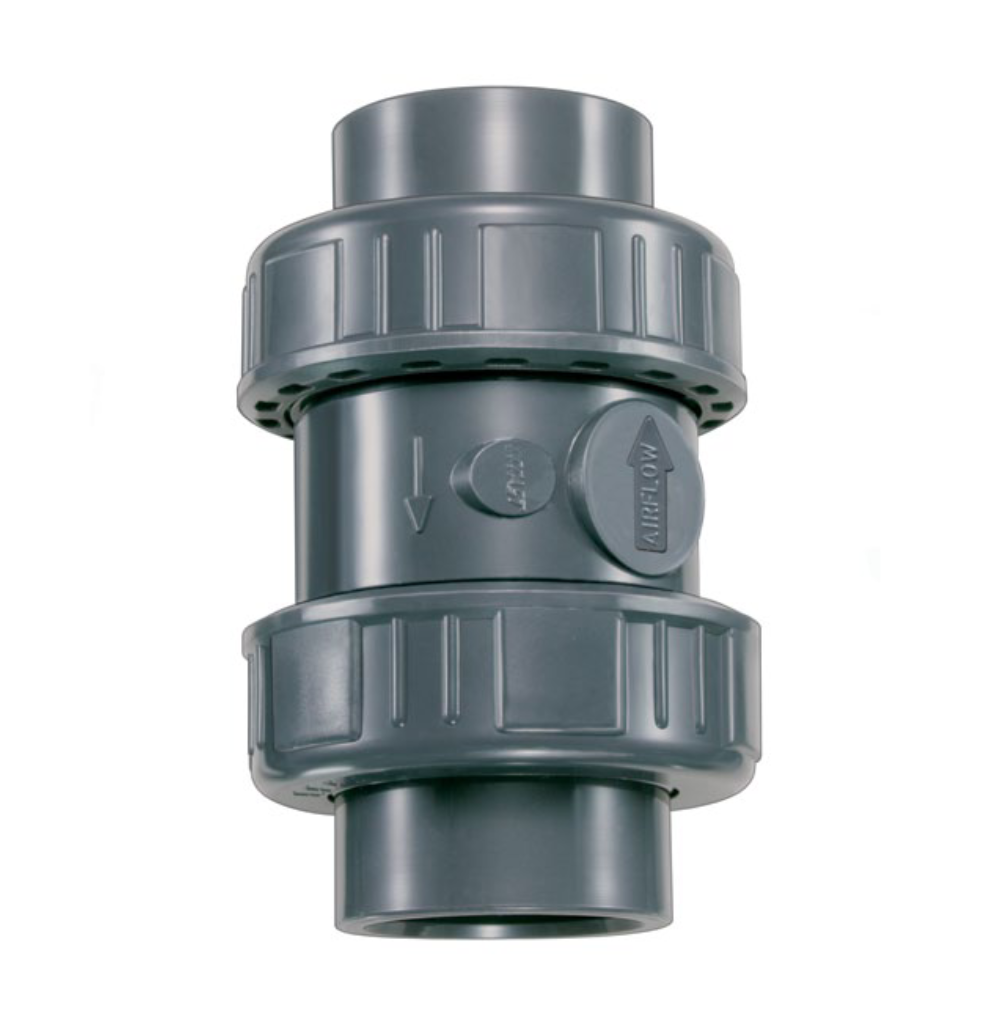

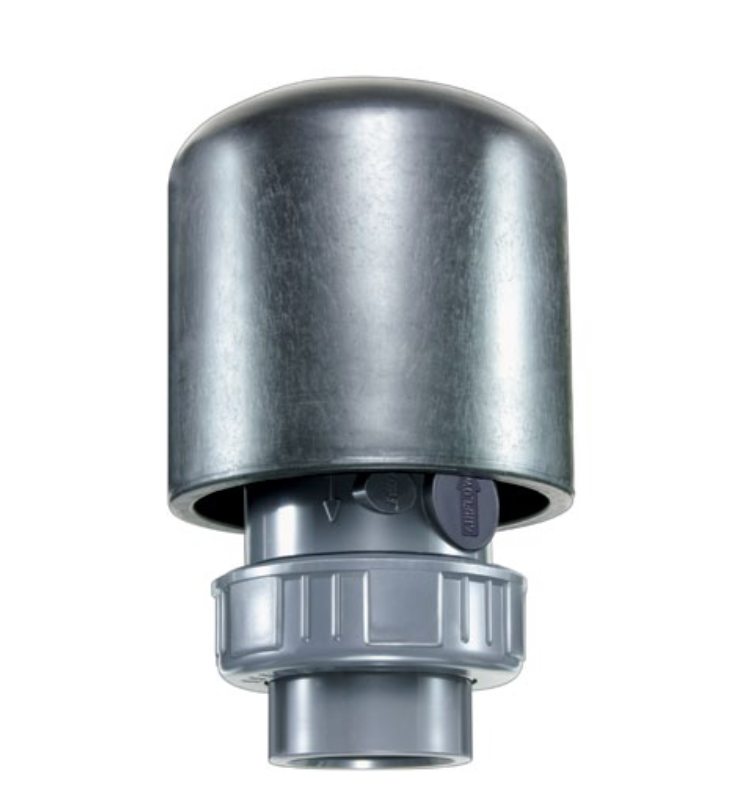

- Series: AR
- Inlet Connection: 1/2″ to 4″
- Instrument Connection: Socket,Threaded, or Flanged
- Seats/Seals: EPDM, FKM (Viton®)
- Series: SB
- Inlet Connection: 1/4″- 4″
- Instrument Connection: True Union Socket, Threaded or ChemFlare, Spigot Bodies with Plain, Socket, Threaded or Flanges
- Diaphragm: PTFE Bonded EPDM
- Seats/Seals: EPDM, FKM (Viton®)
- Series: BT: True Union Check (1/2” to 2”)
- BC: Single Union Check (2-1/2” to 4”)
- FT: True Union Check (1/2” to 2”)
- FV: Single Union Check (2-1/2” to 4”)
- Sizes: 1/2″- 4″
- Ends: Threaded, Socket, Flanged, Butt, or ChemFlare™
- Seat/Seals: EPDM, FKM (Viton®) or PTFE coated FKM (Viton®)
- Series: CCA-X
- Sizes: 3″- 12″
- Capacities: Up to 20,000 ml
- Connections: 1/2″, 1″, and 2″
- Materials: Clear PVC Tube, PVC End Caps
- Series: CG
- Sizes: 1-1/2″ to 14″
- Ends: Flanged Seats/Seals:
- EPDM or FKM (Viton®)
- Series: EK – Pneumatic
- EE – Electric
- Sizes: 1/2″- 4″
- Ends: Flanged
- Type(s): Single Seat Globe, or Needle Type
- Shaft Seals: PTFE Bellows
- Body Seals: EPDM, FKM (Viton®), FEP
- Portable
- Light Weight
- Quick Disconnect
- 120/110v, 50/60 Hz
- Flow Meter**
- Wheels and Stand**
- Series: ChemLance
- Connections: 1/2″ FNPT to Injection Valves 1/2″ MNPT to Water Main Pipe
- Seals: FKM (Viton®)
- Series: CST-K
- Body Styles: Wafer and Lug
- Sizes: 2″- 12″
- Body Material: VE-CF Vinyl Ester, Carbon Filled
- Disc Material: PFA Covered 316 SS
- Seat and Shaft Seal: TFM
- Seat Back-ups: FDA Grade FKM (Viton®), Silicone, EPDM
- Operating Temperature: -40°C to 130°C (-40°F to 265°F)
- Series: CST
- Body Styles: Wafer, and Lug Sizes: 1-1/2″- 42″
- Body Material: Epoxy-coated Ductile Iron
- Seat and Shaft Seal: PFA covered 316 SS, PTFE FDA Approved PTFE, UHMPE
- Seat Back-ups: FDA Grade FKM (Viton®), Silicone, EPDM
- Operating Temperature: –40°C to 200°C (–40°F to 395°F)
- Series: EC
- Sizes: 1/2″ to 2″
- Ends: Socket, Threaded, Flanged or ChemFlareTM
- Seals: EPDM or FKM (Viton®)
- Series: EF
- Sizes: 1/2″ to 3″
- Ends: Socket, Threaded or Flanged
- Seals: EPDM or FKM (Viton®)
- Type 57P: 1-1/2” – 14”
- Type 56: 16”
- Type 75: 18” – 24”
- Materials: Body: PVC, PP, PVDF
- Disc: PVC, CPVC, PP, PVDF
- Seat & O-Rings: EPDM, FKM (Viton®)
- Series: ES
- Sizes: 1/2″ to 4″
- Ends: Socket, Threaded, Flanged or ChemFlareTM
- Seals: EPDM or FKM (Viton®)
- Series: GB
- Sizes: 1/2″ to 2″
- Ends: Socket1, Threaded, or Flanged
- Seats/Seals: EPDM or FPM (Viton®)
- Series: GT
- Sizes: 1-1/2″ to 8″
- Ends: Flanged
- Seats/Seals: EPDM or FPM (Viton®)

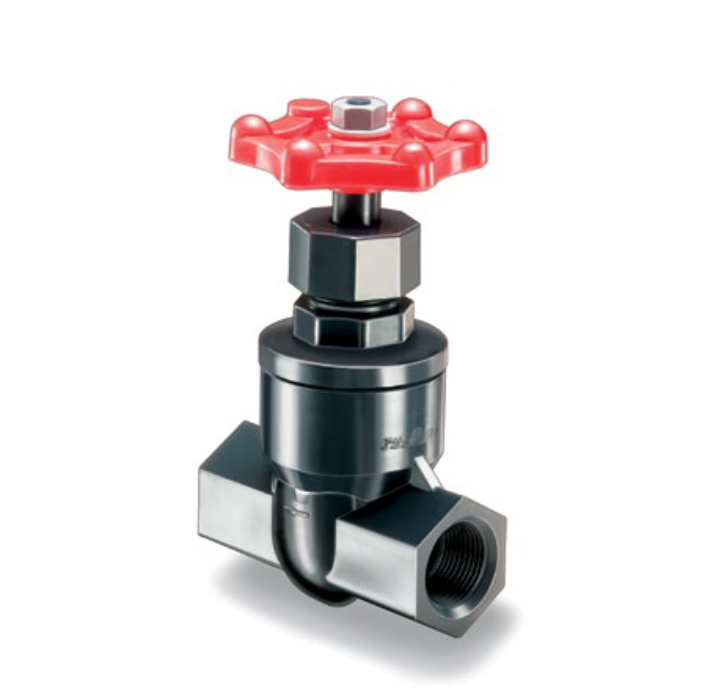

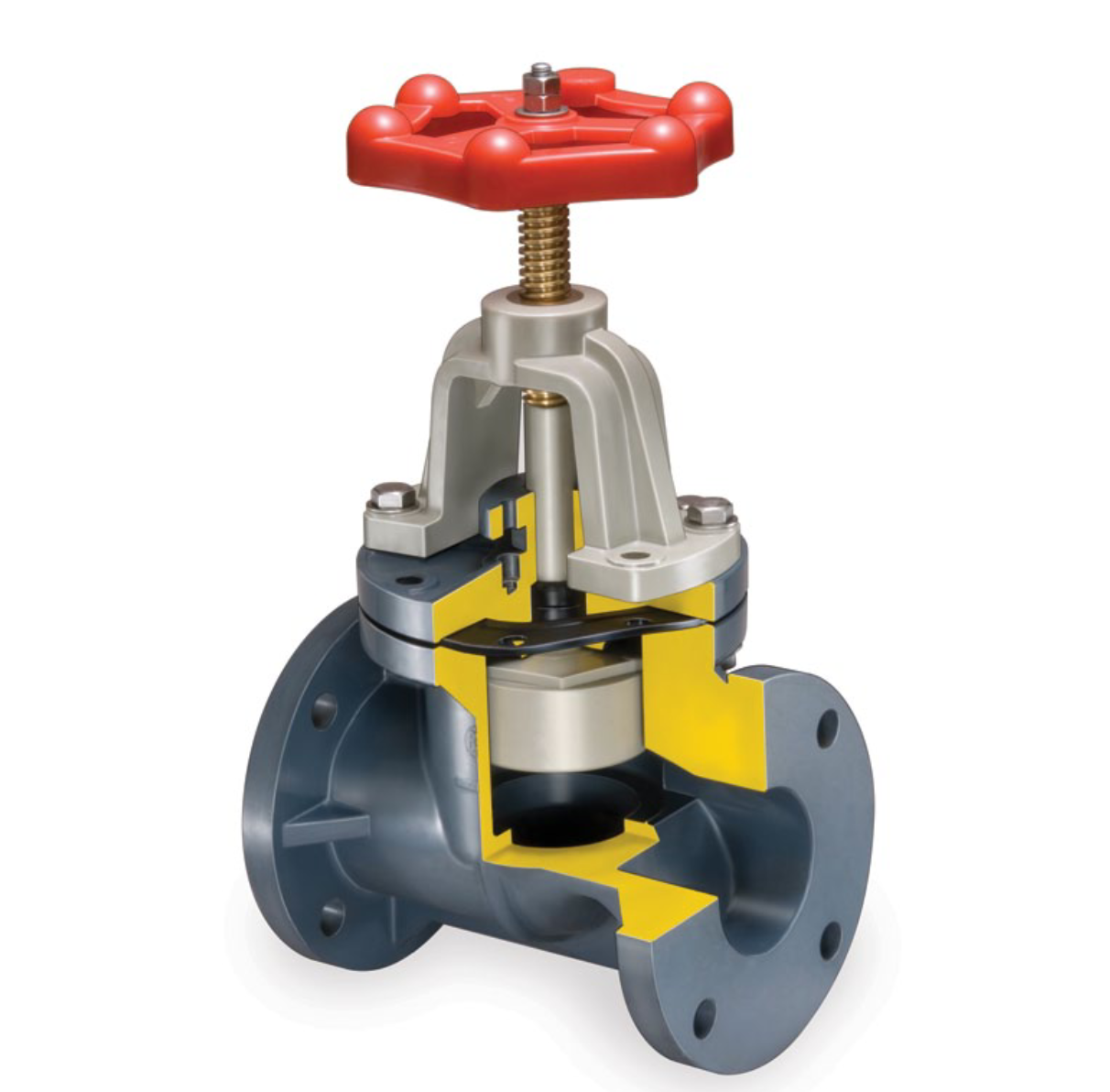

- Series: GV
- Sizes: 1/2″ to 4″
- Ends: Socket, Threaded or Flanged
- Seats/Seals: EPDM or FKM (Viton®)
- Series: GY
- Size Range: 28″ to 40″
- Disc Material: PP (standard), PVC or CPVC
- Seat and O-Rings: EPDM or FKM (Viton®)
- Body Type: Wafer Style
- Series: HD
- Sizes: 1/2″ – 6″
- Ends: Flanged
- Body: PPG or PPSG
- Lining: PFA or PVDF
- Diaphragm: 3-Piece PTFE/TFM/EPDM
- Operation: Manual or Pneumatically Actuated
- Series: HC
- Sizes: 6″ and 8″
- Ends: Socket, Flanged, or Butt
- Seats: PTFE
- Seals: EPDM, or FPM (Viton®)
 |
Technical Datasheet |
- Series: HY
- Sizes: 3″ – 12″
- Type: Split Body, Wafer or Lug
- Body: PPG or PPSG Composite
- Seat: PFA
- Disc: PFA covered SS
- Operation: Manual, Electrically or Pneumatically Actuated
- Series: HB
- Sizes: 1″ & 1-1/2″
- Ends: Flanged
- Body: PPG or PPSG Composite
- Lining: PFA or PVDF
- Stem Seal: PTFE
- Operation: Manual, Electrically or Pneumatically Actuated
- Pressure Range: 7 PSI at 95°C – 340 PSI at 10°C
- Pipe Sizes: 12mm – 1400mm
- SERIES: LA
- SIZES: 1/4”
- ENDS: Male Thread x Female Thread
- SEALS: FKM (Viton®)
- Series: DBF
- Size Range: 12″ – 96″
- Materials: Fiberglass Reinforced Plastic (FRP) Engineered Dampers
- Series: GA
- Sizes: EPDM: 1/2″ to 12″
- PTFE: 1/2″ to 12″
- Class: ANSI 150 Full Face
- Temperature: EPDM: –40 to 90ºC (–40 to 194ºF) PTFE: –40 to 120ºC (–40 to 248ºF)
- Series: NG – Globe Body
- NA – Angle Body
- Sizes: 1/4″, 3/8″, & 1/2″
- Ends: Female NPT
- Seats/Seals: PTFE
- Series: SR50
- Sizes: 3/8″ – 3″
- Instrument Connection: Socket, Threaded or ChemFlare
- Diaphragm: PTFE Bonded EPDM
- Seats/Seals: EPDM, FKM (Viton®)
- Series: PW
- Sizes: 3″- 10″
- Seats/Seals: EPDM, FPM (Viton®)
- Spring: 304 Stainless Steel
- Series: SG
- Inlet Connection: 1/4″ or 1/2″ Threaded
- Instrument Connection: 1/4″ or 1/2″ Threaded
- Diaphragm: PTFE
- SERIES: SL
- SIZES: 1/2” to 2”
- ENDS: Flanged, Socket, Butt2 or Threaded
- SEATS: PTFE
- SEALS: FPM (Viton®) or EPDM
- Series: SM
- Sizes: 1/2″ to 1″
- Ends: Socket, Threaded, Butt or Chemflare
- Seats: PTFE
- Seals: EPDM or FPM (Viton®)
- Series: SP
- Sizes: 1/2″ to 2″
- Ends: Socket, Threaded, Butt, Flanged or ChemFlare™
- Seats: PTFE
- Seals: EPDM or FPM (Viton®)
- Series: SV
- Size: 3/8″ to 3″
- Ends: Spigot, Socket, Threaded or Flanged
- Seals: FPM (Viton®)
- Spring: ECTFE (Halar®) Coated Steel
- Ball/Float: PP
- Series: SW
- Sizes: 3/4″ to 8″1
- Ends: Flanged
- Seats: EPDM or FPM (Viton®)
- Series: Type 14/15/72
- Sizes: Type 14: 1/2″- 4″ Type 15: 5″ – 6″ Type 72: 8″ – 10″
- Ends: Flanged: 1/2″ – 10″
- True Union Socket, Threaded or Butt: 1/2″ – 2″
- ChemFlare: 1/2″ – 1″
- Diaphragms: EPDM, or PTFE
- SERIES: Type 16
- SIZES: 1/2” to 10”
- ENDS: Flanged
- DIAPHRAGMS: EPDM, PTFE1
- Series: Type 21
- Sizes: 3/8″ to 4″
- Ends: Socket, Threaded, Butt, Flanged or ChemFlare™
- Seats: PTFE
- Seals: EPDM or FKM (Viton®)
|
Technical Datasheet |
- Series: Type 23
- Sizes: 1/2″ to 4″
- Ends: Socket, Threaded, Butt, Flanged or ChemFlare™
- Seats: PTFE
- Seals: EPDM or FKM (Viton®)
- SERIES: Type 24
- SIZES: 1/2” to 4”
- ENDS: Socket, Threaded, Flanged or ChemFlareTM
- SEATS: PTFE
- SEALS: EPDM or FKM (Viton®)
- SERIES: Type 25
- SIZES: 1/2” to 2”
- ENDS: Socket, Threaded, Flanged, Butt1 or ChemFlareTM
- SEATS: PTFE
- SEALS: EPDM or FKM (Viton®)
|
Technical Datasheet |
- SERIES: Type 26
- SIZES: 1/2” to 4”
- ENDS: Socket, Threaded, Flanged or ChemFlareTM
- SEATS: PTFE
- SEALS: EPDM or FKM (Viton®)
- Series: Type 27
- Sizes: 3/8″- 2″
- Ends: Socket, or Threaded
- Seats: PTFE
- Seals: EPDM
- Series: Type 33
- Sizes: 3/8″ to 2″
- Ends: Socket, Threaded, Flanged or Butt1
- Seats: PTFE
- Seals: EPDM or FPM (Viton®)
|
Technical Datasheet |
- Series: Type 58
- Sizes: Lever: 1-1/2” to 8”
- Gear: 1-1/2” to 24”
- Body Type: Wafer
- Materials: Body: PP or PVDF1
- Disc: PP (standard), PVC2, CPVC or PVDF
- Seat & o-rings: EPDM, FKM (Viton®)3 or FKM-F
- Series: Type 61
- Sizes: 2-1/2″ to 8″
- Body Type: Wafer
- Materials: Body: PVC or PP
- Disc: PVC (Standard), PP, CPVC, PVDF or ABS
- Shaft: 316 SS or 420B
- Seat & o-rings: EPDM or FKM (Viton®)
