Chemline

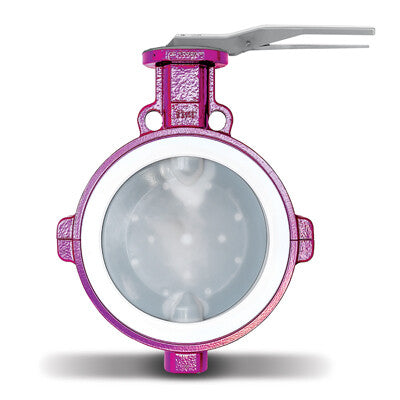

ChemValve Metal Body Fluoropolymer Lined Butterfly Valves
- Series: CST
- Body Styles: Wafer, and Lug Sizes: 1-1/2″- 42″
- Body Material: Epoxy-coated Ductile Iron
- Seat and Shaft Seal: PFA covered 316 SS, PTFE FDA Approved PTFE, UHMPE
- Seat Back-ups: FDA Grade FKM (Viton®), Silicone, EPDM
- Operating Temperature: –40°C to 200°C (–40°F to 395°F)
£0.00
In Stock
Sold out
- Description
- Downloads
Description
Type CST fluoropolymer lined butterfly valves are manufactured by ChemValve-Schmid AG in Switzerland. They feature a fluoropolymer disc covering and seat materials with properties superior to those of standard PTFE. This along with a proven effective stem seal provides these valves with superior performance vs. conventional PTFE lined valves.
✓ Easily Serviceable The “split” body can be disassembled and the seat (liner) or disc/shaft part replaced.
✓ Low Cold Flow More durable and stable when under stress
✓ Smoother Surface Higher abrasion resistance
✓ Zero Leakage rated For sizes up to 24” at 150 psi up to 105°C (220°F)
