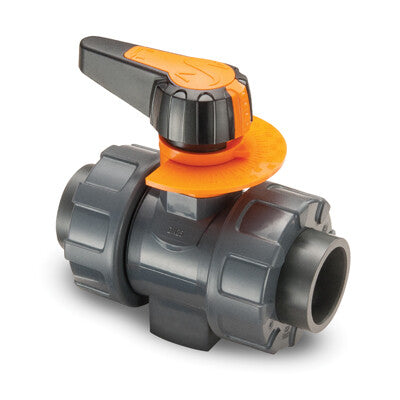

SM Series Metering Ball Valves
- Series: SM
- Sizes: 1/2″ to 1″
- Ends: Socket, Threaded, Butt or Chemflare
- Seats: PTFE
- Seals: EPDM or FPM (Viton®)
- Description
- Downloads
Chemline SM Series Metering Ball Valve is designed for fine linear flow control of chemicals or clean fluids. The ball is solid with graduated V-groove cut on the outside surface. Precise linear flow control is accomplished through 180 degree rotation of the handle. With a positioning electric actuator, this becomes an inexpensive control valve. If higher Cv values are required, refer to SP Series Proportional ball valves.
✓ Precise Linear Flow Control Provided by a special V-groove ball and wide range of handle rotation (0 to 180 Degrees)
✓ High End Ball Valve Features Full Blocking design, Double Stem O-Rings for safety, and 230 psi pressure rated (PVC)
✓ Bidirectional Works with flow in either direction
✓ Low Stem Torques Due to floating ball design and cushioned PTFE seats
