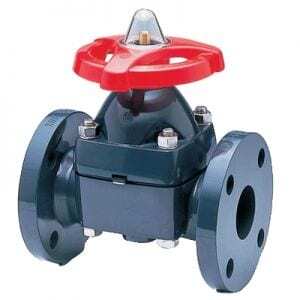

Type 14/15/72 Diaphragm Valves
- Series: Type 14/15/72
- Sizes: Type 14: 1/2″- 4″ Type 15: 5″ – 6″ Type 72: 8″ – 10″
- Ends: Flanged: 1/2″ – 10″

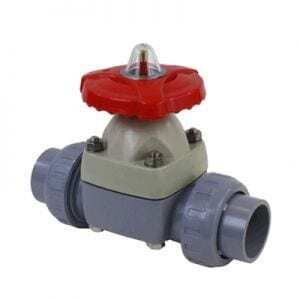

- True Union Socket, Threaded or Butt: 1/2″ – 2″
- ChemFlare: 1/2″ – 1″
- Diaphragms: EPDM, or PTFE
- Description
- Downloads

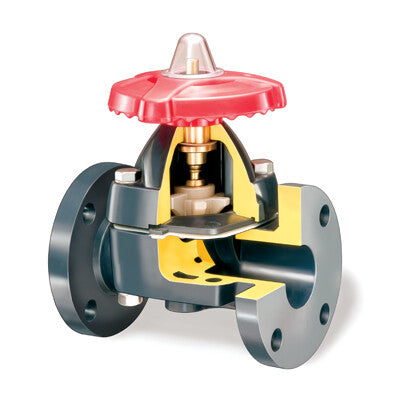

Chemline diaphragm valves have service histories dating back to 1970 operating in tough chemical plant applications. They have proven internal and external corrosion resistance. This is an excellent throttling valve, and is suited for slurries or viscous liquids. Because of the self-draining design with no dead volume, it is good for sanitary and high purity applications.
✓ Excellent Chemical Resistance Large Selection of materials including PVDF bodies and PTFE diaphragms for extremely aggressive services
✓ Externally Corrosion Resistant Any exposed metal parts are 304 SS
✓ High Pressure Resistance Designed with a high safety factor against leakage Tight closing with low hand wheel torque Highest pressure vs. temperature ratings of all plastic valve types
✓ Designed for Long Diaphragm Life Standard travel stop prevents over-tightening and excessive stress on diaphragm
