Hybrid PFA or PVDF Lined Composite Ball Valves

Hybrid PFA or PVDF Lined Composite Ball Valves

  • Series: HB
  • Sizes: 1″ & 1-1/2″
  • Ends: Flanged
  • Body: PPG or PPSG Composite
  • Lining: PFA or PVDF
  • Stem Seal: PTFE
  • Operation: Manual, Electrically or Pneumatically Actuated
£0.00 In Stock Sold out

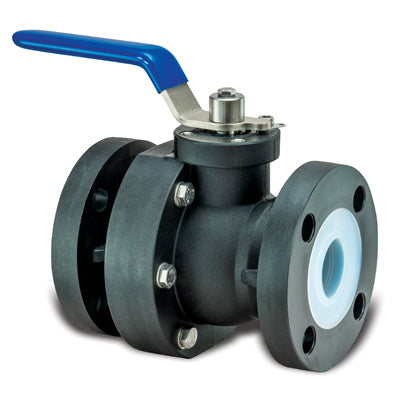

The Chemline HB Series HYBRID ball valve is a composite valve with internal steel reinforcement, fully lined with PFA or PVDF. These full port valves are perfect for composite, alloy or lined steel piping. The plastic/metal hybrid construction offers the chemical resistance and toughness of plastic along with the strength of metal.

✓ High Working Temperatures PPG valves maximum 266ºF (130ºC) PPSG valves maximum 320ºF (160ºC)

✓ 150 psi Pressure Rated See pressure/temperature graph

✓ Corrosion Resistant Inside and Out All inside wetted parts are fluoropolymer Valve exterior is composite

✓ For Composite Alloy and Lined Steel Piping Light enough for composite piping systems Strong enough for alloy or lined steel piping

✓ Easily Serviceable Two piece design Easy disassembly to replace parts

✓ Easy to Actuate Valve top flange and shaft dimensions are to ISO 5211 dimensions Electric or pneumatic actuator may be direct mounted without brackets and couplings
