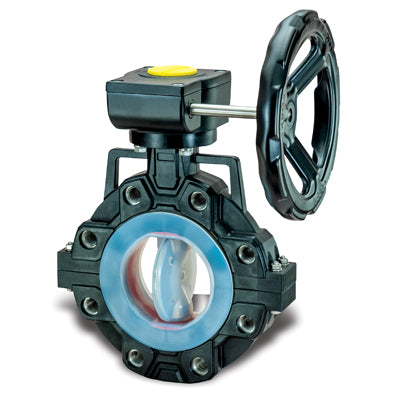

Hybrid PFA Lined Composite Butterfly Valves
- Series: HY
- Sizes: 3″ – 12″
- Type: Split Body, Wafer or Lug
- Body: PPG or PPSG Composite
- Seat: PFA
- Disc: PFA covered SS
- Operation: Manual, Electrically or Pneumatically Actuated
- Description
- Downloads
The Chemline HY Series HYBRID butterfly valve is a composite valve with a steel core fully lined with PFA. These valves have bubble tight shut off and are used for flow modulation. Chemical resistance of PFA opens this valve to the most aggressive chemical process applications. They are perfect for composite (fibreglass), alloy or lined steel piping. The plastic/metal hybrid construction offers the chemical resistance and toughness of plastic along with the strength of metal.
✓ High Working Temperatures PPG valves maximum 266ºF (130ºC), PPSG valves maximum 320ºF (160ºC)
✓ 150 psi Pressure Rated
✓ Corrosion Resistant Inside and Out All inside wetted parts are fluoropolymer, Valve exterior is composite
✓ Easy to Actuate Valve top flange and shaft dimensions are to ISO 5211 dimensions, Electric or pneumatic actuator may be direct mounted without brackets and couplings
