HELS

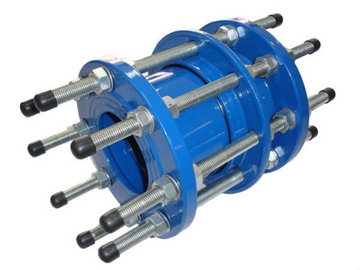

Dismantling Joint

Dismantling Joint

Material Structure: Body Pipe: GGG 40-50
Stud and Nut: Steel Galvanized
Connection: Flanged
Operating Temperature: - from 10 ° C to + 80 ° C
Pressure Class: PN10 / PN16
Sealing Ring: EPDM
Nominal Diameter: DN100 (4 ”) - DN2000 (80”)

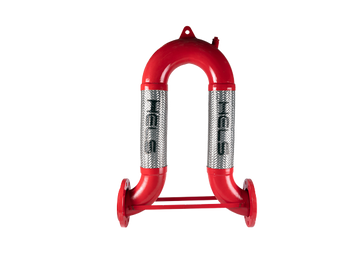

H-F551 Omega U Flex (Flanged)

H-F551 Omega U Flex (Flanged)

Hose: Stainless Steel
Braiding: Stainless Steel Connection: Flanged
Connection Material: Carbon Steel (Stainless Steel is Also Available)
Elbow Material: Carbon Steel (Stainless Steel is Also Available)
Pressure: PN6-10-16

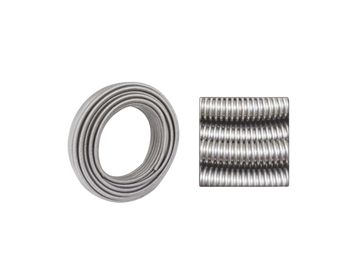

HF-10 Hoses in Coil Without Braiding

HF-10 Hoses in Coil Without Braiding

Hose: Stainless Steel (AISI 316,321,304)
Braid: Stainless Steel (AISI 304)
Working Temperature: -196,+600
Diameter: From DN10 to DN300

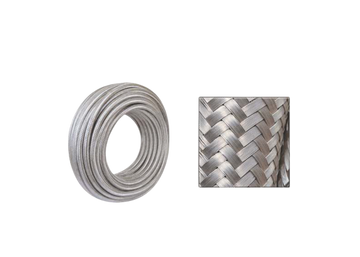

HF-15 Hoses in Coil with Braiding

HF-15 Hoses in Coil with Braiding

Hose: Stainless Steel (AISI 316,321,304)
Braid: Stainless Steel (AISI 304)
Working Temperature: -196,+600
Diameter: From DN10 to DN300

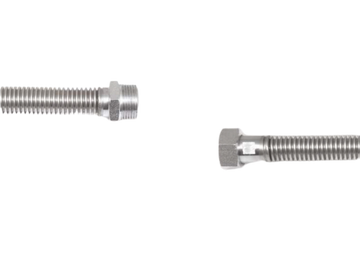

HF-25 Flexible Metal Hose Without Braiding

HF-25 Flexible Metal Hose Without Braiding

Hose: Stainless Steel
Fittings: Carbon Steel, Stainless Steel, Brass
Pressure: From 0,2 Bar to 50 Bar
Diameter: From DN12 to DN300

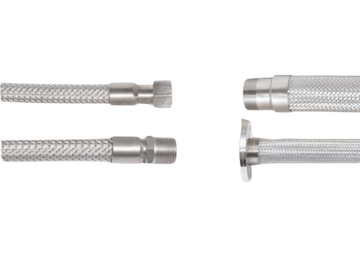

HF-30 Flexible Metal Hoses with Braiding

HF-30 Flexible Metal Hoses with Braiding

Hose: Stainless Steel
Fittings: Carbon Steel, Stainless Steel, Brass
Pressure: From 5 Bar to 200 Bar
Diameter: From DN10 to DN300

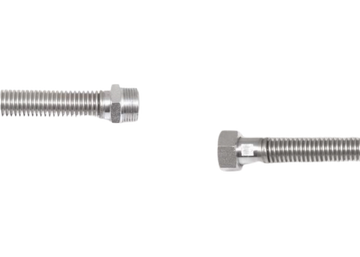

HF-351 Fan Coil Hose (Without Braiding - Without Insulation)

HF-351 Fan Coil Hose (Without Braiding - Without Insulation)

Hose: Stainless Steel
Fittings: Carbon Steel, Stainless Steel, Brass
Connection: MalexFemale, MalexMale, FemalexFemale

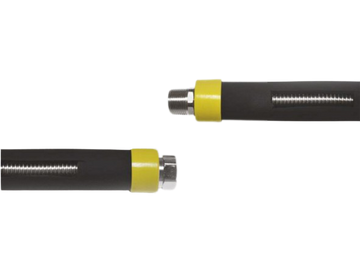

HF-352 Fan Coil Hose (Without Braiding - With Insulation)

HF-352 Fan Coil Hose (Without Braiding - With Insulation)

Hose: Stainless Steel
Fittings: Carbon Steel, Stainless Steel, Brass
Insulation: Elastomeric Foam
Connection: Malexfemale, Malexmale, Femalexfemale

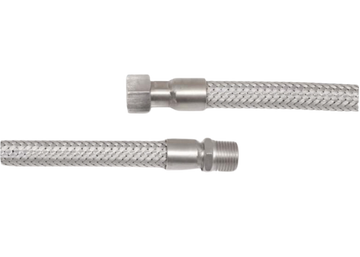

HF-355 Fan Coil Hose (With Braiding – Without Insulation)

HF-355 Fan Coil Hose (With Braiding – Without Insulation)

Hose: Stainless Steel
Braiding: Stainless Steel
Fittings: Carbon Steel, Stainless Steel, Brass
Connection: Malexfemale, Malexmale, Femalexfemale

HF-356 Fan Coil Hose (With Braiding – With Insulation)

HF-356 Fan Coil Hose (With Braiding – With Insulation)

Hose: Stainless Steel
Braiding: Stainless Steel
Fittings: Carbon Steel, Stainless Steel,
Brass Insulation: Elastomeric
Foam Connection: Malexfemale, Malexmale, Femalexfemale

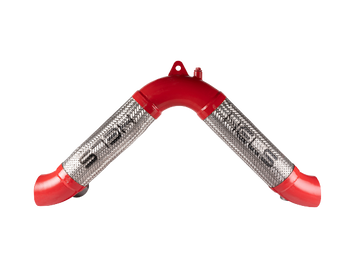

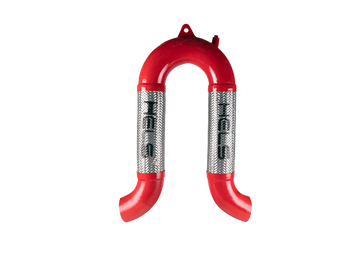

HF-5512 Omega U Flex Butt Welded)

HF-5512 Omega U Flex Butt Welded)

Hose: Stainless Steel
Braiding: Stainless Steel
Connection: Butt Welded Connection Material: Carbon Steel (Stainless Steel is Also Available)
Elbow Material: Carbon Steel (Stainless Steel is Also Available)
Pressure: PN6-10-16

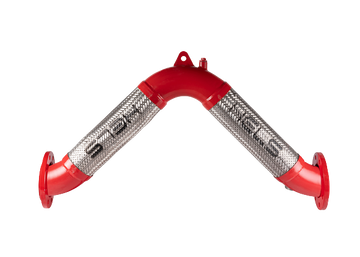

HF-5521 Omega V Flex (Flanged)

HF-5521 Omega V Flex (Flanged)

Hose: Stainless Steel
Braiding: Stainless Steel
Connection: Flanged
Connection Material: Carbon Steel (Stainless Steel is Also Avaliable)
Pressure: PN6-10-16

HF-5522 Omega V Flex (Butt Welded)

HF-5522 Omega V Flex (Butt Welded)

Hose: Stainless Steel
Braiding: Stainless Steel
Connection: Butt Welded
Connection Material: Carbon Steel (Stainless Steel is Also Available)
Pressure: PN6-10-16

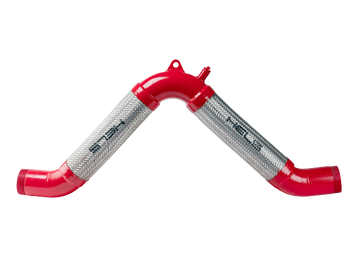

HF-5523 Omega V Flex (Grooved)

HF-5523 Omega V Flex (Grooved)

Hose: Stainless Steel
Braiding: Stainless Steel Connection: Grooved
Connection Material: Carbon Steel (Stainless Steel is Also Available)
Elbow Material: Carbon Steel (Stainless Steel is Also Available)
Pressure: PN6-10-16

HLS DBB External Pressurized Expansion Joint Butt Welded

HLS DBB External Pressurized Expansion Joint Butt Welded

Bellow: Aisi 304/321
Inner and Outer: St37,2
Butt Weld: St37,2
Connection: Butt Weld X Butt Weld
Pressure: PN16
Temperature: -80/+427oc

HLS DBF External Pressurized Expansion Joint - Flanged

HLS DBF External Pressurized Expansion Joint - Flanged

Bellow: Aisi 304/321
Inner and Outer Pipe: St37,2
Flange: St37,2
Connection: Floating Flange X Fixed Flange
Pressure: PN16
Temperature: -80/+427oc

HLS KMB FM Approved Gimbal Expansion Joint Butt Welded

HLS KMB FM Approved Gimbal Expansion Joint Butt Welded

Bellow: Aisi 304/321
Intermediate Pipe: St37,2
Gimbal: St37,2
Connection: Butt Weld X Butt Weld
Pressure: PN16
Temperature: -80/+427oc

HLS KMB Gimbal Expansion Joint Butt Welded

HLS KMB Gimbal Expansion Joint Butt Welded

Bellow: Aisi 304/321
Intermediate Pipe: St37,2
Gimbal: St37,2
Connection: Butt Weld X Butt Weld
Pressure: PN16
Temperature: -80/+427oc

HLS KMF FM Approved Gimbal Expansion Joint Flanged

HLS KMF FM Approved Gimbal Expansion Joint Flanged

Bellow: Aisi 304/321
Intermediate Pipe: St37,2
Flange : St37,2
Gimbal: St37,2
Connection: Floating Flange X Fixed Flange
Pressure: PN16
Temperature: -80/+427oc

HLS KMF Gimbal Expansion Joint Flanged

HLS KMF Gimbal Expansion Joint Flanged

Bellow: Aisi 304/321
Intermediate Pipe: St37,2
Flange: St37,2
Gimbal: St37,2
Connection: Floating Flange X Fixed Flange
Pressure: PN16
Temperature: -80/+427OC

HLS KMY FM Approved Gimbal Expansion Joint Grooved

HLS KMY FM Approved Gimbal Expansion Joint Grooved

Bellow: Aisi 304/321
Grooved End & Intermediate Pipe: St37,2
Gimbal: St37,2
Connection:Grooved Ends
Pressure: PN16
Temperature: -80/+427oc

HLS KMY Gimbal Expansion Joint (Grooved)

HLS KMY Gimbal Expansion Joint (Grooved)

Bellow: Aisi 304/321
Groooved end & Intermediate Pipe: St37,2
Gimbal: St37,2
Connection: Grooved Ends
Pressure: PN16
Temperature: -80/+427oc

HLS LRB Universal Tied Expansion Joint Butt Welded

HLS LRB Universal Tied Expansion Joint Butt Welded

Bellow: Aisi 304/321
Tie-Rod: St37,2
Flange: St37,2
Intermediate Pipe: St37,2
Connection: Butt Weld X Butt Weld
Axial Movement: Dn25-dn50 -15/+15mm ; D65-dn300 -30/+30mm
Lateral Movement: -25/+25mm; -50/+50mm; -75/+75mm; -100/+100mm
Pressure: PN16
Temperature: -80/+427OC

HLS LRF Universal Tied Expansion Joint Flanged

HLS LRF Universal Tied Expansion Joint Flanged

Bellow: Aisi 304/321 Tie-Rod: St37,2
Flange: St37,2
Intermediate Pipe: St37,2
Connection: Floating Flange x Floating Flange
Axial Movement: DN25-DN50 -15/+15mm ; D65-DN300 -30/+30mm
Lateral Movement: -25/+25mm; -50/+50mm; -75/+75mm; -100/+100mm
Pressure: PN16
Temperature: -80/+427OC

HLS LRTY Flexible Connector For Pump Connections

HLS LRTY Flexible Connector For Pump Connections

Metallic Expansion Joint - Tie Rods - Vibration Absorber
Bellow: Aisi 304/321
Tie-rod: St37,2
Flange: St37,2
Connection: Floating Flange X Floating Flange
Pressure: Pn16
Temperature: -80/+427oc

HLS LRY Universal Tied Expansion Joint Grooved

HLS LRY Universal Tied Expansion Joint Grooved

Bellow: Aisi 304/321
Tie-Rod: St37,2 Flange: St37,2
Intermediate Pipe: St37,2
Connection: Butt Weld X Butt Weld
Axial Movement: Dn25-dn50 -15/+15mm ; D65-dn300 -30/+30mm
Lateral Movement: -25/+25mm; -50/+50mm; -75/+75mm; -100/+100mm
Pressure: PN16
Temperature: -80/+427OC

HLS MKD Axial Expansion Joint - Floating Flanged

HLS MKD Axial Expansion Joint - Floating Flanged

Bellow: Aisi 304/321
Flange: St37,2
Inner Sleeve: Aisi 304/321
Connection: Floating Flange x Floating Flange
Pressure: PN16
Temperature: -80/+427oc

HLS MKS Axial Expansion Joint - Fixed Flanged

HLS MKS Axial Expansion Joint - Fixed Flanged

Bellow: Aisi 321
Inner Sleeve: Aisi 321 Flange : ST37,2
Connection: Fixed Flange X Fixed Flange
Pressure: PN16
Temperature: -80/+427oc

Metallic Axial Expansion Joint Butt Welded

Metallic Axial Expansion Joint Butt Welded

Bellow: Aisi 304/321
Butt Weld: St37,2
Inner Sleeve: Aisi 304/321
Connection: Butt Weld X Butt Weld
Pressure: PN16
Temperature: -80/+427oc

Omega U Flex (Grooved)

Omega U Flex (Grooved)

Hose: Stainless Steel
Braiding: Stainless Steel
Connection: Grooved
Connection Material: Carbon Steel (Stainless Steel is Also Available)
Elbow Material: Carbon Steel (Stainless Steel is Also Available)
Pressure: PN6-10-16

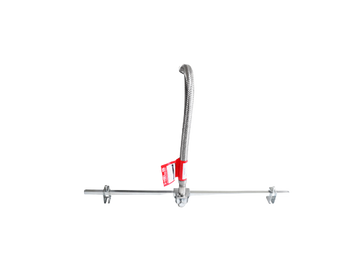

Sprinkler Hoses and Connection Set

Sprinkler Hoses and Connection Set

Hose: Stainless Steel
Braiding: Stainless Steel
Fittings: Carbon Steel
Size: DN 20 (3/4")-dn 25 (1")
Line Connection: 1" Nipple
Sprink Connection: 1/2" ,3/4"
Connection: 16 Bar
Min.radius: 200 Mm
Hose Size: From 500mm to 2000mm
