ATEX Flow


ur1_ur2_g_a_inline_paddle_flow_switch ur1_ur2_g_a_inline_paddle_flow_switch_dwg
ATEX

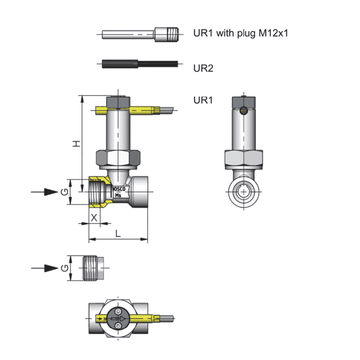

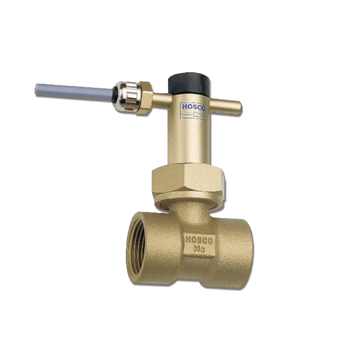

UR1 - UR2 - G-A Paddle Flow Switch
  • Nominal pipe sizes 10-50 mm
  • 1.3 - 35 l/min switching range
  • 3/8” - 2” BSP threaded connections
  • Low pressure loss
  • Brass stainless steel or plastic option
  • ATEX option available
hd2k_inline_piston_flow_switch hd2k_dwg
Honsberg
HD1K - HD2K Flow Switch
  • Nominal pipe sizes 8-25 mm
  • 0.1 - 80 l/min switching range
  • 1/4” - 1” BSP threaded connections
  • Pressure 200 bar (500 bar option)
  • Brass or stainless steel option
  • Viscosity compensated version(HD2K)
vm_e_paddle_flow_switch vm_e_dwg
HONSBERG
VM..E Paddle Flow Switch
  • 40 to 200mm nominal width
  • 40 to 1050 l/min switching range
  • -20-+90 °C (-20-+200 °C option VMX)
  • Flange process connection DIN 2527
  • Precise stepless adjustment
  • ATEX option available
ur1_ur2_v_paddle_flow_switch ur1_v_paddle_flow_switch_dwg
HONSBERG
UR1-UR2..VPaddle Flow Switch
  • Nominal pipe sizes up to 80mm
  • 5-174 l/min switching range
  • Brass / Stainless Steel / Plastic Welded
  • 1/2″ BSP connection
  • Low Pressure Loss
  • ATEX option
hr1mv_inline_flow_switch hr1mv_inline_flow_switch_dwg
Honsberg
HR1MV Flow Switch
  • For 32-50 mm pipe size
  • 2-220 l/min switching range
  • 1 1/4” - 2” threaded connections
  • Brass or stainless steel option
  • Pressure up to 200 bar
  • Viscosity stabilised
hd2f_inline_piston_flow_switch hd2f_inline_piston_flow_switch_dwg
Honsberg
HD1F - HD2F Flow Switch
  • Nominal pipe sizes 8-25 mm
  • 0.1 - 80 l/min switching range
  • 1/4” - 1” BSP threaded connections
  • Optionally side or top displays
  • Brass or stainless steel option
  • Viscosity compensated version(HD2F)
vd_gr_gk_inline_flow_switch vd_gr_gk_inline_flow_switch_dwg
HONSBERG
VD GR-GK Flow Switch
  • Nominal pipe sizes 8mm to 80 mm
  • 1 - 600 l/min switching ranges
  • 1/4” -3” BSP threaded connections
  • Medium Temperature -20 °C to 120 °C
  • 720 l/min max flow
  • ATEX option available
vd_ft_inline_flow_switch vd_ft_inline_flow_switch_dwg
ATEX

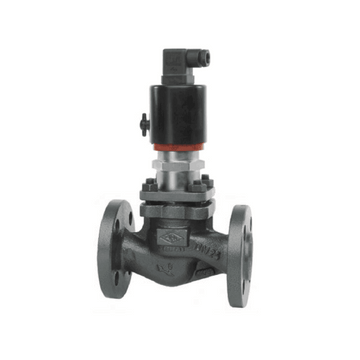

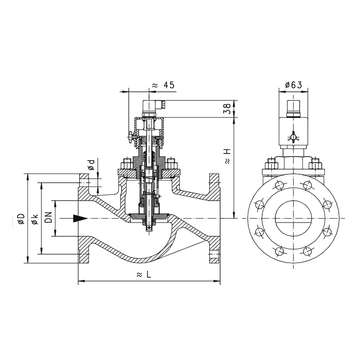

VD FT Flow Switch
  • Nominal pipe sizes 15mm to 100 mm
  • 2 - 1600 l/min switching ranges
  • Flanged process connections
  • Medium Temperature -20 °C to 120 °C
  • Up to 8000 l/min max flow
  • ATEX option available
mp_multipulse_positive_displacement_flow_meter mp_multipulse_positive_displacement_flow_meter_dwg
TRIMEC

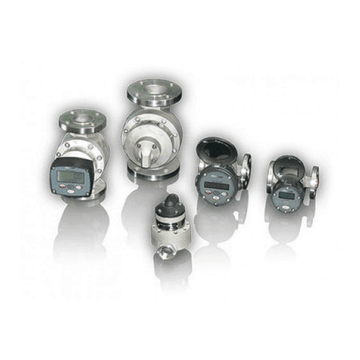

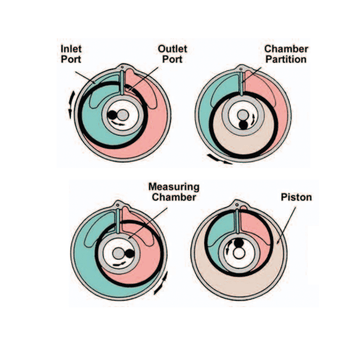

MP Multipulse Flowmeter
  • Nominal sizes of 15mm to 50mm
  • 0.2 - 330 l/min flow ranges
  • Aluminium, 316 stainless or UPVC
  • -40 to 100 °C temperature ranges
  • Quadrature pulse output option
  • Ideal for visocus fluids
