ATEX

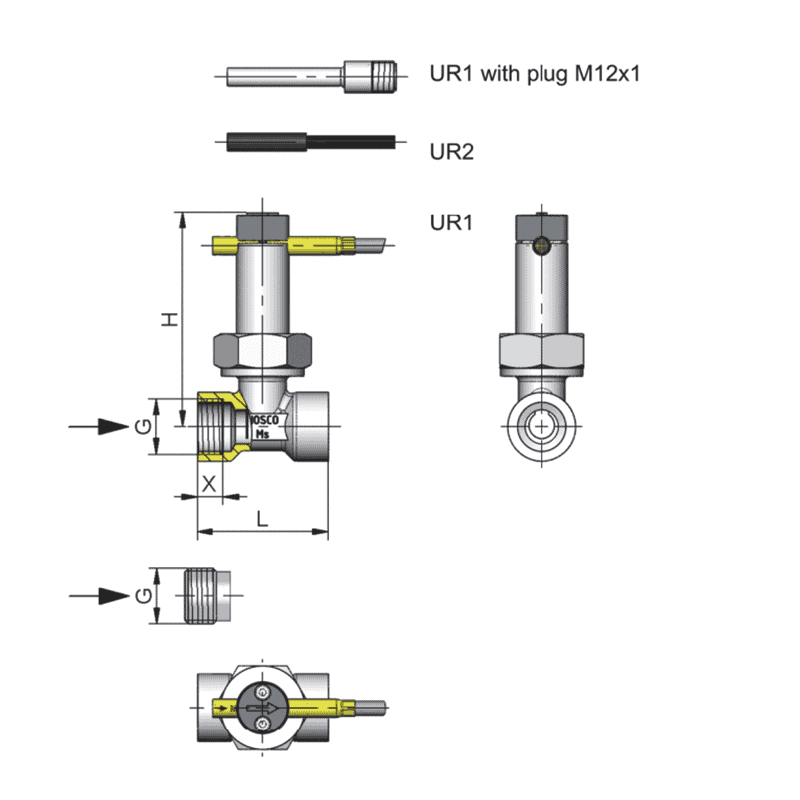

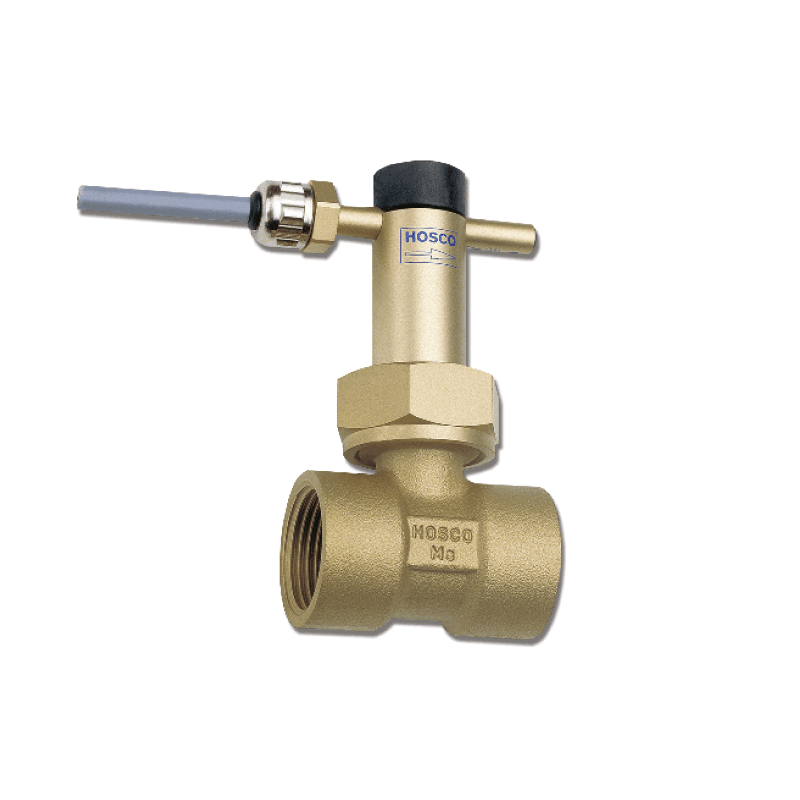

UR1 - UR2 - G-A Paddle Flow Switch

  • Nominal pipe sizes 10-50 mm
  • 1.3 - 35 l/min switching range
  • 3/8” - 2” BSP threaded connections
  • Low pressure loss
  • Brass stainless steel or plastic option
  • ATEX option available
£0.00 In Stock Sold out

The ATEX UR1 - UR2 - G-A Paddle Flow Switch offers a robust and versatile solution for reliable flow monitoring in a wide range of industrial applications. Designed for nominal pipe sizes from 10 mm to 50 mm with BSP threaded connections from 3/8" to 2", this paddle flow switch ensures accurate performance with a switching range of 1.3 to 35 l/min.

Engineered for efficiency, it delivers low pressure loss and is available in brass, stainless steel, or plastic body options to suit various environments and media types. The switch is suitable for media temperatures from -20°C to +110°C, with an extended high-temperature option up to 150°C for demanding applications.

A key feature is its user-adjustable reed switch, offering flexibility in system integration and control. The ATEX-certified switch-head option ensures safe operation in hazardous or explosive atmospheres, making it ideal for petrochemical, process, and industrial sectors.

With its compact design, material versatility, and ATEX compliance, the UR1 - UR2 - G-A Paddle Flow Switch is a reliable choice for professionals seeking precision, safety, and durability in flow monitoring.
