VD FT Flow Switch

  • Nominal pipe sizes 15mm to 100 mm
  • 2 - 1600 l/min switching ranges
  • Flanged process connections
  • Medium Temperature -20 °C to 120 °C
  • Up to 8000 l/min max flow
  • ATEX option available
£0.00 In Stock Sold out

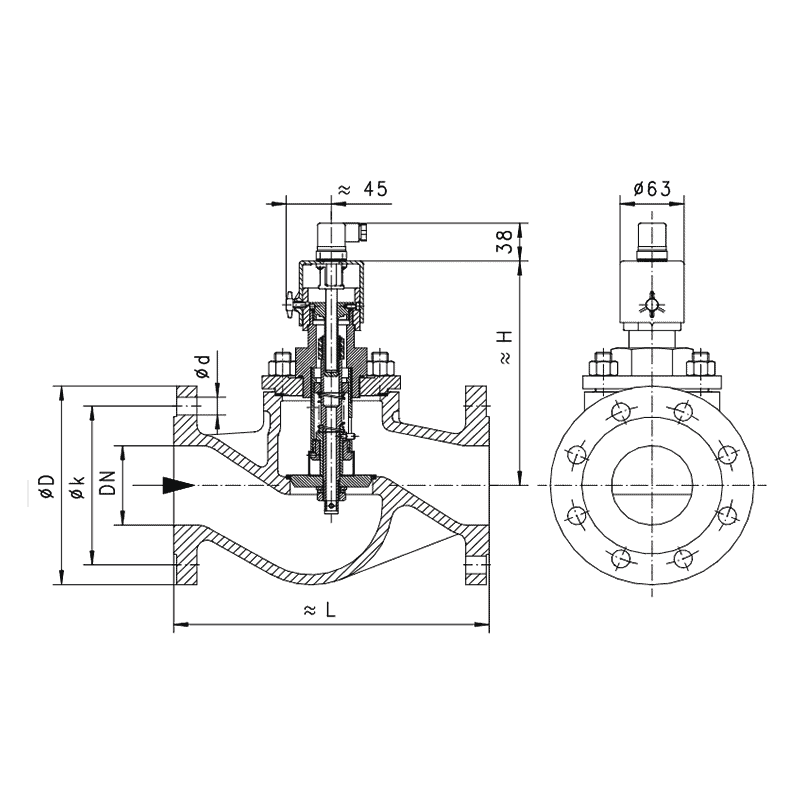

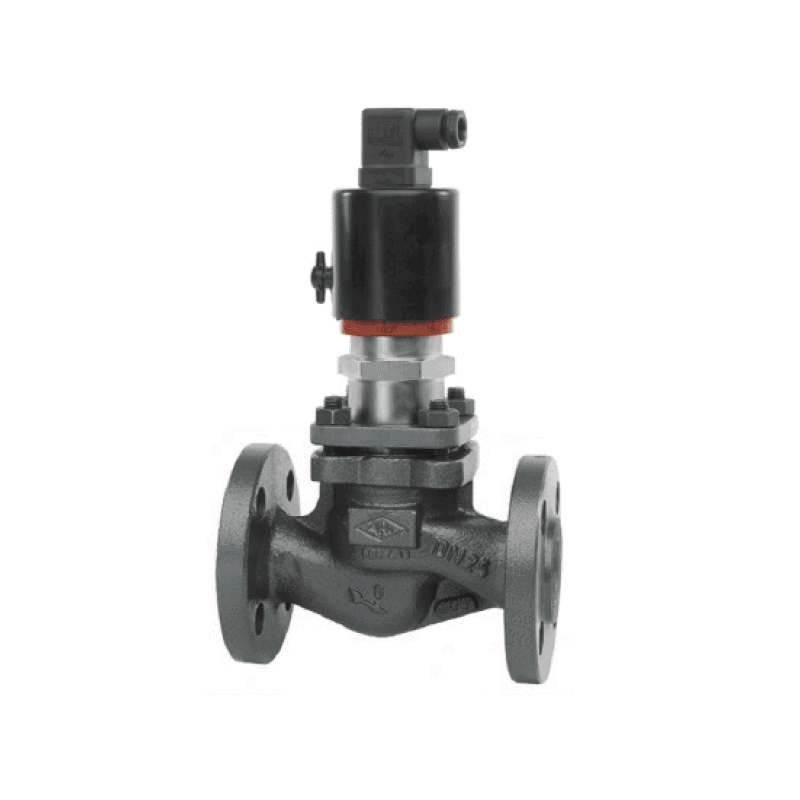

The Novafix VD-FT Flow Switch is a robust, piston/valve-style mechanical flow switch designed for precise monitoring of liquid or gas flow in industrial systems. Housed in a rugged cast steel DIN flange body (DN 15–300), it operates with contactless reed switch activation for long service life and reliability.

With an adjustable flow range from 2 to 1600 l/min, the switch delivers excellent repeatability and resistance to contamination, making it ideal for water, oil, air, and gas applications. It supports media temperatures up to 120°C, with minimal pressure loss (0.5 bar at Qmax).

The unit offers clear scale-based adjustability, IP44 protection, and simple DIN 43650-A plug connection. Internal components like the POM piston, stainless steel spring, and brass body ensure durability and chemical resistance. A perfect fit for demanding environments needing precise, adjustable flow control with high mechanical integrity.
